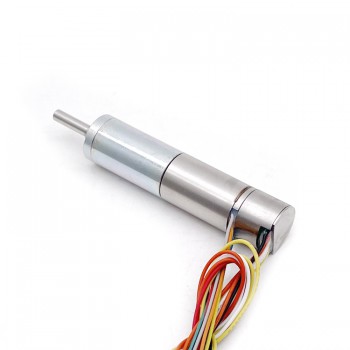

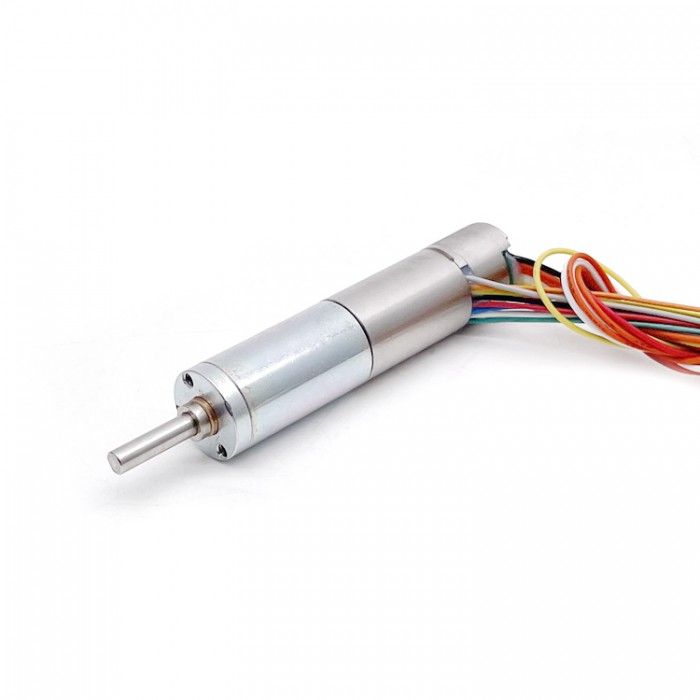

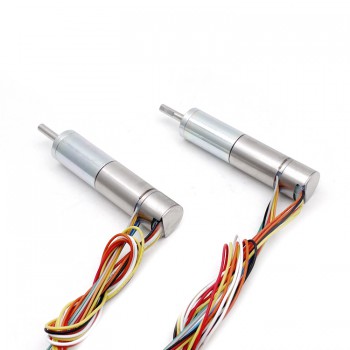

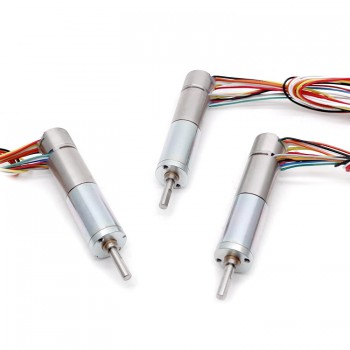

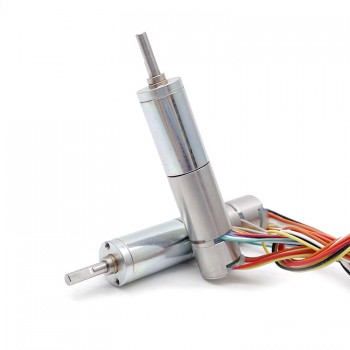

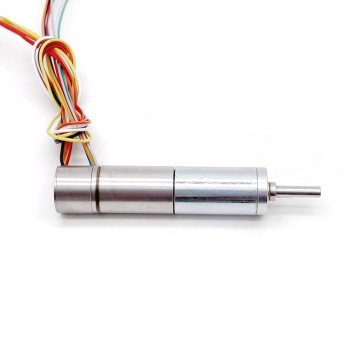

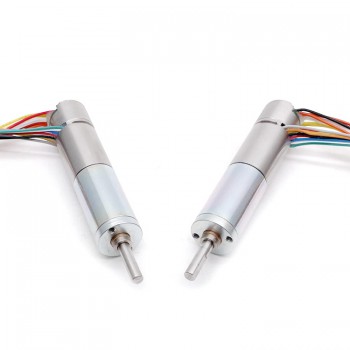

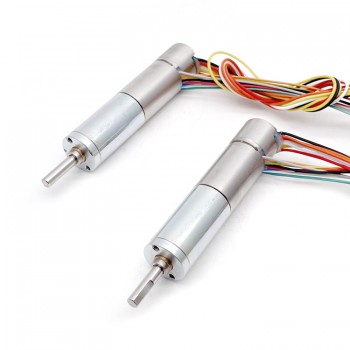

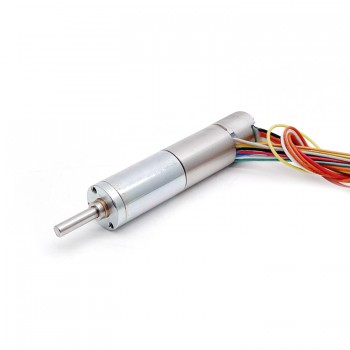

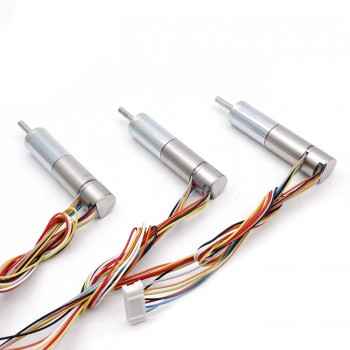

2Pcs 6V 12V Coreless Brushless Motor DC Brushless Gear Motor Planetary Gear 12mm

2Pcs 6V 12V Coreless Brushless Motor DC Brushless Gear Motor Planetary Gear 12mm
NO.:GMP12-TBC1220
Post a review
Our Price:$73.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $70.28 5%
10 $68.80 7%
50 $66.58 10%
100 $62.88 15%
Add To Cart



Features:
Advantages of TBC series dc coreless brushless motors;
1. The characteristic curve is flat, and it can operate normally at all speeds under load rating conditions.
2. Due to the usage of a permanent magnet rotor, the power density is high while the volume is modest.
3. Low inertia and improved dynamic qualities
4. Grade, no special starting circuit
A controller is always required to keep the motor going. You may also use this controller to control the speed.
6. The frequency of stator and rotor magnetic fields is equivalent;

Reduction ratio:4/16/64/256/1024/4096
1 stages: 4:1
2 stages: 16:1
3 stages: 64:1
4 stages: 256:1
5 stages: 1024:1
6 stages: 4096:1

Application:
Boat, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME.

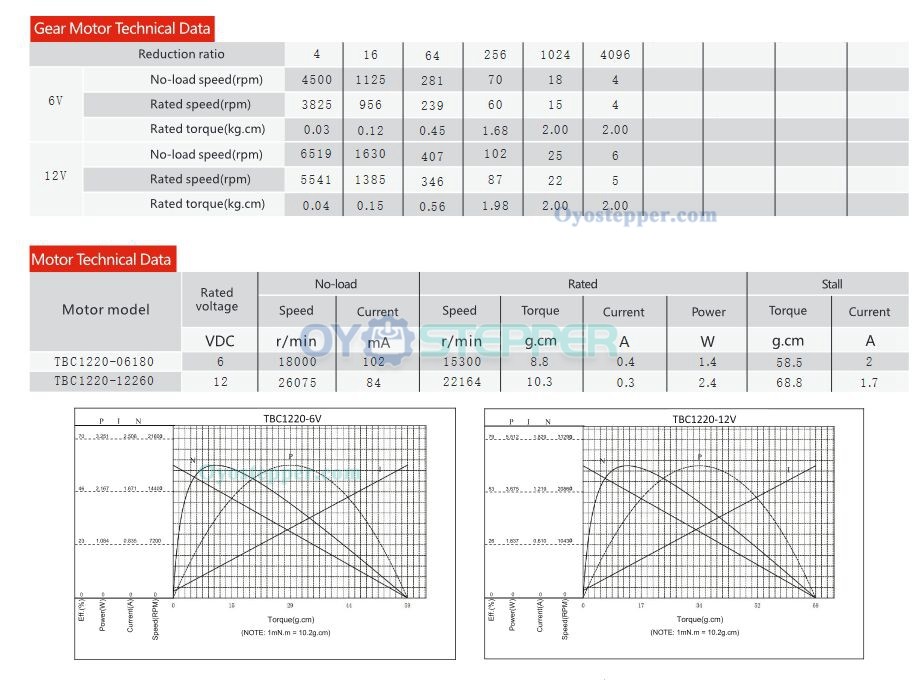

Electrical Specification:
Part Number:GMP12-TBC1220
Rated Voltage:6V/12VDC
Rated Torque:2.0Kg.cm max
Max momentary tolerance torque: 4.0kg.cm
Rated current:400mA(6V)/300mA(12V)
No Load Speed W/O Gearbox: 18000RPM(6V)/26000RPM(12V)
Rated Speed W/O Gearbox: 15300RPM(6V)/22100RPM(12V)
No Load Speed W Gearbox: 4-6500 RPM
Rated Speed W/ Gearbox:5-5540 RPM
Rated Power:1.4W(6V)/2.4W(12V)
Gear type:Planetary gearbox
Type:DC Coreless Brushless Motors
Noise:30cm.40-50db
Efficiency:LE 4
Encoder:1-1024ppr

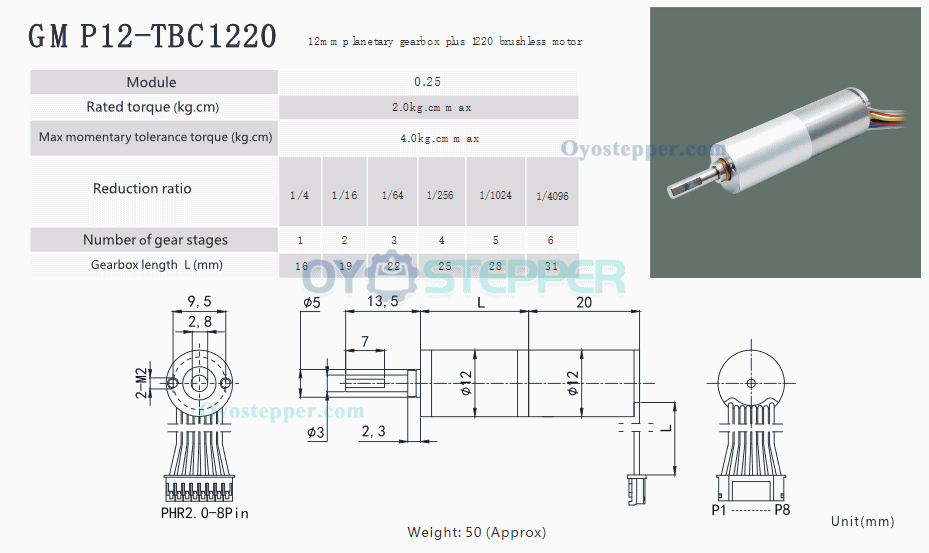

Physical Specification:
Motor Size:Φ12.0mm*20.0mm
Motor Diameter: 12.0mm
Gearbox Diameter:Φ12
Gearbox Length:16mm/19mm/22mm/25mm/28mm/31mm
Length:20mm+Planetary gearbox
Shaft Type:D-cut
D-cut Diameter:2.8mm
D-cut Length:7mm
Shaft Diameter:3mm
Shaft Length:11.2mm
Weight:50g;

2Pcs 6V 12V Coreless Brushless Motor DC Brushless Gear Motor Planetary Gear 12mm

2Pcs 6V 12V Coreless Brushless Motor DC Brushless Gear Motor Planetary Gear 12mm

Resources

GMP12-TBC1220.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 3.7V Micro Coreless Brushed DC Planetary Geared Motor 0.25A 0.12kg.cm 1.5W 12mm
Next: 2Pcs 12V 24V Coreless Brushless Motor Planetary DC Gear Motor 3kg.cm 9~2700RPM
Electrical Specification
Rated Voltage(V) 6 / 12
Rated Current (A) 0.4 / 0.3
Rated Power(W) 1.4 / 2.4
Rated Torque(kg.cm) 2
Rated Speed(rpm) 5-5540
Physical Specification
Shaft Diameter(mm) 3
Frame Size(mm) Φ12
Shaft Length(mm) 11.2
Weight(g) 50
Gearbox Type Planetary gearbox
Body Length(mm) 20+gearbox
Gearbox Length(mm) 16 / 19 / 22 / 25 / 28 / 31
Gear Ratio 4:1 / 16:1 / 64:1 / 256:1 / 1024:1 / 4096:1
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Product Type Coreless Brushless Motor
