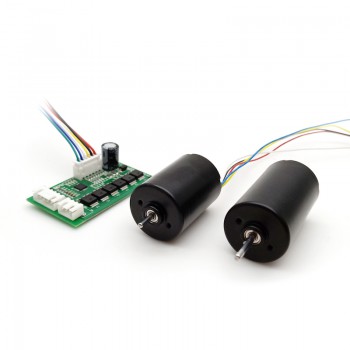

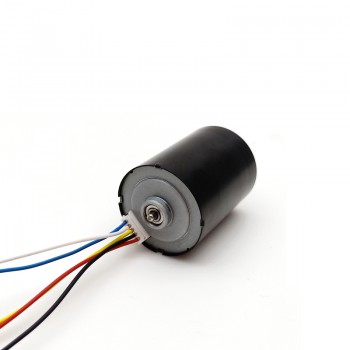

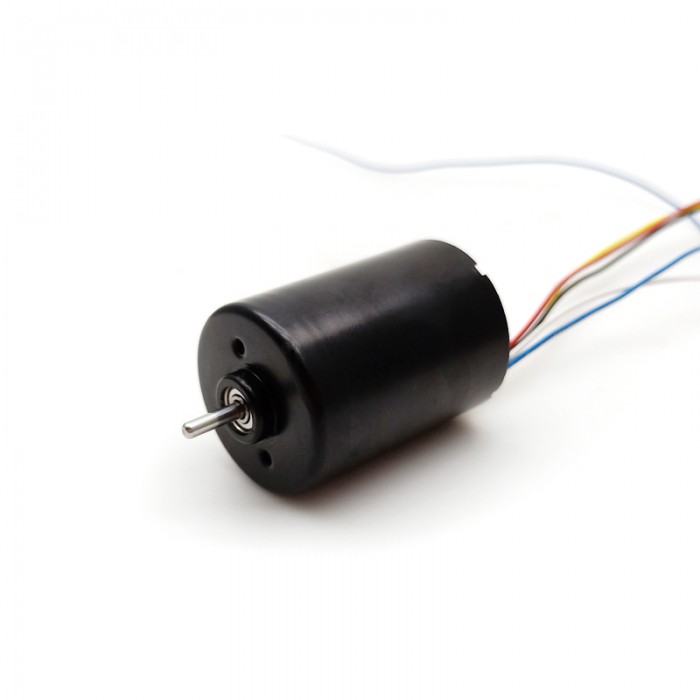

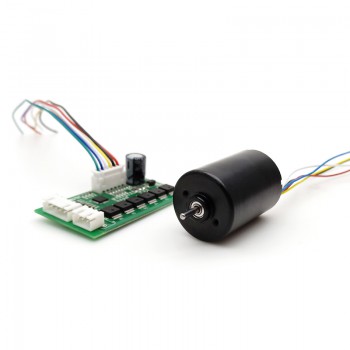

12V 24V BLDC Motor High Speed Brushless DC Motors 100g.cm 5000RPM 28mm*38mm
Special Offer in May 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till May 10th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$12.99
Videos
Application:
Robot,lock. Auto shutter, USB fan,Slot machine,Money detector
Coin refund devices,Currency count machine,Towel dispensers
Automatic doors,Peritoneal machine,Automatic TV rack,
Office equipment ,Household appliances,etc.

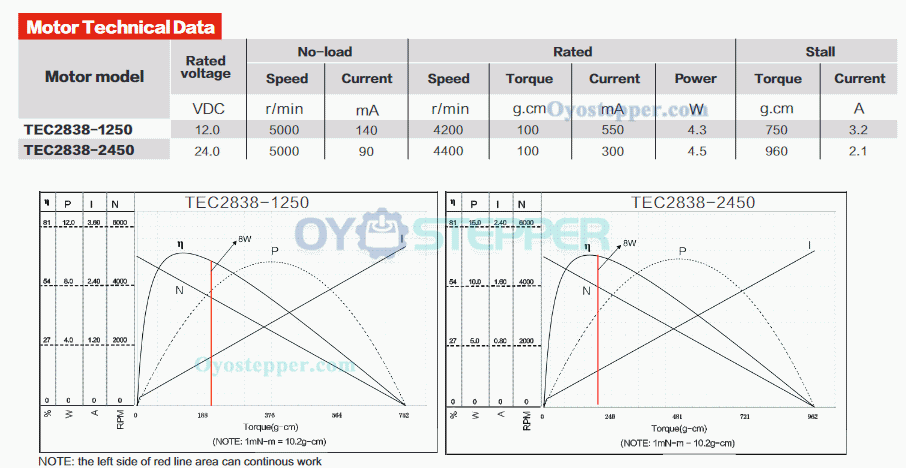

Electrical Specification
Part Number: TEC2838
Power:8W
Rated Voltage:12V-24V
Continuous Current(A):70-1260mA
Rated Torque:100g.cm
Speed:5000RPM-8000RPM
Type:DC brushless motor
Construction:Permanent Magnet
Noise:30cm.<40db

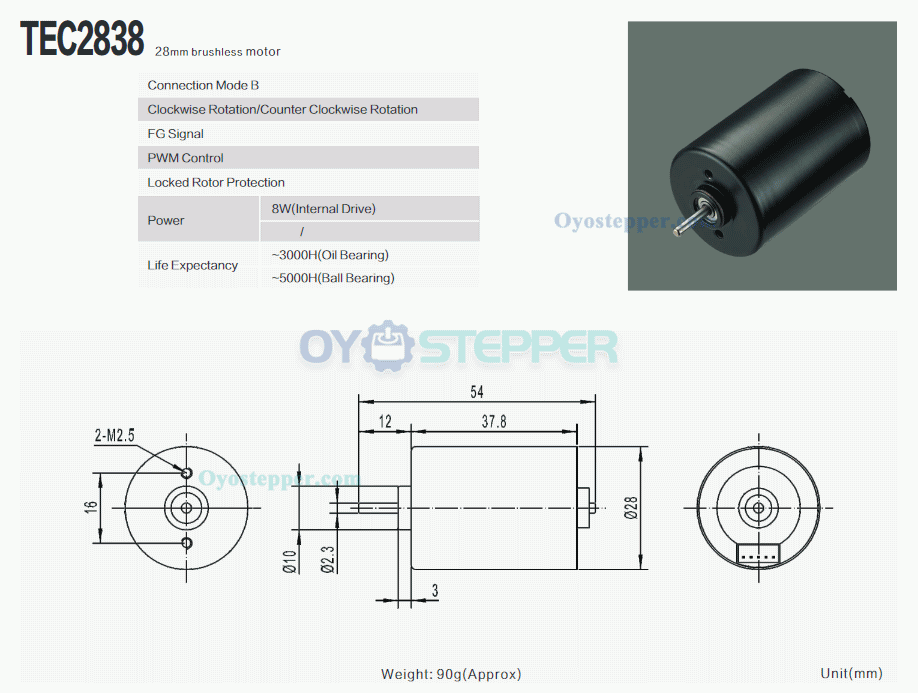

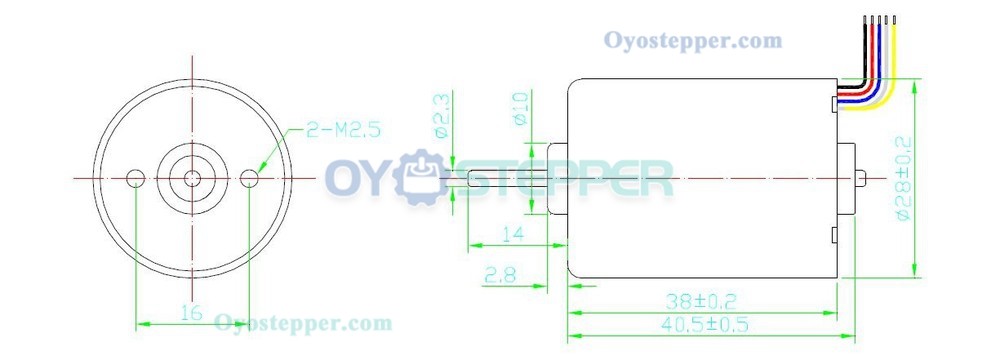

Physical Specification:
Motor Size:28mm*38mm
Motor Diameter:28mm
Motor Length:38 mm
Shaft diameter:2.3mm
Weight:90g
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Body Length(mm) | 38mm |
| Frame Size(mm) | 28mm*38mm |
| Shaft Diameter(mm) | 2.3mm |
| Shaft Type | O |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 90 |
| Product Type | DC brushless motor |
| Electrical Specification | |
| Rated Power(W) | 8W |
| Rated Voltage(V) | 12V-24V |
| Rated Torque(kg.cm) | 0.1kg.cm |
| Rated Speed(rpm) | 5000RPM-8000RPM |
