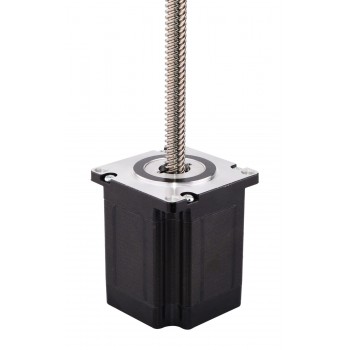

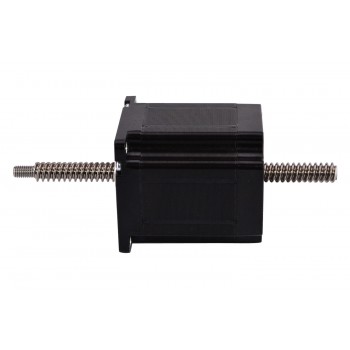

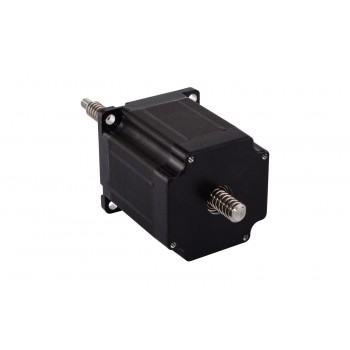

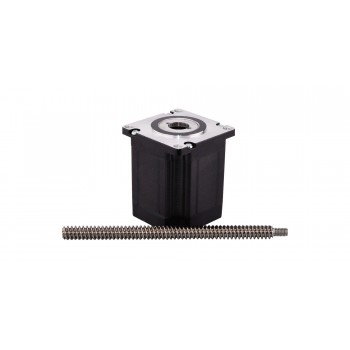

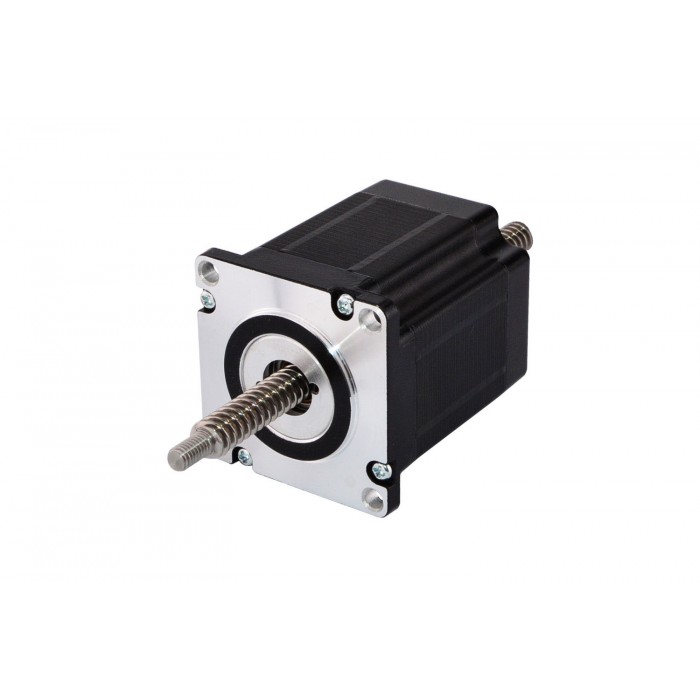

Nema 23 Non-captive Linear Motor Actuator Bipolar 1.8 Deg 2.5A 5V 4 Wires Lead Screw 150mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
This model is almost exactly same as Haydon Kerk 57000 series size 23 double stack non-captive stepper motor linear actuator. The motor part is 66mm body 1.8 degree 2.5A Nema 23 stepper motor, and it works with a 9.53mm (0.3752") diameter 150mm (5.9055") length lead screw, the linear travel is 2.54mm (0.1") per revolution.
Electrical Specification
Manufacturer Part Number: 23LS26-25043-150N
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 540N (300pps)
Rated Current/phase: 2.5A
Phase Resistance: 2ohms
Voltage: 5V
Inductance: 7.6mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 66mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ9.53mm(0.3752")
Lead/Step: 0.0127mm(0.0005" )
Lead Travel/Revolution: 2.54mm(0.1")
Number of Leads: 4
Lead Length: 300mm
Weight : 958g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 23LS26-25043-150N.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 8.2 |
| Minimal Thrust(N) | 540 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 2.1 |
| Rated Current (A) | 2.5 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 66 |
| Lead Screw Diameter(mm) | 9.53 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 2.54 |
| Linear Travel / Step(mm) | 0.0127 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 23 (57 x 57) |
