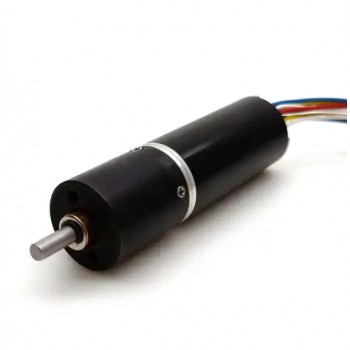

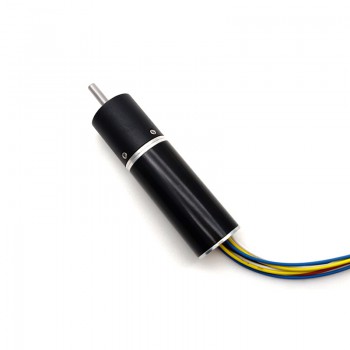

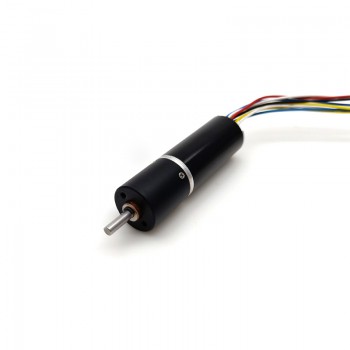

2Pcs 12V 24V Coreless Brushless Motor Planetary DC Gear Motor 3kg.cm 9~2700RPM
A planetary gearbox is a frequently used reducer made up of the planet gear, sun gear, and outer ring gear. Its structure has the functions of shunting, deceleration, and multi-tooth meshing to increase output torque, improved adaptability, and work efficiency. Usually positioned in the center, the sun gear imparts torque to the planet gears as they revolve around it. The planet gears mesh with the outer ring gear (which alludes to the bottom housing). We offer other motors, such as DC brushed motors, DC brushless motors, stepper motors, and coreless motors, which can be paired with a tiny planetary gearbox for improved performance.
Features:
1. The characteristic curve is flat, and it can operate normally at all speeds under load.
2. Because of the usage of a permanent magnet rotor, the power density is high while the volume is modest.
3. Low inertia and improved dynamic properties
4. No special starting circuit, no rating
5. A controller is always required to keep the motor operating. This controller can also be used to control the speed.
6. The frequency of stator and rotor magnetic fields is equivalent;
Application:
Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Robot DIY.
Reduction ratio:4/16/22.6/64/107/256/361/1024
1 stages: 4:1
2 stages: 16:1/22.6:1
3 stages: 64:1/107:1
4 stages: 256:1/361:1
5 stages: 1024:1

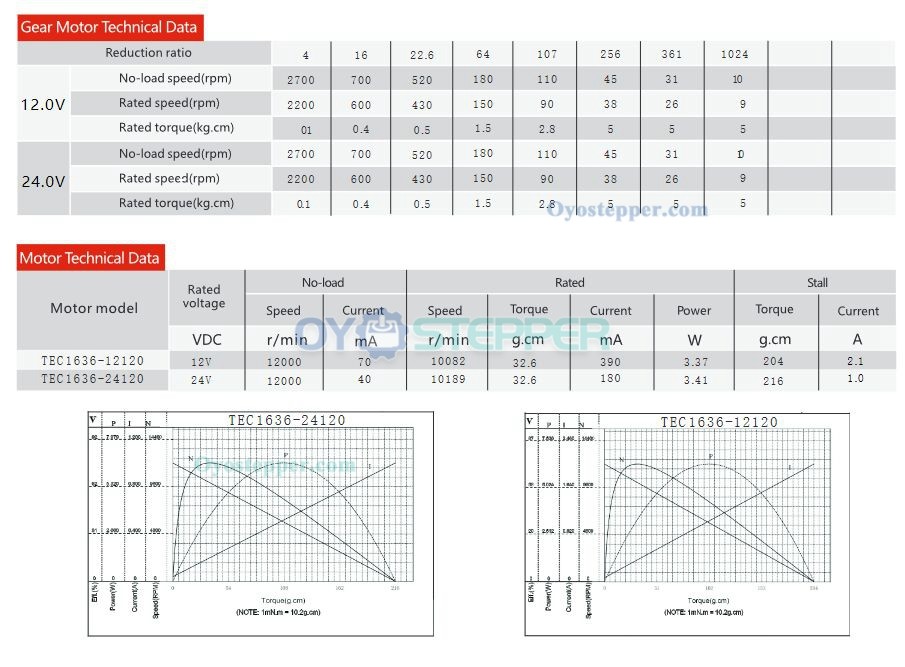

Electrical Specification：
Part Number:GMP16T-TEC1636
Rated Voltage:12V/24VDC
Rated Torque:3.0Kg.cm max
Max momentary tolerance torque: 5.0kg.cm
Rated current:390mA(12V)/180mA(24V)
No Load Speed W/O Gearbox: 12000RPM
Rated Speed W/O Gearbox: 10000RPM(12V)/10100RPM(24V)
No Load Speed W Gearbox: 10-2700 RPM
Rated Speed W/ Gearbox:9-2200 RPM
Rated Power:3.3W(12V)/3.4W(24V)
Gear type:Planetary gearbox
Type:DC Coreless Brushless Motors
Efficiency:LE 3
Encoder:1-1024ppr
Direction of Rotation:CW/CCW
Construction:Permanent Magnet
Noise:Low Noise Level;

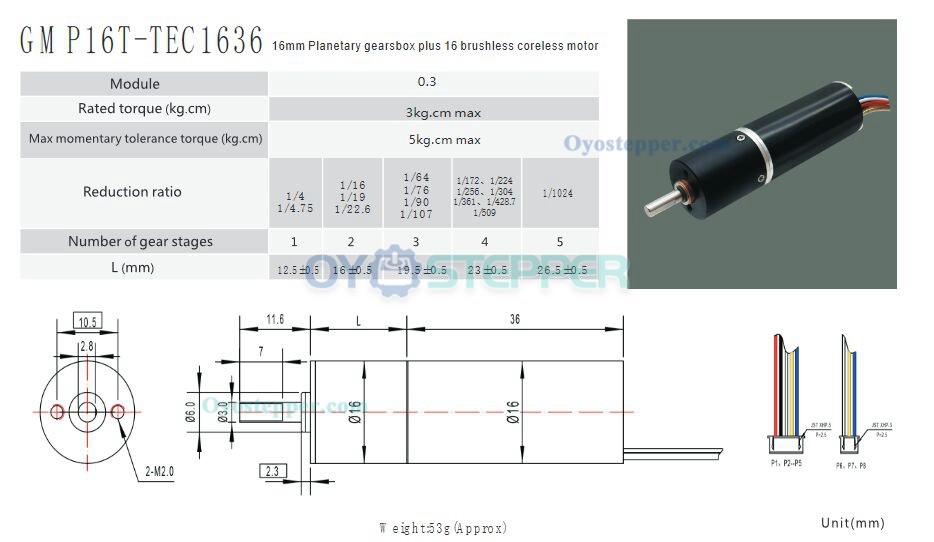

Physical Specification:
Motor Size:Φ16.0mm*36.0mm
Motor Diameter: 16.0mm
Gearbox Diameter:Φ16
Gearbox Length:12.5mm/16mm/19.5mm/23mm/26.5mm
Length:36mm+Planetary gearbox
Shaft Type:D-cut
D-cut Diameter:2.8mm
D-cut Length:7mm
Shaft Diameter:3mm
Shaft Length:9.3mm
Weight:53g;
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | Φ16 |
| Product Type | DC Coreless Brushless Motors |
| Body Length(mm) | 36+gearbox |
| Shaft Diameter(mm) | 3 |
| Shaft Length(mm) | 9.3 |
| Weight(g) | 53 |
| Gearbox Length(mm) | 12.5 / 16 / 19.5 / 23 / 26.5 |
| Gearbox Type | Planetary gearbox |
| Gear Ratio | 4:1 / 16:1 / 22.6:1 / 64:1 / 107:1 / 256:1 / 361:1 / 1024:1 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Electrical Specification | |
| Rated Power(W) | 3.3 |
| Rated Voltage(V) | 12 / 24 |
| Rated Torque(kg.cm) | 3 |
| Rated Speed(rpm) | 9-2200 |
| Rated Current (A) | 0.39 / 0.18 |
