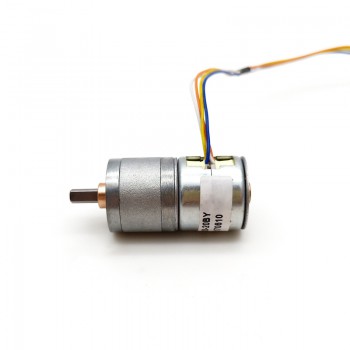

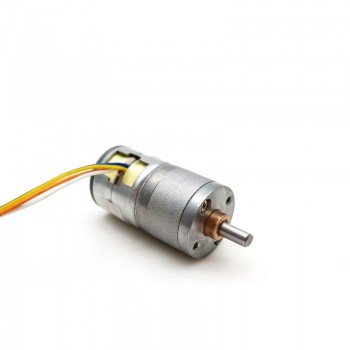

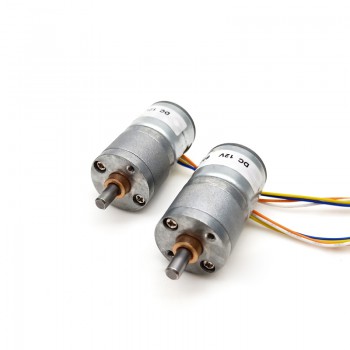

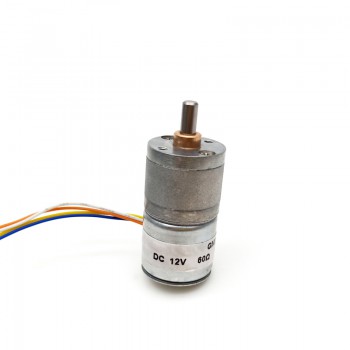

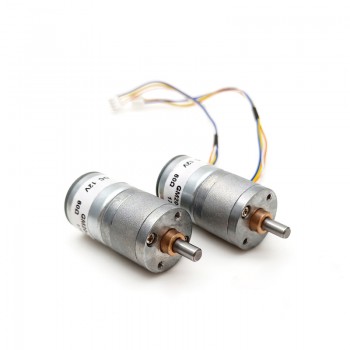

2Pcs 12V 2 Phase DC Gear Motor 7.5° 100-120mA Gear Ratio 1/75 Permanent Magnet Stepper Motor

2Pcs 12V 2 Phase DC Gear Motor 7.5° 100-120mA Gear Ratio 1/75 Permanent Magnet Stepper Motor
NO.:GM20-20BY
Post a review
Our Price:$19.98
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $18.98 5%
30 $18.58 7%
50 $17.98 10%
100 $16.98 15%
Add To Cart

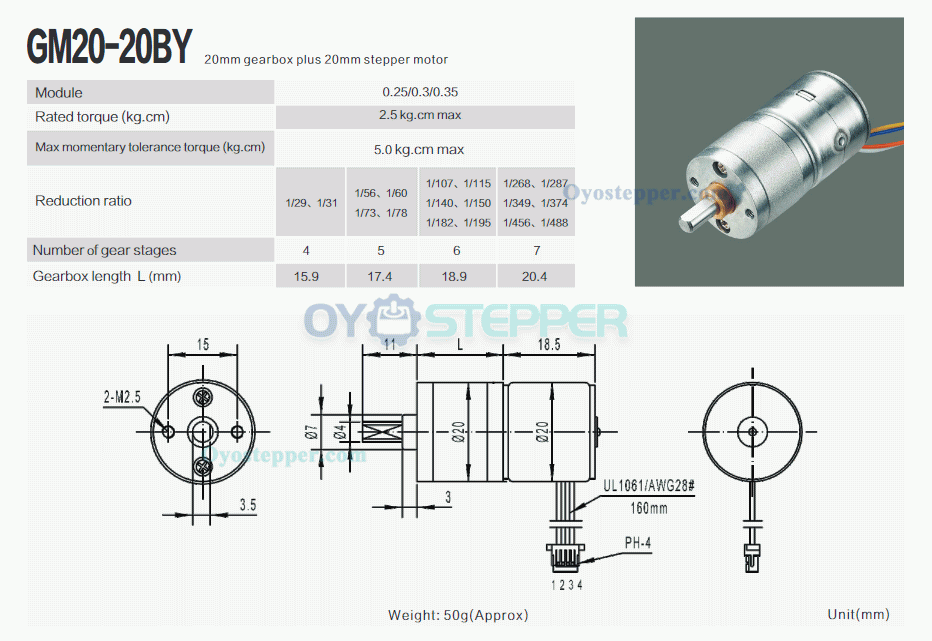

2Pcs 12V Micro DC Stepper Gear Motor GM20-20BY 18° 120mA 2.5kg.cm 2 Phase with Ratio 29~488 Gearbox



Features:
Low-speed torque;
exact location;
Extended Life Versatility
Reliable low speed synchronous rotation;

Application:
3D Printing;
Platforms for CNC Cameras
Robotics Process Automation;

Electrical Specification
Part Number: TQGM20-20BY
Rated Voltage:12V
Rated current:100-120mA
Rated Torque:0.5kg.cm
Holding Torque:30*75g.cm
Resistance:60Ω
Step Angle:18°
Gear Ratio:1/75
Gear Type:Spur Gearbox
Phase:2 Phase
Construction:Permanent Magnet
Noise:30cm,<40db


Physical Specification:
Motor Size: 20*20mm
Motor Diameter:20 mm
Motor Length:20 mm
Shaft Type:D-cut
D-cut Diameter:3.5mm
D-cut Length:8mm
Shaft Diameter:4mm
Shaft Length:8mm
Weight:50g

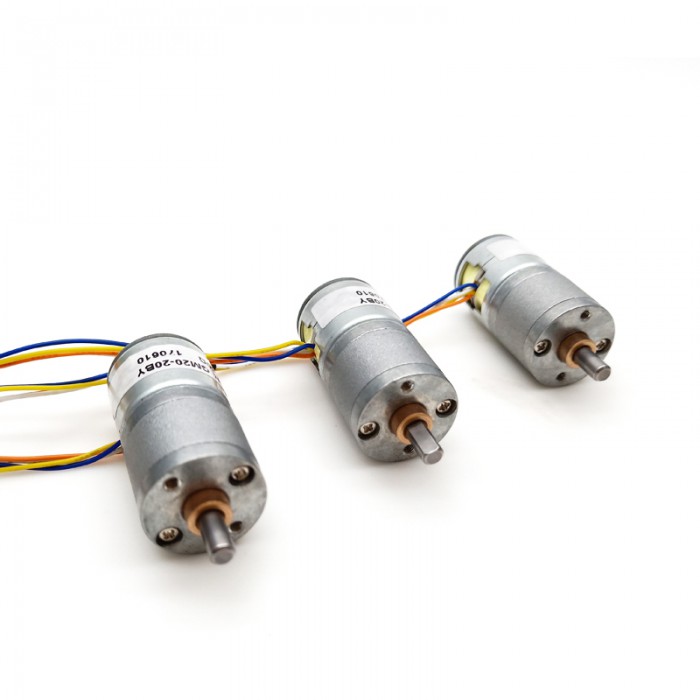

2Pcs 12V 2 Phase DC Gear Motor 7.5° 100-120mA Gear Ratio 1/75 Permanent Magnet Stepper Motor



Resources

GM20-20BY.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 5V Micro DC Stepper Gear Motor with Gearbox Small DC Gear Motor 18° 500mA 700g,cm 2 Phase
Next: 2Pcs 12V 4 Phase Stepper Gear Motor 7.5° 120mA 0.5kg.cm with Spur Gearbox 3mm-D shaft
Electrical Specification
Phase Resistance(ohm) 60
Rated Current (A) 0.1-0.12
No. of Phase 2
Input Voltage(V) 12
Rated Torque(kg.cm) 0.5
Holding Torque(mN.m) 3*75
Step Angle(deg.) 18°
Physical Specification
Frame Size(mm) 20*20
Weight(g) 50
Shaft Diameter(mm) 4
Shaft Length(mm) 8
Shaft Type D-cut
Single Shaft/Dual Shaft Single Shaft
Body Length(mm) 20
