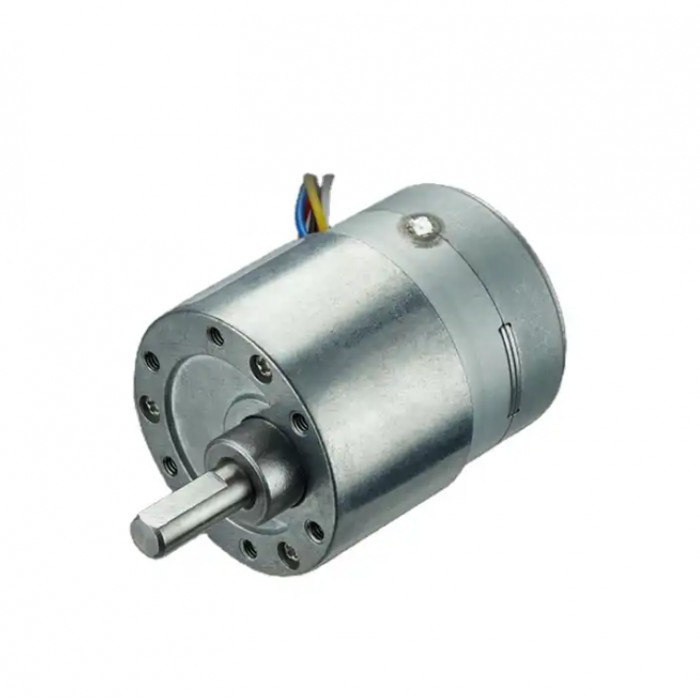

12V Stepper Gear Motor Spur Gear Permanent Magnet DC Motor 7.5° 200mA 130g.cm 4 Phase

12V Stepper Gear Motor Spur Gear Permanent Magnet DC Motor 7.5° 200mA 130g.cm 4 Phase
NO.:GM37-35BY
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$14.50
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $13.78 5%
30 $13.49 7%
50 $13.05 10%
100 $12.33 15%
Add To Cart

12V Stepper Gear Motor Spur Gear Permanent Magnet DC Motor 7.5° 200mA 130g.cm 4 Phase


Features:
1.Small size dc stepper gear motor with low speed and big torque
2.Suitable to small diameter, low noise and big toque application
3.Reduction Ratio: 6、10、19、30、56、131、169、270、506、810 etc;

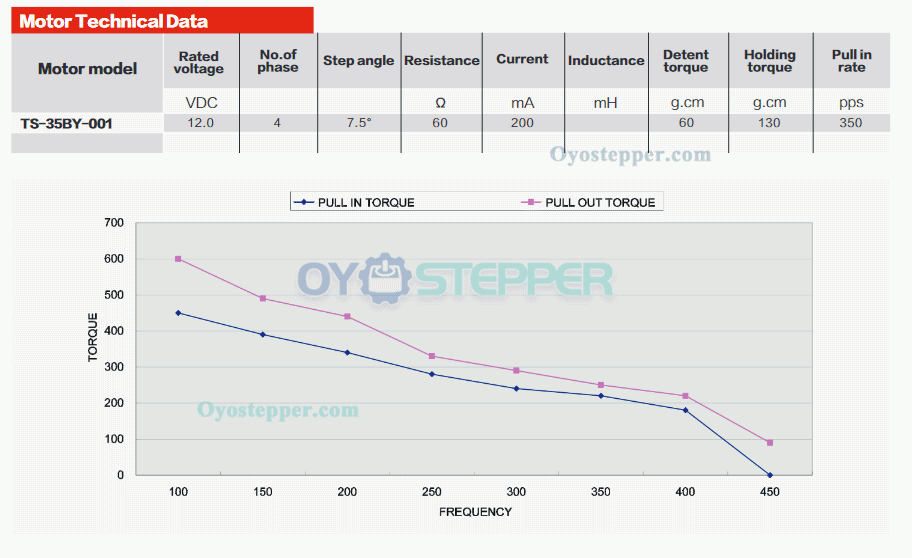

Electrical Specification:
Part Number: TQGM37-35BY
Rated Voltage:12V
Rated current:200mA
Detent Torque:60g,cm
Holding Torque 130g.cm
Resistance:60Ω
Step Angle:7.5°
Gearbox:Spur gears
Pull in rate:350pps
Phase:4
Construction:Permanent Magnet
Noise:Low Noise Level;

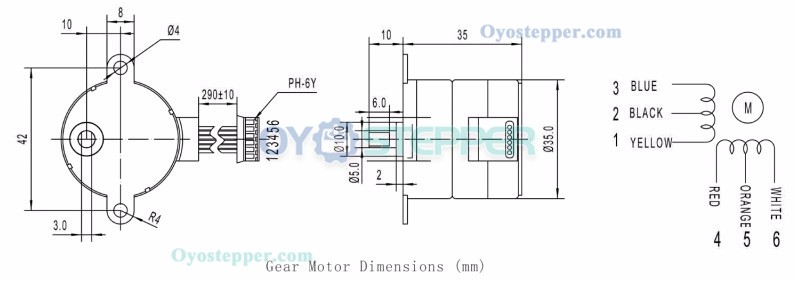

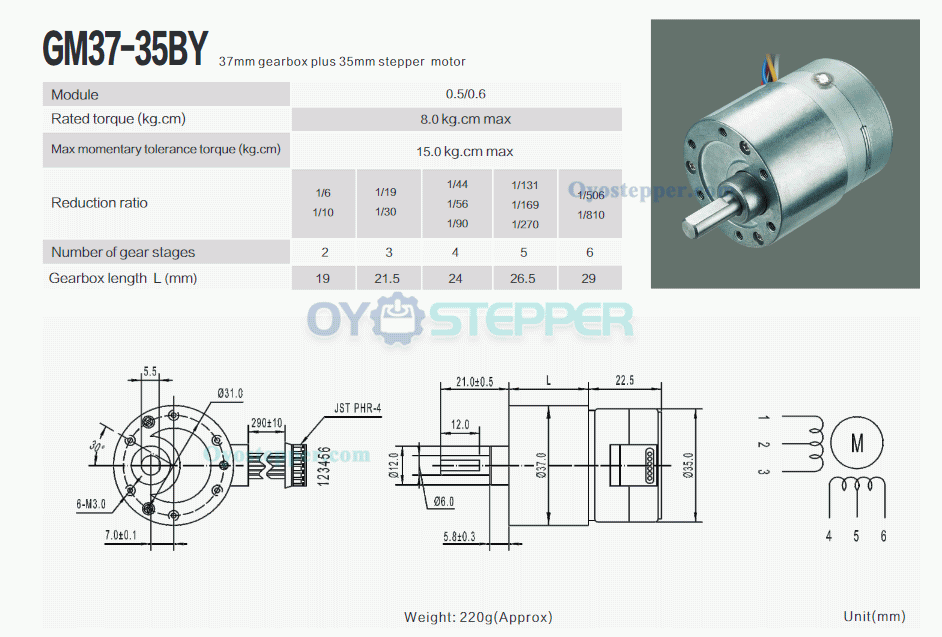

Physical Specification:
Motor Size: 37*44mm
Diameter: 37mm
Length: 22.5mm+gearbox length
Weight:220g







12V Stepper Gear Motor Spur Gear Permanent Magnet DC Motor 7.5° 200mA 130g.cm 4 Phase

12V Stepper Gear Motor Spur Gear Permanent Magnet DC Motor 7.5° 200mA 130g.cm 4 Phase

12V Stepper Gear Motor Spur Gear Permanent Magnet DC Motor 7.5° 200mA 130g.cm 4 Phase



Resources



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 12V 24V Coreless Brushless Motor Planetary DC Gear Motor 3kg.cm 9~2700RPM
Next: 5V Micro DC Stepper Gear Motor with Gearbox Small DC Gear Motor 18° 500mA 700g,cm 2 Phase
Electrical Specification
Phase Resistance(ohm) 60Ω
No. of Phase 4
Step Angle(deg.) 7.5°
Rated Voltage(V) 12V
Current(A) 0.2A
Rated Torque(kg.cm) 1.3kg.cm
Physical Specification
Body Length(mm) 22.5mm+gearbox length
Frame Size(mm) 37*44mm
Gearbox Type Spur gears
