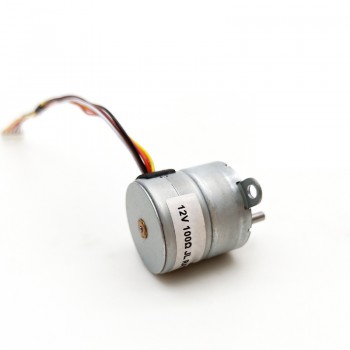

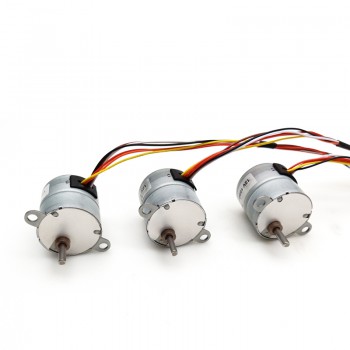

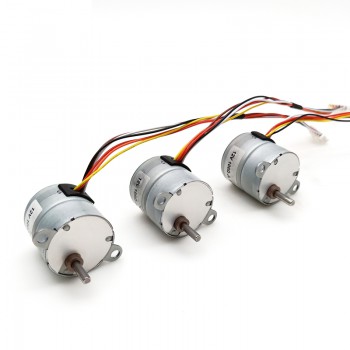

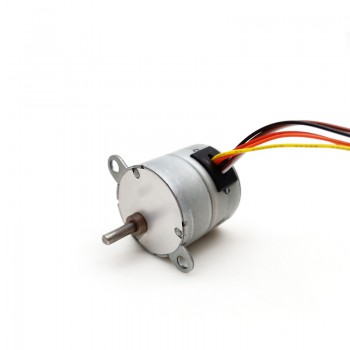

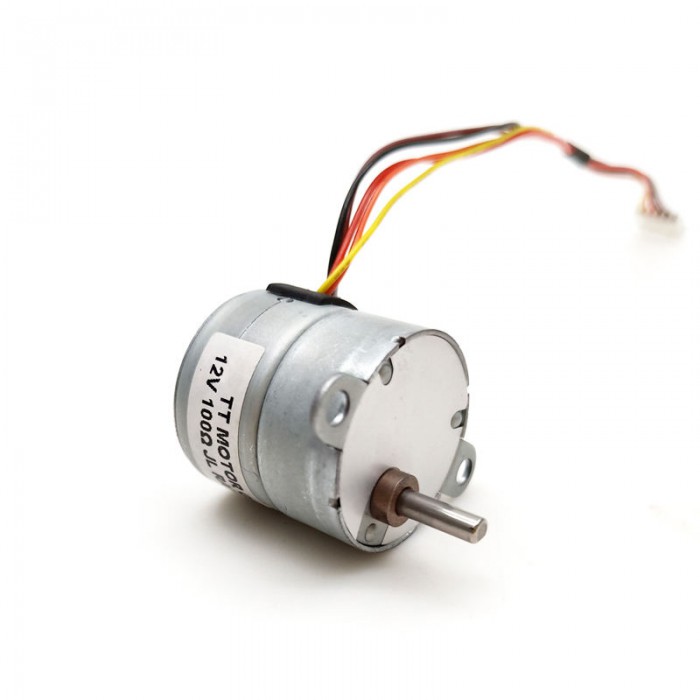

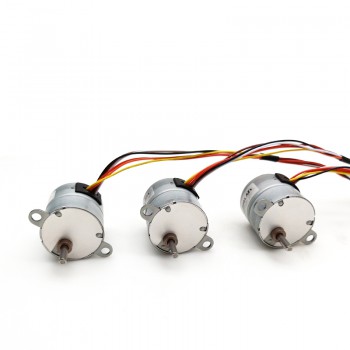

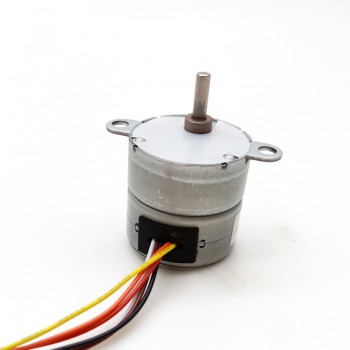

2Pcs 12V 4 Phase Stepper Gear Motor 7.5° 120mA 0.5kg.cm with Spur Gearbox 3mm-D shaft

2Pcs 12V 4 Phase Stepper Gear Motor 7.5° 120mA 0.5kg.cm with Spur Gearbox 3mm-D shaft
NO.:GM25-25BY
Post a review
Our Price:$33.98
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $32.28 5%
30 $31.60 7%
50 $30.58 10%
100 $28.88 15%
Add To Cart



Features:
Reliable low-speed torque;
exact location;
Extended Life Versatility
Reliable low speed synchronous rotation;



Application:
3D printing technology
CNC camera platform
Robotic Process Automation;

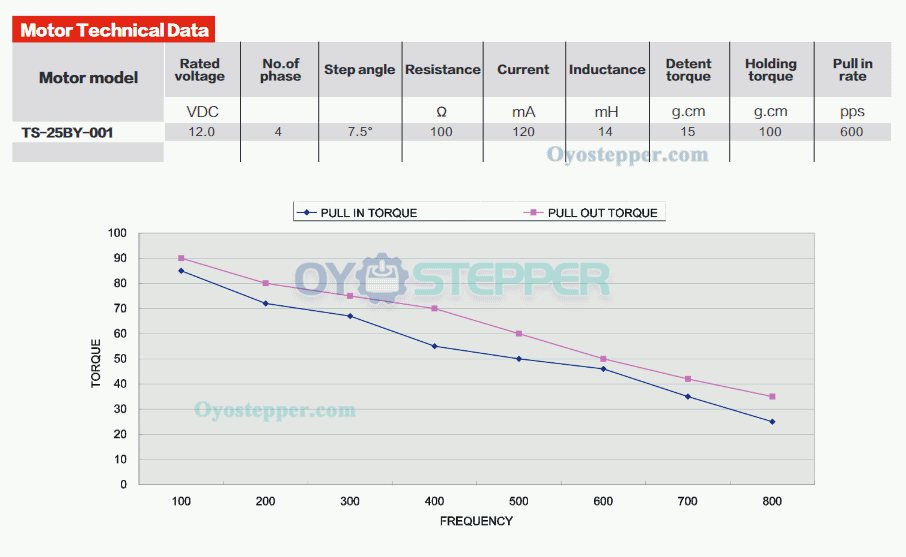

Electrical Specification
Part Number: TQGM25-25BY
Rated Voltage:12V
Rated current:120mA
Rated Torque:0.5kg.cm
Holding Torque:100g.cm
No load speed:9000rpm
Current / Phase:120mA
Resistance:100Ω
Step Angle:7.5 degrees
Gear Ratio:1/10,1/60,1/100
Gear Type:Spur Gearbox
Phase:4
Protect Feature:Drip-proof
Construction:Permanent Magnet
Noise:30cm,<40db


Physical Specification:
Motor Size: 25*(11+18.5) mm
Motor Diameter:25 mm
Motor Length:25mm
Shaft Type:D-cut
D-cut Diameter:2.5mm
D-cut Length:8mm
Shaft Diameter:3mm
Shaft Length:10mm
Weight:50g



2Pcs 12V 4 Phase Stepper Gear Motor 7.5° 120mA 0.5kg.cm with Spur Gearbox 3mm-D shaft

2Pcs 12V 4 Phase Stepper Gear Motor 7.5° 120mA 0.5kg.cm with Spur Gearbox 3mm-D shaft

Resources

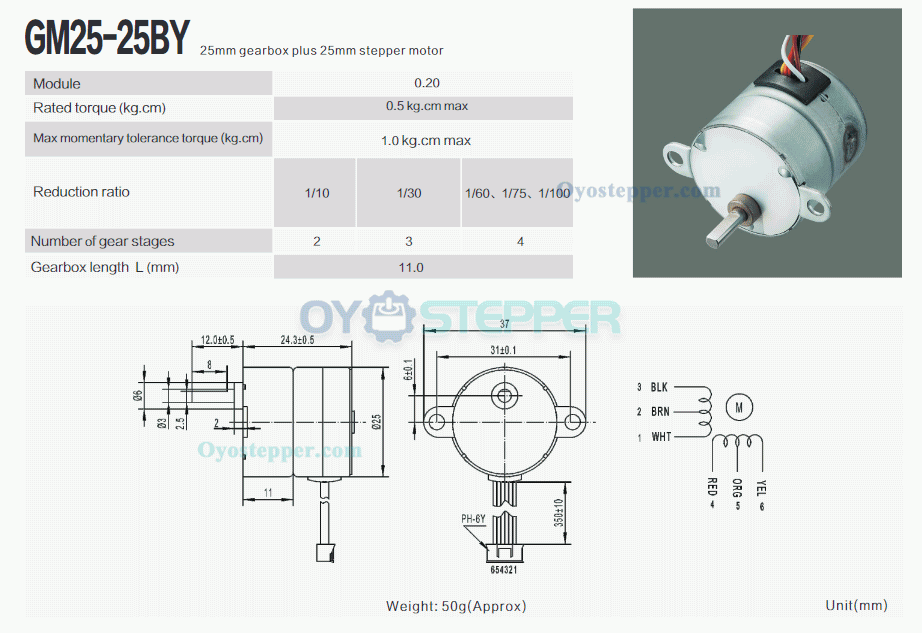

GM25-25BY.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 2 Phase DC Gear Motor 7.5° 100-120mA Gear Ratio 1/75 Permanent Magnet Stepper Motor
Next: 2Pcs 12V Brushed DC Motor Permanent Magnet PMDC Brushed Motor 16*25mm
Physical Specification
Body Length(mm) 11+18.5
Shaft Diameter(mm) 3
Shaft Type D-cut
Shaft Length(mm) 10
Gearbox Type Spur Gearbox
Weight(g) 50
Single Shaft/Dual Shaft Single Shaft
Electrical Specification
Holding Torque (Ncm) 9.8
Phase Resistance(ohm) 100
Rated Voltage(V) 12
Current(A) 0.12
Rated Torque(kg.cm) 0.5
Step Angle(°) 7.5°
No. of Phase 4
