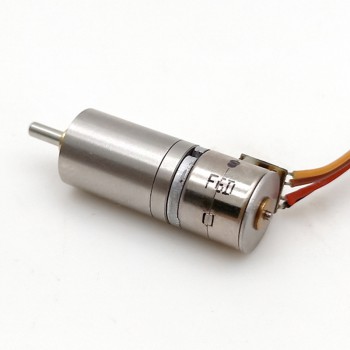

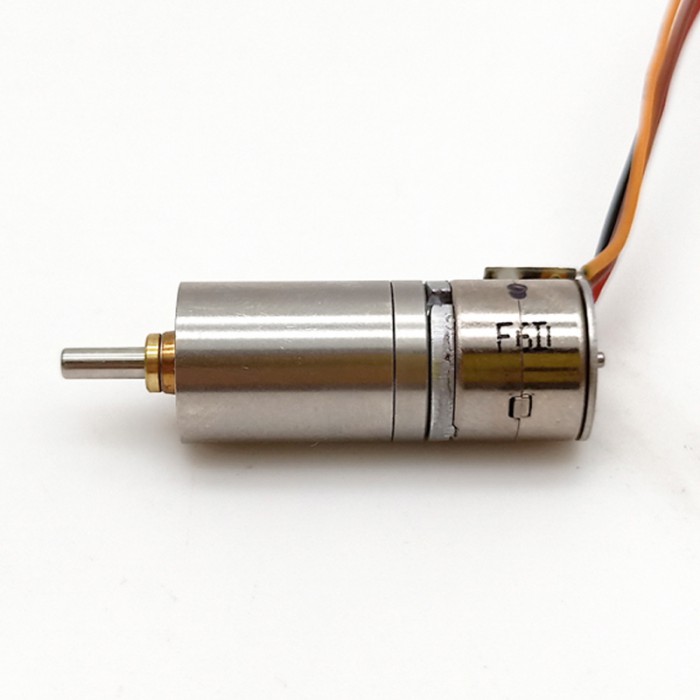

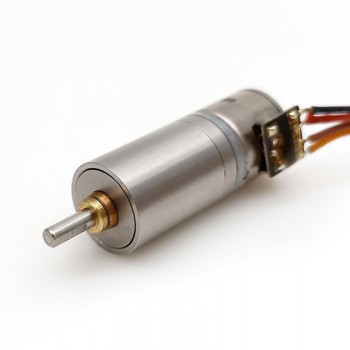

2Pcs 3.3V Mini Stepper Gear Motor with Planetary Gearbox Gear Reduction 2 Phase DC Gear Motor

2Pcs 3.3V Mini Stepper Gear Motor with Planetary Gearbox Gear Reduction 2 Phase DC Gear Motor
NO.:GMP10-10BY
Post a review
Our Price:$158.00

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $150.10 5%
10 $146.94 7%
50 $142.20 10%
100 $134.30 15%
Add To Cart



Application:
3D Printers, CNC, Camera, Robotics, Automation.


Electrical Specification:
Part Number:GMP10-10BY
Rated Voltage:12VDC
Continuous Current(A):270 mA
Holding Torque:5g.cm
Rated Torque:0.5kg.cm
Gear type:Planetary Gearbox
Motor type:Brushless
Axial Play:0.05-0.5mm
Directions:CW/CCW
Resistance:12.2Ω
Phase:2 phase
Step angle:18°
Average Backlash no load:<3°
Efficiency:70%
Noise:30cm.40-50DB

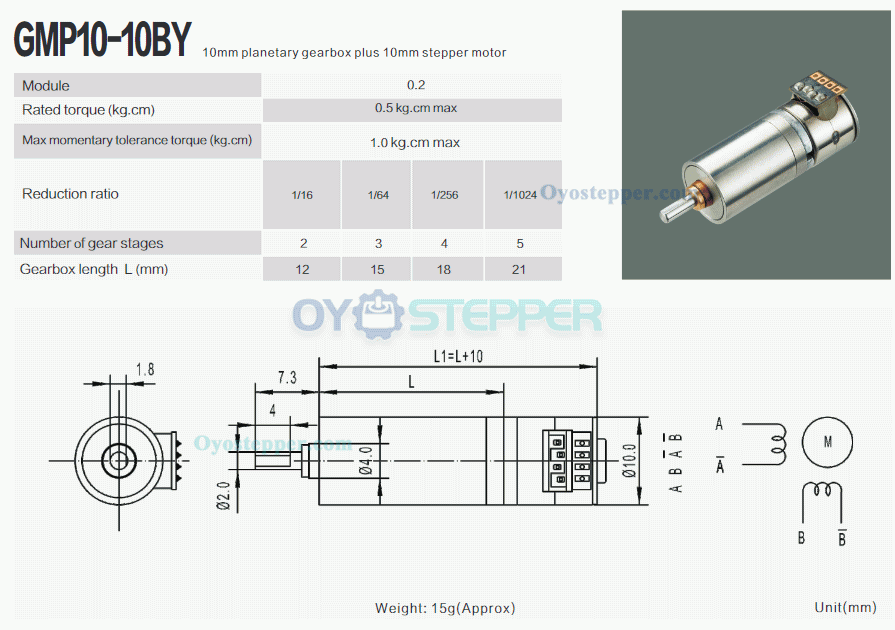

Physical Specification:
Motor Size:Φ10*10mm
Motor Diameter:10mm
Length:10mm+Planetary gearbox
Gearbox Diameter:10mm
Gearbox Length:12mm (2 stages) / 15mm (3 stages) / 18mm (4 stages) / 21mm (5 stages)
D-cut Length: 4mm
D-cut Diameter:1.8mm
Shaft Length:7.3mm
Shaft Diameter:2mm
Weight:15g;

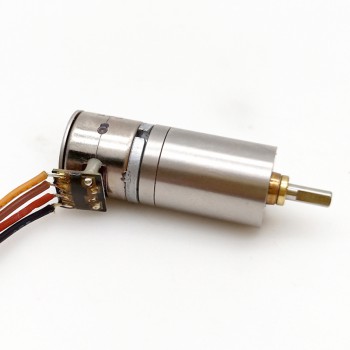

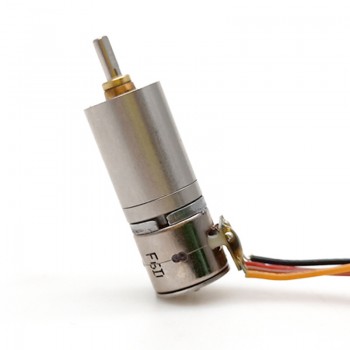

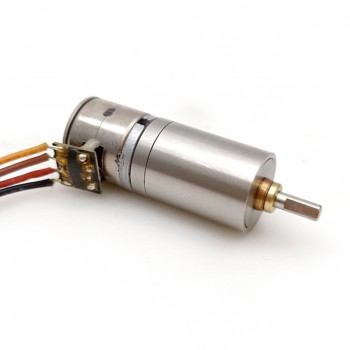

2Pcs 3.3V Mini Stepper Gear Motor with Planetary Gearbox Gear Reduction 2 Phase DC Gear Motor

2Pcs 3.3V Mini Stepper Gear Motor with Planetary Gearbox Gear Reduction 2 Phase DC Gear Motor

Resources

GMP10-10BY.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 24V DC Coreless Brushless Motor 12mm High Speed Coreless BLDC Motor
Next: 2Pcs 12V Stepper Gear Motor with Planetary Gearbox Gear Reduction 4 Phase Low Speed DC Motor
Physical Specification
Shaft Diameter(mm) 2
Shaft Length(mm) 7.3
Weight(g) 15
Gear Ratio 64:1 / 16:1 / 1024:1 / 256:1
Body Length(mm) 10
Frame Size(mm) Φ10
Gearbox Length(mm) 12 / 15 / 21 / 18
Product Type Brushless
Shaft Type 0.8
Single Shaft/Dual Shaft Single Shaft
Gearbox Type Planetary Gearbox
Electrical Specification
No. of Phase 2
Phase Resistance(ohm) 12.2
Rated Current (A) 0.27
Rated Voltage(V) 12
Rated Torque(kg.cm) 0.5
Holding Torque w/o Gearbox(N.m) 0.005
Step Angle(°) 18°
