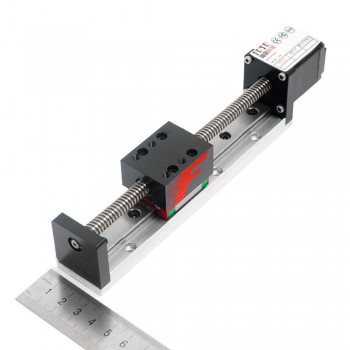

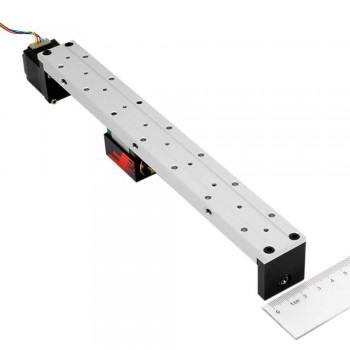

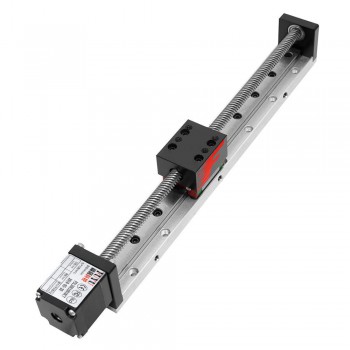

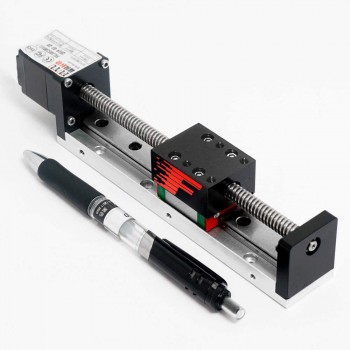

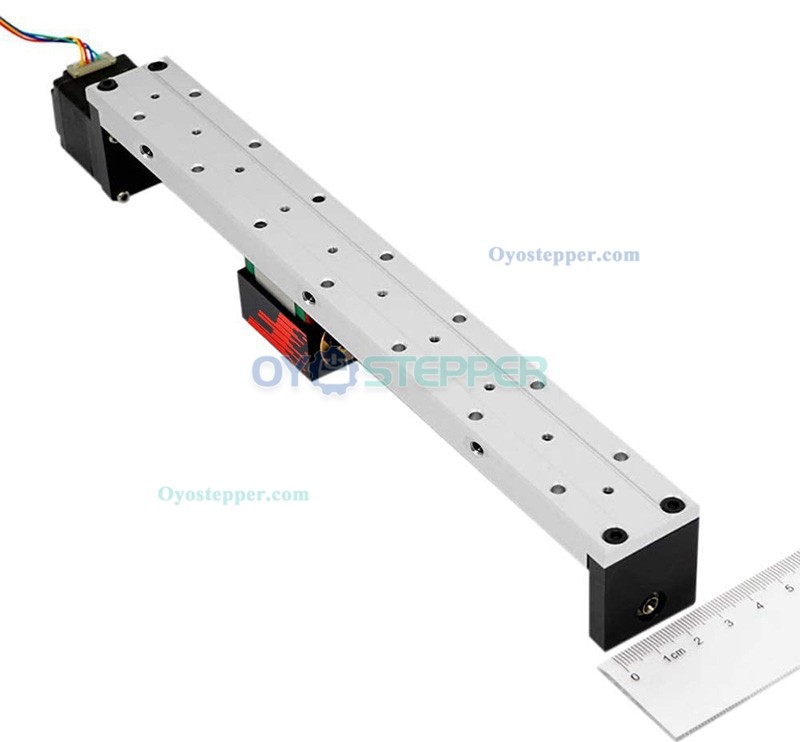

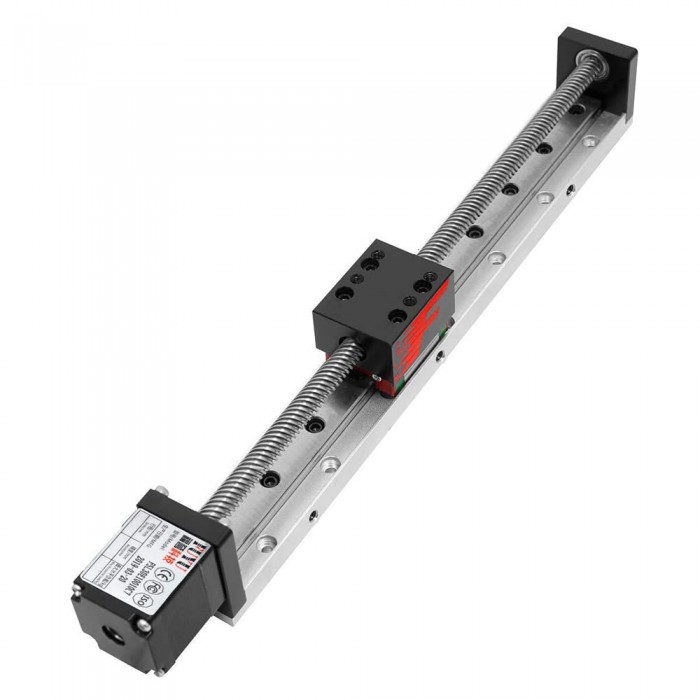

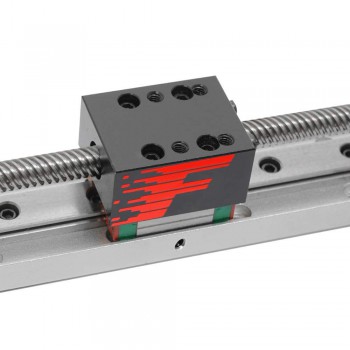

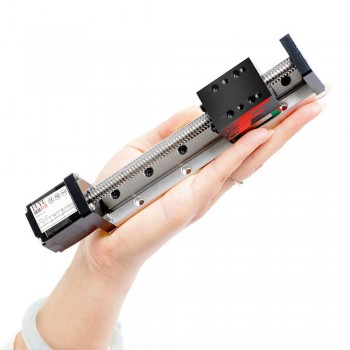

FSL30 Mini Linear Stage Slide Guide CNC Screw Lead Motion Table with Nema 14 Stepper Motor

FSL30 Mini Linear Stage Slide Guide CNC Screw Lead Motion Table with Nema 14 Stepper Motor
NO.:FSL30
Post a review
Our Price:$83.00

Quantity:- +

Add To Cart

Linear Slide Rail Linear Ball Screw Actuator FSL30 50-300mm with Nema 14 Stepper Motor



Feature:

Max horizontal loading 4kgs while max vertical loading 1kgs

Repeat position accuracy 0.05mm

Effective stroke: 50mm, have muliti choice from 50mm to 300mm stroke

Made Tr8*2 screw as default screw model, have Tr8*2,Tr8*4,Tr8*12 screw model for choice,contact us when need change screw model



Specifications:

FSL30 Linear Guide Specification

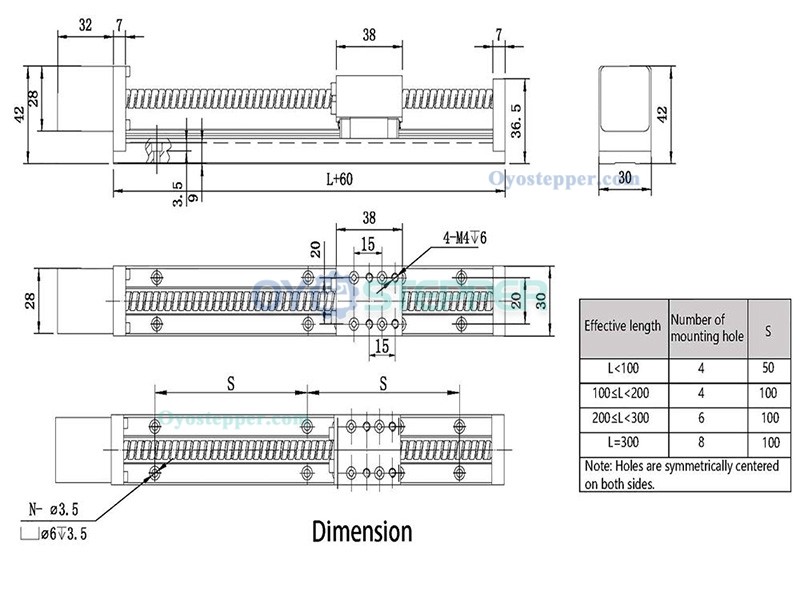

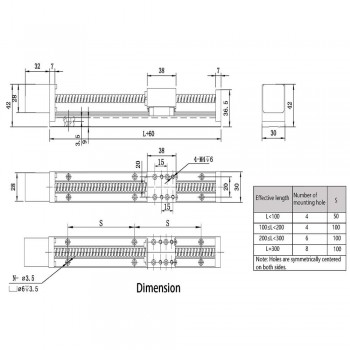

Linear Guide Dimension & Performance

Effective Stroke: 50-300mm

Slide Quantity:1

Screw Model: Tr8*2

Movement Life: 10000 hours

Max Horizontal Loading: 6.6 pounds

Max Vertical Loading: 2.2 pounds

Max Horizontal Full Speed:70 mm/s

Max Vertical Full Speed:50mm/s

Max Speed Without Loading: 80mm/s

Noise: 65 dB(within 1 meter)



Nema 14 Motor Parameter

Motor Size: 35*34mm

Rated Current: 0.95A

Step Angle: 1.8°

Holding Torque: 60mN.m

Phase Quantity: 2

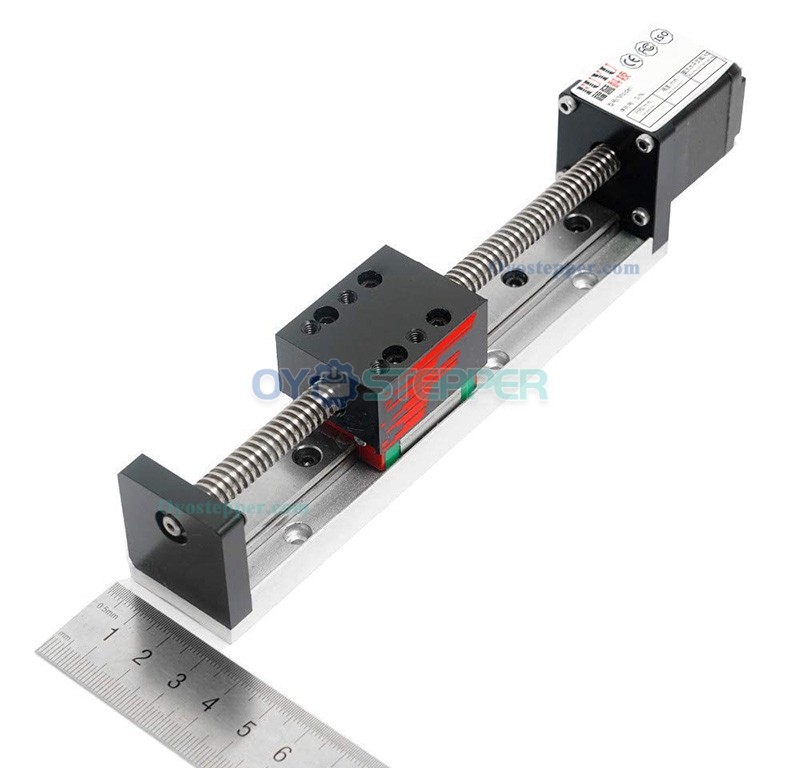

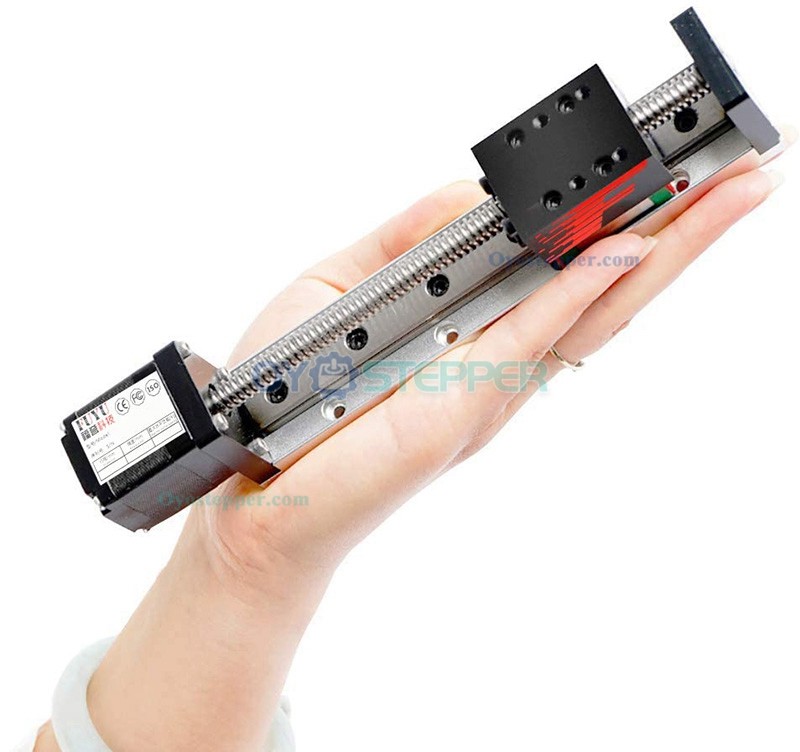

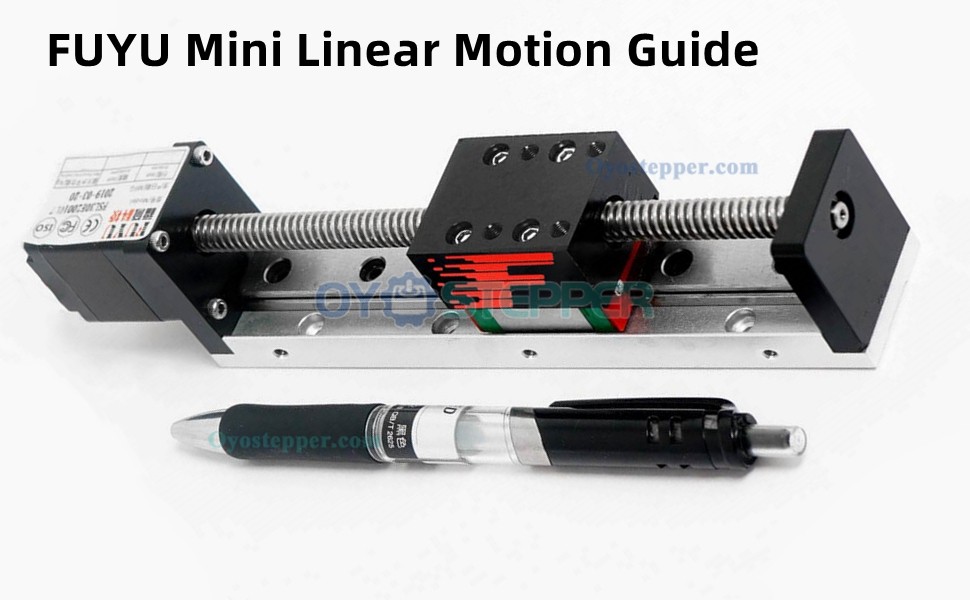

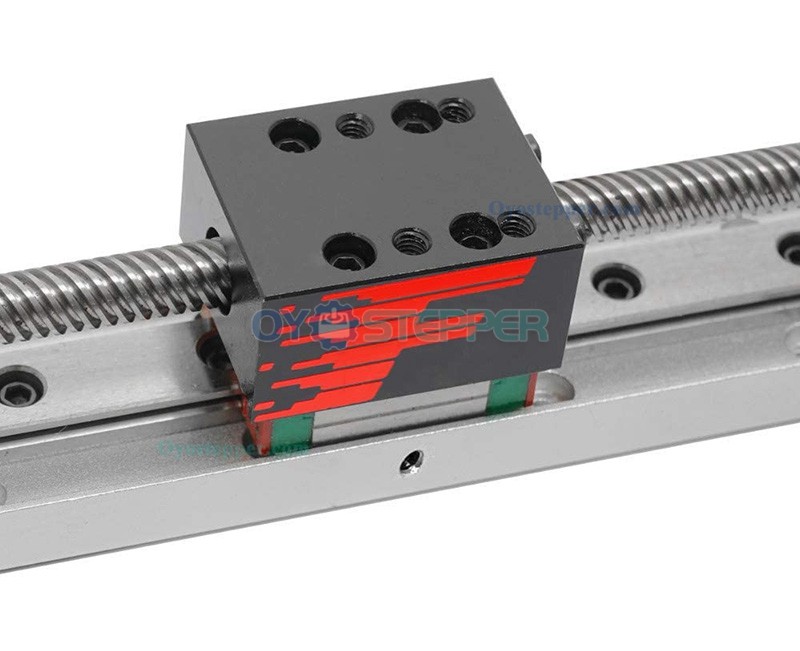

FSL30 Mini Linear Stage Slide Guide CNC Screw Lead Motion Table with Nema 14 Stepper Motor

FSL30 Mini Linear Stage Slide Guide CNC Screw Lead Motion Table with Nema 14 Stepper Motor



FSL30 Mini Linear Stage Slide Guide CNC Screw Lead Motion Table with Nema 14 Stepper Motor

FSL30 Mini Linear Stage Slide Guide CNC Screw Lead Motion Table with Nema 14 Stepper Motor



FSL30 Mini Linear Stage Slide Guide CNC Screw Lead Motion Table with Nema 14 Stepper Motor

FSL30 Mini Linear Stage Slide Guide CNC Screw Lead Motion Table with Nema 14 Stepper Motor
