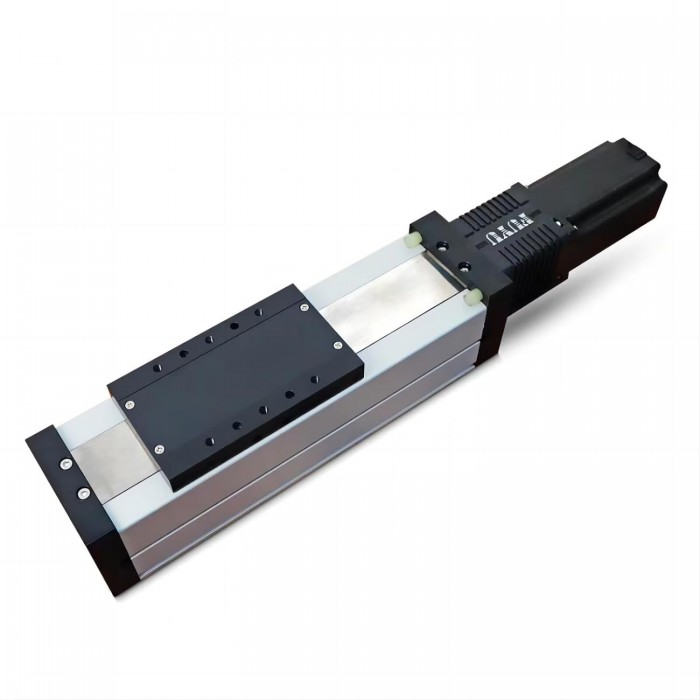

FSL80 Heavy Load Linear Guide Motion Rail Ball Screw Linear Stage Actuator with Nema24 Stepper Motor

Heavy Load Linear Guide Ball Screw Linear Stage Actuator FSL80 100-1200mm with Nema24 Stepper Motor

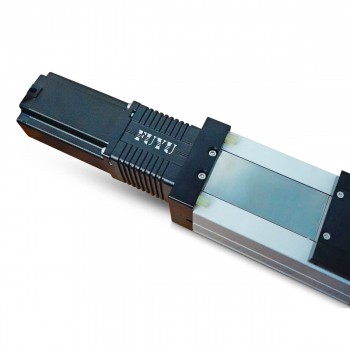

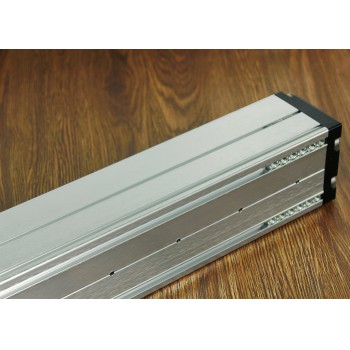

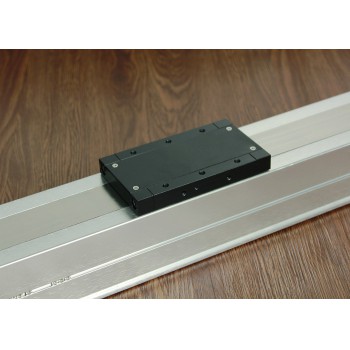

This FLS80 series linear stage is driven by a NEMA 24 stepper motor and features a G1610 ball screw with C7 accuracy class. The aluminum profile has a polished surface finish and is protected by a steel belt cover. The sealed rail guide is rated IP65. Base and side mounting points use M6 threaded holes.

Specifications:

Repeat positioning accuracy: ±0.03mm

Stroke range: 100mm to 1500mm

Maximum horizontal load: 60kg

Maximum vertical load: 20kg

Maximum no-load speed: 220mm/s

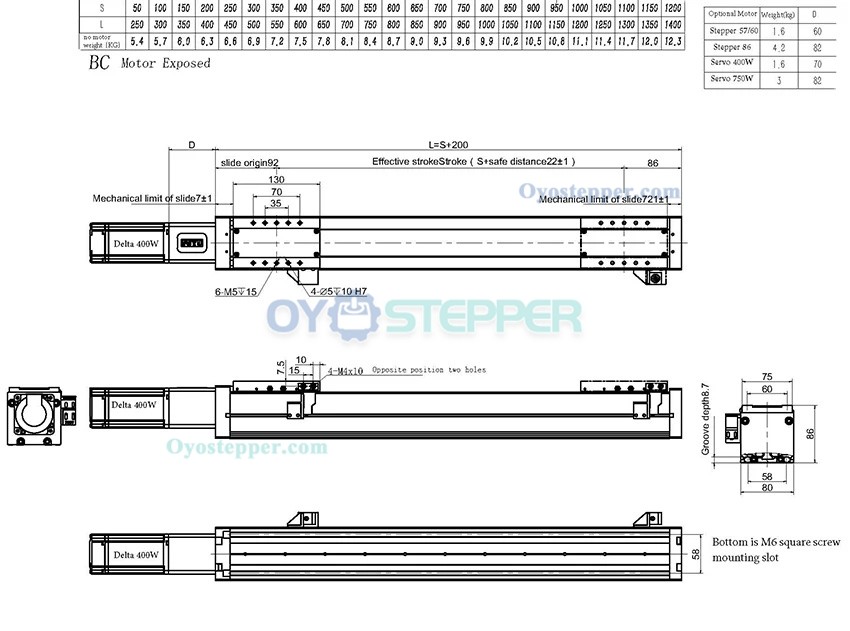

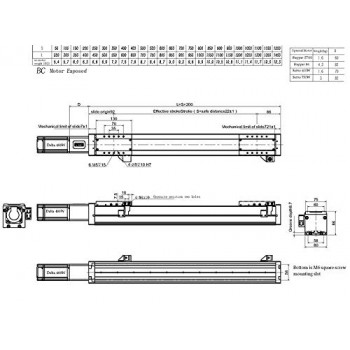

100mm Stroke Model Specifications:

Effective stroke: 100mm

Total length: 472mm

Total height: 80mm

Slide width: 80mm

Maximum horizontal load: 40kg

Maximum vertical load: 20kg

Maximum horizontal speed at full load: 210mm/s;

Maximum vertical speed at full load: 60mm/s;

Stroke and ASIN Reference:

100mm – B0784VZ199

200mm – B077T4NYPC

300mm – B077T3N8TJ

400mm – B077T494BV

500mm – B077T18BNY

600mm – B077T1BKLZ

700mm – B078C5CT8Q

800mm – B0784VZMW2

900mm – B077SQTYGJ

1000mm – B077T4K5XS

1100mm – B0784VRFDG

1200mm – B077T181PN

1300mm – B077SQTSNG

1400mm – B077T4K58V

1500mm – B077T4MN66
