FBL80 High Speed CNC Linear Guide Slide Rail Linear Motion Actuator with Nema34 Stepper Motor

FBL80 High Speed CNC Linear Guide Slide Rail Linear Motion Actuator with Nema34 Stepper Motor
NO.:FBL80 1000mm
Post a review
Our Price:$625.34
Quantity:- +

Add To Cart

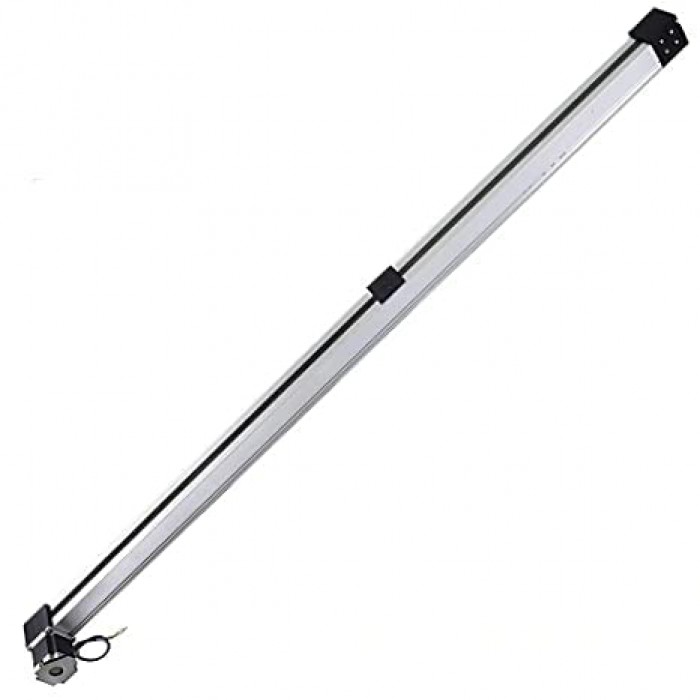

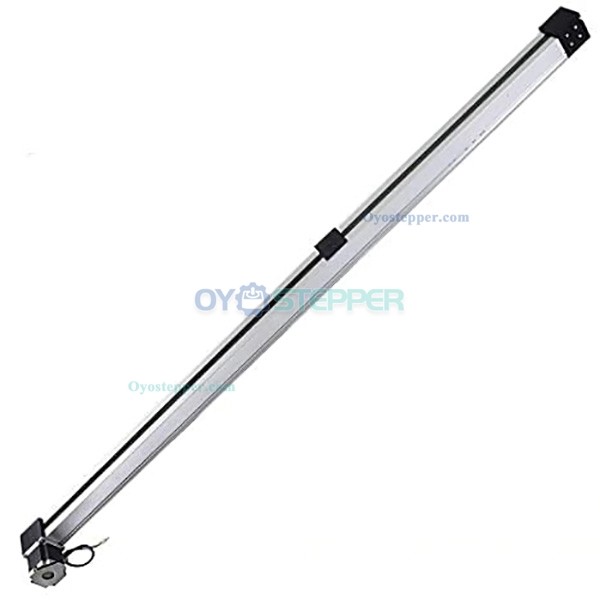

High Speed CNC Linear Guide Slide Rail Linear Motion Actuator FBL80 1000mm with Nema34 Stepper Motor



Feature:

Equipped with 3 phase flange stepper motor, offer sufficient power, linear module speed can be as fast as 3000mm/s

M5 screws on the baseboard and sideway are easy for install and uninstall

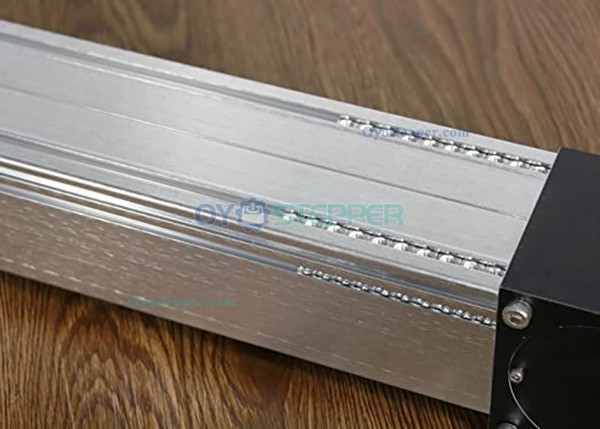

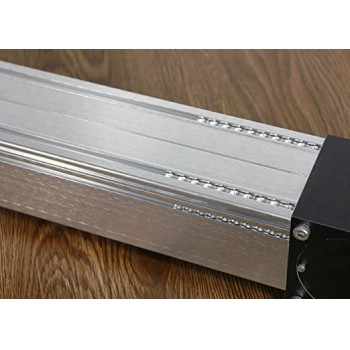

Silver polished aluminum for avoid rusting,complete sealed with belt structure make dustproof and IP65 waterproof

Aluminum made panel ensured stable performance, travel stroke from 200mm to 3900mm

Easy maintenance due to belt driven transmission,vertical loading capacit up to 5kg,horizontal loading capacity can be as heavy as 30kg,



Product Description

Effective Stroke: 1000mm

Total Length: 1272mm

Tatal Height: 80mm

Slide Width: 80mm

Maximum Horizontal Load: 30kg

Max Vertical Load: 5kg[with brake]

Max Horizontal Speed:300~1700mm/s[max loading]

Max Vertical Speed: 300~600mm/s[max loading]

Max Speed: 3000mm/s[No loading]

Repeat position accurancy: ±0.1mm

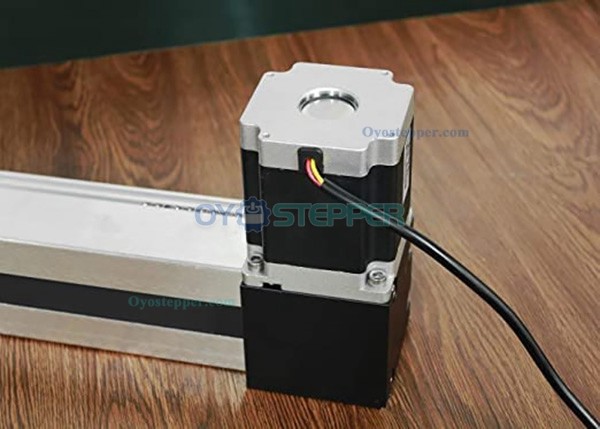

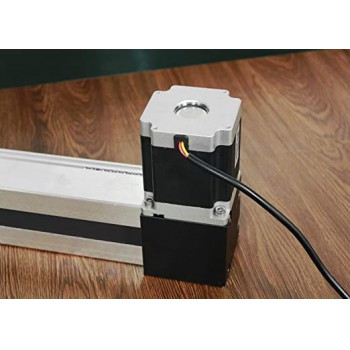

Driven Type: Belt Drive Stepper Motor Parameter: Phase : 3 phase

Motor flange size: 86mm

Motor length: 98mm

Holding torque: 5 N.m

Current: 3.0A

Lead wire: 3;

FBL80 High Speed CNC Linear Guide Slide Rail Linear Motion Actuator with Nema34 Stepper Motor



FBL80 High Speed CNC Linear Guide Slide Rail Linear Motion Actuator with Nema34 Stepper Motor

FBL80 High Speed CNC Linear Guide Slide Rail Linear Motion Actuator with Nema34 Stepper Motor

FBL80 High Speed CNC Linear Guide Slide Rail Linear Motion Actuator with Nema34 Stepper Motor
