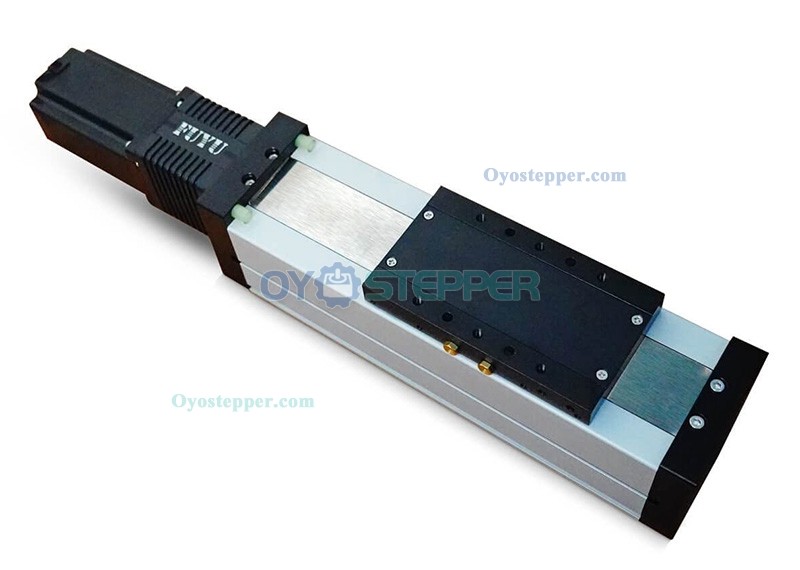

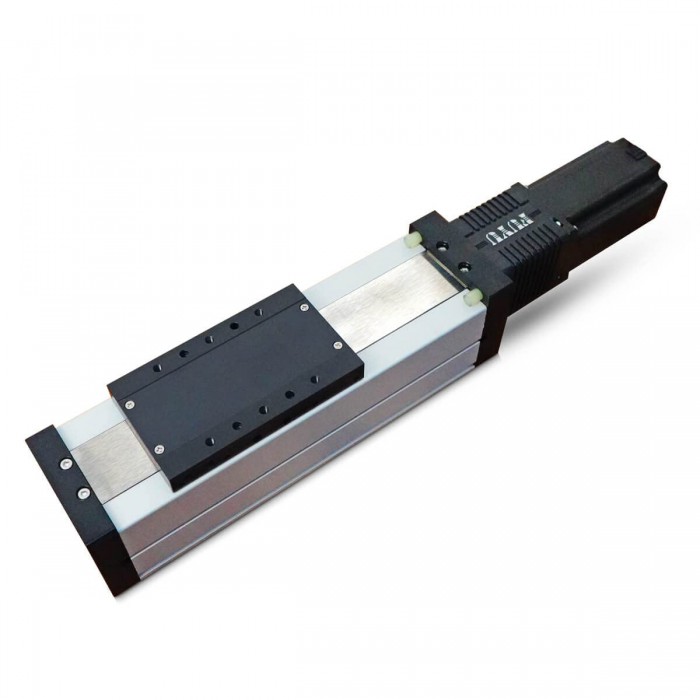

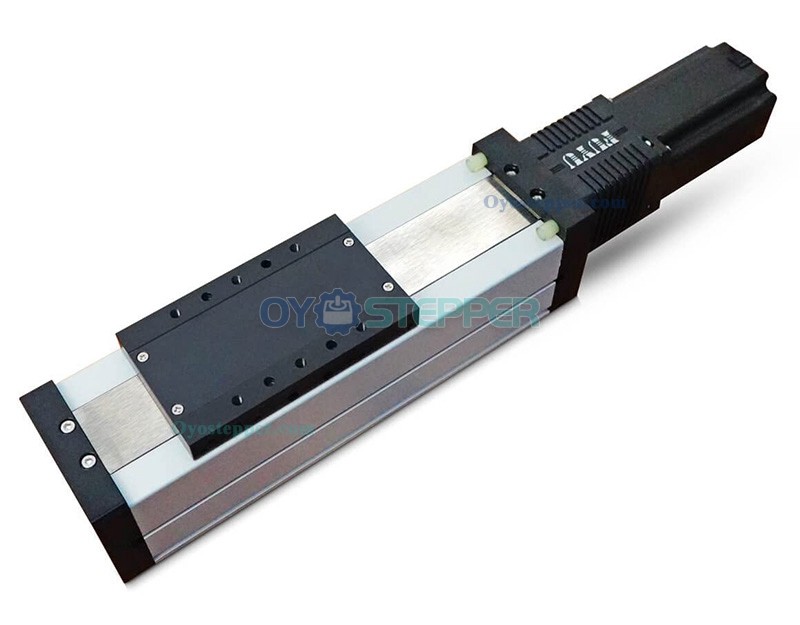

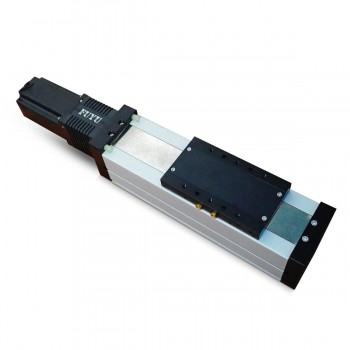

FS60 Ball Screw Linear Rail Guide CNC Slide Stage Actuator Table with Nema 24 Stepper Motor

Linear Ball Screw Rail Guide CNC Slide Stage Actuator Table FS60 with Nema 24 Stepper Motor

Features:

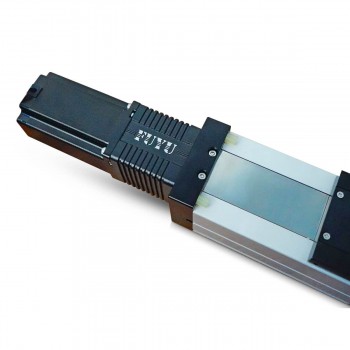

Equipped with NEMA 24 stepper motor

Rail slider design

Repeat positioning accuracy: ±0.02mm

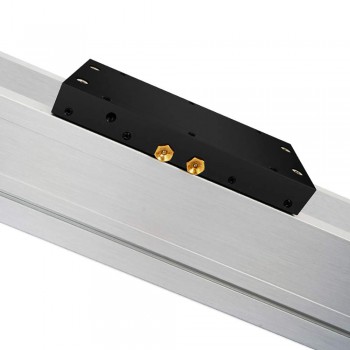

Oil fill port accessible without disassembly

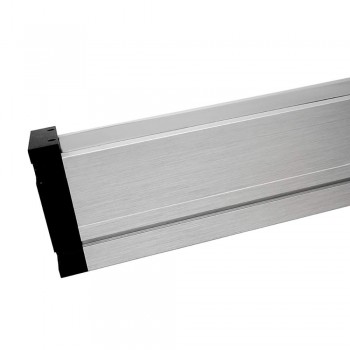

Anodized aluminum profile

Anti-tarnish belt treatment

Stroke range: 100mm to 1200mm

Custom stroke options available;

Specifications:

Repeat positioning accuracy: 0.02mm

Noise level: 75dB (within 1m)

Maximum horizontal load: 40kg

Maximum vertical load: 15kg

Speed by Ball Screw Model:

Model: 1605

Max horizontal speed (full load): 100mm/s

Max vertical speed (full load): 80mm/s

Max no-load speed: 100mm/s

Model: 1610

Max horizontal speed (full load): 200mm/s

Max vertical speed (full load): 180mm/s

Max no-load speed: 200mm/s

Model: 1616

Max horizontal speed (full load): 300mm/s

Max vertical speed (full load): 260mm/s

Max no-load speed: 300mm/s;

Stroke and ASIN Reference:

100mm – B081N8F5FQ

400mm – B081N7DTMP

600mm – B081N84ZGN

700mm – B081N93Q2F

900mm – B081N7TDVZ

1000mm – B081N82W96

This series linear guide has srokes from 100mm to 1200mm
