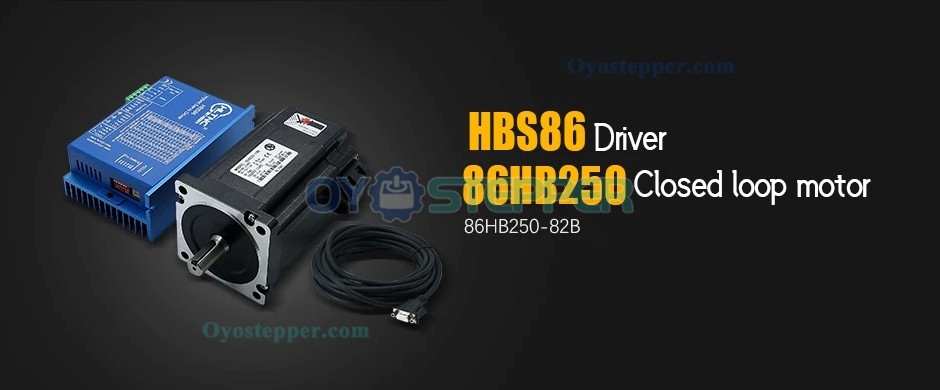

HLTNC Nema 34 Close Loop Stepper Motor Kit 1.8deg 4.5N.m (643Oz.in) Without Brake & HBS86 Driver

Name: HLTNC Nema 34 Close Loop Stepper Motor Kit 1.8deg 4.5N.m (643Oz.in) Without Brake & HBS86 Driver
Brand: HLTNC
SKU: 86HB250-82B-HBS86 No Brake
Price: 125.00 USD
Availability: InStock

NO.:86HB250-82B-HBS86 No Brake
Post a review

Our Price:$125.00

Description Specification Custom Options Review

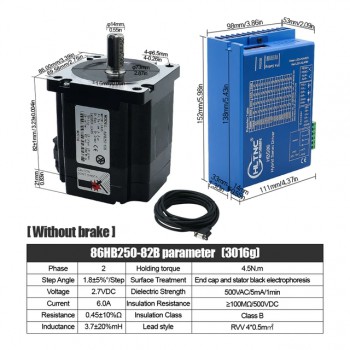

HLTNC Nema34 Close Loop Stepper Motor Kit 86HB250-82B-HBS86 (No Brake) 1.8deg 4.5N.m with HBS86 Driver

Specifications:

Certification: CE

Model Number: 86HB250-82B HBS86

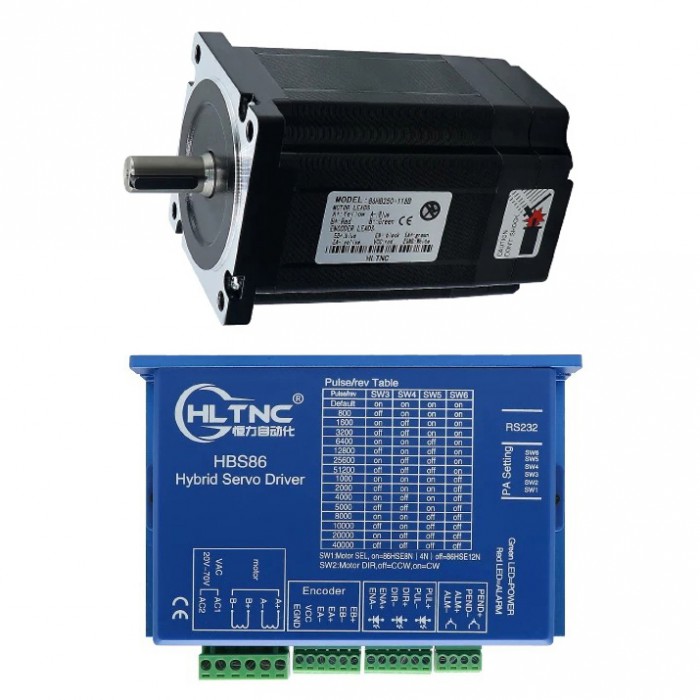

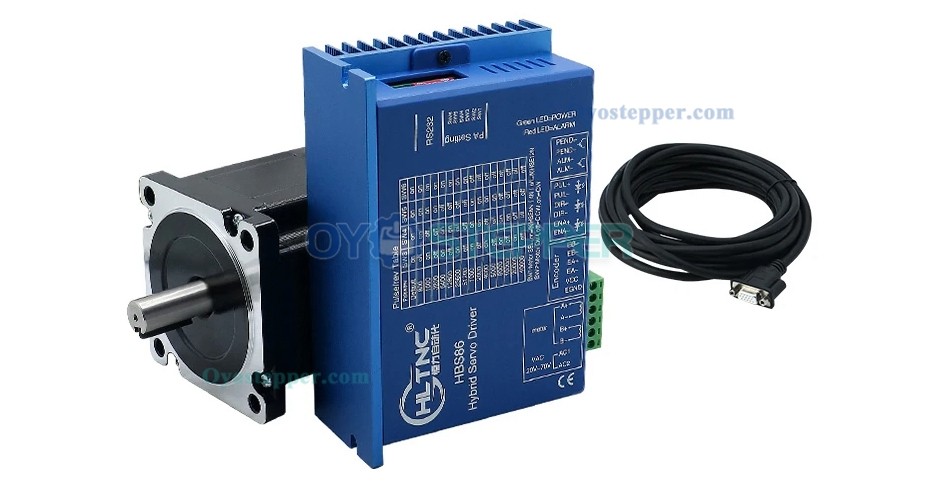

Name: Nema34 Close Loop Stepper Motor and Driver

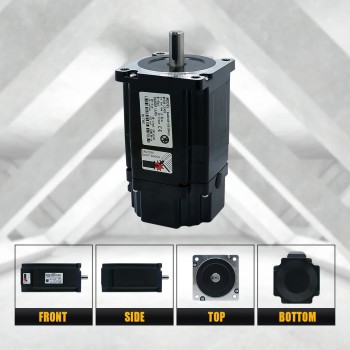

Close Loop Motor: 86HB250-82B

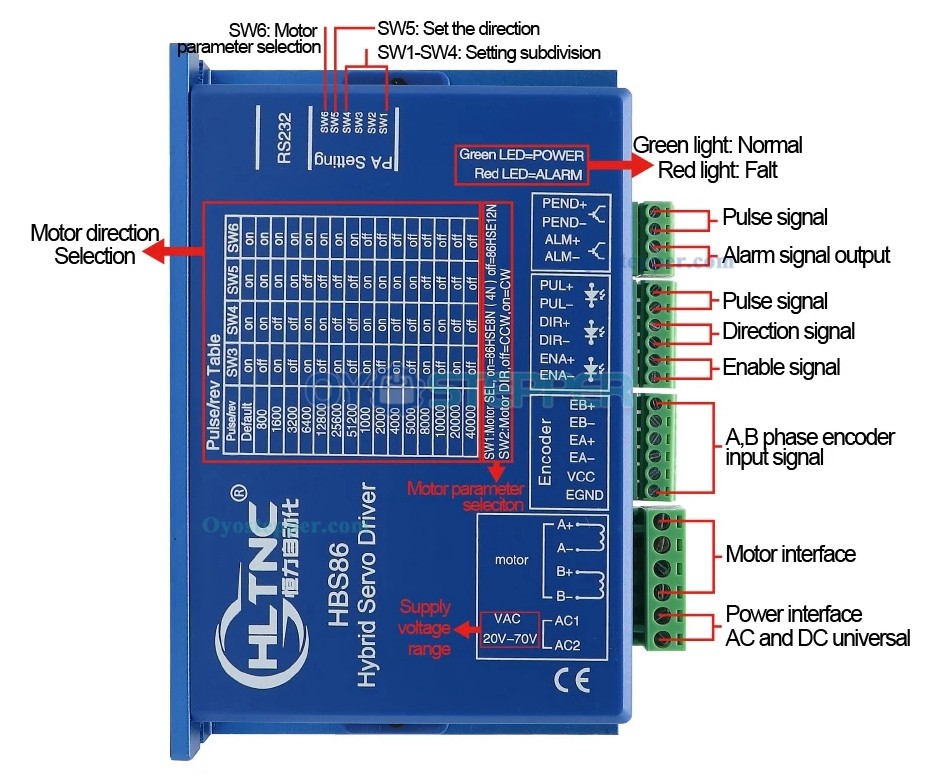

Motor Driver: HBS86

Encoder Cable: 3M

Holding torque: 4.5/ 8/ 12N.m

Nema 34 Close Loop Stepper Motor Kit 1.8deg 4.5N.m (643Oz.in) Without Brake & HBS86 Driver

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Helical Gear Speed Planetary Reducer for Nema23 Stepper Motor / 60mm Servo Motor
Next: HLTNC Nema34 Close Loop Stepper Motor Kit 4.5N.m 1.8deg 86HB250-82B & HBS86 Driver With Brake

CNC Kit Specification
No of Axis	Single Axis
Open-loop/Closed-loop	Closed-loop

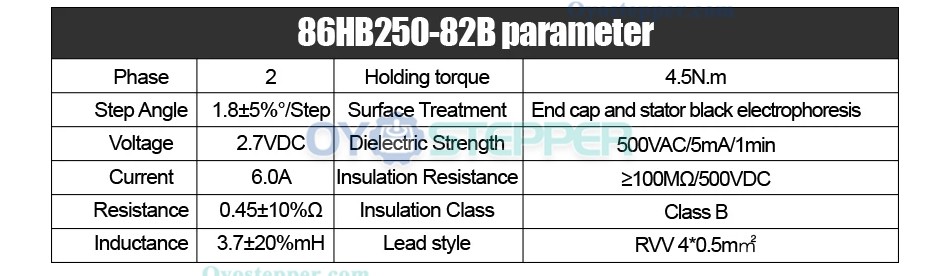

Motor Specification
Holding Torque (Ncm)	450
Holding Torque (oz.in)	637.38
Inductance(mH)	3.7
Motor Nema Size	Nema 34
Phase Resistance(ohm)	0.45
Rated Current (A)	6

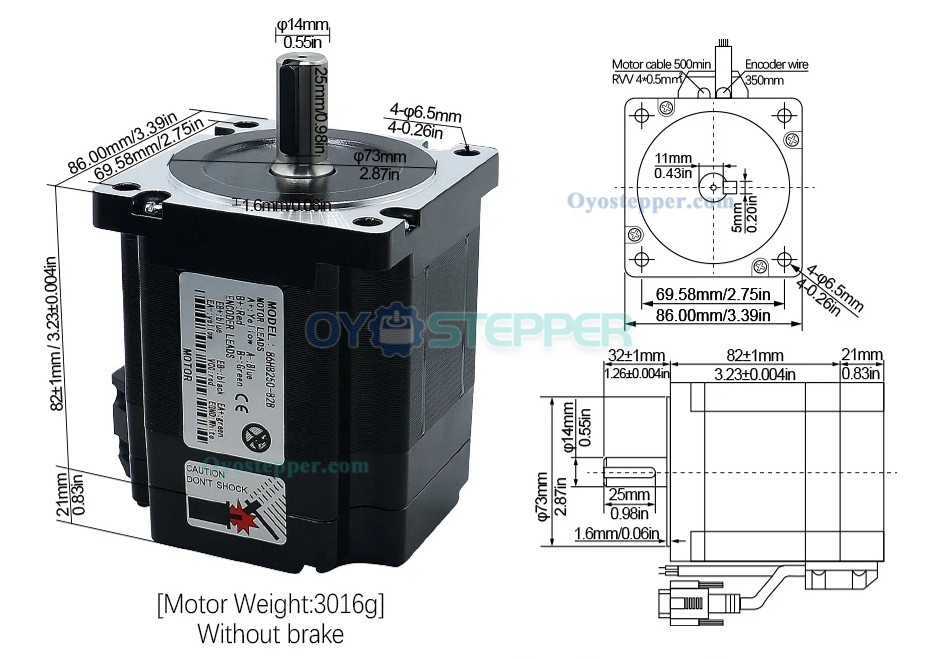

Shaft Diameter(mm)	14
Shaft Length(mm)	30.5
Shaft Type	Keyway
Step Angle(°)	1.8

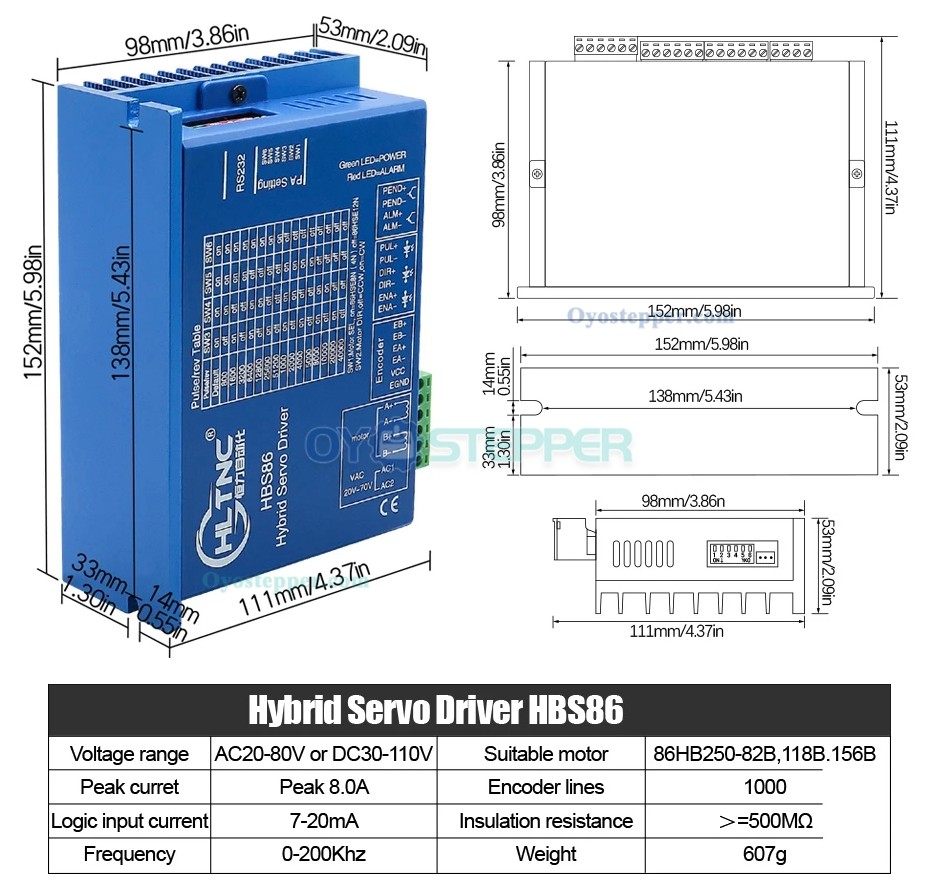

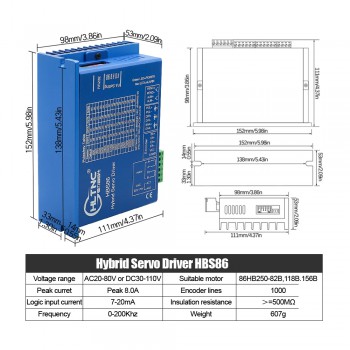

Stepper Driver Specification
Driving Voltage(V)	AC20-80 / DC30-110
Max. Pulse Input(kHZ)	200
