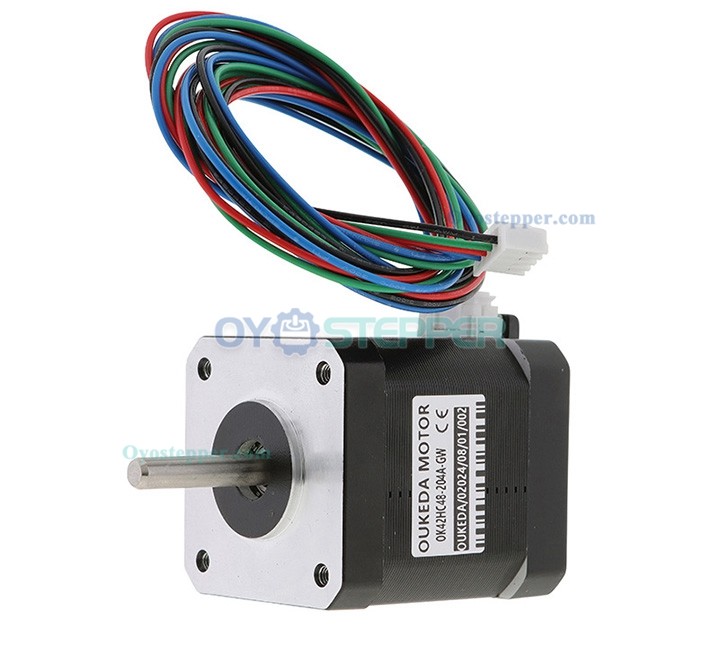

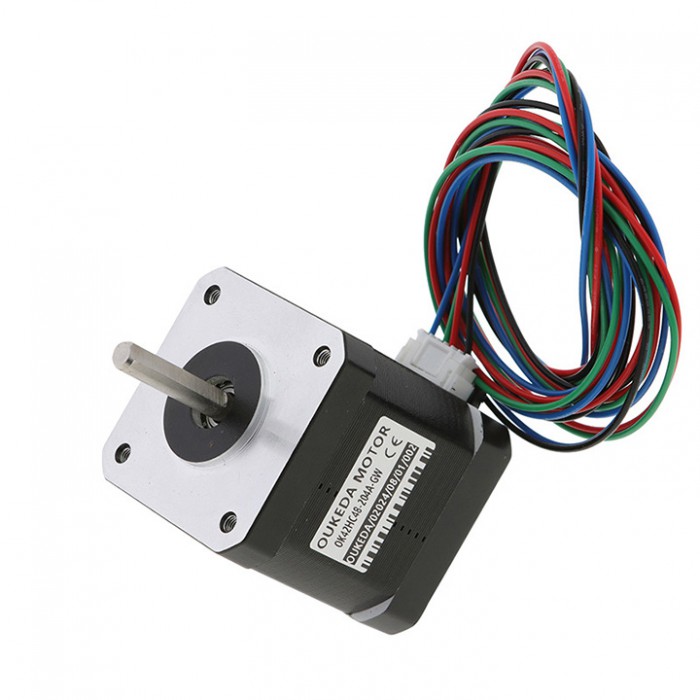

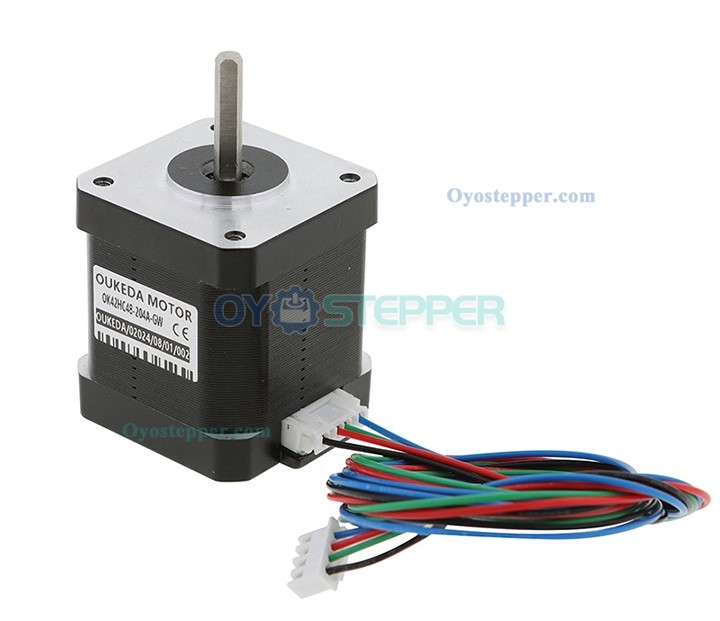

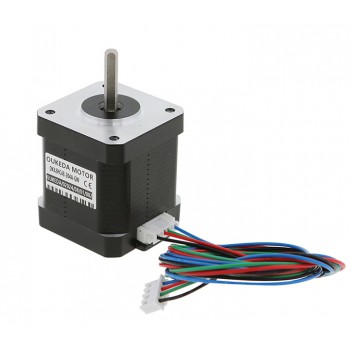

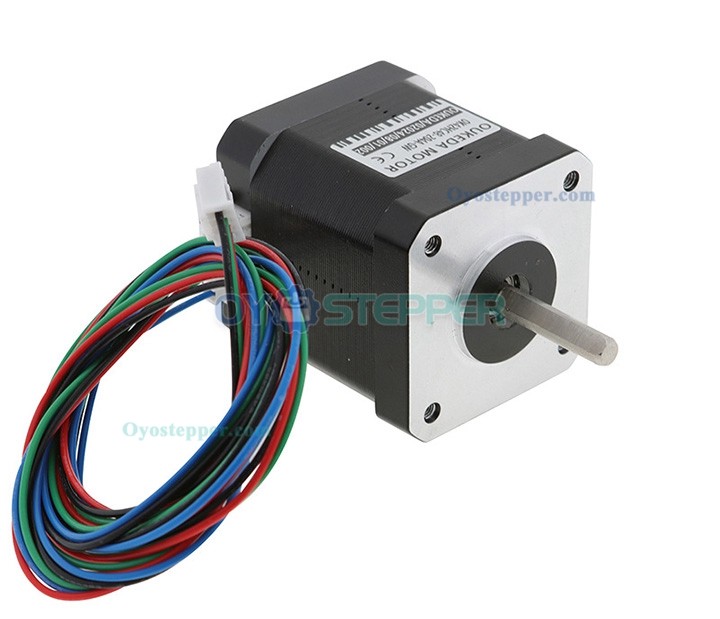

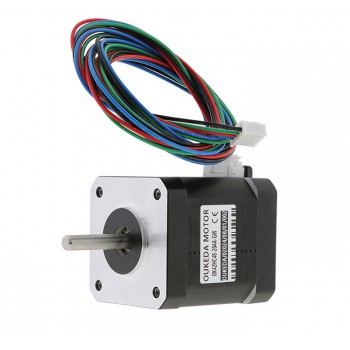

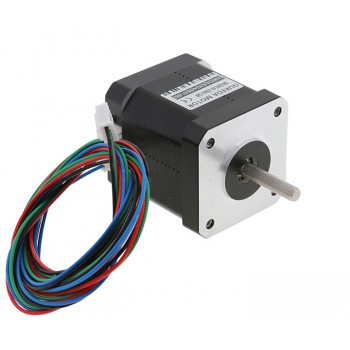

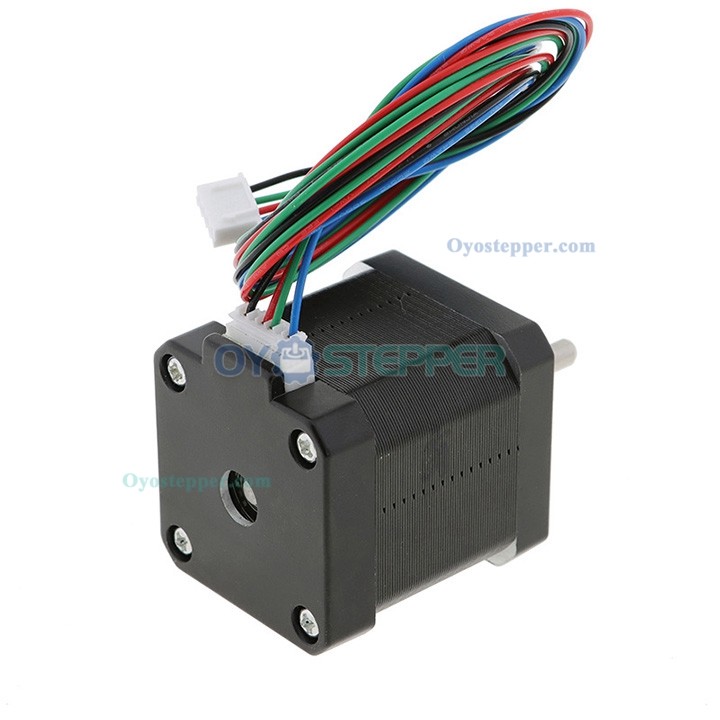

Oukeda Nema 17 High Temp Stepper Motor 1.8deg 60Ncm Insulation Class B 180C

Oukeda Nema 17 High Temp Stepper Motor 1.8deg 60Ncm Insulation Class B 180C
NO.:OSP001461
Post a review
Our Price:$11.99
Quantity:- +

Add To Cart

Oukeda Nema 17 High Temp Stepper Motor 1.8deg 60Ncm Insulation Class B 180C


Electrical Specification:
Manufacturer Part Number: OK42HC48-204A-GW
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Phase:2
Static moment: 60Ncm(84.96oz.in)
Phase Current: 2.0A
Phase Voltage: 2.8V
Use Voltage:12V-36V
Phase Resistance: 1.4ohms
Inductance: 3.0mH ± 20%(1KHz)
Insulation Class B: 180C(356F);

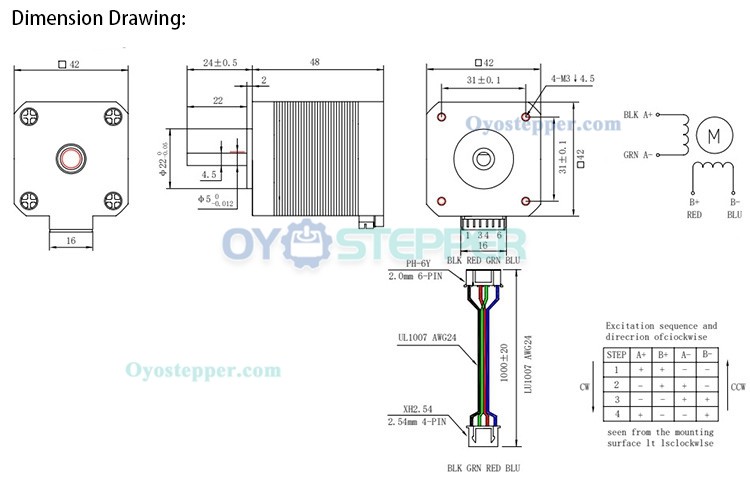

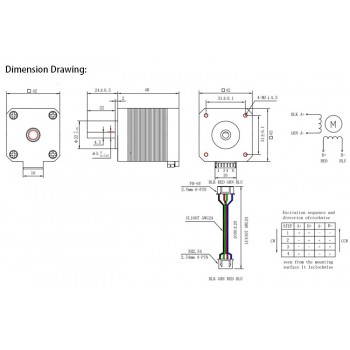

Physical Specification:
Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 22mm
Number of Leads: 4
Lead Length: 500mm
Weight: 360g;

Oukeda Nema 17 High Temp Stepper Motor 1.8deg 60Ncm Insulation Class B 180C





Oukeda Nema 17 High Temp Stepper Motor 1.8deg 60Ncm Insulation Class B 180C

Oukeda Nema 17 High Temp Stepper Motor 1.8deg 60Ncm Insulation Class B 180C



Oukeda Nema 17 High Temp Stepper Motor 1.8deg 60Ncm Insulation Class B 180C



Oukeda Nema 17 High Temp Stepper Motor 1.8deg 60Ncm Insulation Class B 180C

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Oukeda Nema 11 Flat Pancake Stepper Motor with Gearbox 2 Phase 1.8 Deg 2.5Ncm 4 Wires
Next: Oukeda Nema 14 Stepper Motor Bipolar 1.8 Deg 12Ncm (16.99oz.in) 1A 10V 36x36x20mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Phase Resistance(ohm) 1.4ohms
Step Angle(°) 1.8
No. of Phase 2
Phase Current(A) 2.0A
Phase Voltage(V) 2.8V
Physical Specification
Shaft Diameter(mm) Φ5mm
Shaft Length(mm) 24mm
Shaft Type D-cut
Single Shaft/Dual Shaft Single Shaft
Weight(g) 360
Frame Size(mm) 42x42
