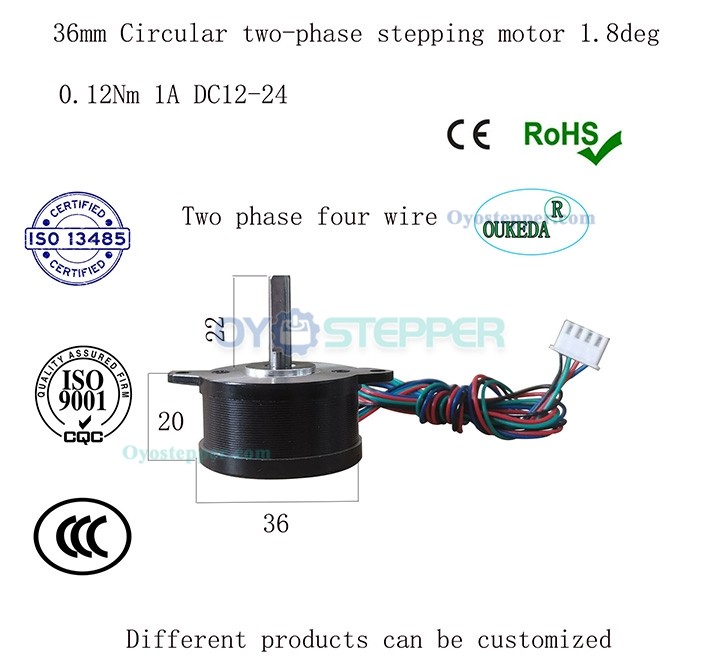

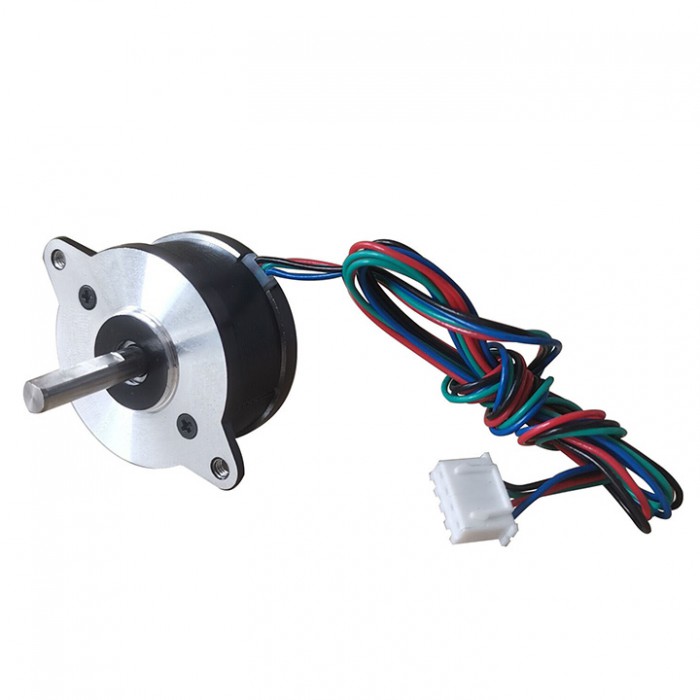

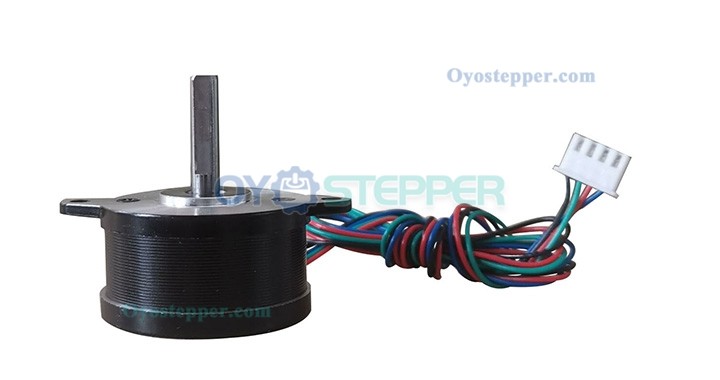

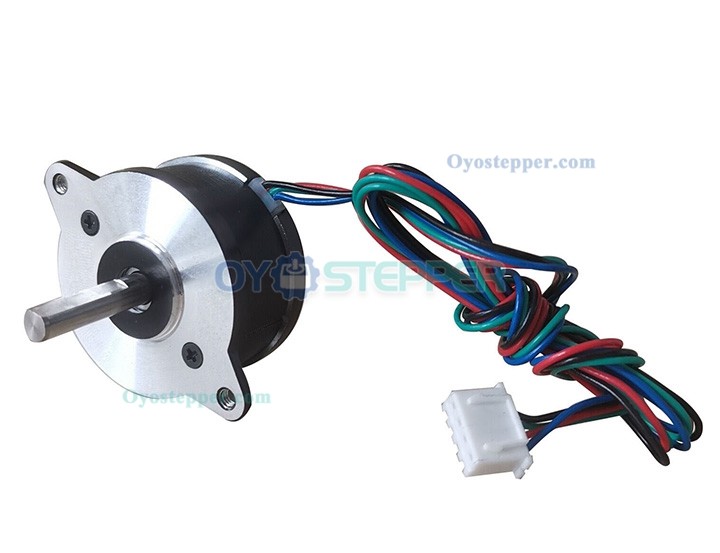

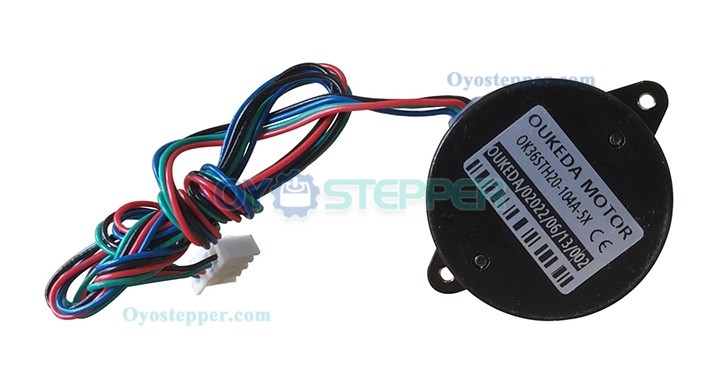

Oukeda Nema 14 Stepper Motor Bipolar 1.8 Deg 12Ncm (16.99oz.in) 1A 10V 36x36x20mm 4 Wires
Oukeda Nema 14 Stepper Motor Bipolar 1.8 Deg 12Ncm (16.99oz.in) 1A 10V 36x36x20mm 4 Wires
The 36BYGH bipolar stepper motor features a 1.8° step angle, 12Ncm static moment, 1.0A phase current, 10VDC phase voltage, and operates within a 12-24V range with 6.0mH inductance.
Electrical Specification：
Manufacturer Part Number: 36BYGH
Phase:2
Motor Type: Bipolar
Step Angle: 1.8 deg
Static Moment: 12Ncm(16.99 oz.in)
Phase Current: 1.0A
Phase Voltage:10VDC
Use Voltage:12-24V
Phase Resistance:10ohms
Inductance : 6.0mH ± 20%(1KHz);

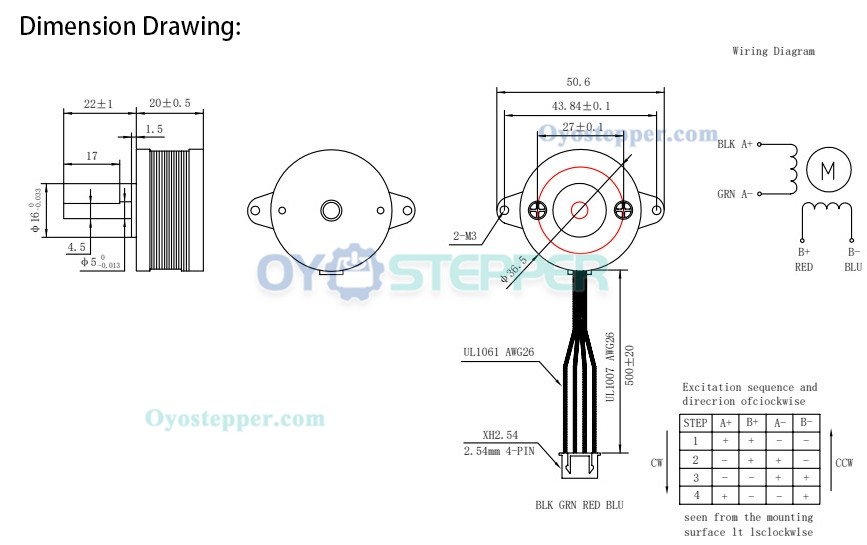

Physical Specification:
Frame Size: 36 x 36mm
Body Length: 20mm
Shaft Diameter: Φ5mm
Shaft Length: 22mm
D-cut Length: 17mm
Number of Leads: 4
Lead Length: 300mm
Weight : 100g;
.jpg "Oukeda Nema 14 Stepper Motor Bipolar 1.8 Deg 12Ncm (16.99oz.in) 1A 10V 36x36x20mm 4 Wires")
.jpg "Oukeda Nema 14 Stepper Motor Bipolar 1.8 Deg 12Ncm (16.99oz.in) 1A 10V 36x36x20mm 4 Wires")
.jpg "Oukeda Nema 14 Stepper Motor Bipolar 1.8 Deg 12Ncm (16.99oz.in) 1A 10V 36x36x20mm 4 Wires")
.jpg "Oukeda Nema 14 Stepper Motor Bipolar 1.8 Deg 12Ncm (16.99oz.in) 1A 10V 36x36x20mm 4 Wires")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Static Moment | 12Ncm |
| Bipolar/Unipolar | Bipolar |
| No. of Phase | 2 |
| Step Angle(deg.) | 1.8 |
| Phase Current(A) | 1.0A |
| Phase Voltage(V) | 10VDC |
| Physical Specification | |
| Body Length(mm) | 20mm |
| Lead Length(mm) | 300mm |
| No. of Lead | 4 |
| Shaft Diameter(mm) | Φ5mm |
| Shaft Length(mm) | 22mm |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Frame Size(mm) | Nema 14 (Φ36) |
