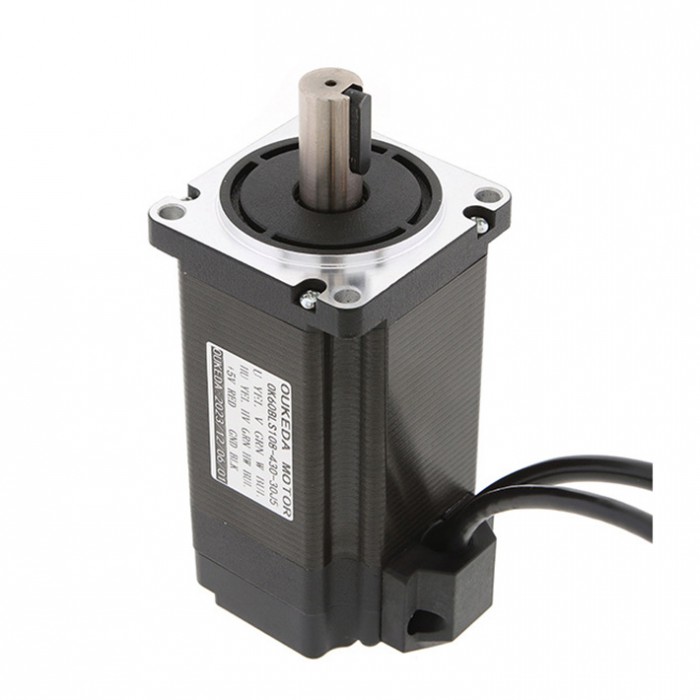

Oukeda Brushless DC Motor 95.55Ncm/127Ncm 300W/400W 24V/48V 3000RPM 3 Phase BLDC Motor
Oukeda Brushless DC Motor 95.55Ncm/127Ncm 300W/400W 24V/48V 3000RPM 3 Phase BLDC Motor
Available model:
DC48V 95.55Ncm 300W 3000RPM
DC48V 127Ncm 400W 3000RPM
DC24V 95.55Ncm 300W 3000RPM
Electrical Specification:
Manufacturer Part Number:OK60BLS108-430-30J5
Motor Type: BLDC Motor
Number of Phase:3
Rated Voltage:48VDC
Rated Speed:3600士10%RPM
No Load Speed:3000士10%RPM
Rated Current:8A
Rated Power:300W
Rated Torque:95.55Ncm
Phase Resistance: 100 ohms
Physical Specification:
Frame Size: Φ60mm
Body Length: 108mm
Shaft Diameter: Φ14mm
Shaft Length: 31mm
Key-Way Length: 20mm
Number of Leads: 8
Lead Length: 500mm
Weight:1.6kg;
.jpg "Oukeda Brushless DC Motor 95.55Ncm/127Ncm 300W/400W 24V/48V 3000RPM 3 Phase BLDC Motor")
.jpg "Oukeda Brushless DC Motor 95.55Ncm/127Ncm 300W/400W 24V/48V 3000RPM 3 Phase BLDC Motor")
.jpg "Oukeda Brushless DC Motor 95.55Ncm/127Ncm 300W/400W 24V/48V 3000RPM 3 Phase BLDC Motor")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Rated Current (A) | 8 |
| No. of Phase | 3 |
| Rated Power(W) | 300W / 400W |
| Rated Torque(Nm) | 95.55 / 127.00 |
| Rated Voltage(V) | 24 / 48 |
| Physical Specification | |
| Body Length(mm) | 108 |
| Frame Size(mm) | 60mm |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 31 |
| Shaft Type | Key-way |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 1600 |
| Product Type | BLDC Motor |
