Oukeda Brushless DC Motor 24V 6.25Ncm-18.5Ncm 1500RPM/4000RPM 3 Phase Φ42mm Keyway
Oukeda Brushless DC Motor 24V 1500RPM-5800RPM 3 Phase Φ86mm Keyway
Available Model:

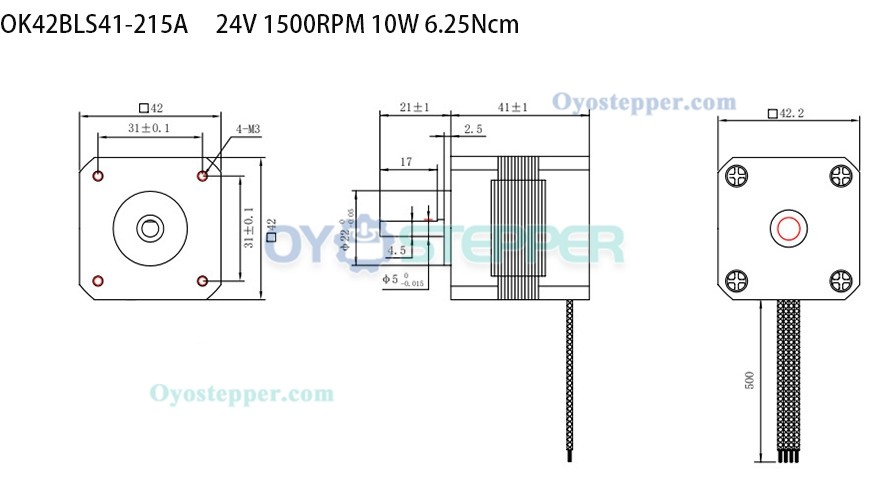

OK42BLS41-215A: 24V 1500RPM 10W 6.25Ncm

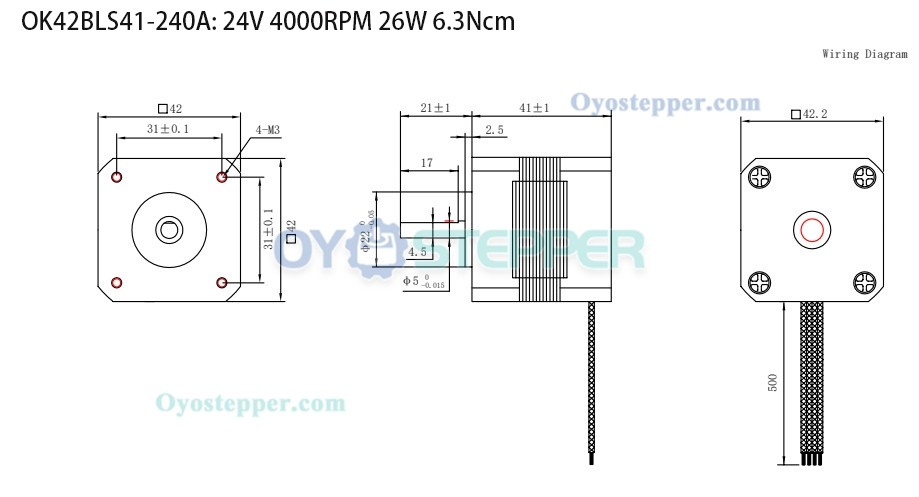

OK42BLS41-240A:24V 4000RPM 26W 6.3Ncm

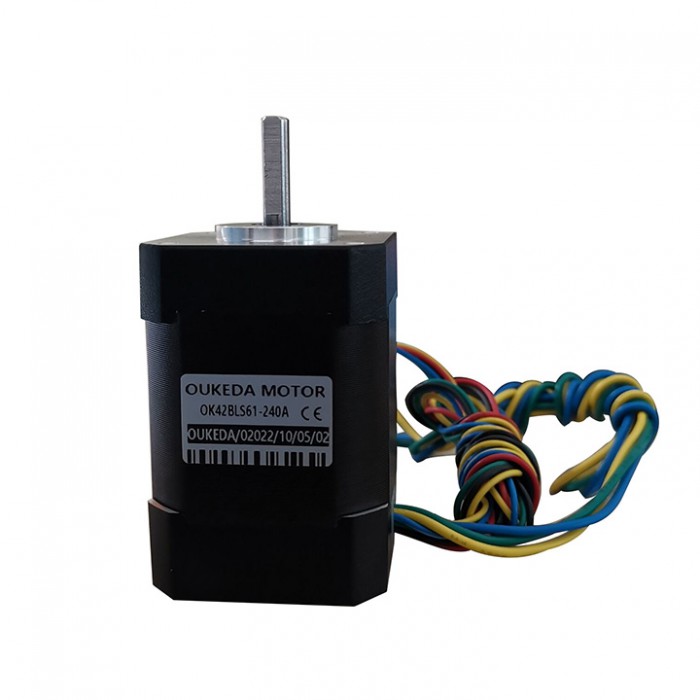

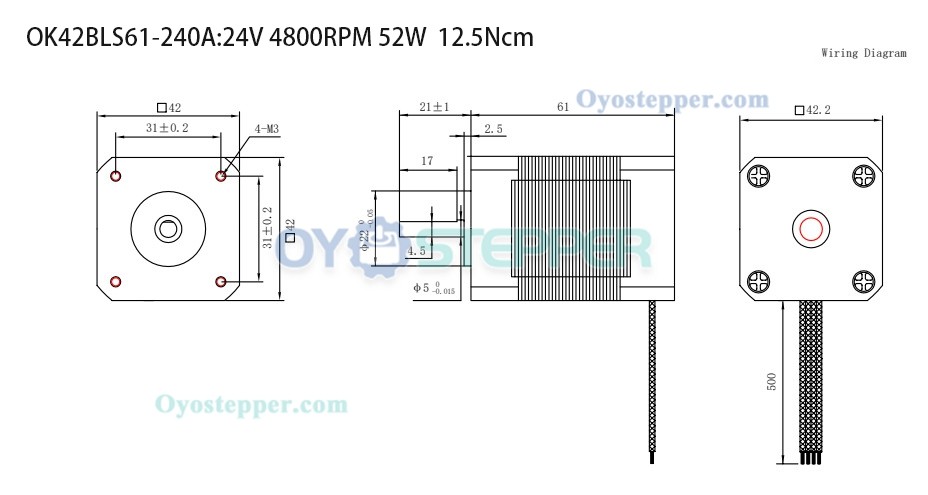

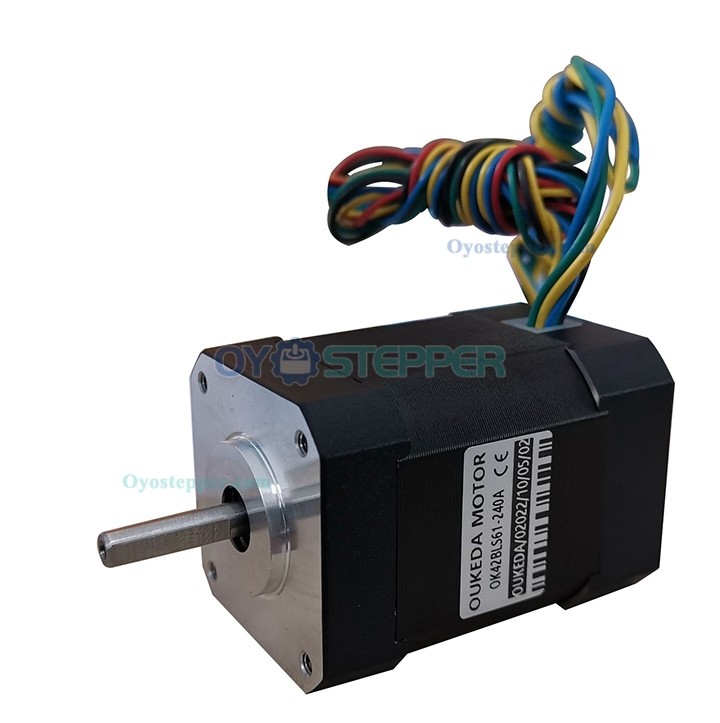

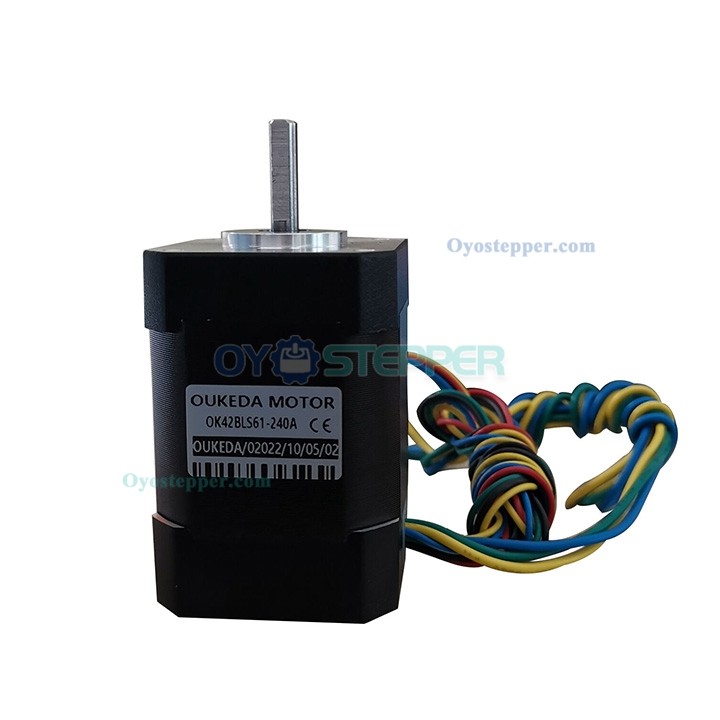

OK42BLS61-240A:24V 4800RPM 52W 12.5Ncm

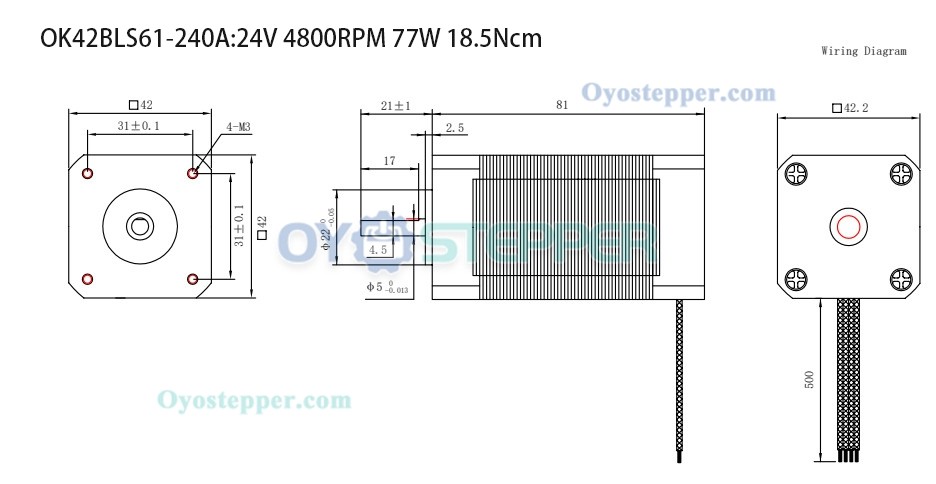

OK42BLS61-240A:24V 4800RPM 77W 18.5Ncm
Specification:
| Parameter | OK42BLS41-215A | OK42BLS41-240A | OK42BLS61-240A | OK42BLS61-240A |
|---|---|---|---|---|
| Motor Type | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor |
| Number of Phase | 3 | 3 | 3 | 3 |
| Number of Poles | 8 | 8 | 8 | 8 |
| Rated Voltage | 24V | 24V | 24V | 24V |
| Rated Speed | 1500 ±10% RPM | 5000 ±10% RPM | 5800 ±10% RPM | 5800 ±10% RPM |
| No Load Speed | 2500 ±10% RPM | 4000 ±10% RPM | 4000 ±10% RPM | 4000 ±10% RPM |
| Rated Current (Max) | 1.6A | 4A | 4A | 4A |
| Rated Power | 10W | 26W | 52.5W | 77.5W |
| Rated Torque | 6.25Ncm (8.85oz.in) | 6.3Ncm (8.92oz.in) | 12.5Ncm (17.70oz.in) | 18.5Ncm (26.19oz.in) |
| Phase Resistance | 100 ohms | 100 ohms | 100 ohms | 100 ohms |
| Frame Size | Φ42mm | Φ42mm | Φ42mm | Φ42mm |
| Body Length | 41mm | 41mm | 61mm | 81mm |
| Shaft Diameter | Φ5mm | Φ5mm | Φ5mm | Φ5mm |
| Shaft Length | 21mm | 21mm | 21mm | 21mm |
| Kewway Length | 17mm | 17mm | 17mm | 17mm |
| Number of Leads | 8 | 8 | 8 | 8 |
| Lead Length | 500mm | 500mm | 500mm | 500mm |
| Weight | 0.3kg | 0.5kg | 0.5kg | 0.5kg |
.jpg "Oukeda Brushless DC Motor 24V 6.25Ncm-18.5Ncm 1500RPM/4000RPM 3 Phase Φ42mm Keyway")
.jpg "Oukeda Brushless DC Motor 24V 6.25Ncm-18.5Ncm 1500RPM/4000RPM 3 Phase Φ42mm Keyway")
