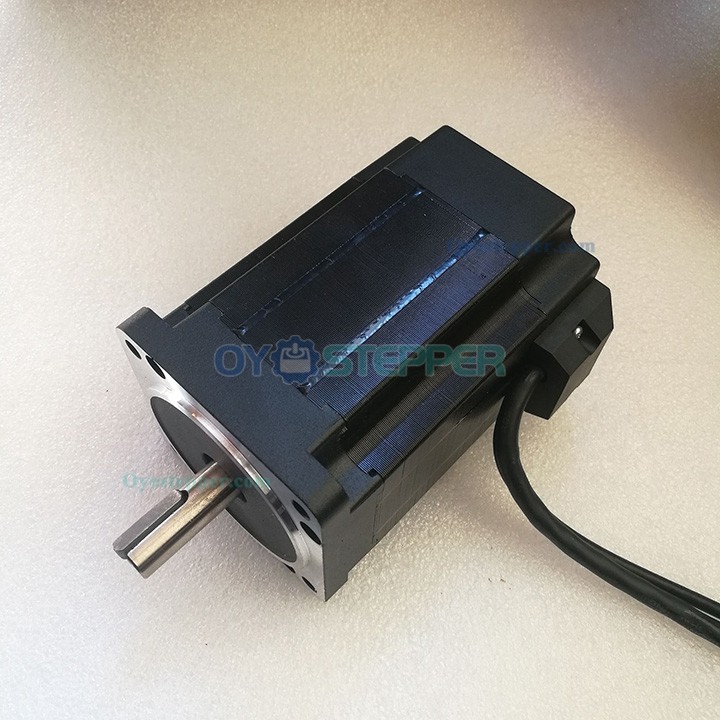

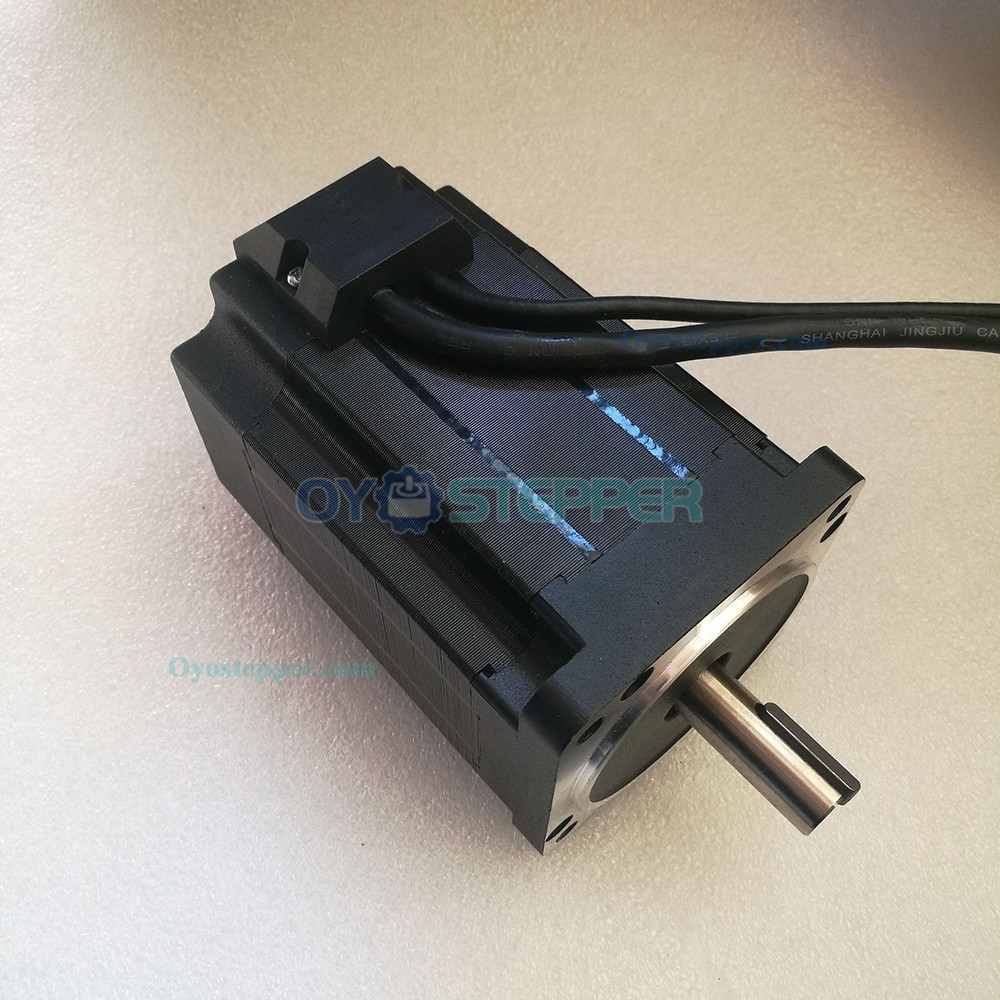

Oukeda Brushless DC Motor 270Ncm 850W 24V 3500RPM 3 Phase Φ86mm Keyway
Oukeda Brushless DC Motor 270Ncm 850W 24V 3500RPM 3 Phase Φ86mm Keyway
Electrical Specification:
Manufacturer Part Number:OK86BLS130-430
Motor Type: BLDC Motor
Number of Phase:3
Number of Poles:8
Rated Voltage:24V
Rated Speed:3000RPM
No Load Speed:3500RPM
No Load Current(Max):0.5A
Rated Torque:270Ncm(382.35oz.in)
Rated Current:21A
Rated Power:850W

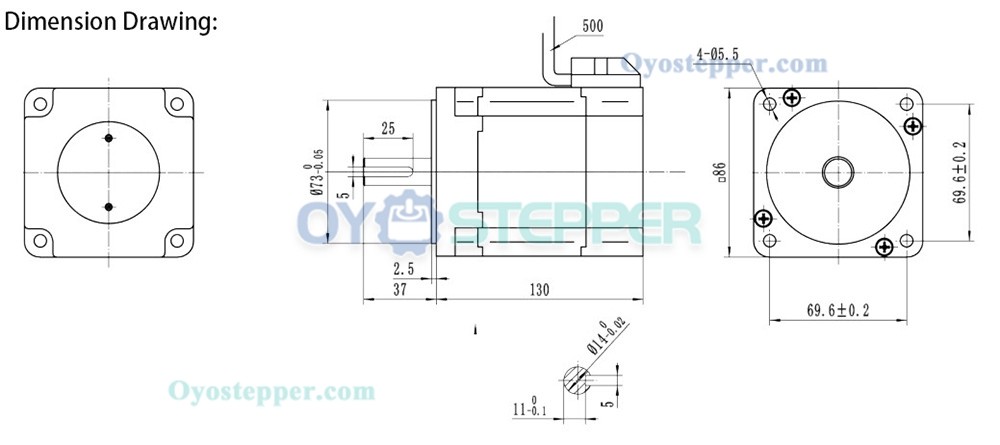

Physical Specification:
Frame Size: Φ86mm
Body Length: 130mm
Shaft Length: 37mm
Kewway Length:25mm
Number of Leads:8
Lead Length: 500mm
Weight:3kg;
.jpg "Oukeda Brushless DC Motor 270Ncm 850W 24V 3500RPM 3 Phase Φ86mm Keyway")
.jpg "Oukeda Brushless DC Motor 270Ncm 850W 24V 3500RPM 3 Phase Φ86mm Keyway")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Rated Current (A) | 21 |
| No. of Phase | 3 |
| Rated Power(W) | 850 |
| Rated Torque(Nm) | 2.7 |
| Rated Voltage(V) | 24 |
| Rated Speed(rpm) | 3000 |
| Physical Specification | |
| Body Length(mm) | 130 |
| Frame Size(mm) | 86 |
| Shaft Length(mm) | 37 |
| Shaft Type | Keyway |
| Single Shaft/Dual Shaft | [+]Single Shaft/Dual Shaft |
| Weight(g) | 3000 |
