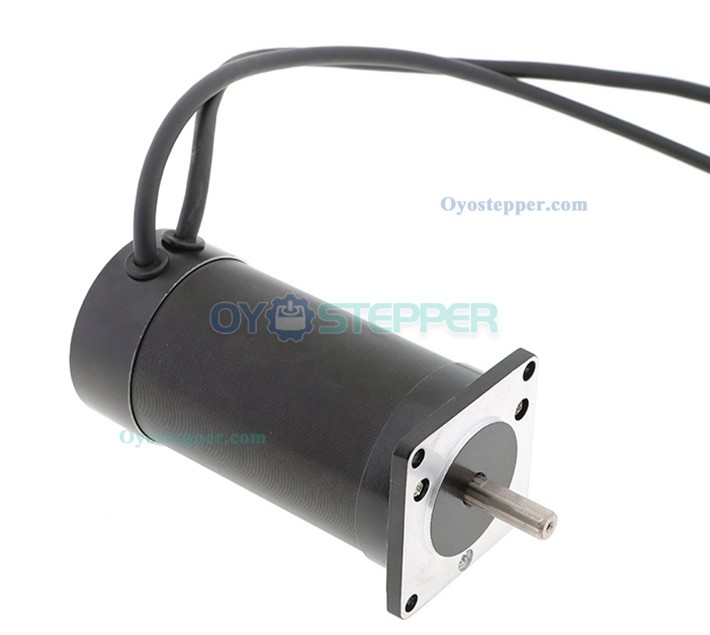

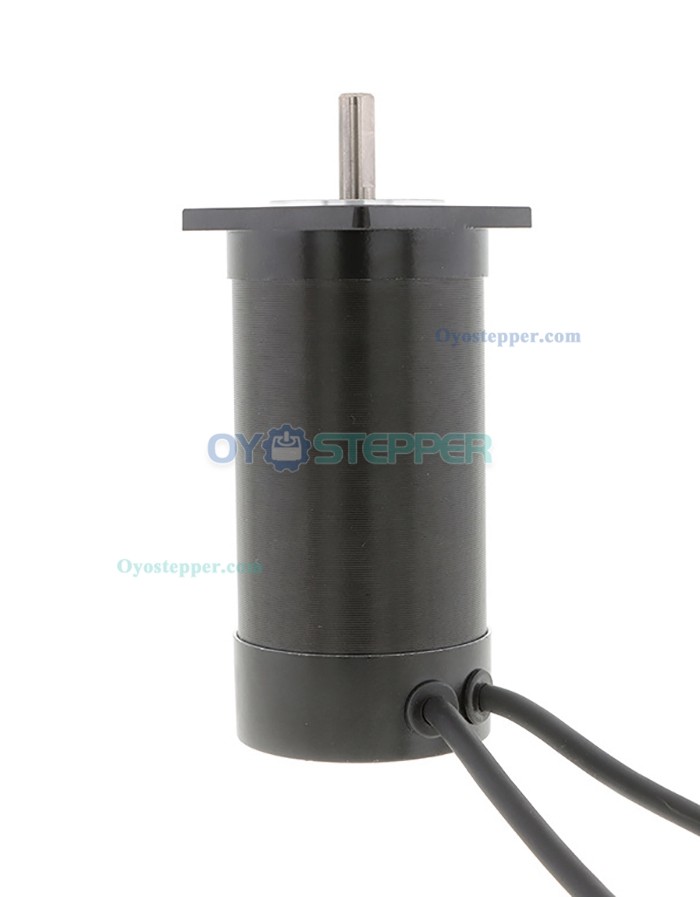

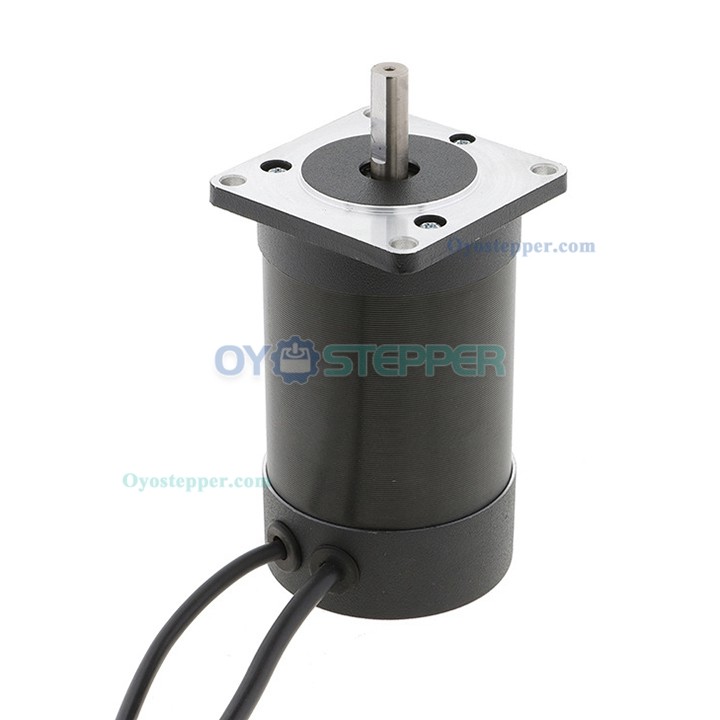

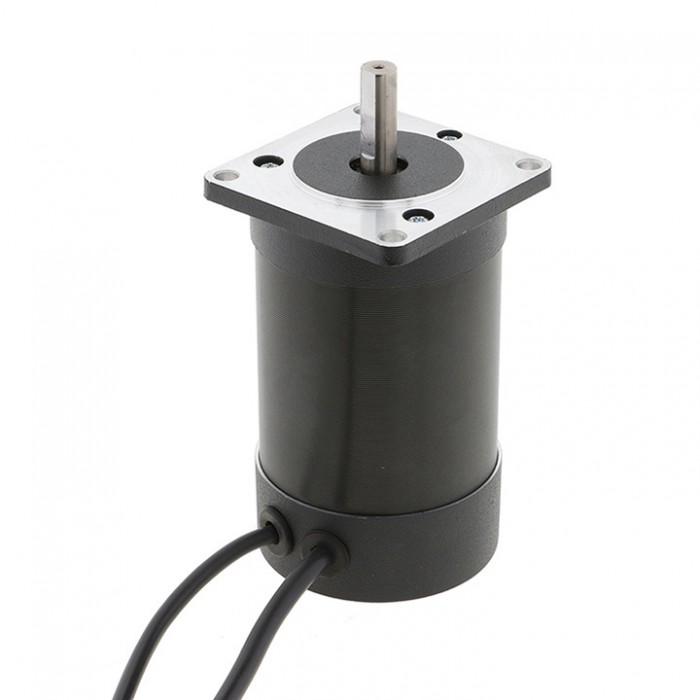

Oukeda 24V BLDC Motor 3000RPM 32Ncm 100W 6.3A 3 Phase Ф57mm Brushless DC Motor
Oukeda 24V BLDC Motor 3000RPM 32Ncm 100W 6.3A 3 Phase Ф57mm Brushless DC Motor
Electrical Specification:
Manufacturer Part Number:OK57BLS95-230A
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 4200±10%RPM
No Load Speed:3000±10%RPM
Rated Torque:0.32N.m(45.31oz.in)
Rated Current Max:6.3A
No-loading Current Max:1A
Rated Power:100W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC

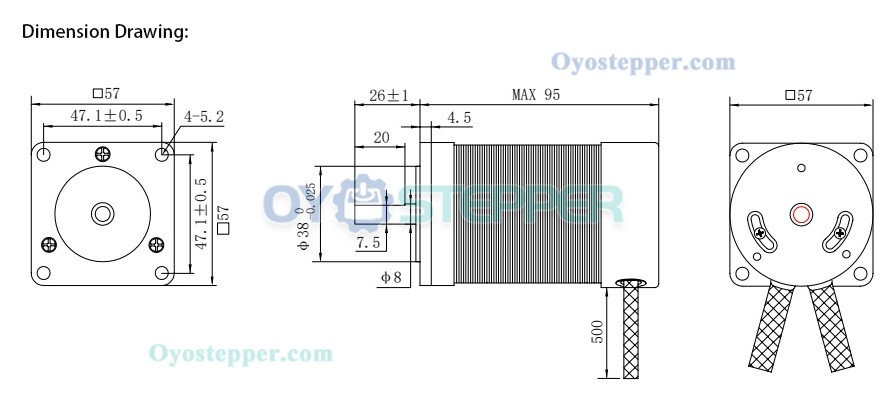

Physical Specification:
Frame Size: Φ57mm
Body Length: 95mm
Shaft Diameter: Φ8mm
Shaft Length: 26mm
D-cut Length: 20mm
Number of Leads: 8
Lead Length: 550mm
Weight: 0.95kg;
.jpg "Oukeda 24V BLDC Motor 3000RPM 32Ncm 100W 6.3A 3 Phase Ф57mm Brushless DC Motor")
.jpg "Oukeda 24V BLDC Motor 3000RPM 32Ncm 100W 6.3A 3 Phase Ф57mm Brushless DC Motor")
.jpg "Oukeda 24V BLDC Motor 3000RPM 32Ncm 100W 6.3A 3 Phase Ф57mm Brushless DC Motor")
.jpg "Oukeda 24V BLDC Motor 3000RPM 32Ncm 100W 6.3A 3 Phase Ф57mm Brushless DC Motor")
| Electrical Specification | |
|---|---|
| No. of Phase | 3 |
| Rated Power(W) | 100 |
| Rated Torque(Nm) | 0.32 |
| Rated Voltage(V) | 24 |
| Rated Speed(rpm) | 4200 |
| Physical Specification | |
| Body Length(mm) | 95 |
| Frame Size(mm) | 57 |
| Shaft Diameter(mm) | 20 |
| Shaft Length(mm) | 26 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | ingle Shaft |
| Weight(g) | 950 |
