Oukeda Permanent Magnet DCMotor Brake 24V 10N.m for Φ28/35/42/57/60/86/110 BLDC Motor

Oukeda Permanent Magnet DCMotor Brake 24V 10N.m for Φ28/35/42/57/60/86/110 BLDC Motor
NO.:OSP001482
Post a review
Our Price:$24.99

Quantity:- +

Add To Cart
Add To My Favorites
  • Share:

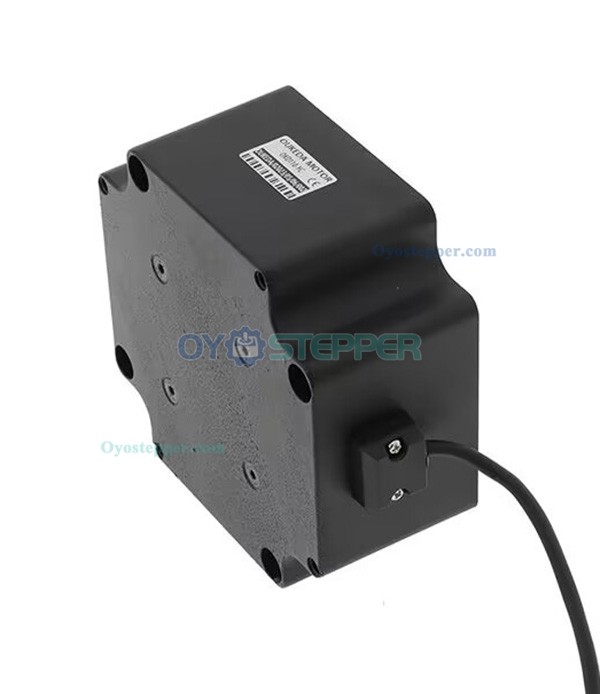

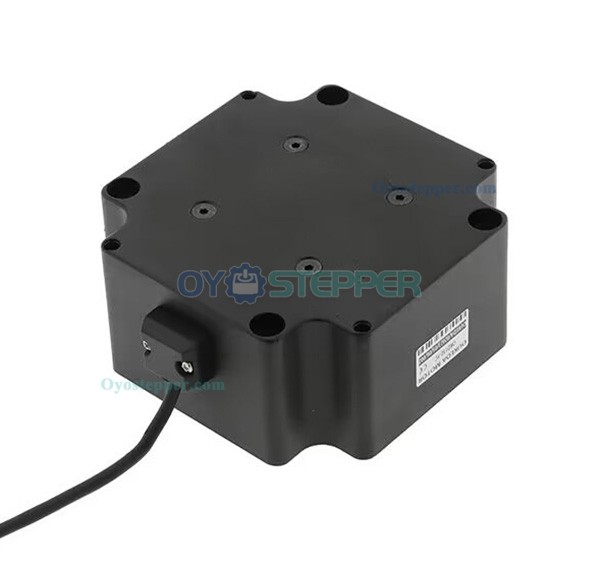

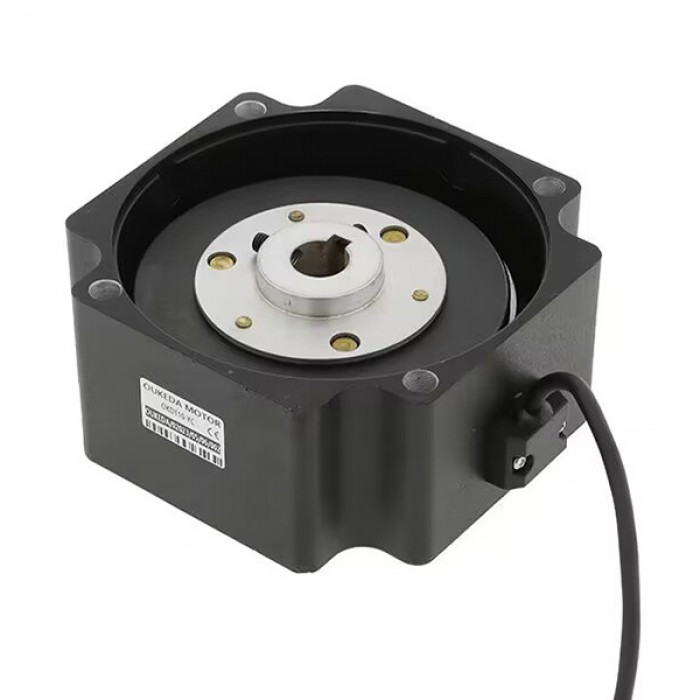

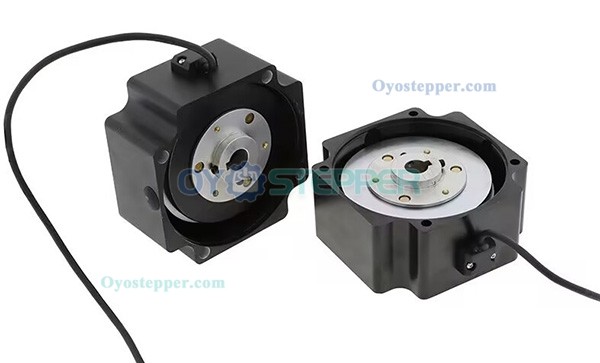

Oukeda Permanent Magnet DCMotor Brake 24V 10N.m for Φ28/35/42/57/60/86/110 BLDC Motor

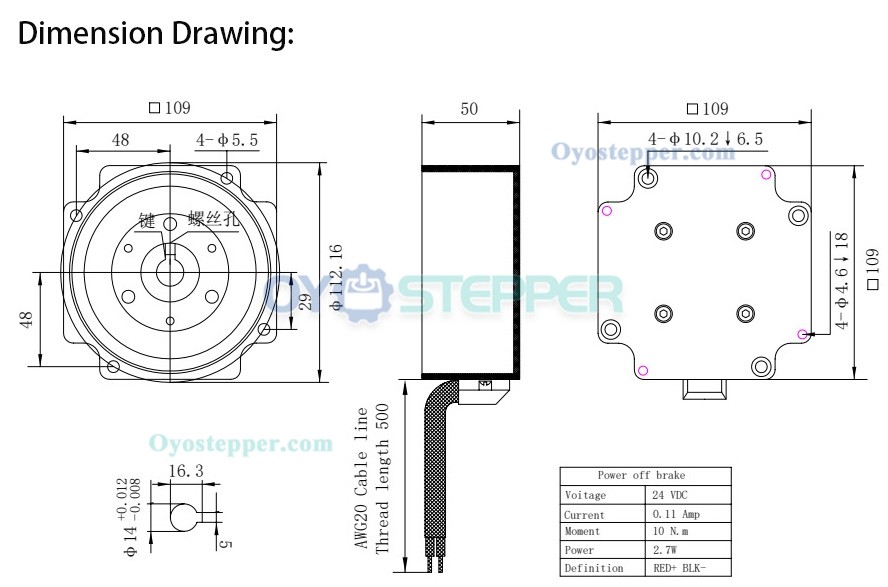

Brake Specification
Moment of Interia:10N.m
Voltage:24V
Current:0.11A
Power:2.7W
Heat-resistance Class: F
Max. Speed: 5000rpm
Weight: 0.8kg;

Oukeda Permanent Magnet DCMotor Brake 24V 10N.m for Φ28/35/42/57/60/86/110 BLDC Motor

Oukeda Permanent Magnet DCMotor Brake 24V 10N.m for Φ28/35/42/57/60/86/110 BLDC Motor

Oukeda Permanent Magnet DCMotor Brake 24V 10N.m for Φ28/35/42/57/60/86/110 BLDC Motor



Oukeda Permanent Magnet DCMotor Brake 24V 10N.m for Φ28/35/42/57/60/86/110 BLDC Motor



Oukeda Permanent Magnet DCMotor Brake 24V 10N.m for Φ28/35/42/57/60/86/110 BLDC Motor
