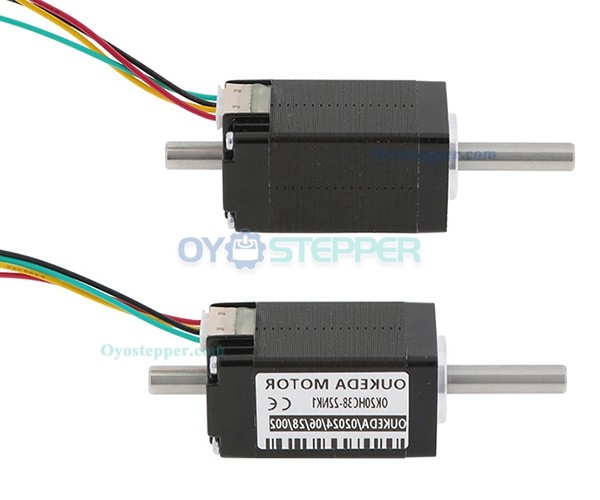

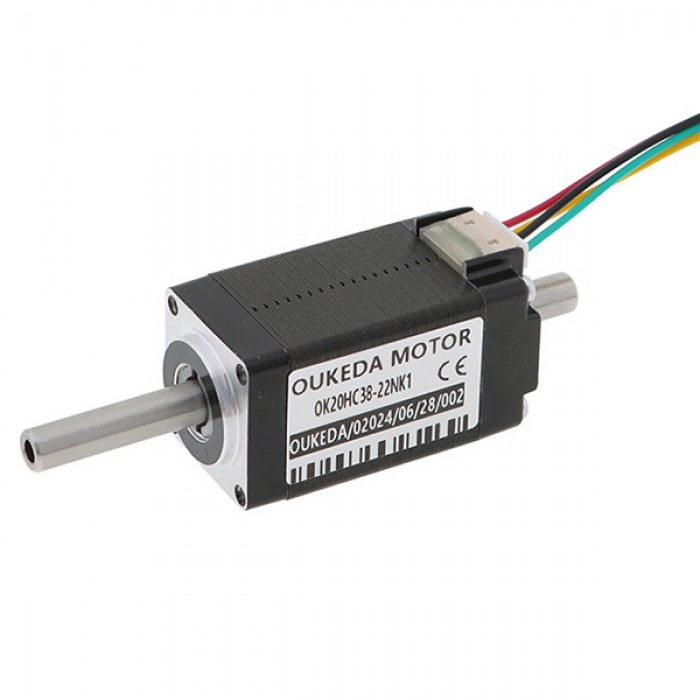

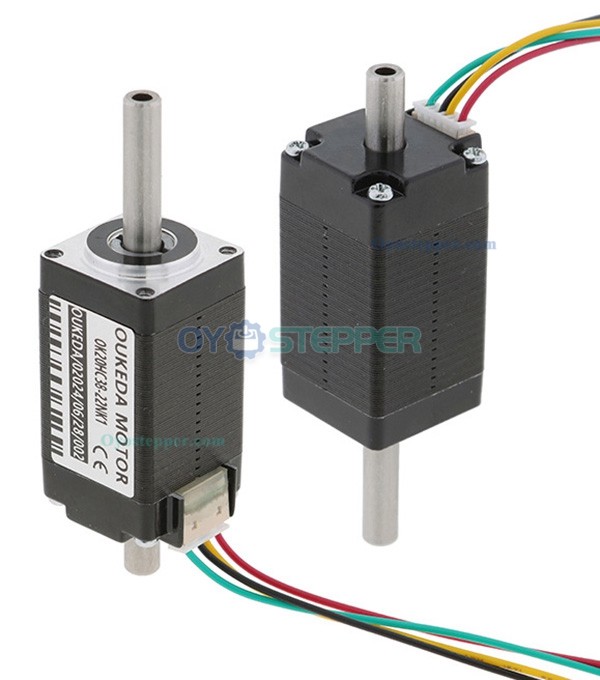

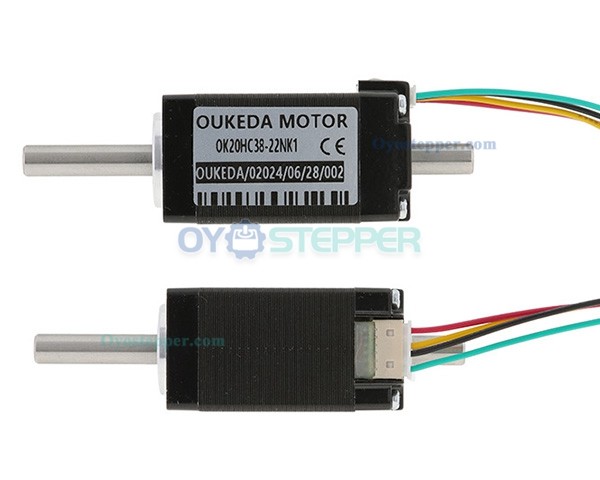

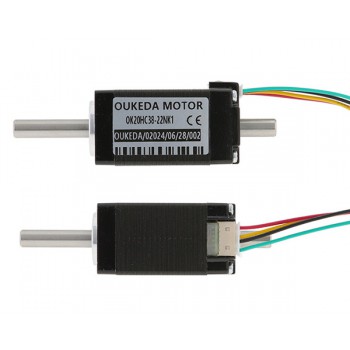

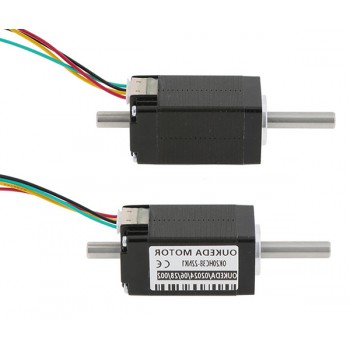

Oukeda Hollow Shaft Nema 8 Stepper Motor Bipolar 1.8 Deg 3.13Ncm 0.6A 5.4V 2 Phase Dual Shaft
Special Offer in June 2026:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 30th, 2026
- Note:No coupon code needed, please place order directly!
Our Price:$45.99
Oukeda Hollow Shaft Nema 8 Stepper Motor Bipolar 1.8 Deg 3.13Ncm 0.6A 5.4V 2 Phase Dual Shaft
Electrical Specification:
Manufacturer Part Number:OK20HC38-22NK1
Motor Type: Bipolar Stepper
Number of Phase:2
Step Angle: 1.8 deg
Static Moment: 3.13Ncm(4.43 oz.in)
Phase Voltage:5.4V
Rated Current/phase: 0.6A
Phase Resistance: 9 ohms± 10%
Inductance: 3 mH ± 20%(1KHz);

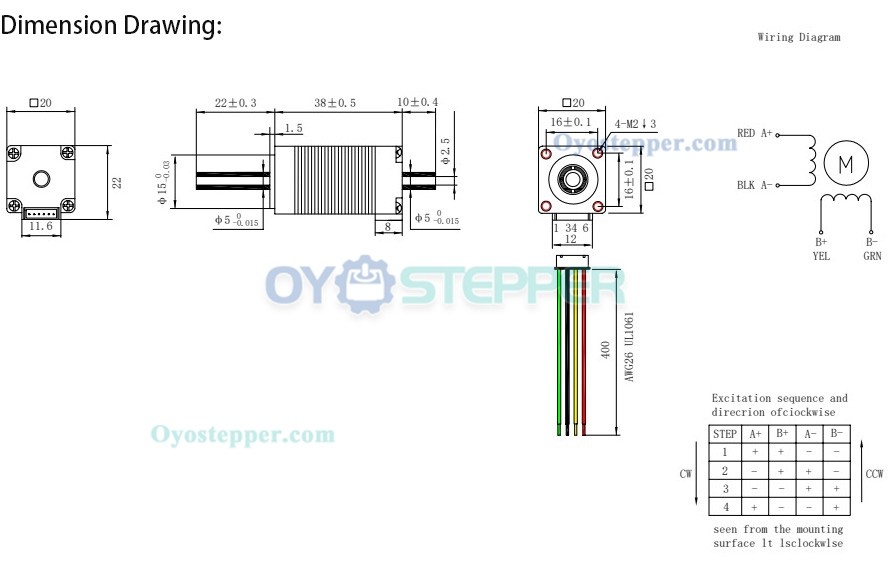

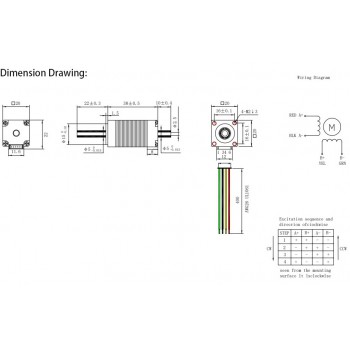

Physical Specification:
Frame Size: 20 x 20 mm
Body Length: 38 mm
Outer Shaft Diameter: Φ5mm
Inner Shaft Diameter: Φ5 mm
Front Shaft Length: 22 mm
Rear Shaft Length: 10 mm
Number of Leads: 4
Lead Length: 400 mm
Weight: 0.8kg;
.jpg "Oukeda Hollow Shaft Nema 8 Stepper Motor Bipolar 1.8 Deg 3.13Ncm 0.6A 5.4V 2 Phase Dual Shaft")
.jpg "Oukeda Hollow Shaft Nema 8 Stepper Motor Bipolar 1.8 Deg 3.13Ncm 0.6A 5.4V 2 Phase Dual Shaft")
.jpg "Oukeda Hollow Shaft Nema 8 Stepper Motor Bipolar 1.8 Deg 3.13Ncm 0.6A 5.4V 2 Phase Dual Shaft")
| Electrical Specification | |
|---|---|
| Static Moment | 3.13 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 3.13 |
| Holding Torque (oz.in) | 4.43 |
| No. of Phase | 2 |
| Step Angle(deg.) | 1.8 |
| Open-loop/Closed-loop | Closed-loop |
| Phase Current(A) | 0.6 |
| Phase Voltage(V) | 5.4 |
| Physical Specification | |
| Body Length(mm) | 38 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Weight(g) | 800 |
| Input Shaft Diameter(mm) | 5 |
| Input Shaft Length(mm) | 10 |
| Output Shaft Diameter(mm) | 5 |
| Output Shaft Length(mm) | 22 |
| Frame Size(mm) | 20x20 |
| Shaft Type | O |
