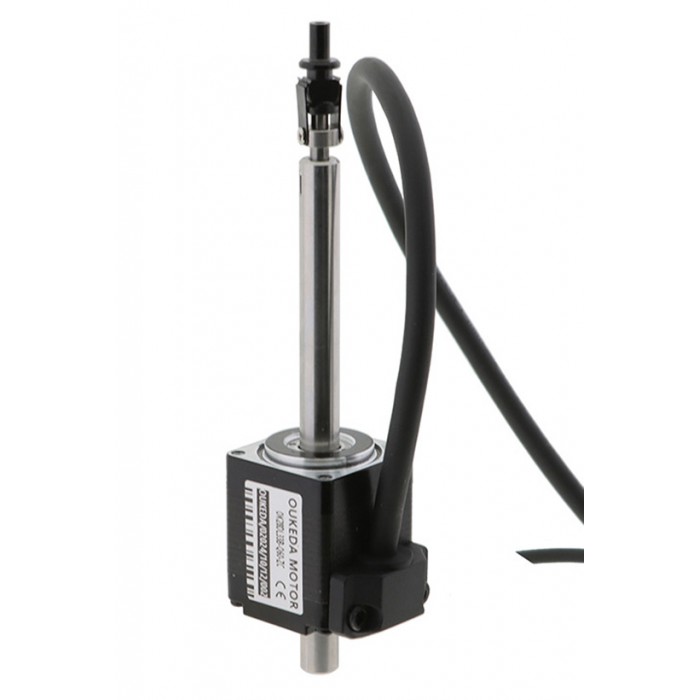

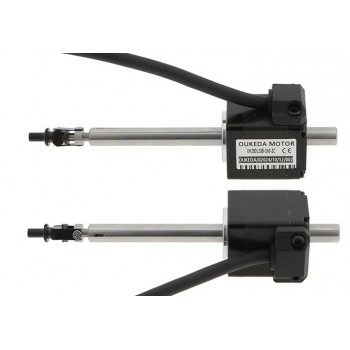

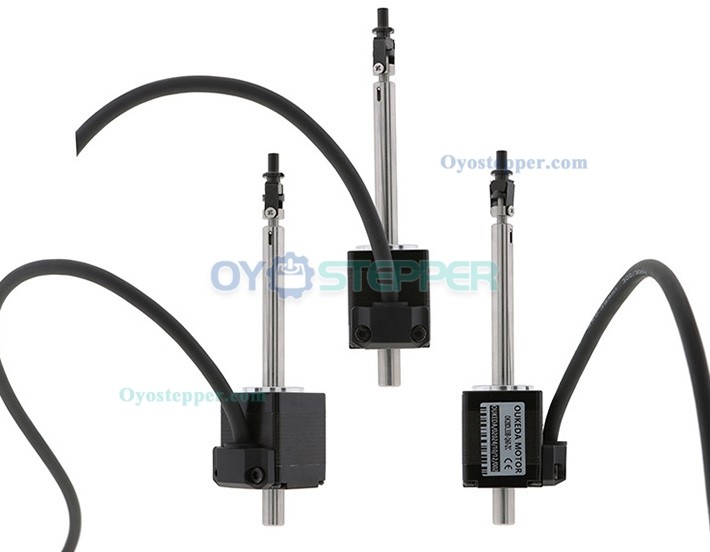

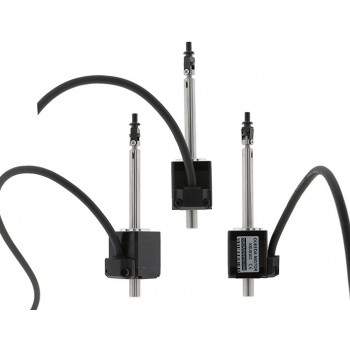

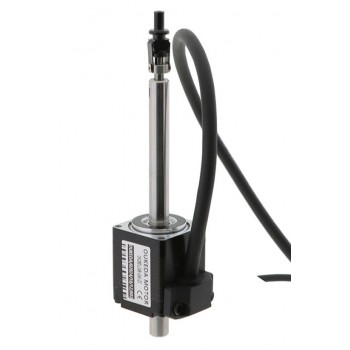

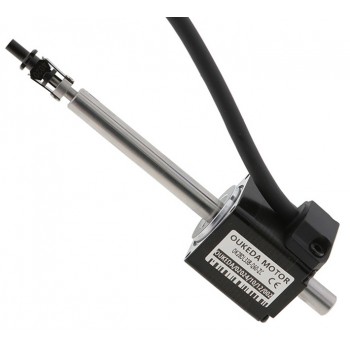

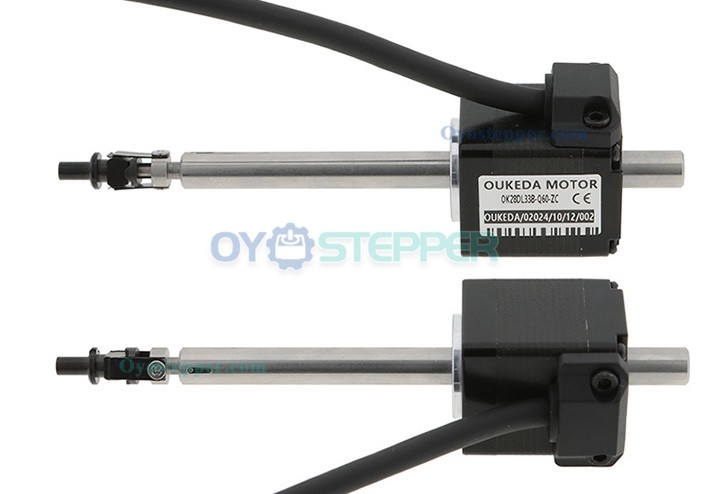

Oukeda Nema 11 Stepper Motor 1.8 deg 6.8Ncm 28 x 28mm for Yamaha IC Burning Machine / Labeling Machine
Oukeda Nema 11 Stepper Motor 1.8 deg 6.8Ncm 28 x 28mm for Yamaha IC Burning Machine / Labeling Machine
Electrical Specification:
Manufacturer Part Number:OK20HC38-22NK1
Motor Type: Bipolar Stepper
Number of Phase:2
Step Angle: 1.8 deg
Static Moment: 6.8Ncm(9.62soz.in)
Phase Voltage:2.1V
Rated Current/phase: 1A
Phase Resistance: 2.1ohms± 10%
Inductance: 1.5 mH ± 20%(1KHz);

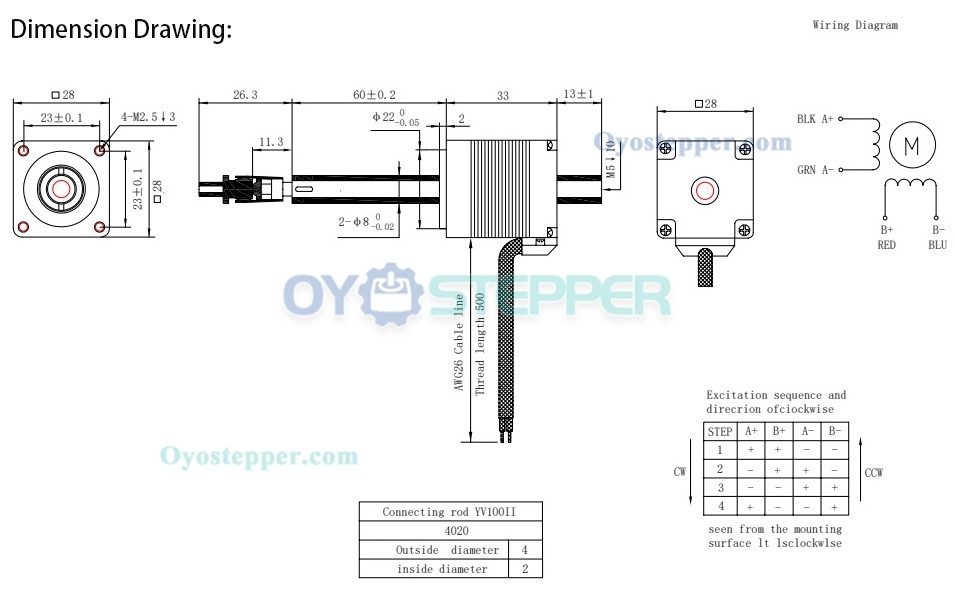

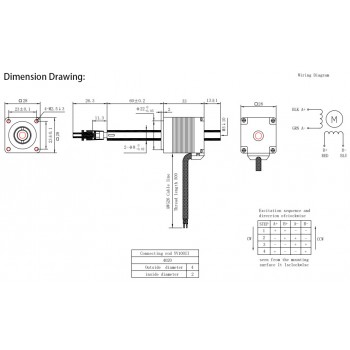

Physical Specification:
Frame Size: 28 x 28 mm
Body Length: 33 mm
Front Shaft Diameter: Φ8mm
Front Shaft Length:60 mm
Rear Shaft Length:13 mm
Outside Diameter of Connecting Rod:4mm
Inside Diameter of Connecting Rod:2mm
Number of Leads: 4
Lead Length: 500 mm
Weight: 110g;
.jpg "Oukeda Nema 11 Stepper Motor 1.8 deg 6.8Ncm 28 x 28mm for Yamaha IC Burning Machine / Labeling Machine")
.jpg "Oukeda Nema 11 Stepper Motor 1.8 deg 6.8Ncm 28 x 28mm for Yamaha IC Burning Machine / Labeling Machine")
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 6.8 |
| Holding Torque (oz.in) | 9.62 |
| No. of Phase | 2 |
| Step Angle(deg.) | 1.8 |
| Open-loop/Closed-loop | Open-loop |
| Physical Specification | |
| Lead Length(mm) | 33 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Weight(g) | 110g |
| Input Shaft Length(mm) | 13 |
| Output Shaft Diameter(mm) | 8 |
| Output Shaft Length(mm) | 60 |
| Frame Size(mm) | 28x28 |
| Shaft Type | O |
