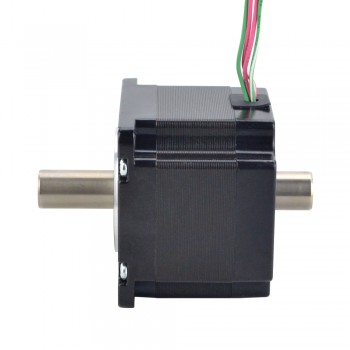

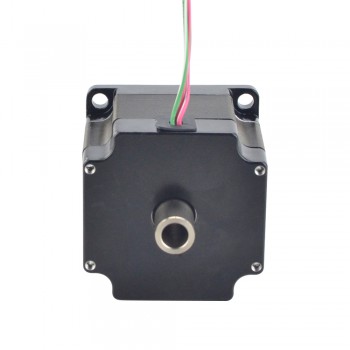

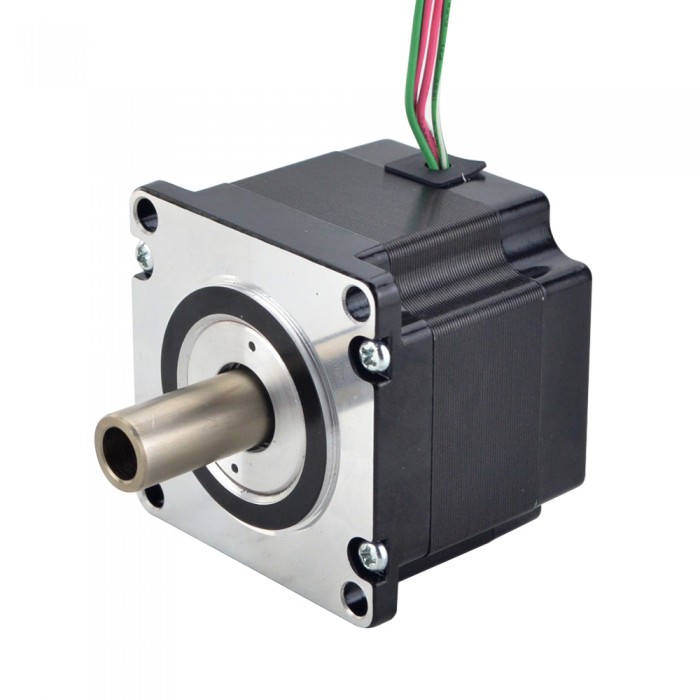

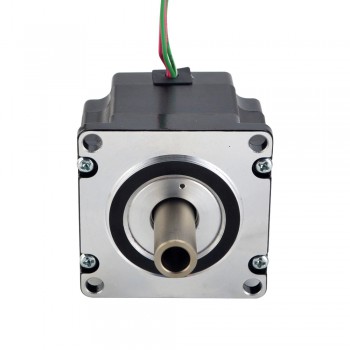

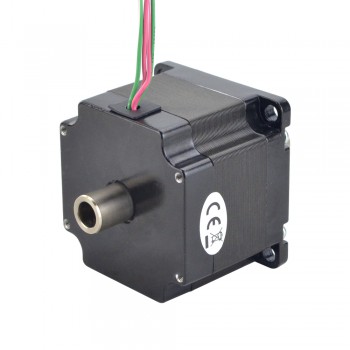

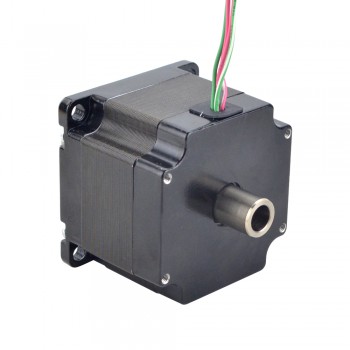

Nema 23 Hollow Shaft Stepper Motor Bipolar 1.8 Deg 0.78 Nm(110.5oz.in) 2.0A Dual Shaft
- Manuals and Documentation: Full Datasheet:
Our Price:$31.53
Electrical Specification
Manufacturer Part Number: 23HS18-2004H
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 0.78 Nm(110.5oz.in)
Rated Current/phase: 2.0 A
Phase Resistance: 1.45 ohms± 10%
Inductance: 3.5 mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57 mm
Body Length: 45 mm
Outer Shaft Diameter: Φ12 mm
Inner Shaft Diameter: Φ8 mm
Front Shaft Length: 25 mm
Rear Shaft Length: 13 mm
Number of Leads: 4
Lead Length: 310 mm
Weight: 0.55 kg
Connection
| A+ | A- | B+ | B- |
| RED | RED/WHI | GRN/WHI | GRN |
| Physical Specification | |
|---|---|
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 45 |
| Lead Length(mm) | 310 |
| No. of Lead | 4 |
| Shaft Type | Hollow |
| Single Shaft/Dual Shaft | Dual Shaft |
| Weight(g) | 550 |
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 78 |
| Holding Torque (oz.in) | 110.5 |
| Inductance(mH) | 3.5 |
| Phase Resistance(ohm) | 1.45 |
| Rated Current (A) | 2.0 |
| Step Angle(°) | 1.8 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
