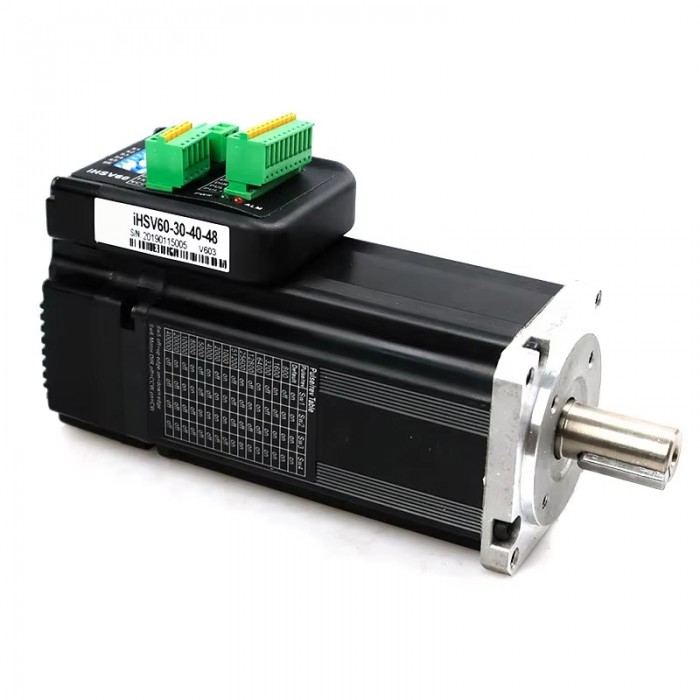

JMC Nem23 Integrated AC Servo Motor 400W 48V 1.27N.m(179.84 oz.in) 3000RPM 60 x 60mm
JMC Nem23 Integrated AC Servo Motor 400W 48V 1.27N.m(179.84 oz.in) 3000RPM 60 x 60mm

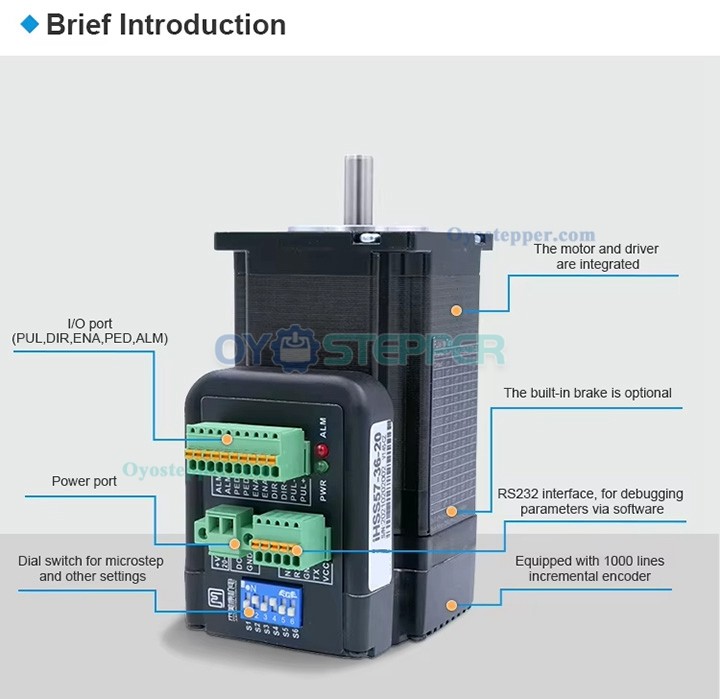

iHSV60-30-40-48 Integrated AC Servo Driving Motor is integrated AC servo drive into servo motor, adopts vector control in DSP chip, features in low cost, full closed loop, all digital, low heat, small vibration, and high response, as well as includes three adjustable feedback loop control modes(postition loop, speed loop, and current loop). iHSV60 is a series of stable performance, high cost-effective motion control products.
Electrical Specifications:
Manufacturer Part Number:iHSV60-30-40-48
Number of Phase:3
No-load Speed: 4200RPM +/- 7%
Rated speed: 3000RPM +/- 7%
Rated torque: 1.27N.m(179.84 oz.in)
Rated Voltage:48V
Rated Current:11.2A
No-load Current:1.2A
Power:400W
Insulation Class:B;

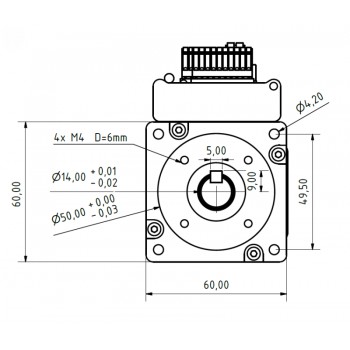

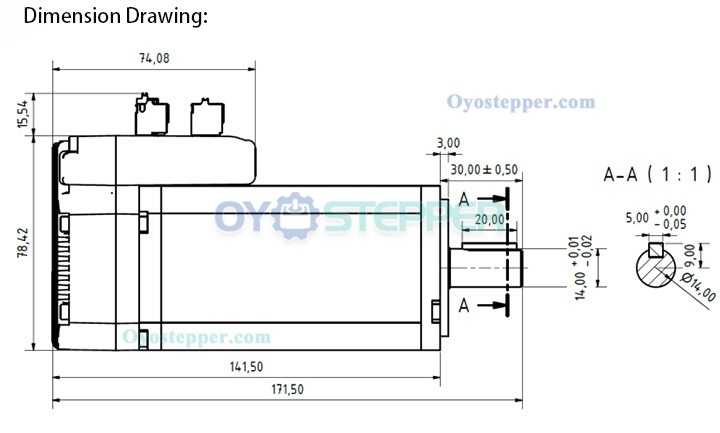

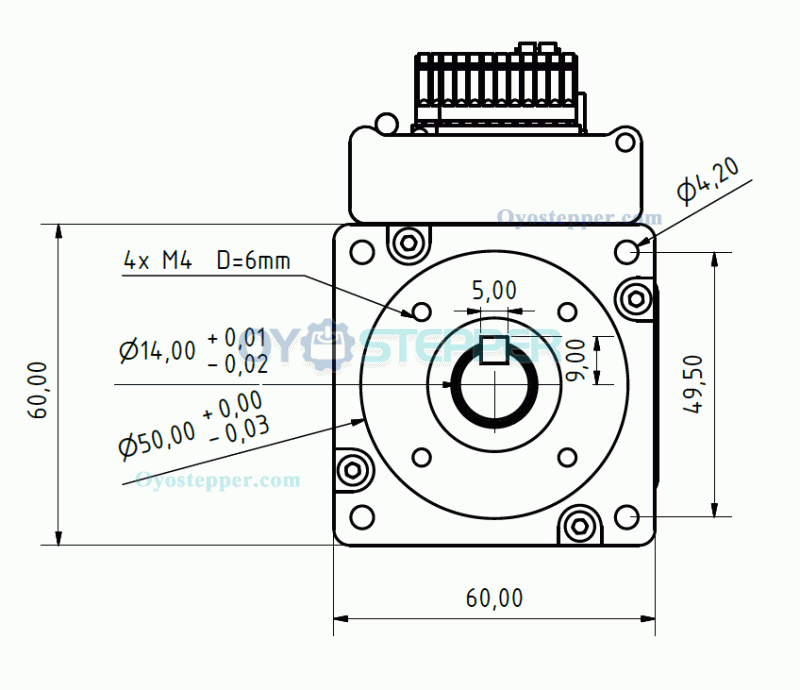

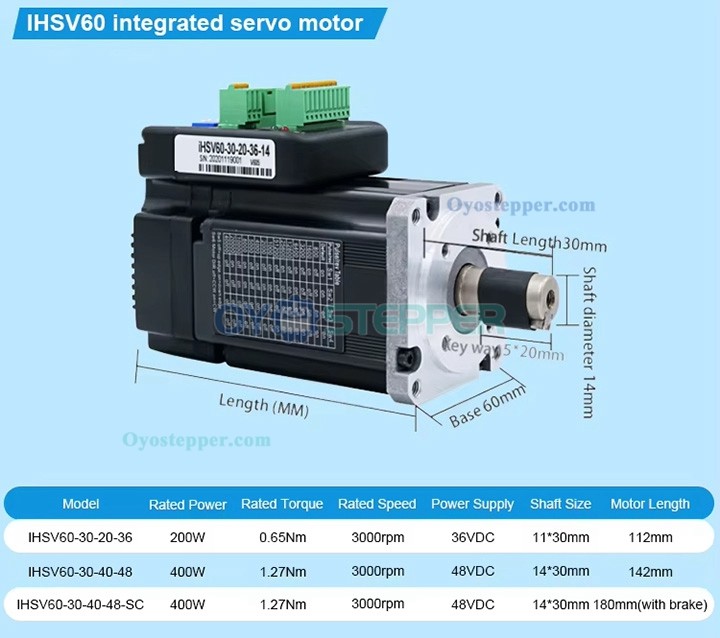

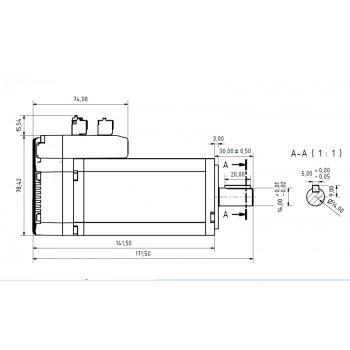

Physical Specifications:
Frame Size: 60 x 60mm
Body Length:142mm
Shaft Length:30 mm
Shaft Diameter: Φ14 mm
Keyway Length: 20 mm
Weight: 1.67kg;
.jpg "JMC Nem23 Integrated AC Servo Motor 400W 48V 1.27N.m(179.84 oz.in) 3000RPM 60 x 60mm")
.jpg "JMC Nem23 Integrated AC Servo Motor 400W 48V 1.27N.m(179.84 oz.in) 3000RPM 60 x 60mm")
.jpg "JMC Nem23 Integrated AC Servo Motor 400W 48V 1.27N.m(179.84 oz.in) 3000RPM 60 x 60mm")
.jpg "JMC Nem23 Integrated AC Servo Motor 400W 48V 1.27N.m(179.84 oz.in) 3000RPM 60 x 60mm")

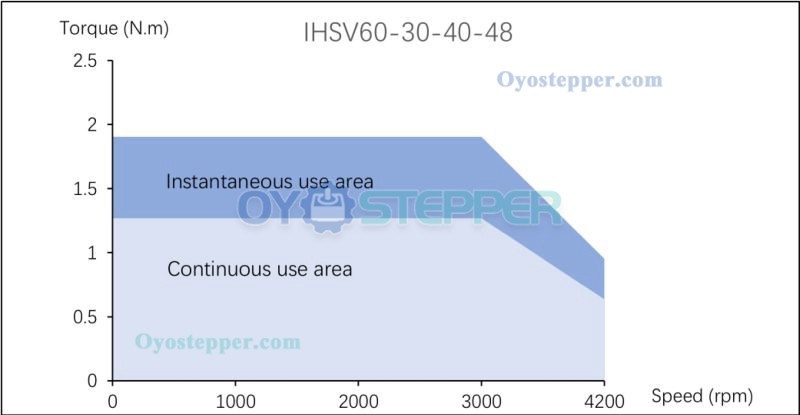

Torque diagram:
.jpg "JMC Nem23 Integrated AC Servo Motor 400W 48V 1.27N.m(179.84 oz.in) 3000RPM 60 x 60mm")
.png "JMC Nem23 Integrated AC Servo Motor 400W 48V 1.27N.m(179.84 oz.in) 3000RPM 60 x 60mm")
Datasheet:DS_iHSV60en_211013_rock.pdf
Manual:ihsv_v6_2020_manual.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Servo Motor Specification | |
|---|---|
| Rated Voltage | 48 |
| Rated Current | 11.2 |
| No-load Speed | 4200 |
| Number of Phase | 3 Phase |
| Rated Power(W) | 400 |
| Rated Speed(rpm) | 3000 |
| Rated Torque(Nm) | 1.27 |
| With Brake | Without brake |
| Physical Specification | |
| Keyway Length | 20 |
| Body Length(mm) | 142 |
| Frame Size(mm) | 60 x 60 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 30 |
| Shaft Type | Keyway |
| Single Shaft/Dual Shaft | Single Shaft |
