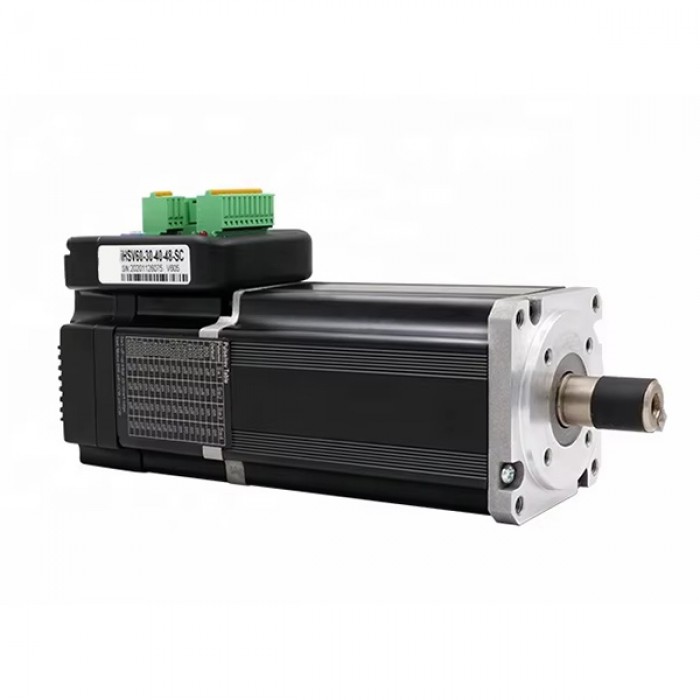

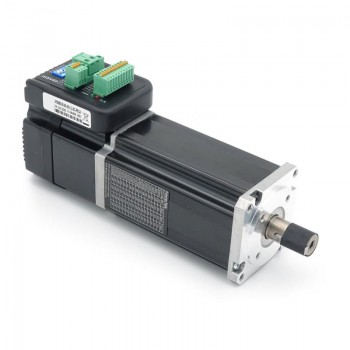

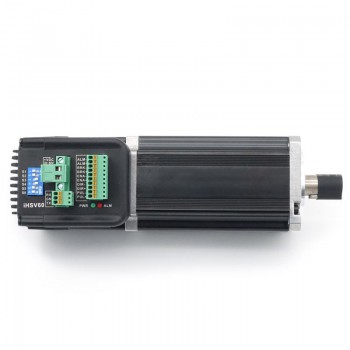

JMC Nema 23 Integrated AC Servo Motor with Brake 400W 48V 1.27N.m 3 Phase 3000RPM 60 x 60mm
The IHSV60-30-40-48-SC is an integrated AC servo motor with a built-in servo drive and holding brake. It utilizes DSP-based vector control and operates in a full closed‑loop digital control architecture. Three adjustable feedback control loops are included: position, speed, and current.
Integrated Brake:
The motor includes a 24V holding brake. The brake opens when voltage is applied and engages when voltage is removed.
Specifications:
Integrated AC servo drive and motor
Built-in 24V holding brake
DSP-based vector control
Full closed-loop control
Digital control architecture
Adjustable position, speed, and current loops;
Electrical Specifications:
Manufacturer Part Number:iHSV60-30-40-48-SC
Number of Phase:3
No-load Speed: 4200RPM +/- 7%
Rated speed: 3000RPM +/- 7%
Rated torque: 1.27N.m(179.84 oz.in)
Rated Voltage:48V
Rated Current:11.2A
No-load Current:1.2A
Power:400W
Insulation Class:B;

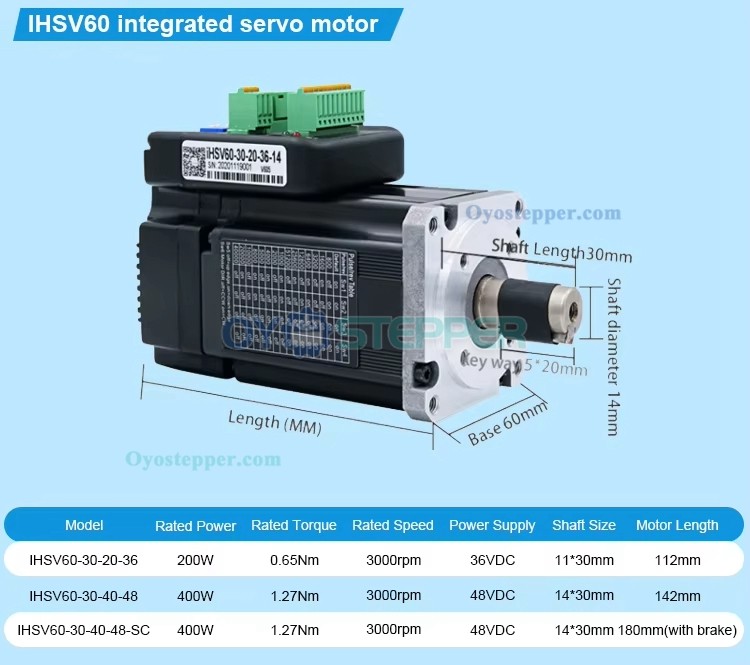

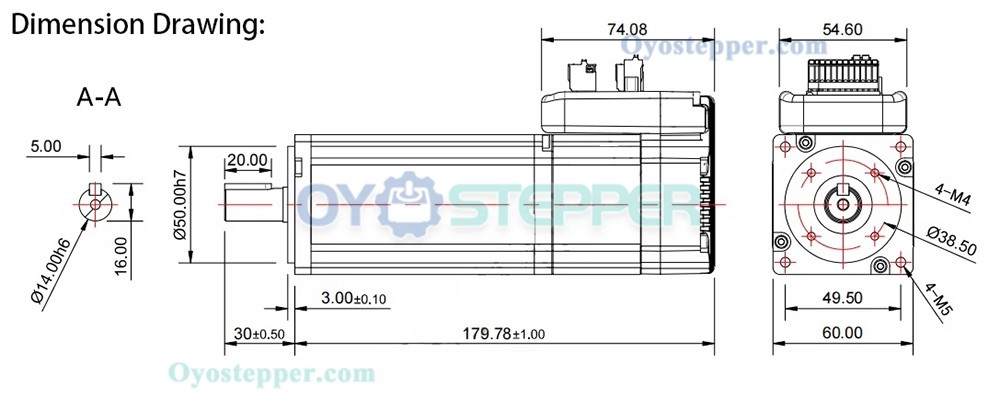

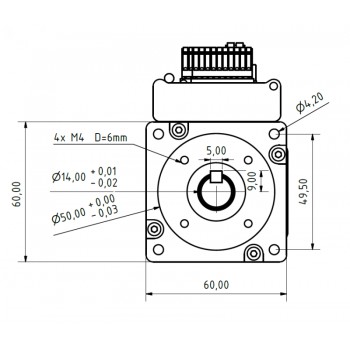

Physical Specifications:
Frame Size: 60 x 60mm
Body Length with Brake:180mm
Shaft Length:30 mm
Shaft Diameter: Φ14 mm
Keyway Length: 20 mm
Weight: 1.7kg;

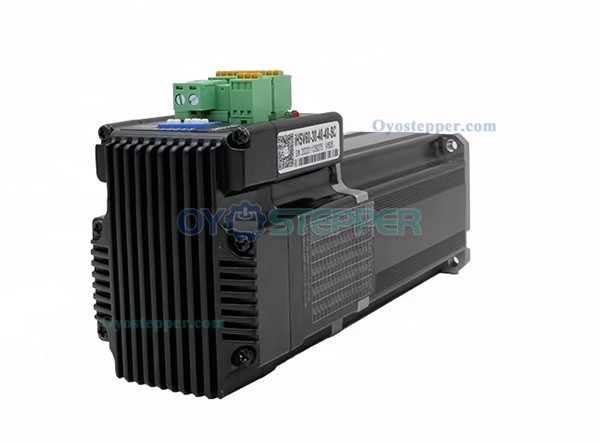

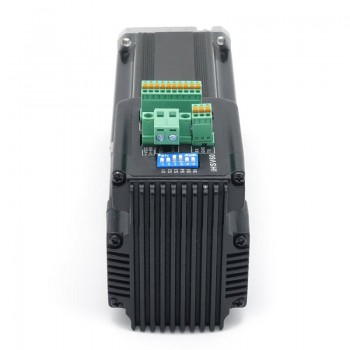

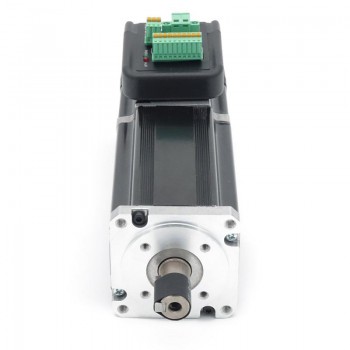

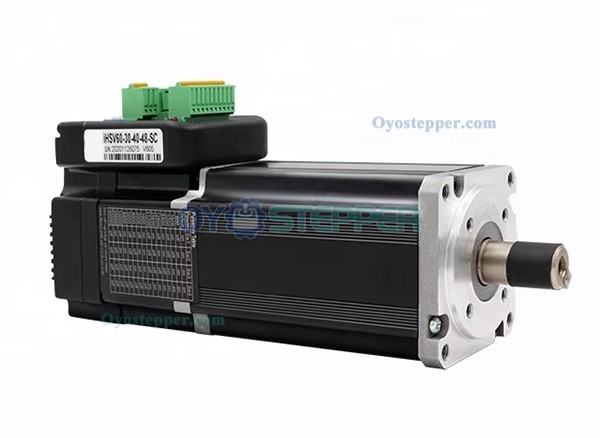

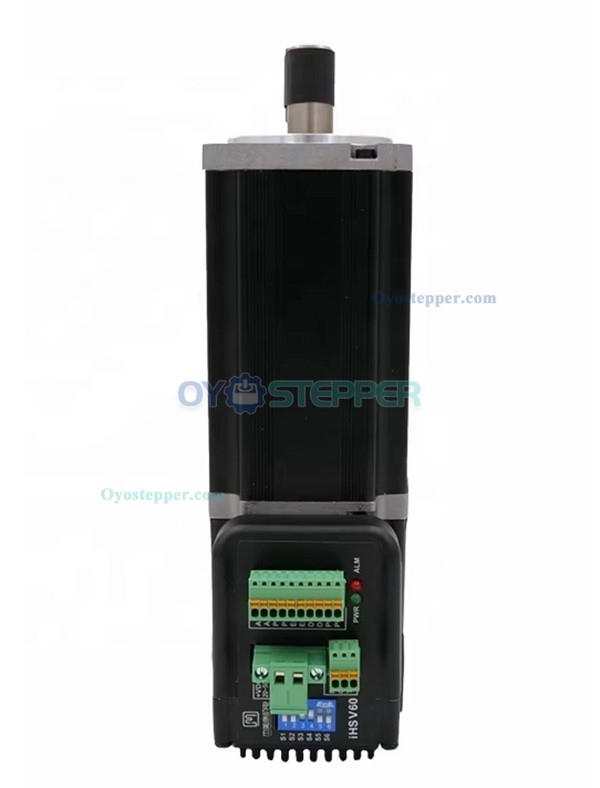

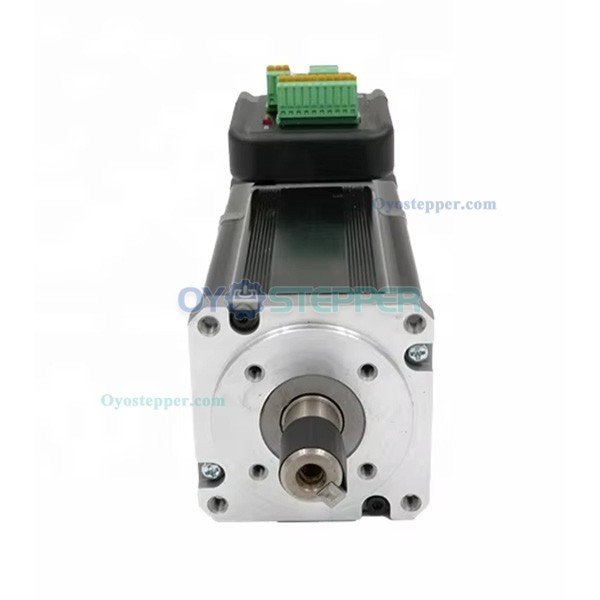

.jpg "JMC Nema 23 Integrated AC Servo Motor with Brake 400W 48V 1.27N.m 3 Phase 3000RPM 60 x 60mm")
.jpg "JMC Nema 23 Integrated AC Servo Motor with Brake 400W 48V 1.27N.m 3 Phase 3000RPM 60 x 60mm")
.jpg "JMC Nema 23 Integrated AC Servo Motor with Brake 400W 48V 1.27N.m 3 Phase 3000RPM 60 x 60mm")
.jpg "JMC Nema 23 Integrated AC Servo Motor with Brake 400W 48V 1.27N.m 3 Phase 3000RPM 60 x 60mm")
.png "JMC Nema 23 Integrated AC Servo Motor with Brake 400W 48V 1.27N.m 3 Phase 3000RPM 60 x 60mm")
.jpg "JMC Nema 23 Integrated AC Servo Motor with Brake 400W 48V 1.27N.m 3 Phase 3000RPM 60 x 60mm")
.jpg "JMC Nema 23 Integrated AC Servo Motor with Brake 400W 48V 1.27N.m 3 Phase 3000RPM 60 x 60mm")

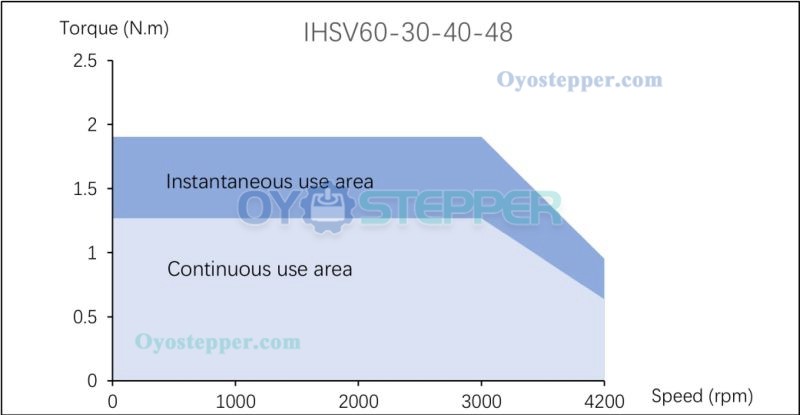

Torque diagram:
(1).jpg "JMC Nema 23 Integrated AC Servo Motor with Brake 400W 48V 1.27N.m 3 Phase 3000RPM 60 x 60mm")
(1).jpg "JMC Nema 23 Integrated AC Servo Motor with Brake 400W 48V 1.27N.m 3 Phase 3000RPM 60 x 60mm")
| Servo Motor Specification | |
|---|---|
| Rated Voltage | 48 |
| Rated Current | 11.2 |
| No-load Speed | 4200 |
| Number of Phase | 3 Phase |
| Rated Power(W) | 400 |
| Rated Speed(rpm) | 3000 |
| Rated Torque(Nm) | 1.27 |
| With Brake | With brake |
| Physical Specification | |
| Keyway Length | 20 |
| Body Length(mm) | 180 |
| Frame Size(mm) | 60 x 60 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 30 |
| Shaft Type | Keyway |
| Single Shaft/Dual Shaft | Single Shaft |
