Nema 23 External Bipolar Stepper Motor Linear Actuator 1.8 Deg 1.2Nm 2A Lead Lead Revolution Screw 150mm 4 Wires

Nema 23 External Bipolar Stepper Motor Linear Actuator 1.8 Deg 1.2Nm 2A Lead Lead Revolution Screw 150mm 4 Wires
NO.:23LS22-2004E-150T
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$49.19
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $46.73 5%
10 $45.75 7%
50 $44.27 10%
100 $42.80 13%
Add To Cart

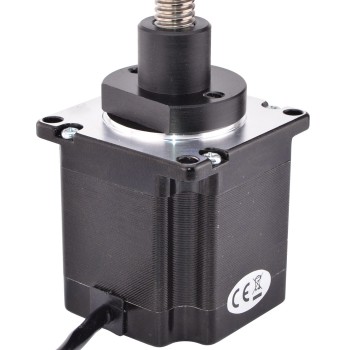

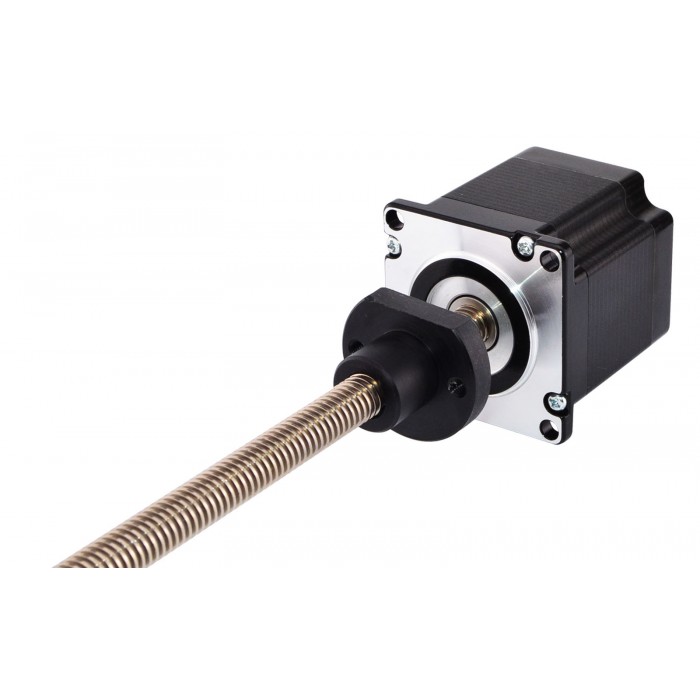

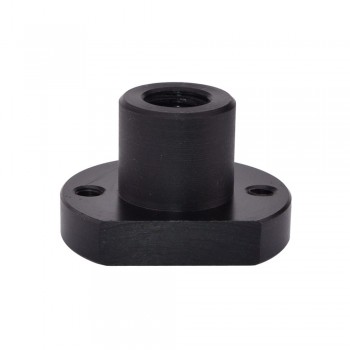

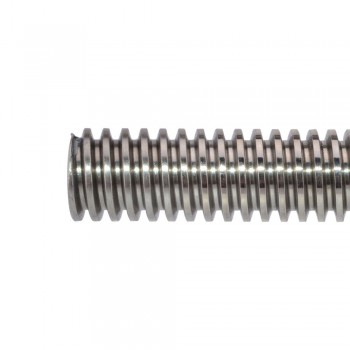

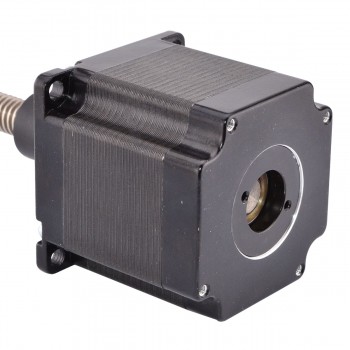

This model is economy linear stepper motor which named Nema 23 external linear actuator, the motor part is 56mm 1.8 degree 2A Nema 23 stepper motor. It was integrated with 150mm Tr11x2 threaded rod, and a POM screw nut move along the threaded rod.

Electrical Specification

  • Manufacturer Part Number: 23LS22-2004E-150T
  • Motor Type: Bipolar Stepper
  • Holding Torque: 1.2Nm
  • Rated Current/phase: 2.0A
  • Phase Resistance: 3.6ohms
  • Voltage: 7.2V
  • Inductance: 12mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Motor Length: 56mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ11mm(0.433")
  • Lead /Step: 0.01mm(0.0003937" )
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight : 650g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 External Linear Actuator 1.8 Degree 12V 0.4A 32Ncm Lead Lead Revolution Screw 330mm 6 Wires
Next: Nema 23 External Stepper Motor Linear Actuator Bipolar 1.2Nm 7.2V 2A Lead Screw 200mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 120
Holding Torque (oz.in) 170
Inductance(mH) 12
Motor Type External
Phase Resistance(ohm) 3.6
Rated Current (A) 2
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 56
Lead Screw Diameter(mm) 11
Lead Screw Length(mm) 150
Lead Revolution(mm) 2
Linear Travel / Step(mm) 0.01
No. of Lead 4
Lead Length(mm) 500
Frame Size(mm) Nema 23 (57 x 57)
