Nema 23 External Stepper Motor Linear Actuator Bipolar 1.2Nm 7.2V 2A Lead Screw 200mm 4 Wires
- Manuals and Documentation: Full Datasheet:
Our Price:$52.48

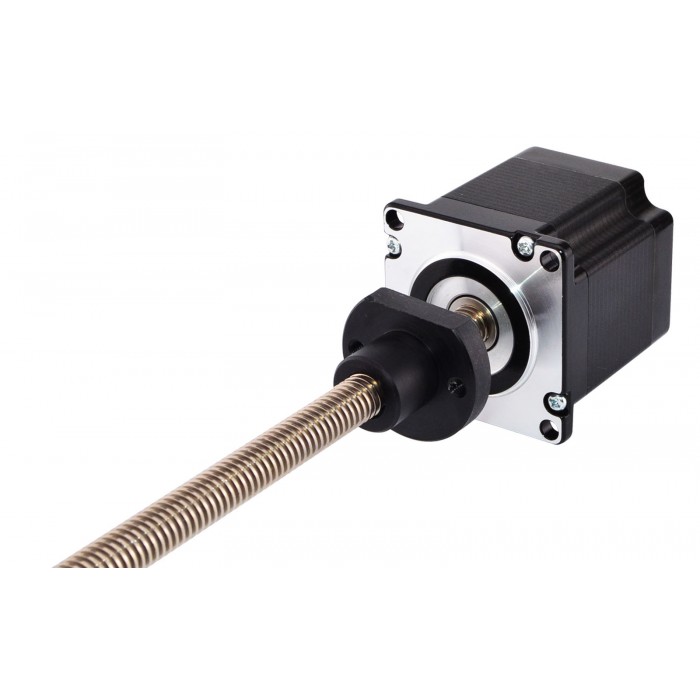

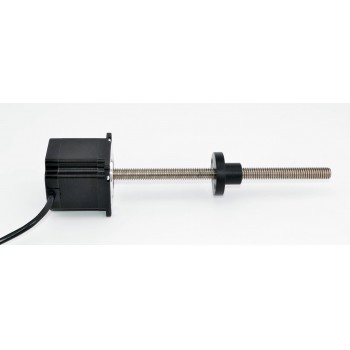

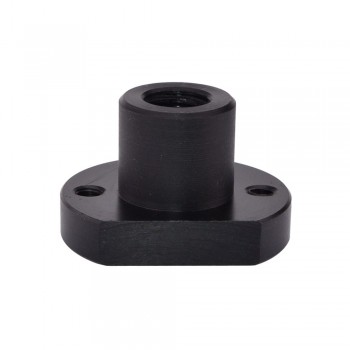

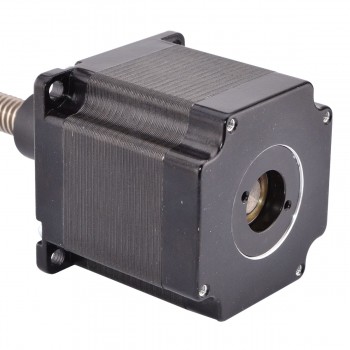

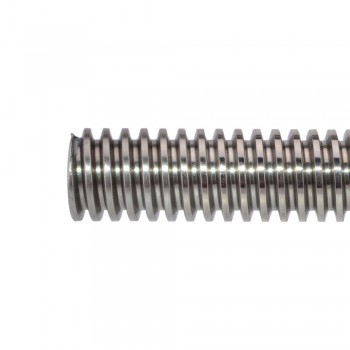

Nema 23 external linear actuator driven by a 56mm, 1.8°, 2A stepper motor, paired with a 200mm Tr11x2 leadscrew and traveling POM nut.
Electrical Specification
Manufacturer Part Number: 23LS22-2004E-200T
Motor Type: Bipolar Stepper
Holding Torque: 1.2Nm
Rated Current/phase: 2.0A
Phase Resistance: 3.6ohms
Voltage: 7.2V
Inductance: 12mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57mm
Motor Length: 56mm
Lead Screw Length: 200mm(7.874")
Lead Screw Diameter: Φ11mm(0.433")
Lead /Step: 0.01mm(0.0003937")
Lead/Revolution: 2mm(0.0787")
Number of Leads: 4
Lead Length: 500mm
Weight: 650g
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 120 |
| Holding Torque (oz.in) | 170 |
| Inductance(mH) | 12 |
| Motor Type | External |
| Phase Resistance(ohm) | 3.6 |
| Rated Current (A) | 2 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 56 |
| Lead Screw Diameter(mm) | 11 |
| Lead Screw Length(mm) | 200 |
| Lead Revolution(mm) | 2 |
| Linear Travel / Step(mm) | 0.01 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Frame Size(mm) | Nema 23 (57 x 57) |
