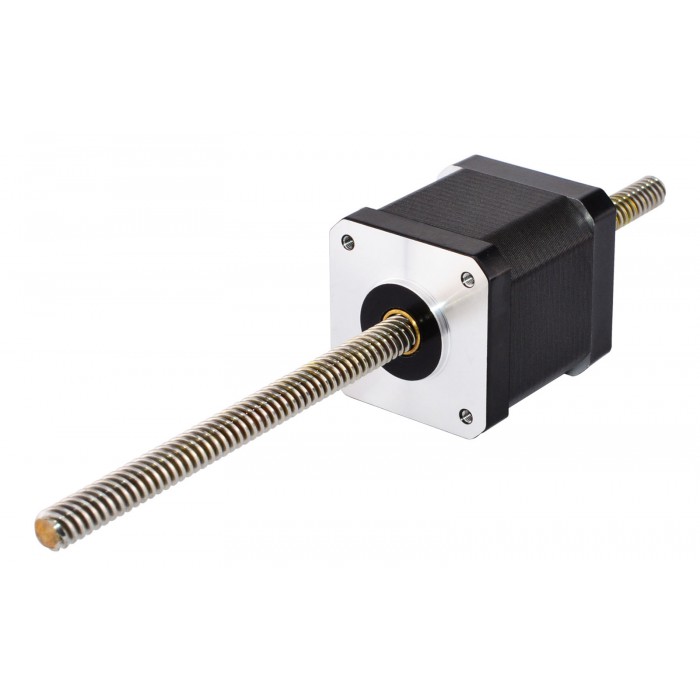

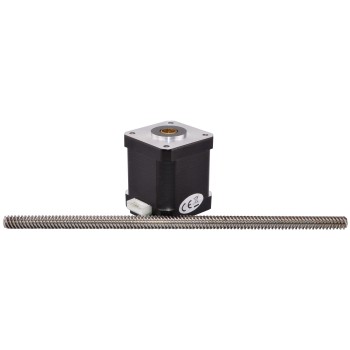

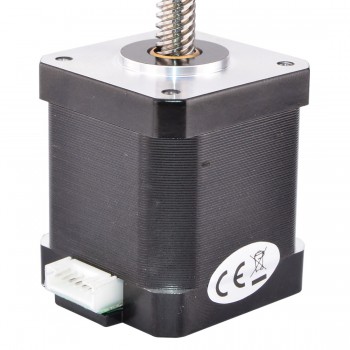

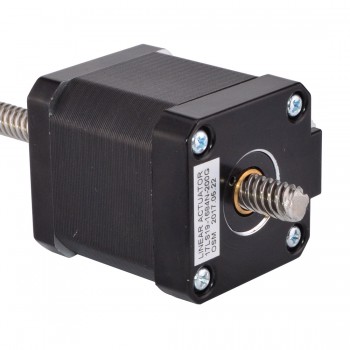

Nema 17 Non-captive 48mm Stack 1.68A Lead 8mm/0.31496" Length 200mm

NO.:SKU:17LS19-1684N-200G
Review: Post a review
Latest price:$41.61
Buy It Now:$32.01
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$31.01 $30.01 $29.01 $28.01
Add To Cart

This model is economy linear stepper motor which named Nema 17 non-captive linear actuator, it was composed of 48mm 1.8 degree 0.4A Nema 17 stepper motor and 200mm length Tr8x8 linear screw.

Electrical Specification

  • Manufacturer Part Number: 17LS19-1684N-200G
  • Motor Type: Non Captive Linear Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 44Ncm(62.3oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.65ohms
  • Voltage: 2.8V
  • Inductance: 3mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Lead Screw Length: 200mm(7.874")
  • Lead Screw Diameter: Φ8mm(0.315")
  • Lead /Step: 0.04mm(0.0015748" )
  • Lead/Revolution: 8mm(0.315")
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight : 400g

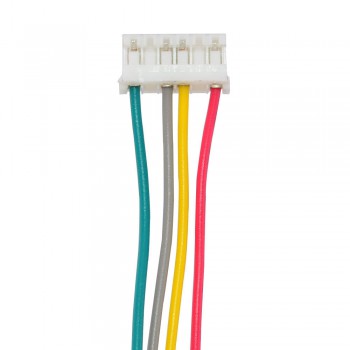

Connection

A+
A-
B+
B-
Red
Gray
Yellow
Green

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 17 Non-captive 48mm Stack 1.68A Lead 2mm/0.07874" Length 200mm
Next: Nema 17 External 48mm Stack 0.4A Lead 2mm/0.07874" Length 300mm
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 44
Holding Torque (oz.in) 62.3
Inductance(mH) 2.8
Motor Type External
Phase Resistance(ohm) 1.65
Rated Current (A) 1.68
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 48
Frame Size(mm) 42x42
Lead Screw Diameter(mm) 8
Lead Screw Length(mm) 200
Lead Revolution(mm) 8
Linear Travel / Step(mm) 0.04
No. of Lead 4
Lead Length(mm) 400
