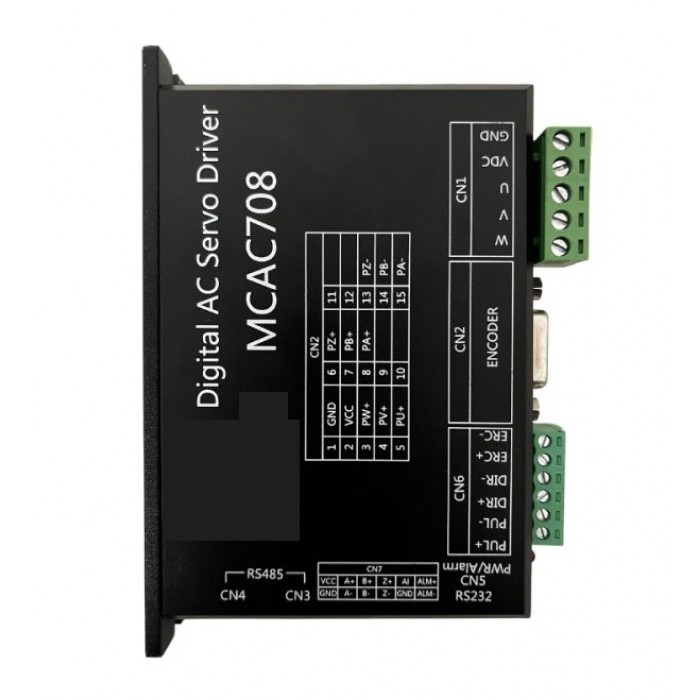

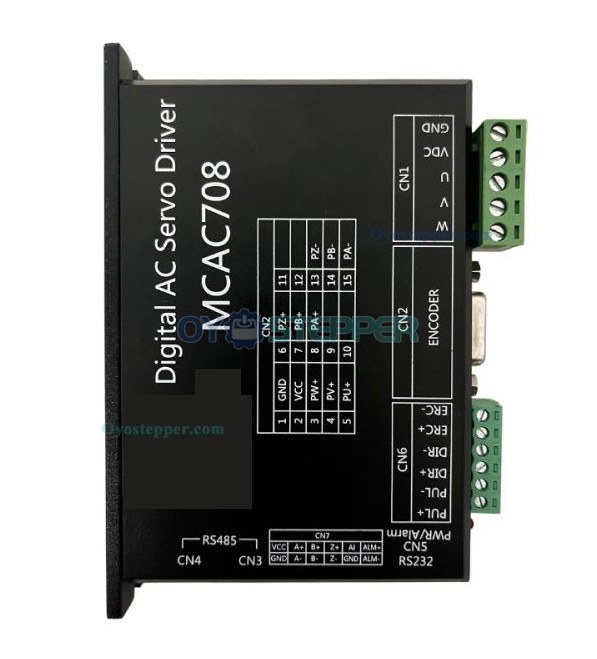

MCAC708 Digital AC Servo Driver 10A 24-50V for AC Servo motor

MCAC708 Digital AC Servo Driver 10A 24-50V for AC Servo motor

Features:

Multiple control input modes

Optocoupler isolated ERC reset input

Current loop bandwidth: 2kHz (-3dB typ.)

Protections: over-current, overload, over-speed, over-tolerance, encoder error, over-voltage, under-voltage

Parameter download: RS232C via PC or text display

Electrical Specifications:

Input voltage: 24–50VDC (typ. 36V)

Rated input current: 10A RMS

Rated output current: 8A RMS

Max output current: 20A

Max pulse frequency: 250kHz

Control method: IGBT PWM

Performance:

Speed range: 1:5000

Speed stability: ±0.01%

Response frequency: 1200Hz

Torque control accuracy: ±2%

Environmental:

Operating temperature: 0–55°C

Storage temperature: -25–85°C

Operating humidity: 10–90%RH

Protection rating: IP10

Cooling: Natural or forced convection

Communications:

RS485, RS232

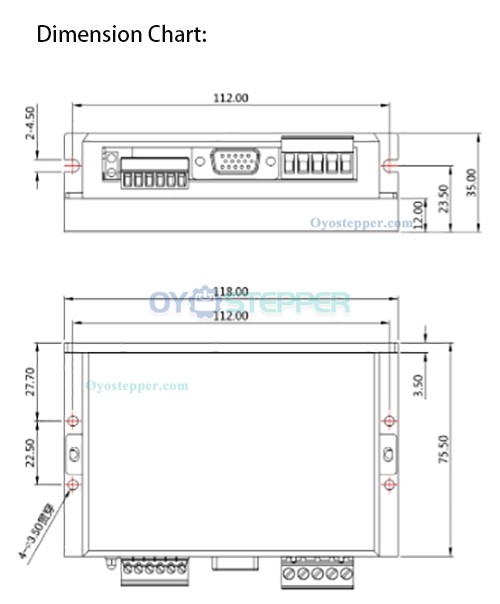

Dimensions: 118 × 75.5 × 35mm

Weight: 250g
