Nema 23 External Linear Actuator Bipolar 1.2Nm 2.0A 7.2V 1.8 Deg 2A Lead Screw 300mm 4 Wires

Nema 23 External Linear Actuator Bipolar 1.2Nm 2.0A 7.2V 1.8 Deg 2A Lead Screw 300mm 4 Wires
NO.:23LS22-2004E-300T
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$55.15
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $52.39 5%
10 $51.29 7%
50 $49.64 10%
100 $47.98 13%
Add To Cart

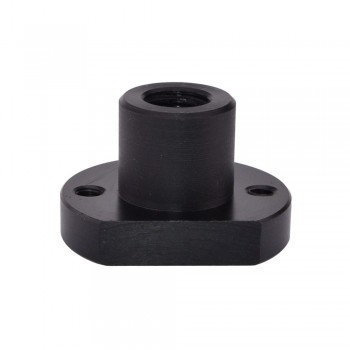

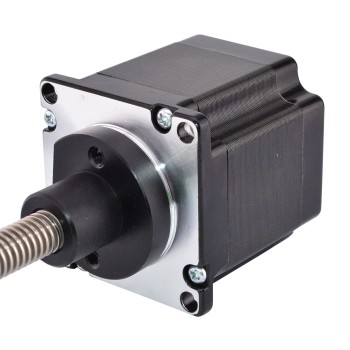

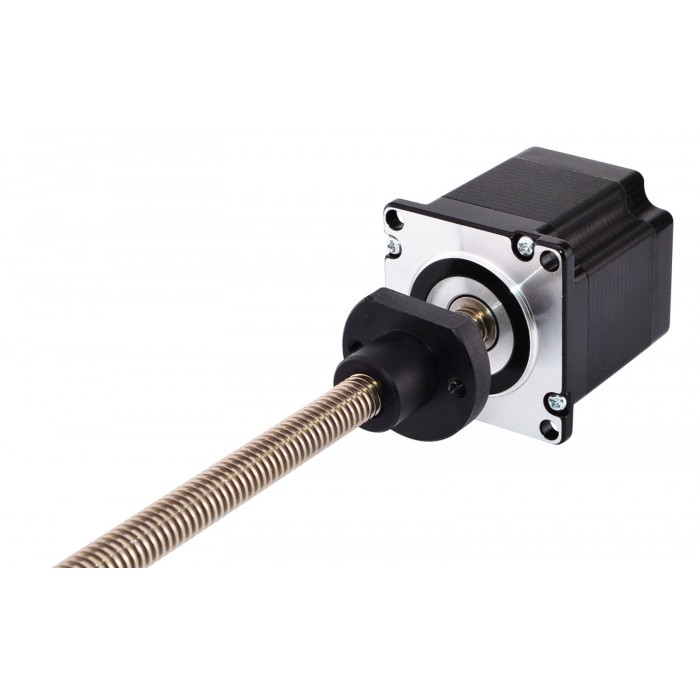

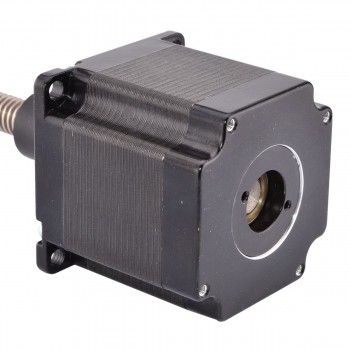

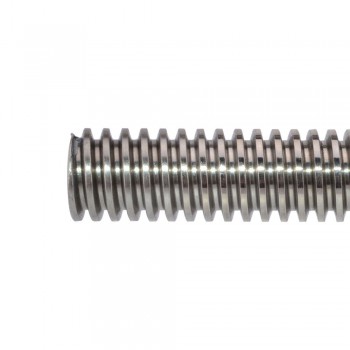

This model is economy linear stepper motor which named Nema 23 external linear actuator, the motor part is 56mm 1.8 degree 2A Nema 23 stepper motor. It was integrated with 300mm Tr11x2 threaded rod, and a POM screw nut move along the threaded rod.

Electrical Specification

Manufacturer Part Number: 23LS22-2004E-300T

Motor Type: Bipolar Stepper

Holding Torque: 1.2Nm

Rated Current/phase: 2.0A

Phase Resistance: 3.6ohms

Voltage: 7.2V

Inductance: 12mH ± 20%(1KHz)



Physical Specification

Frame Size: 57 x 57mm

Motor Length: 56mm

Lead Screw Length: 300mm(11.811")

Lead Screw Diameter: Φ11mm(0.433")

Lead /Step: 0.01mm(0.0003937" )

Lead/Revolution: 2mm(0.0787")

Number of Leads: 4

Lead Length: 500mm

Weight : 650g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 23LS22-2004E-300T.pdf
