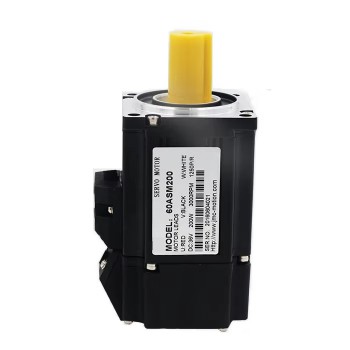

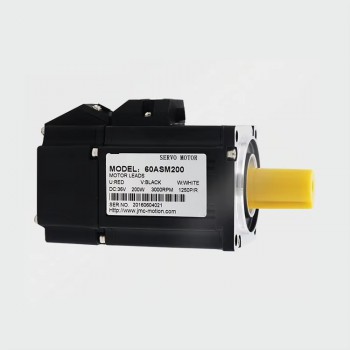

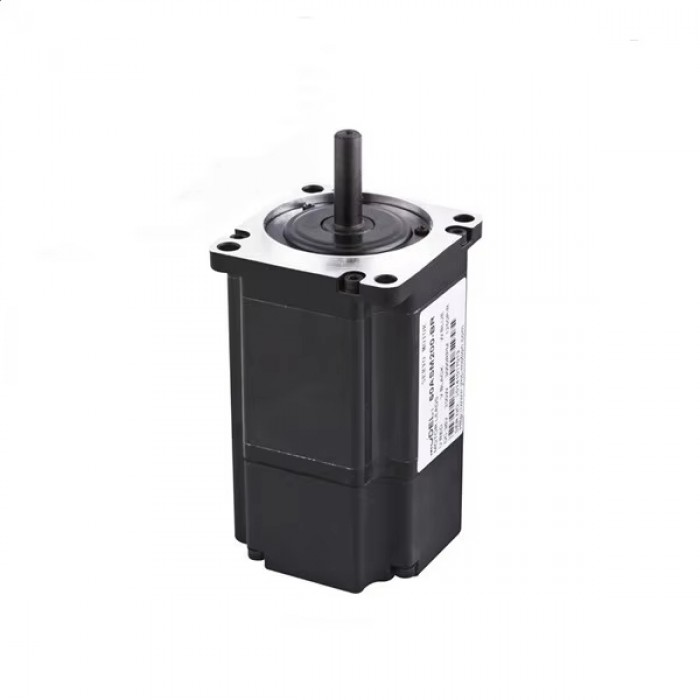

200W 36V 7.6A 0.63N.m 3000 RPM DC Servo Motor 3 Phase with 2500 Lines Encoder 60 x 60mm

200W 36V 7.6A 0.63N.m 3000 RPM DC Servo Motor 3 Phase with 2500 Lines Encoder 60 x 60mm



Servo Motor Specification:

Part Number:60ASM200

Phase:3 Phase

Power Supply Voltage:36V

Rated Power:200W

Rated Torque:0.637N.m(90.20 oz.in)

Peak Torque:1.91N.m

Rated Speed: 3000 RPM

Rated Current:7.6A

Frequency:200HZ

Poles:8

Resistance:3.03*10-3 V/RPM

Torque coefficient:0.0866 N.M/A

Rotor inertia(10^-4kg*cm²):0.58

Encoder:1250 Line;

Physical Specifications:

Frame Size:60 x 60mm

Body Length:129mm

Shaft Diameter:14mm

Shaft Length:30mm

Weight:0.945kg;
