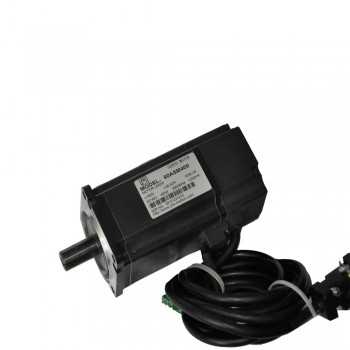

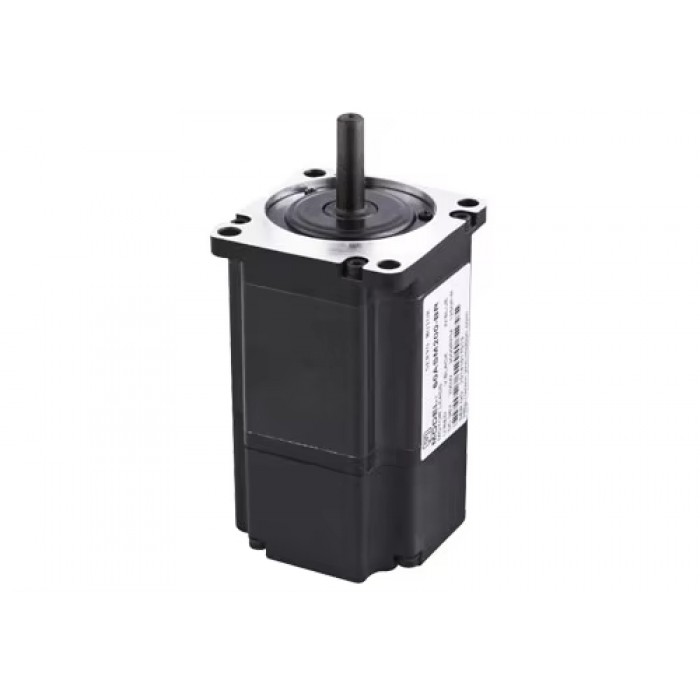

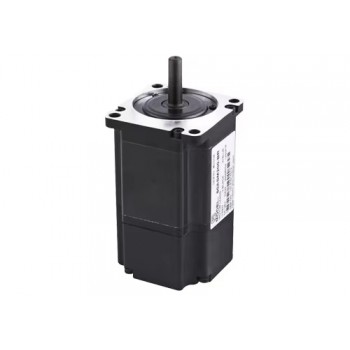

400W 60V 8.4A 1.27N.m 3000 RPM DC Servo Motor 3 Phase with 2500 Lines Encoder 60 x 60mm

400W 60V 8.4A 1.27N.m 3000 RPM DC Servo Motor 3 Phase with 2500 Lines Encoder 60 x 60mm

Servo Motor Specification

Part Number:60ASM400

Phase:3 Phase

Power Supply Voltage:60V

Rated Power:400W

Rated Torque:1.27N.m(179.84 oz.in)

Peak Torque:3.82N.m

Rated Speed: 3000 RPM

Rated Current:8.4A

Frequency:200HZ

Poles:8

Resistance:3.03*10-3 V/RPM

Torque coefficient:0.0866 N.M/A

Rotor inertia(10^-4kg*cm²):0.58

Encoder:1250 Line;

Physical Specifications:

Frame Size:60 x 60mm

Body Length:157mm

Shaft Diameter:14mm

Shaft Length:30mm

Weight:1.5kg;
