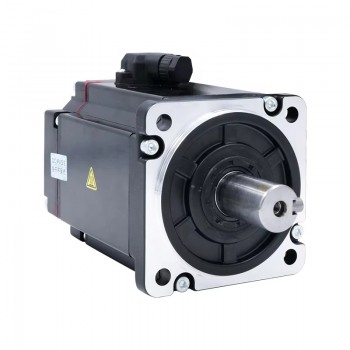

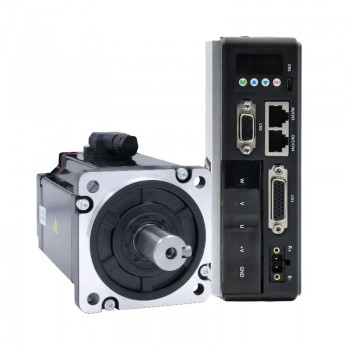

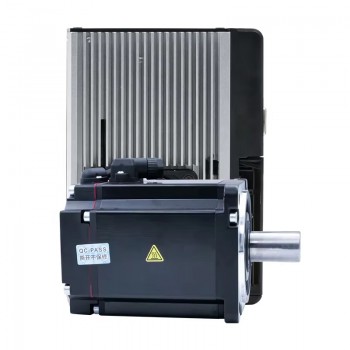

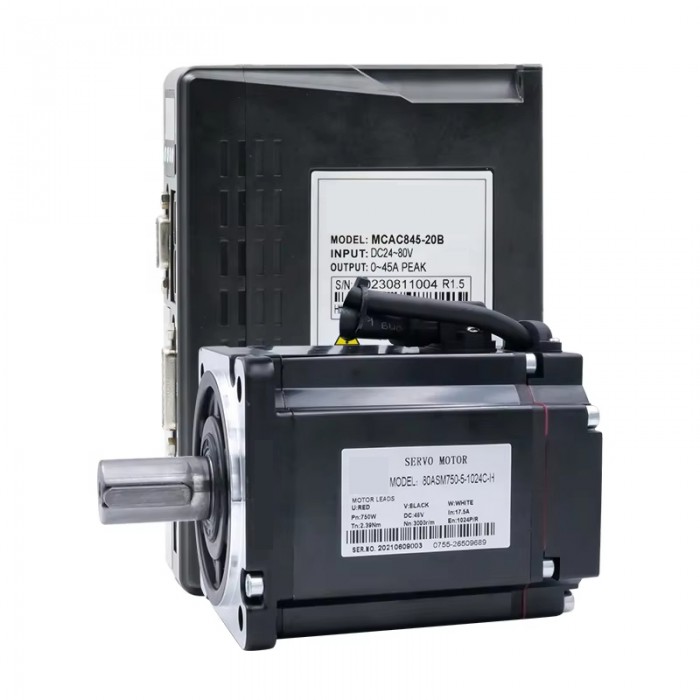

750W DC Servo Motor & Driver Kit 48V 2.39N.m with 1024 Lines Magnetic Encoder 80 x 80mm

750W DC Servo Motor & Driver Kit 48V 2.39N.m with 1024 Lines Magnetic Encoder 80 x 80mm

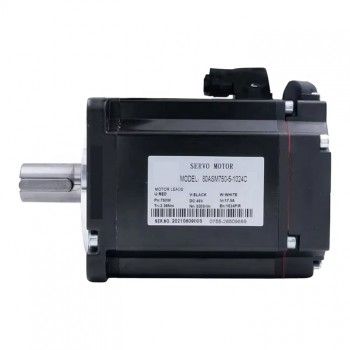

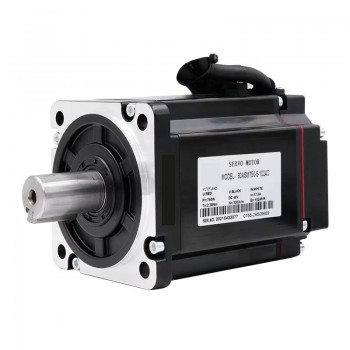

Specification:

Part Number: 80ASM750-5-1024C

Power Supply Voltage:48V

Rated Power:750W

Rated Torque: 2.39N.m(338.45 oz.in)

Peak Torque: 4.7Nm

Rated Speed: 3000 RPM

Max Speed: 3500 RPM

Rated Current:20A

Max Current:40A

Motor pole pairs:5

Rotor inertia(10^-4kg*cm²):1.74

Encoder:1024 lines magnetic encoder;

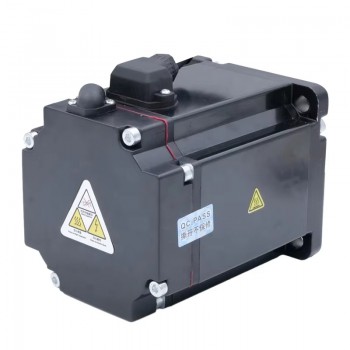

Physical Specifications:

Frame Size:80 x 80mm

Body Length:141mm

Shaft Diameter:19mm

Shaft Length:35mm

Keyway Length:25mm

Weight:5kg;

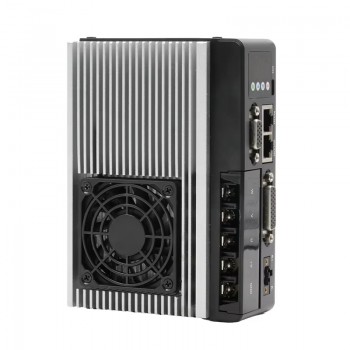

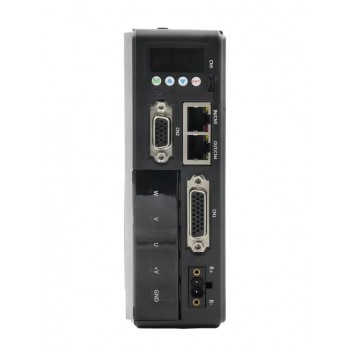

Servo Driver Specification:

Part Number: MCAC845

Phase:3

Input voltage:24~80V

Input current:45A

Output voltage:45V

Rated power:750W

Dimension:150.5*104*50mm

Matching motor:80mm base

Weight:2.5kg;
