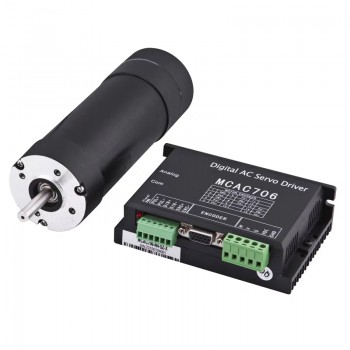

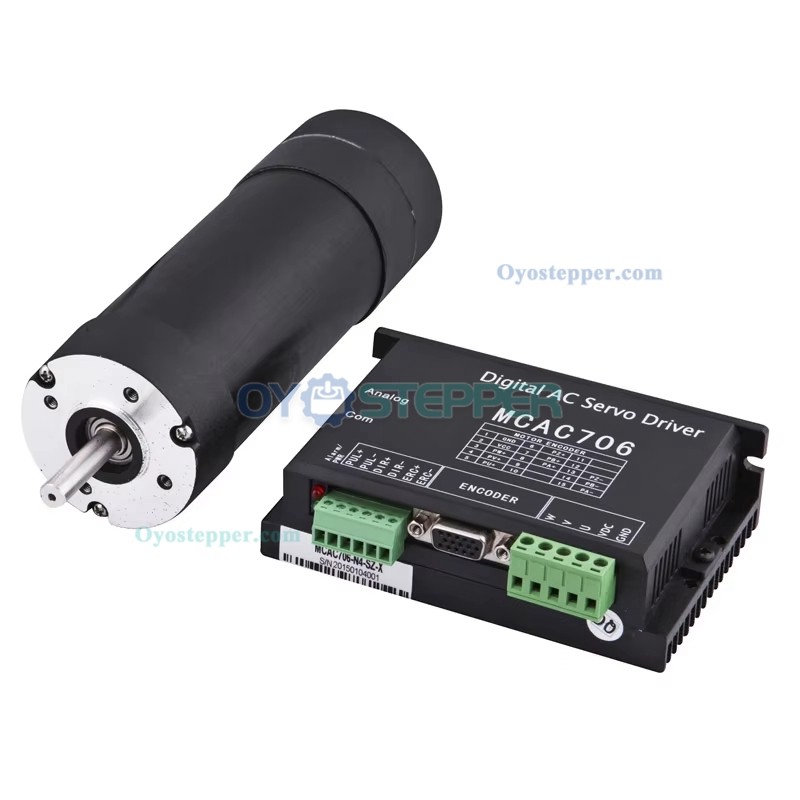

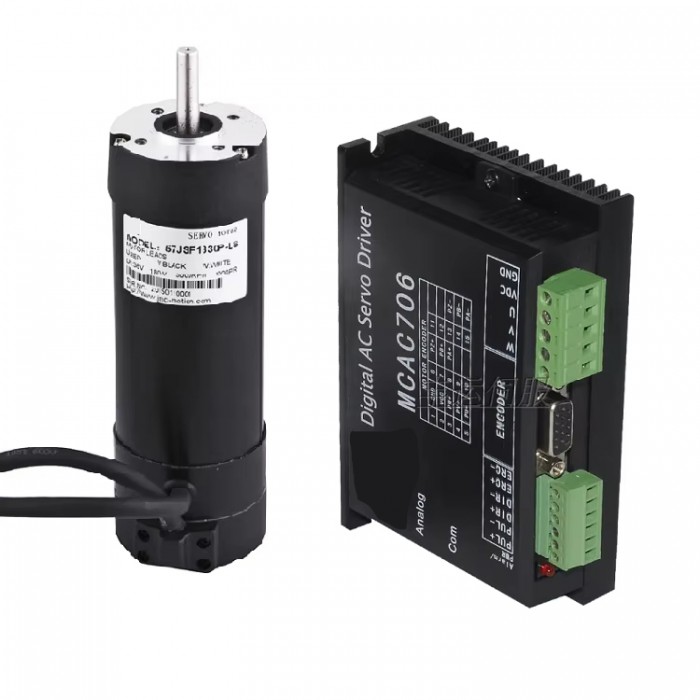

36V 180W Brushless DC Servo Motor & Driver Kit 0.6N.m 3400RPM Φ57mm for Inkjet Printers

36V 180W Brushless DC Servo Motor 0.6N.m 3400RPM Φ57mm for Inkjet Printers

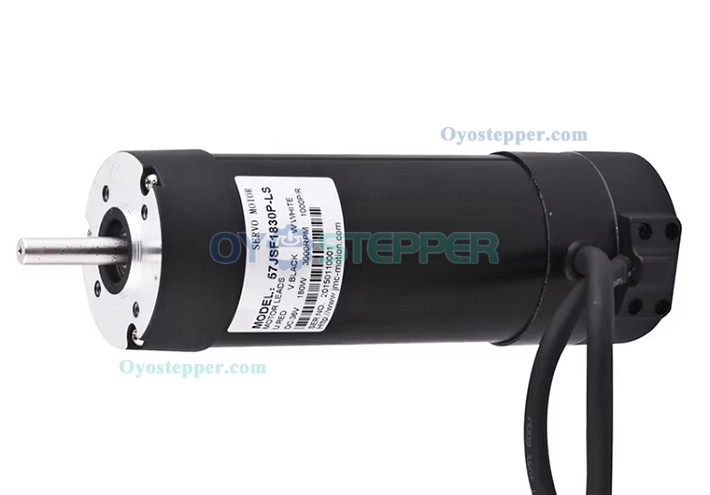

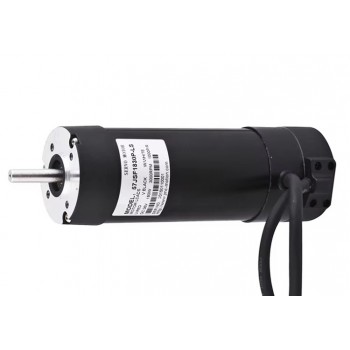

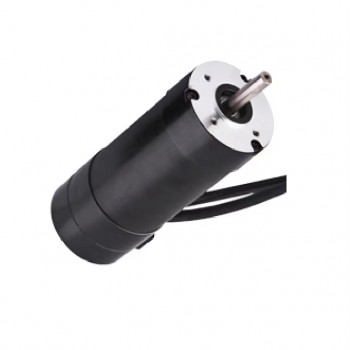

Servo Motor Specification:

Part Number:57JSF1830P

Phase:3 phase

Power Supply Voltage:36V

Rated Power:180W

Rated Torque:0.6N.m(84.96 oz.in)

Peak Torque:1.71N.m

Rated Speed: 3400RPM

No Load Speed:5300RPM

Rated Current:8.8A

Poles:4;

Encoder:1000 Lines;

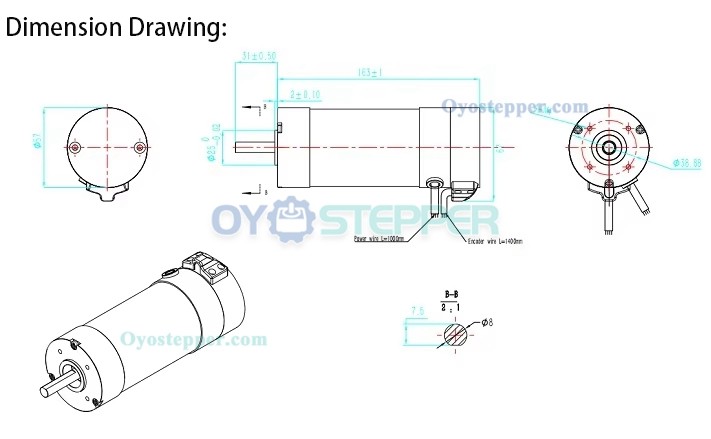

Physical Specifications:

Frame Size:Φ57mm

Body Length:163.5mm

Shaft Diameter:8mm

Shaft Length:30mm

Weight:1.2kg;

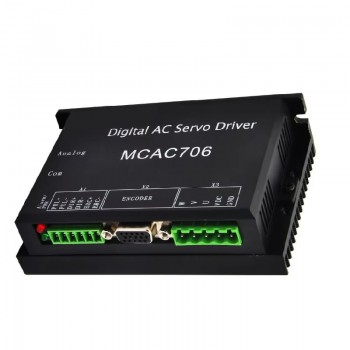

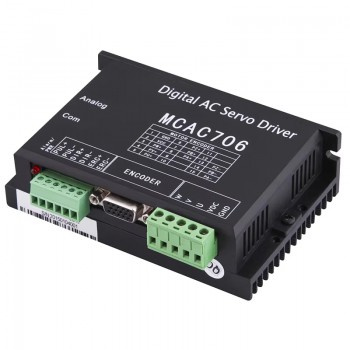

Servo Driver Technical data:

1.Voltage:VDC 20~70V

2. Continuous output power:200W

3.Continuous output current: 6A  32KHz PWM

4.Overload output current: 18A (3S)

5.Protection

Over current: 30A±10%

Over I2t:300%  5S

Over heating:80°C

Over voltage: 65V

Under voltage: 18V

6.Max pulse output frequency: 300K

7.Default communication speed: 9.6Kbps(need conversion interface outside)

8.Environment

Space:Avoid dust,oil frost and corrosive gases

Work temperature:0~+50°C

Storage temperature -20°C~+80°C

Humidity :40~90%RH

Cooling :natural cooling or forced convection

9.Dimension : 118×76×35mm

10.Weight: 200g;
