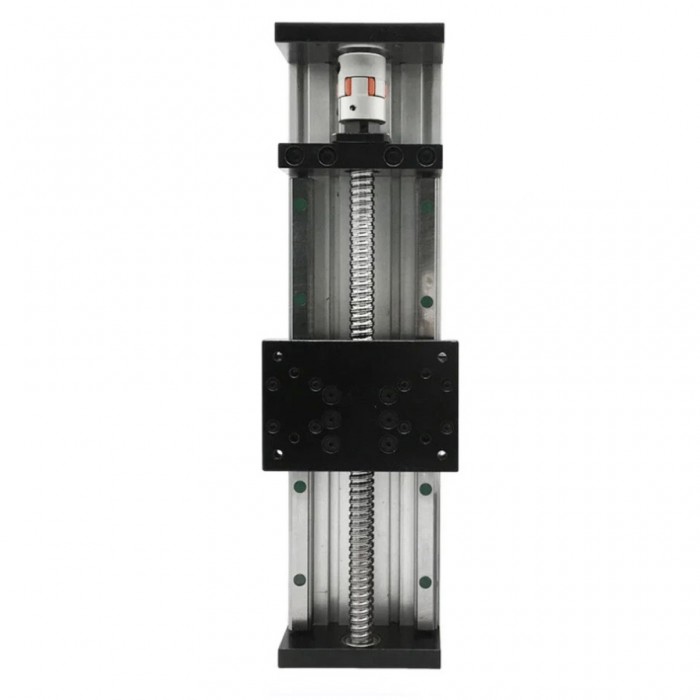

Heavy Duty Linear Motion Guide Stage Ballscrew CNC Linear Slide Table Fit Nema23 / 34 Motor

Heavy Duty Linear Motion Guide Stage Ballscrew CNC Linear Slide Table Fit Nema23 / 34 Motor

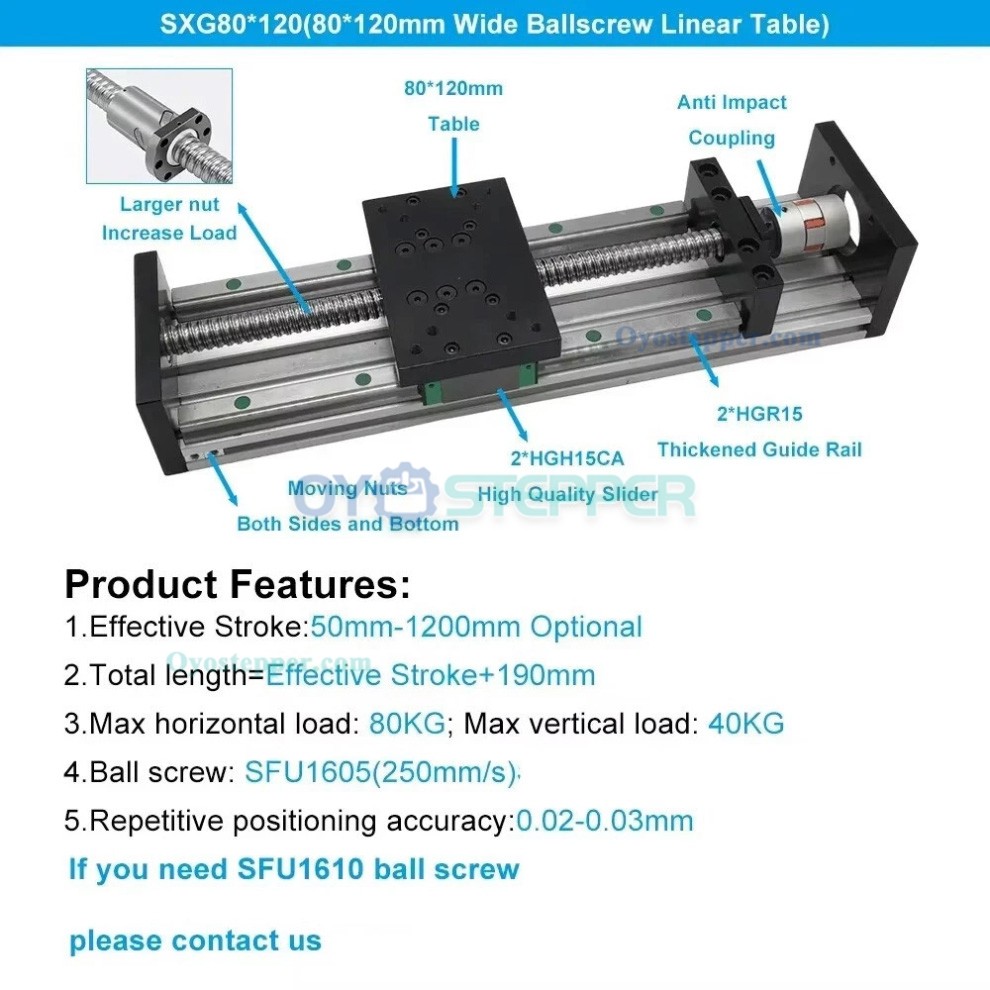

Sliding Table Specifications:

Model: SXG80×120

Ballscrew: SFU1605 (Ø16 mm, pitch 5 mm; 1 revolution → 5 mm travel) / SFU1610

Ballscrew accuracy: C7

Effective stroke: 50–1200 mm

Total length (optional): Effective stroke + 190 mm

Mobile panel size: 80×120 mm

Slider type: 2× HGH15CA

Guide type: 2× HGR15

Horizontal load (max): 80 kg

Vertical load (max): 40 kg

Repeat positioning accuracy: ±0.3 mm

Material: Industrial aluminum profile



Package Options:

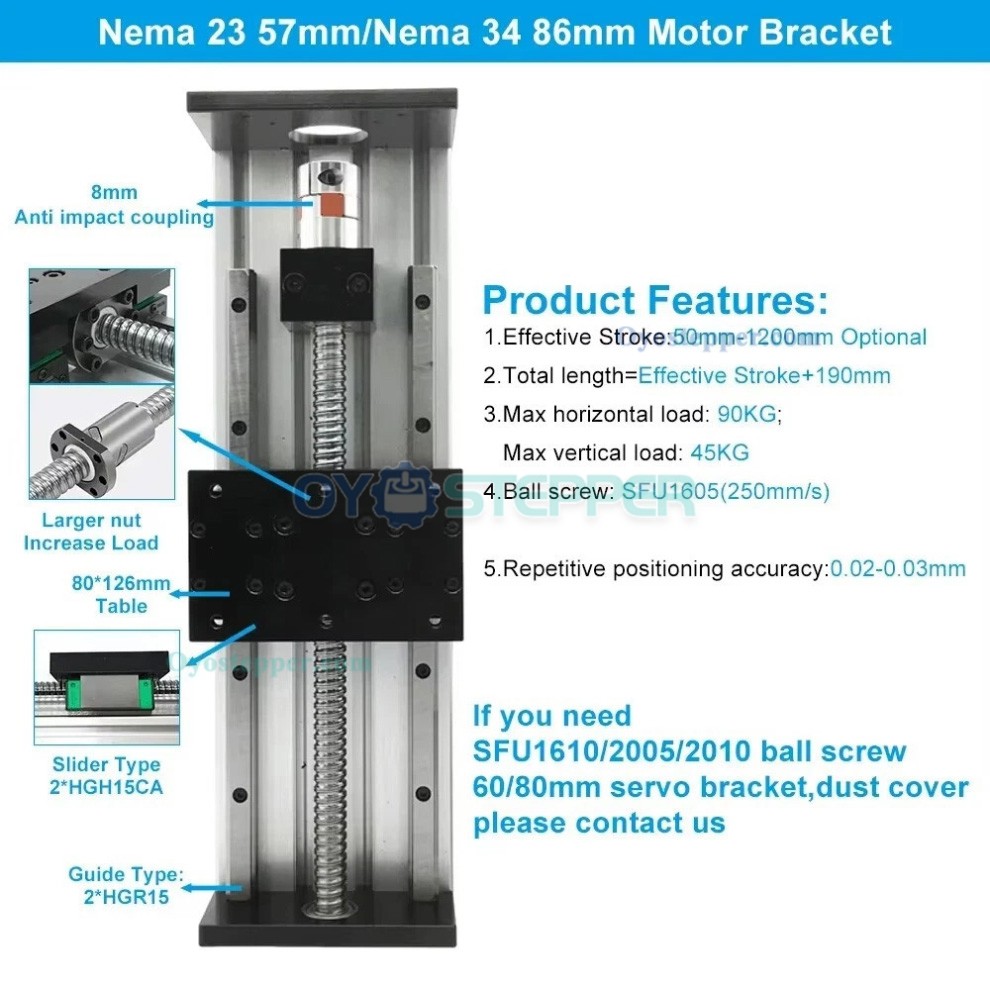

NEMA 23 (57 mm) / NEMA 34 (86 mm) / 60 mm / 80 mm servo bracket

1× Double-rail sliding table (SFU1605)

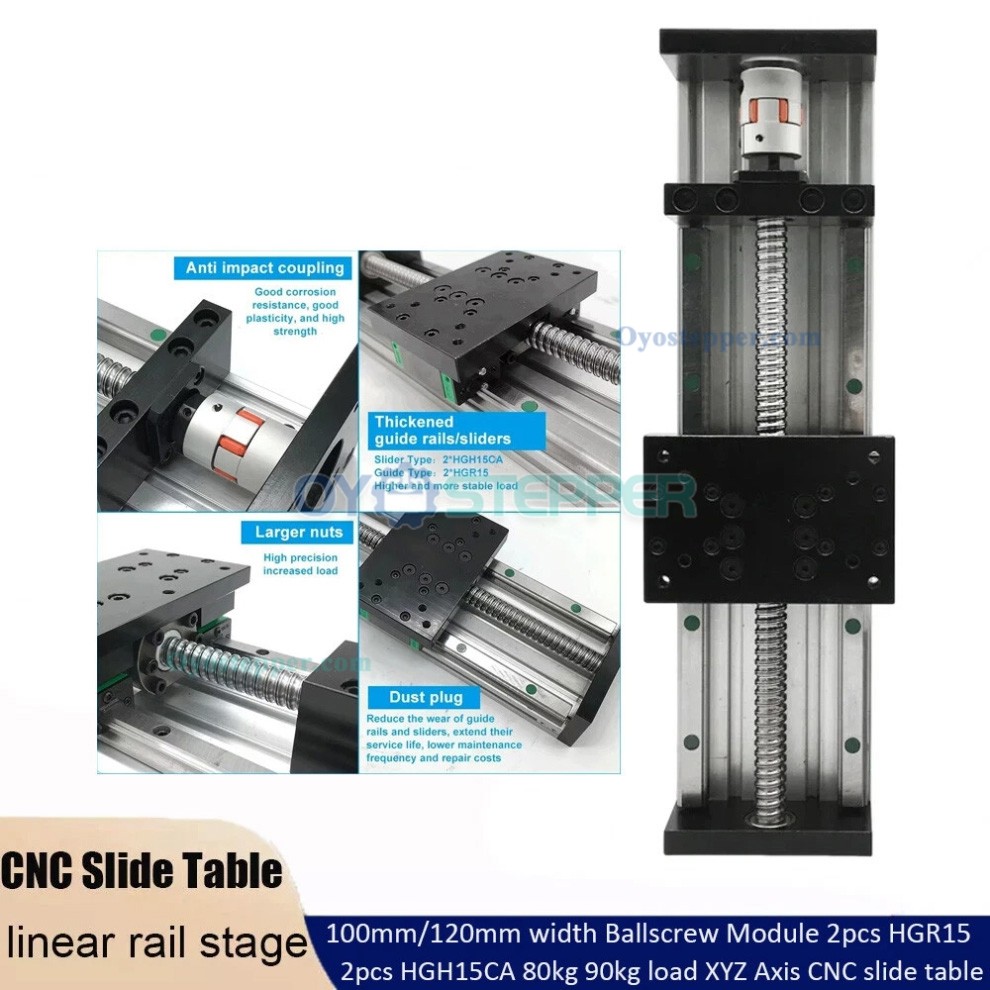

1× Anti-impact coupling

For SFU1610, contact customer service.

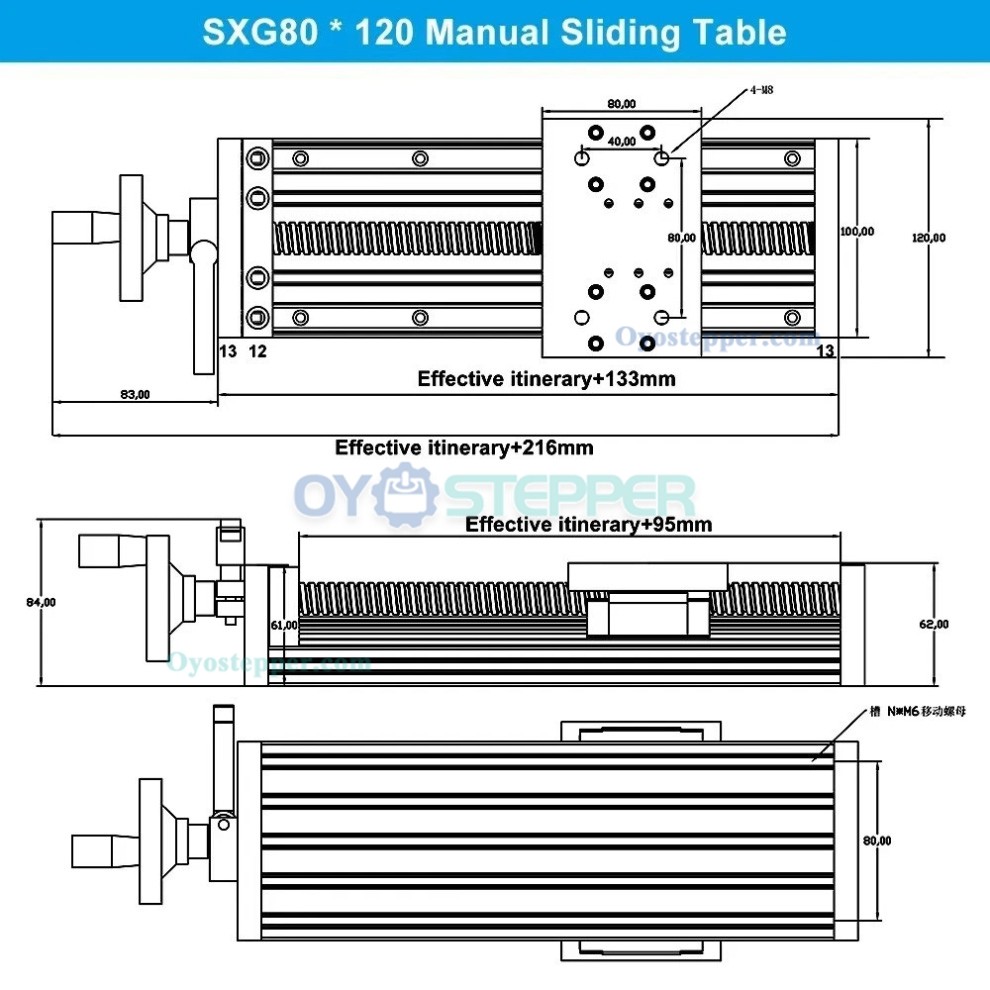

Manual version:

1× Double rail sliding table with handwheel
