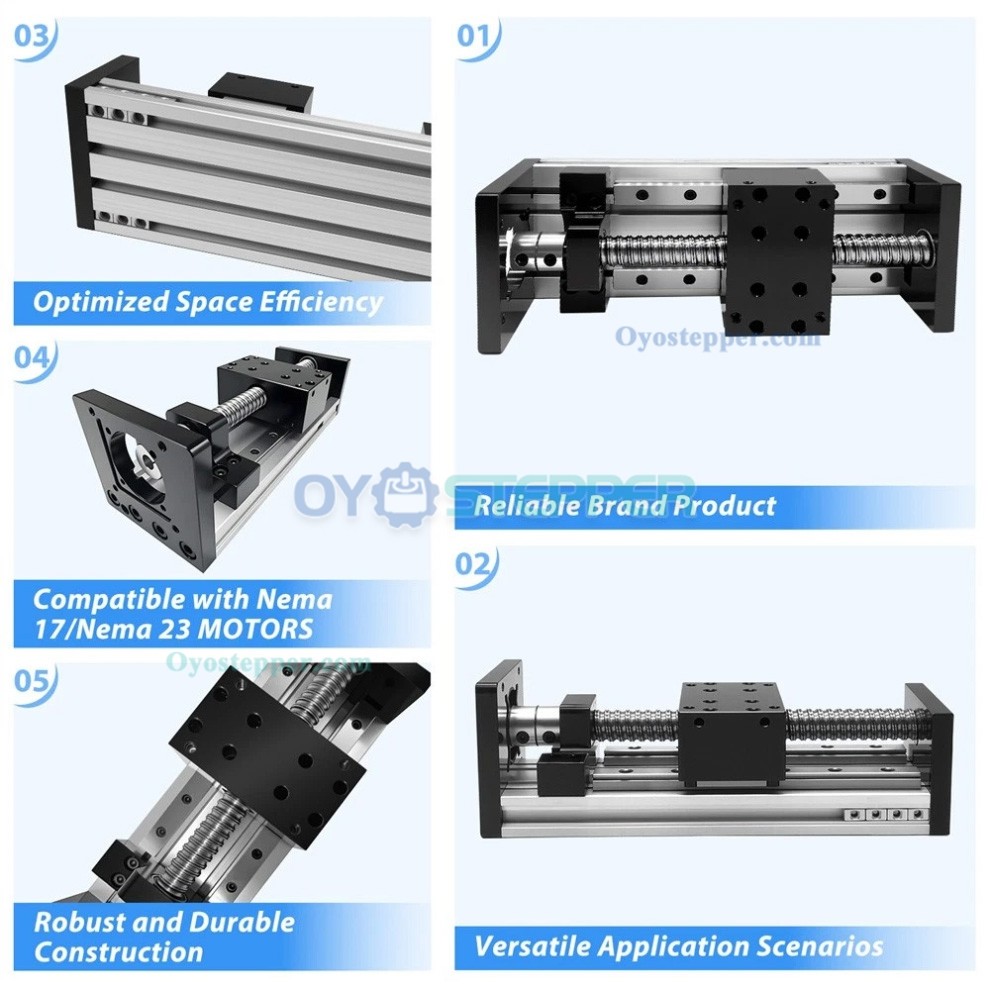

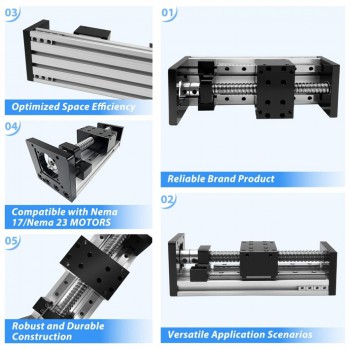

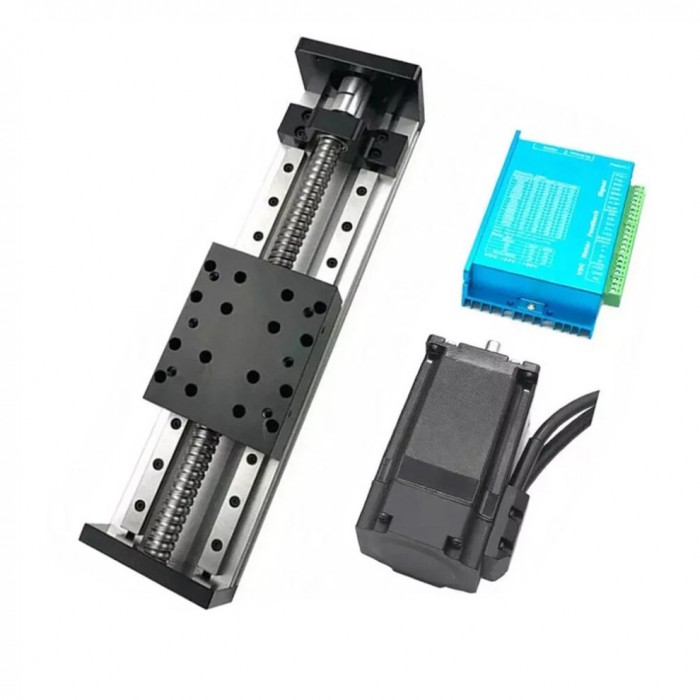

CNC Linear Double Guides 10-132lbs BallScrew Slide Table Motion Stage Motor Kit

CNC Linear Double Guides 10-132lbs BallScrew Slide Table Motion Stage Motor Kit

Parameters:

Model: SXG5080 — 80mm width

Ballscrew Type: SFU1605 (16mm diameter, 5mm pitch; one rotation moves the panel 5mm)

Ballscrew Accuracy: C7 grade

Effective Stroke: 300mm (optional range available)

Total Length: Effective stroke + 110mm (for 50×80mm table)

Mobile Panel Size: 50×80mm

Guide Diameter: 12mm

Guide Type: 2 × MGN12R

Slider Type: 2 × MGN12C (for 50×80mm table)

Horizontal Load Capacity: up to 60kg (132.28 lb)

Vertical Load Capacity: up to 30kg (66.14 lb)

Maximum Speed: 500mm/s

Repeat Positioning Accuracy: 0.02–0.03mm

Ballscrew and Linear Rail Material: Carbon steel and bearing steel

Base Plate Material: Aluminum alloy



Package Type 1

1 × CNC slide table (select the required specification)

1 × 8mm-to-8mm coupling (for Nema 23 stepper motor)

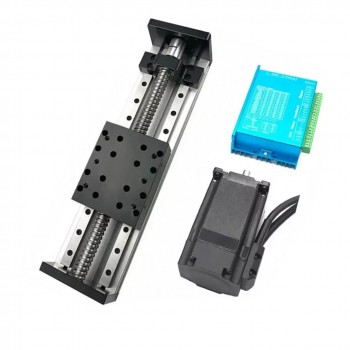

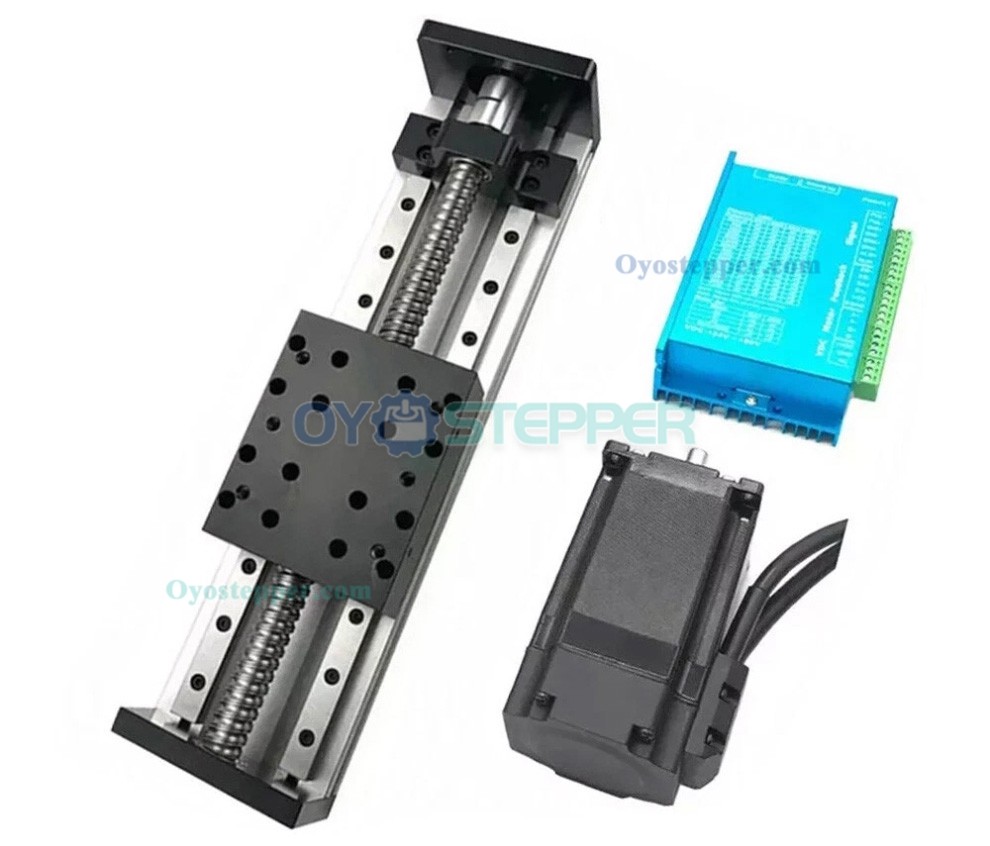

Package Type 2

1 × CNC slide table (select the required specification)

1 × 8mm-to-8mm coupling

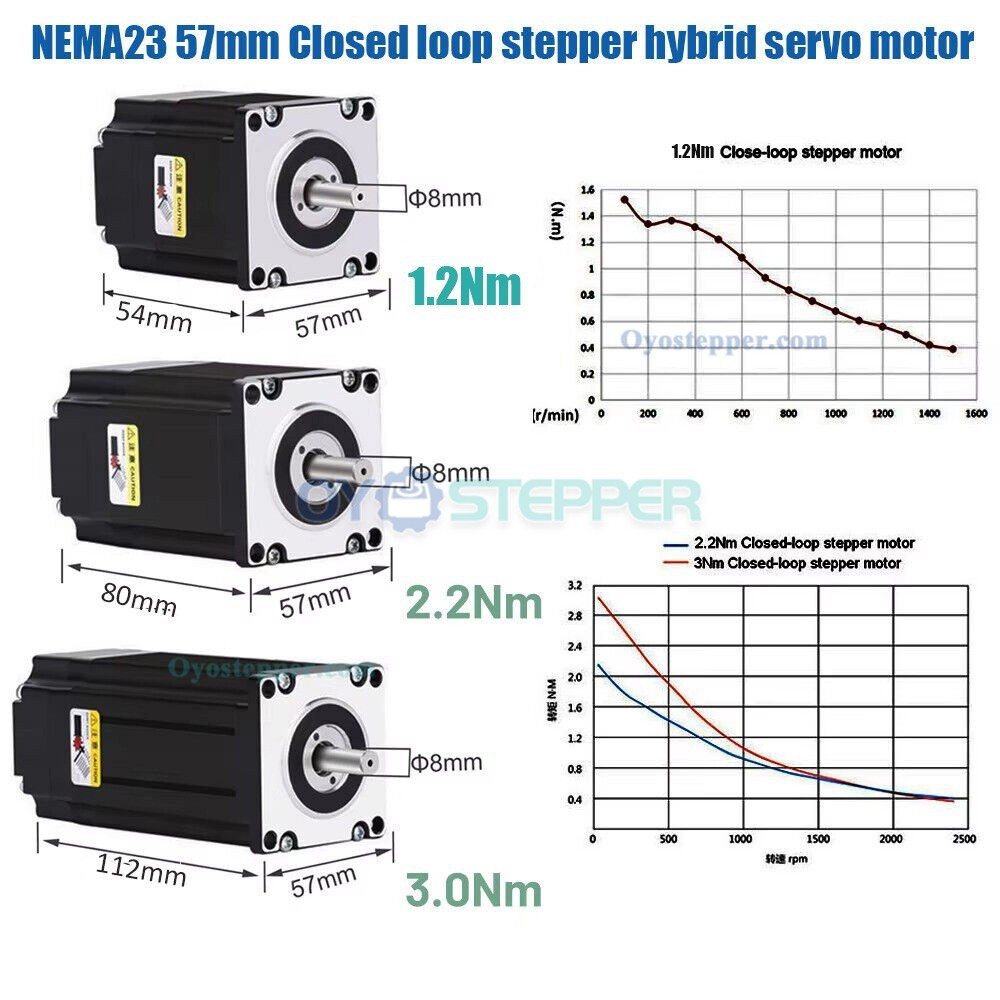

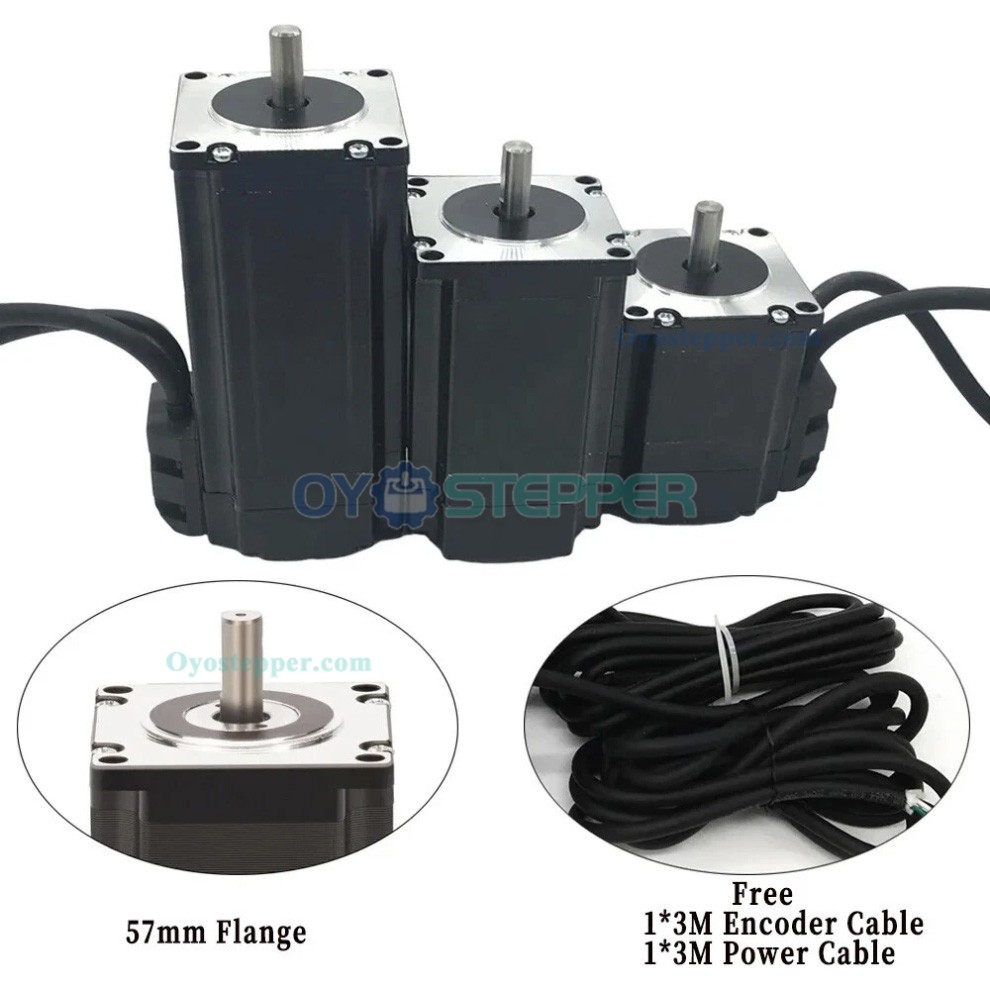

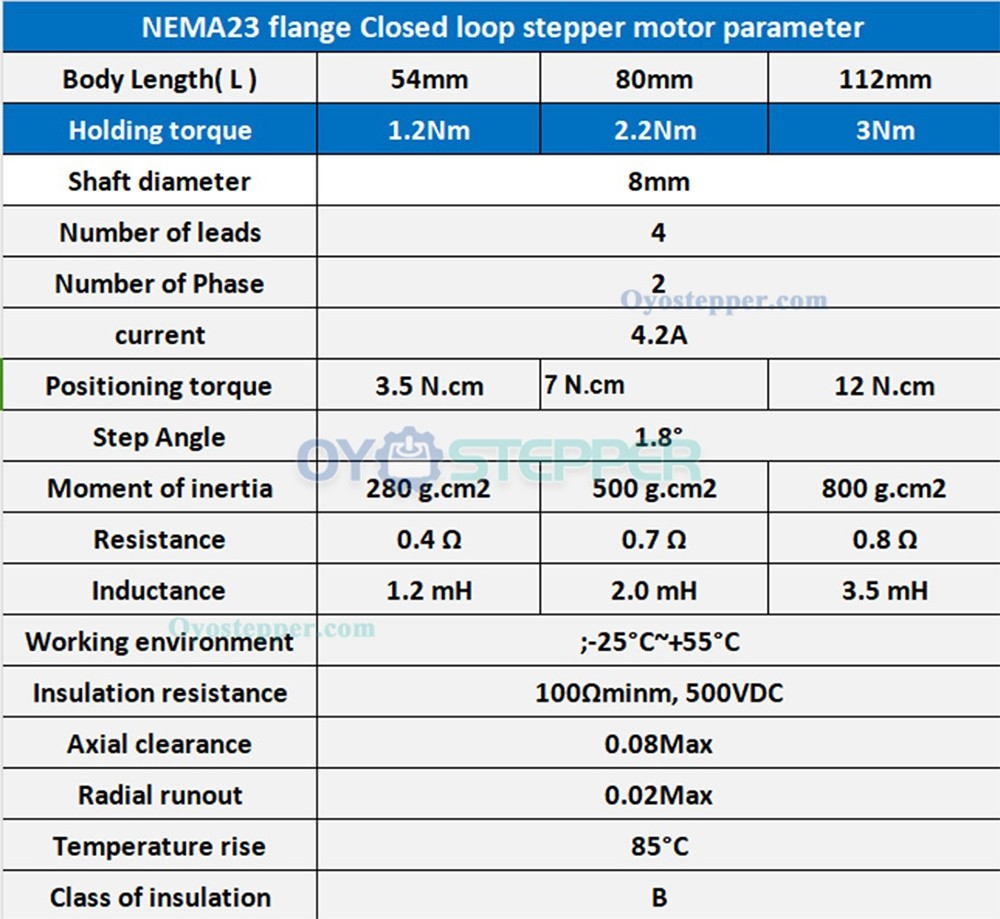

1 × Nema 23 closed-loop stepper motor (1.2Nm / 2Nm / 3Nm);
