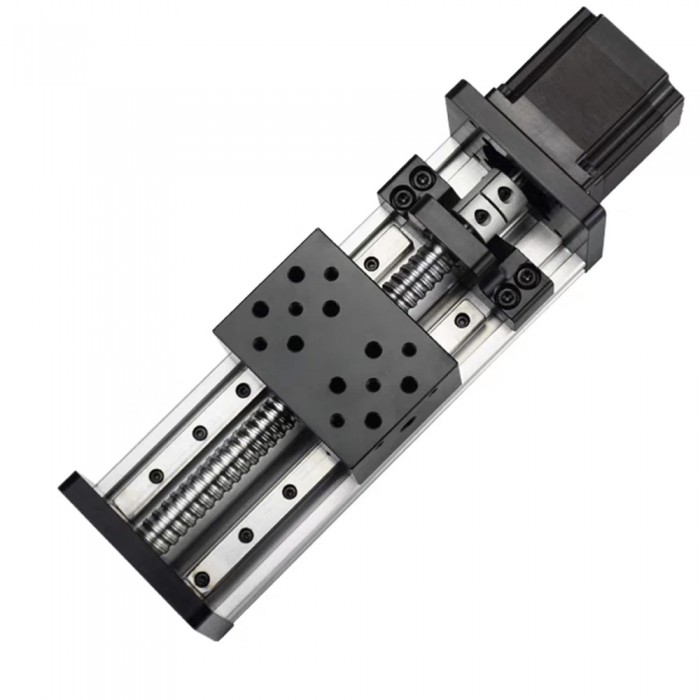

Double Guide CNC Slide Table Ballscrew Linear Motion Stage 22-132lbs Motorized Linear Stage

Double Guide CNC Slide Table Ballscrew Linear Motion Stage 22-132lbs Motorized Linear Stage

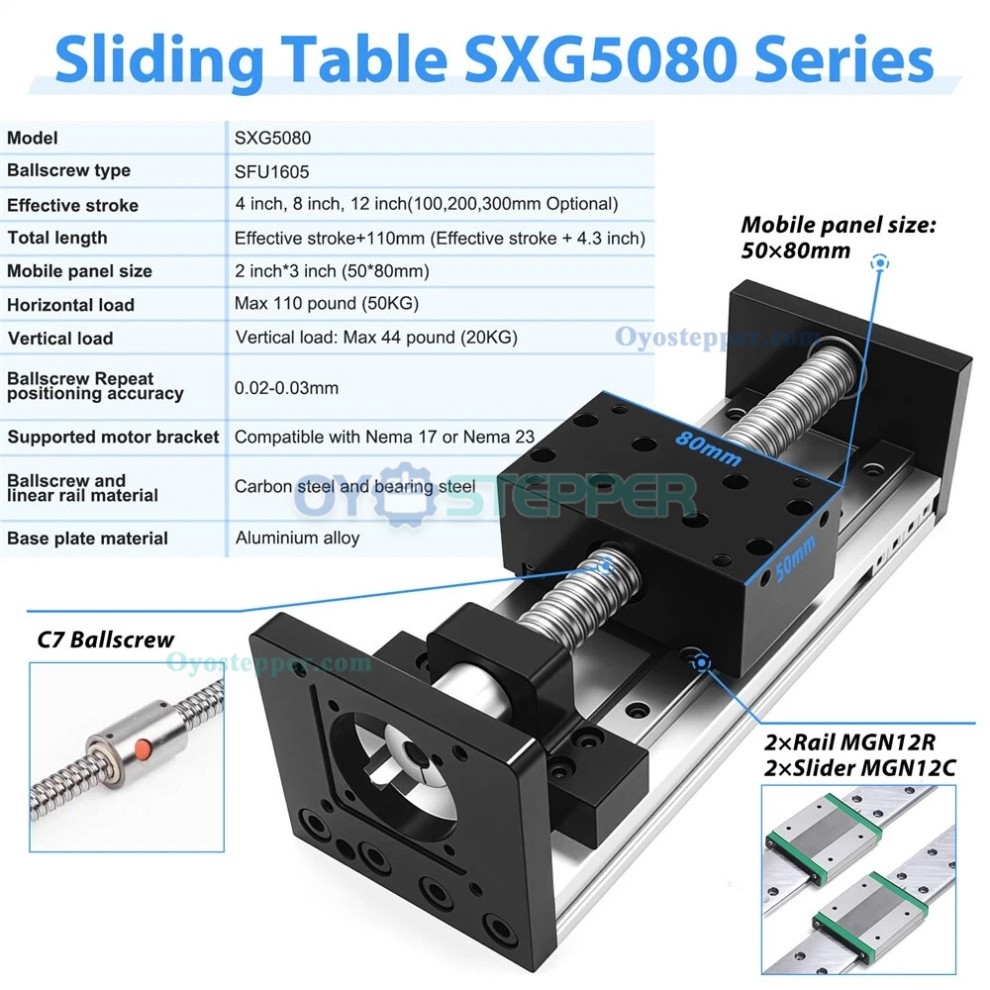

Slide Table Specifications:

Model: SXG5080 (50×80mm table);

Ballscrew Type: SFU1605 (16mm diameter, 5mm pitch, one rotation moves the panel 5mm); optional SFU1204 or SFU1610 types;

Ballscrew Accuracy: C7 grade;

Effective Stroke: 300mm (optional range available);

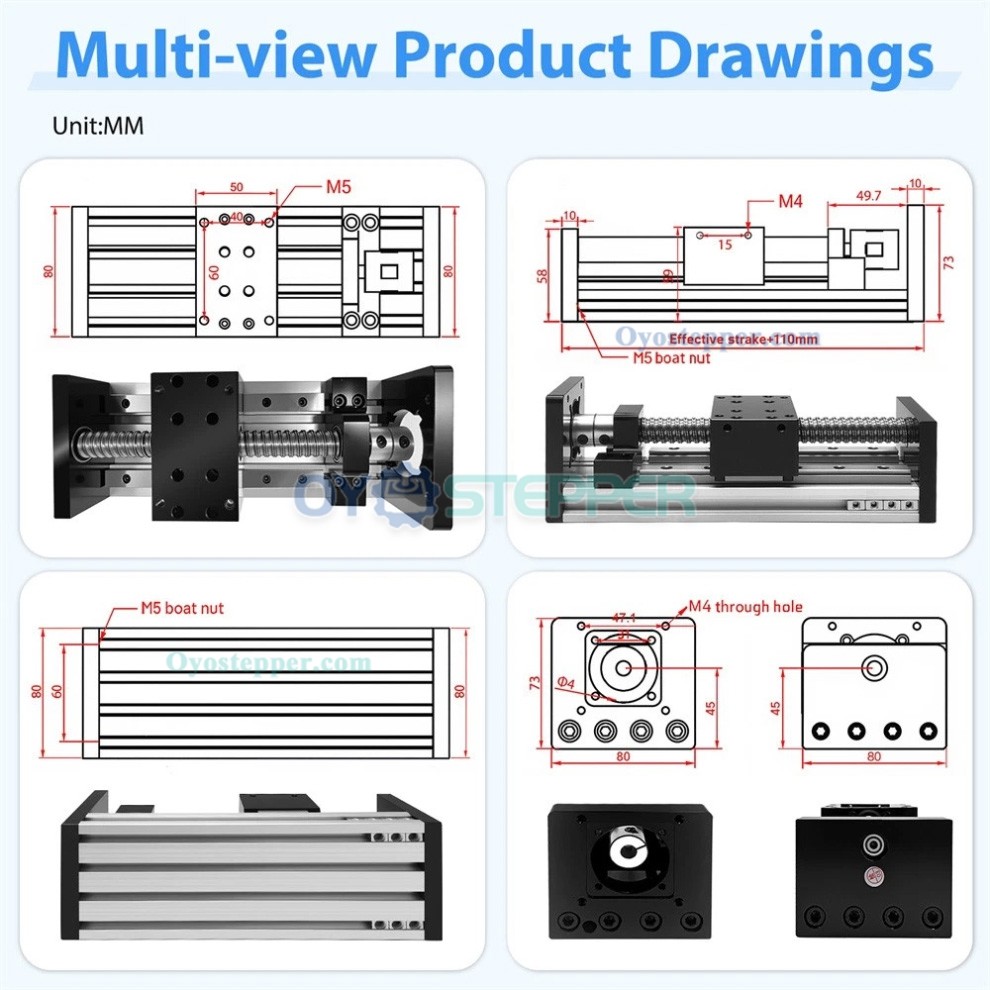

Total Length: Effective stroke + 110mm (for 50×80mm table);

Mobile Panel Size: 50×80mm;

Guide Diameter: 12mm;

Guide Type: 2 × MGN12R;

Slider Type: 2 × MGN12C (for 50×80mm table);

Horizontal Load Capacity: up to 60kg (132.28 lb);

Vertical Load Capacity: up to 30kg (66.14 lb);

Maximum Speed: 500mm/s;

Repeat Positioning Accuracy: 0.02–0.03mm;

Ballscrew and Linear Rail Material: Carbon steel and bearing steel;

Base Plate Material: Aluminum alloy;
