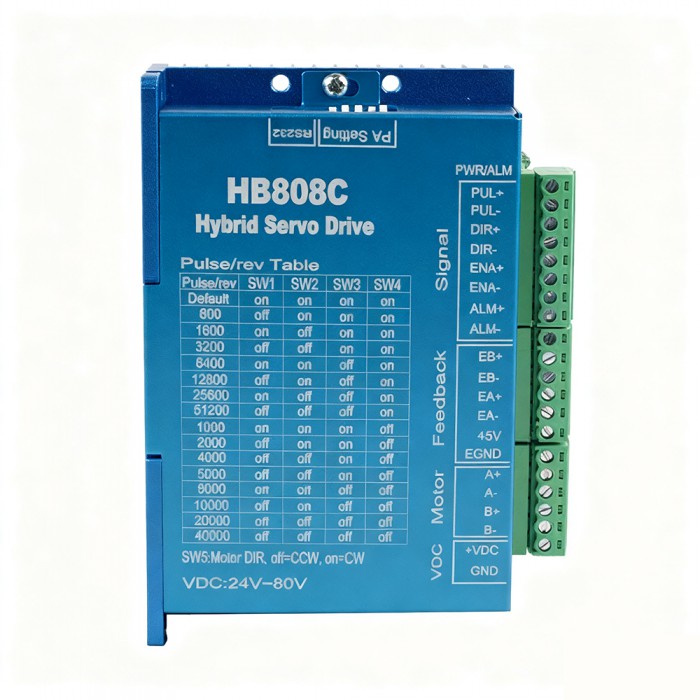

HB808C 2 Phase AC18-80V Closed Loop Stepper Motor Driver Nema 17/23/24 Motor
Features:
Uses digital control chip with vector closed-loop control;
Torque attenuation is low, supporting speed up to 3000 rpm;
Supports AC 18–80 V or DC 20–110 V power input;
16-level subdivision, customizable on request;
Compatible with 5–24 V input, no external series resistance required;
Maximum response frequency: 400 kHz;
External alarm and position output ports for monitoring and control;
Supports single or dual pulse modes; default pulse + direction control;
Pulse delay adjustable by dial switch; factory default 40 ms;
Includes protection functions for over-current and overload;
Compatible with 2-phase Nema 17, 23, and 24 hybrid servo motors (stepper motor with encoder) with the position loop closed in real time.
Typical Applications:
Engraving machines, industrial sewing machines, stripping machines, marking machines, cutting machines, laser systems, plotters, CNC machine tools, dispensing machines, screw machines, and other automated equipment.

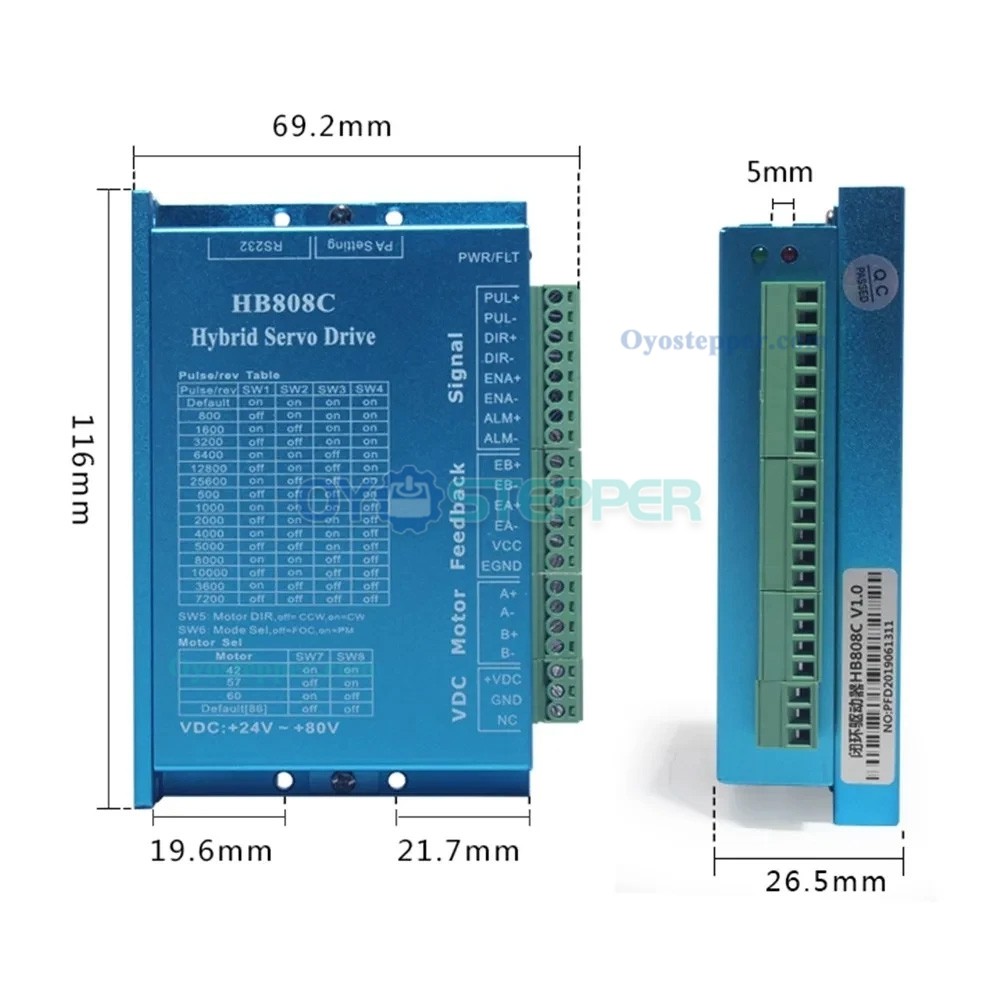

Size Chart:
