Closed Loop Stepper Driver 0~6.2A 24~60VDC for Nema 23, Nema 24 Stepper Motor

Closed Loop Stepper Driver 0~6.2A 24~60VDC for Nema 23, Nema 24 Stepper Motor
Post a review
Special Offer in June 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$64.99
Quantity:- +

Add To Cart

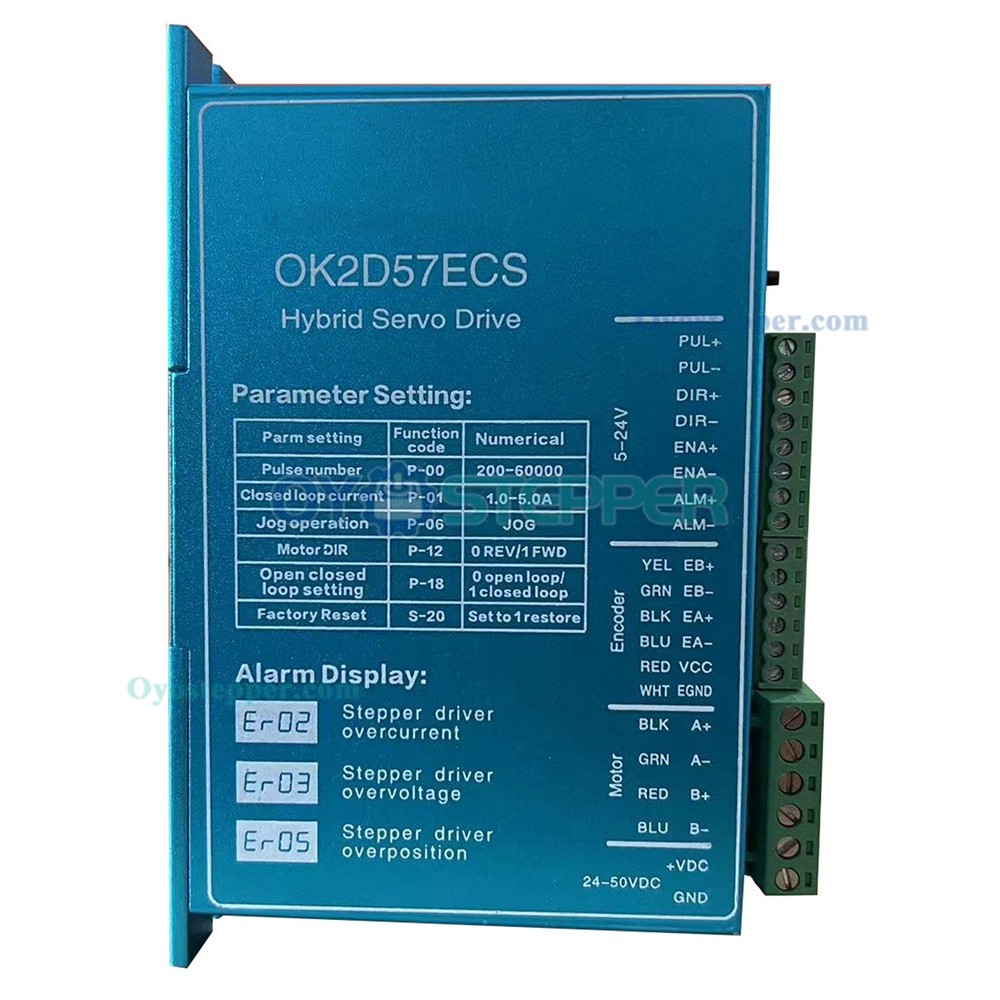

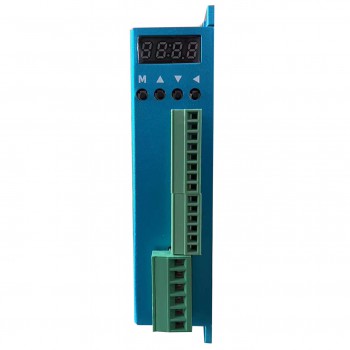

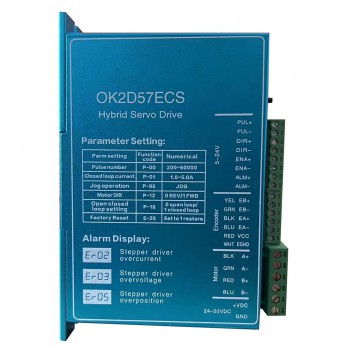

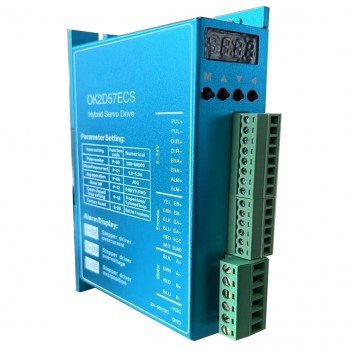

Closed Loop Stepper Driver 1~6A 24~48VDC for Nema 23, Nema 24 Stepper Motor OK2D57ECS


Key Features:
Closed-loop, eliminates loss of synchronization
Broader operating range - higher torque and higher speed
Reduced motor heating and more efficient
Do not need a high torque margin
No Tuning and always stable
Quick response, no delay and almost no settle time
High torque at starting and low speed, high stiffness at standstill
Offer servo-like performance at a much lower cost;


Performance parameters:
Adopting new 32-bit motor control dedicated dual-core DSP chip;
Adopting advanced vector current and speed and position closed-loop control algorithms;
The static current and dynamic current ratio can be automatically set;
The motor comes with a 1000-line high-precision encoder;
Optocoupler isolated differential signal input;
The impulse response frequency can reach up to 200KHZ;
It has several protection functions such as overcurrent, overvoltage, overspeed, overheating, and excessive tracking error.


Output Peak Current: 1~6.0A
Input Voltage: +24~48VDC (Typical 36VDC)
Logic Signal Current: 7~20mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Digital output port logic current:100mA
Digital output port voltage resistance:24V
Isolation Resistance: 500MΩ


Operating Environment and other Specifications(Tj = 25℃/77℉):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ - 50℃
Humidity: 40%RH-90%RH
Operating Temperature: 70℃ MAX
Vibration: 10~55Hz/0.15mm
Storage Temperature: -20℃ -+65℃;

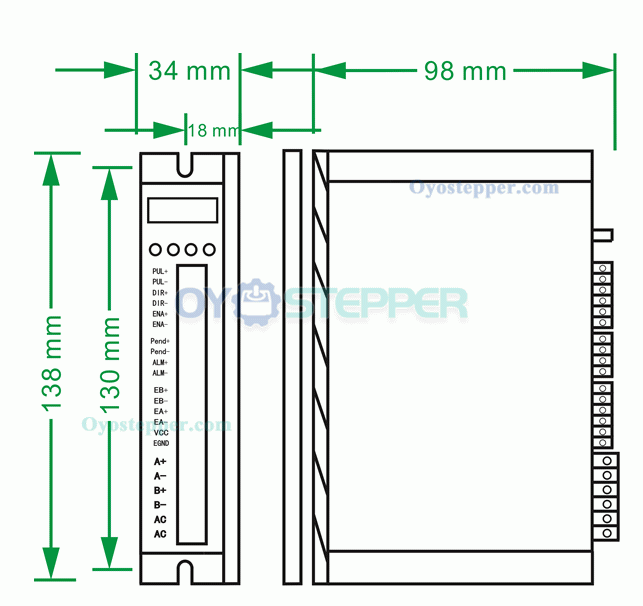

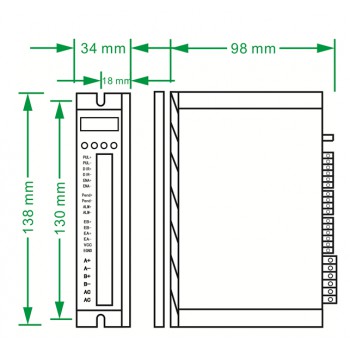

Install Size Picture:


Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Closed Loop Stepper Driver 0~5.6A 16~70VDC for Nema 23, Nema 24 Stepper Motor
Next: Closed Loop Stepper Driver 0~5.6A 18~70VDC for Nema 17, Nema 23, Nema 24 Stepper Motor
Stepper Driver Specification
Max. Pulse Input(kHZ) 200
Output Current(A) 1 - 6
Driving Voltage(V) 24 - 48
Physical Specification
Weight(g) 300
