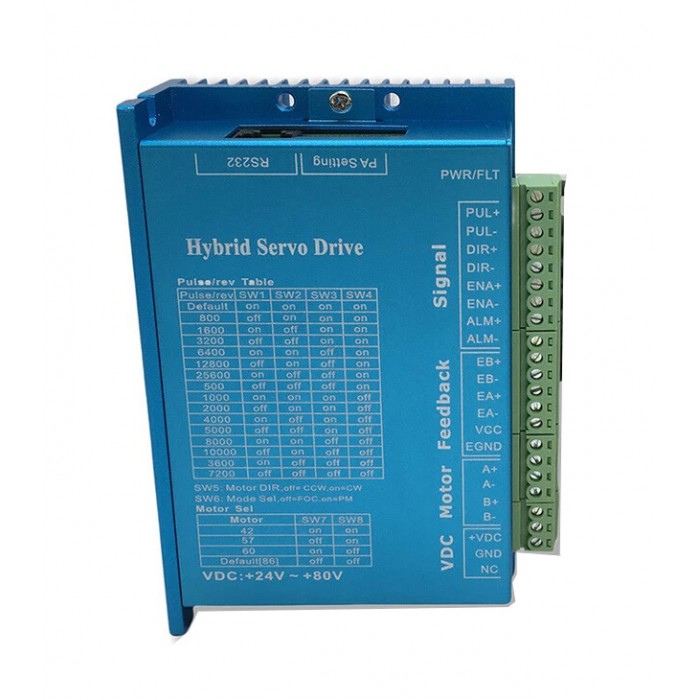

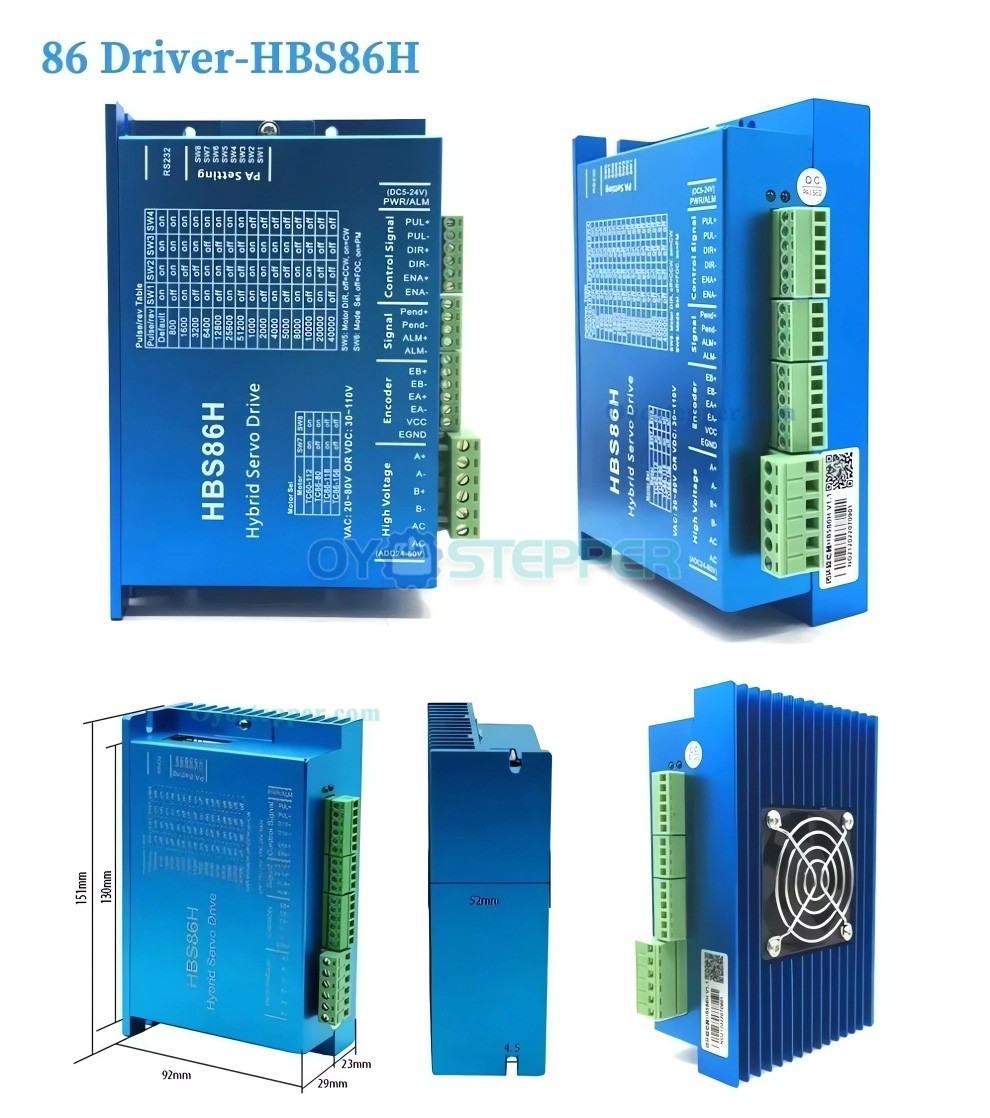

HBS86H Closed-Loop Stepper Driver for NEMA 34 86mm Stepper Motor Hybrid Servo Drive

HBS86H Closed-Loop Stepper Driver for NEMA 34 86mm Stepper Motor Hybrid Servo Drive

Specification:

Model:HBS86H

Type: DSP Closed loop stepper drive

Maximum peak current: 8A

Impulse response frequency: 200KHz

Micro-stepping driver:200~51200ppr

Input Voltage: 20~80VAC/30-110VDC

Protective function: Over voltage, over current, tracking error, over proof

Signal input: Support PUL/DIR and CW/CCW modes (difference)

Compatible:5~24V signal (Don't need a resistor)

Type of cooling: Air-cooling

Logic Signal Current: 7-16 Ma;
