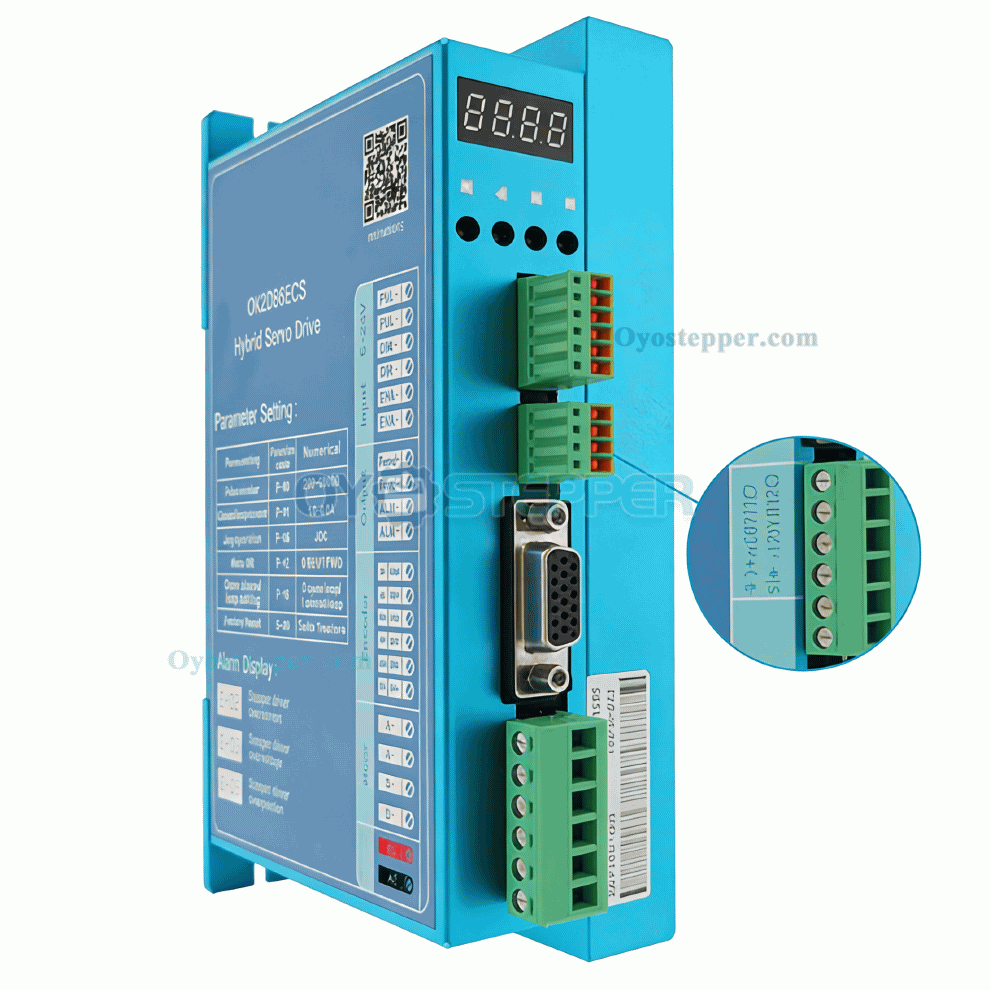

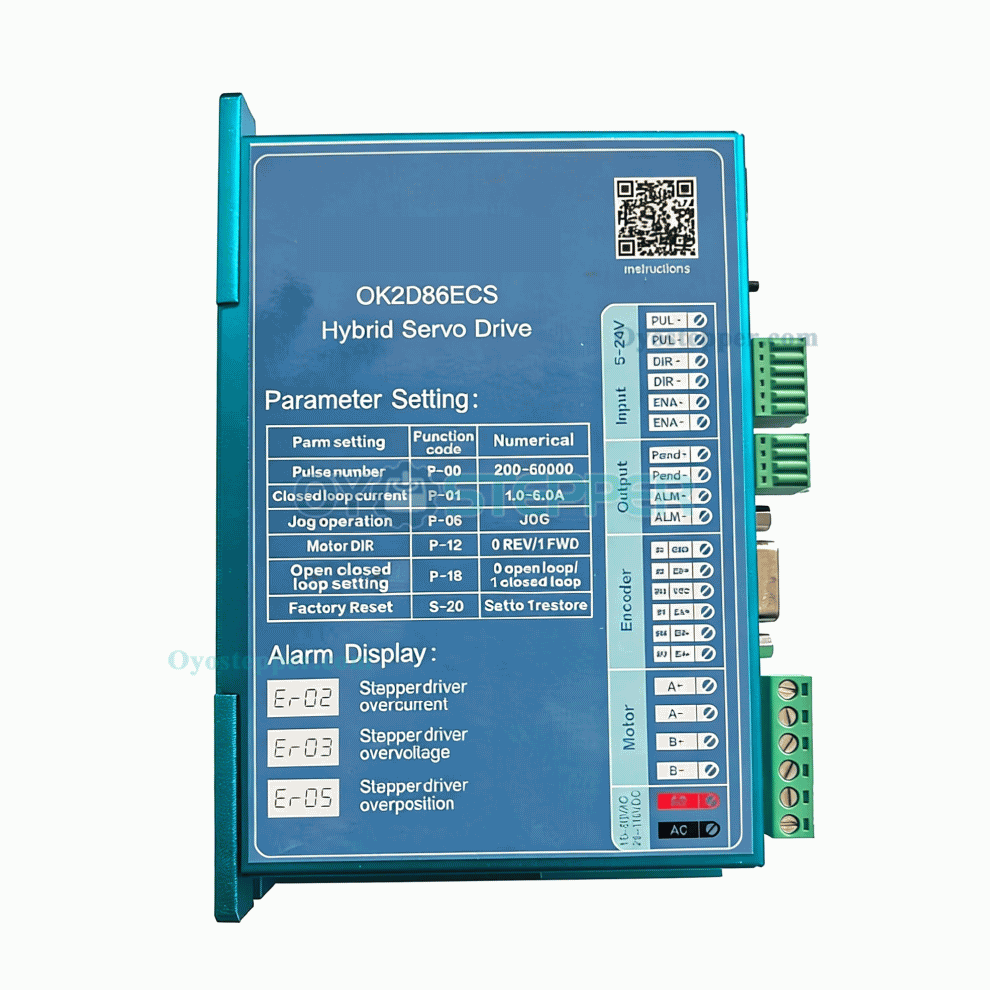

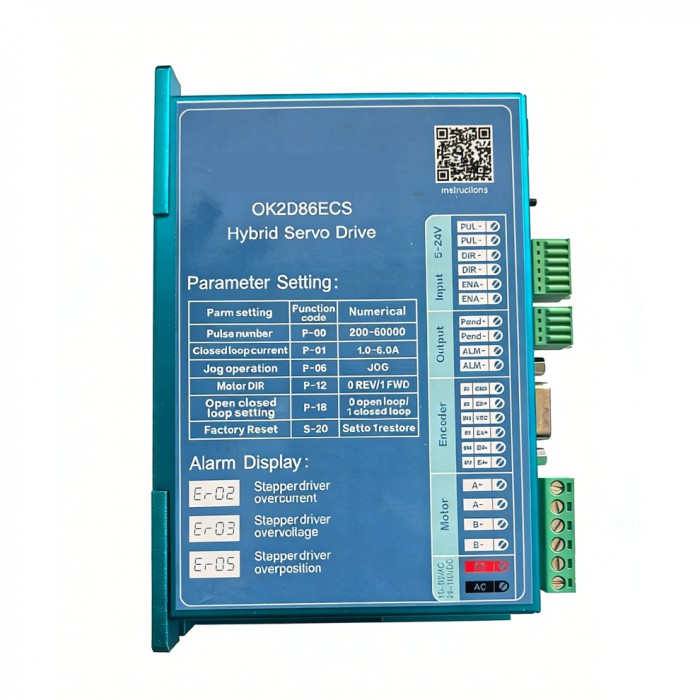

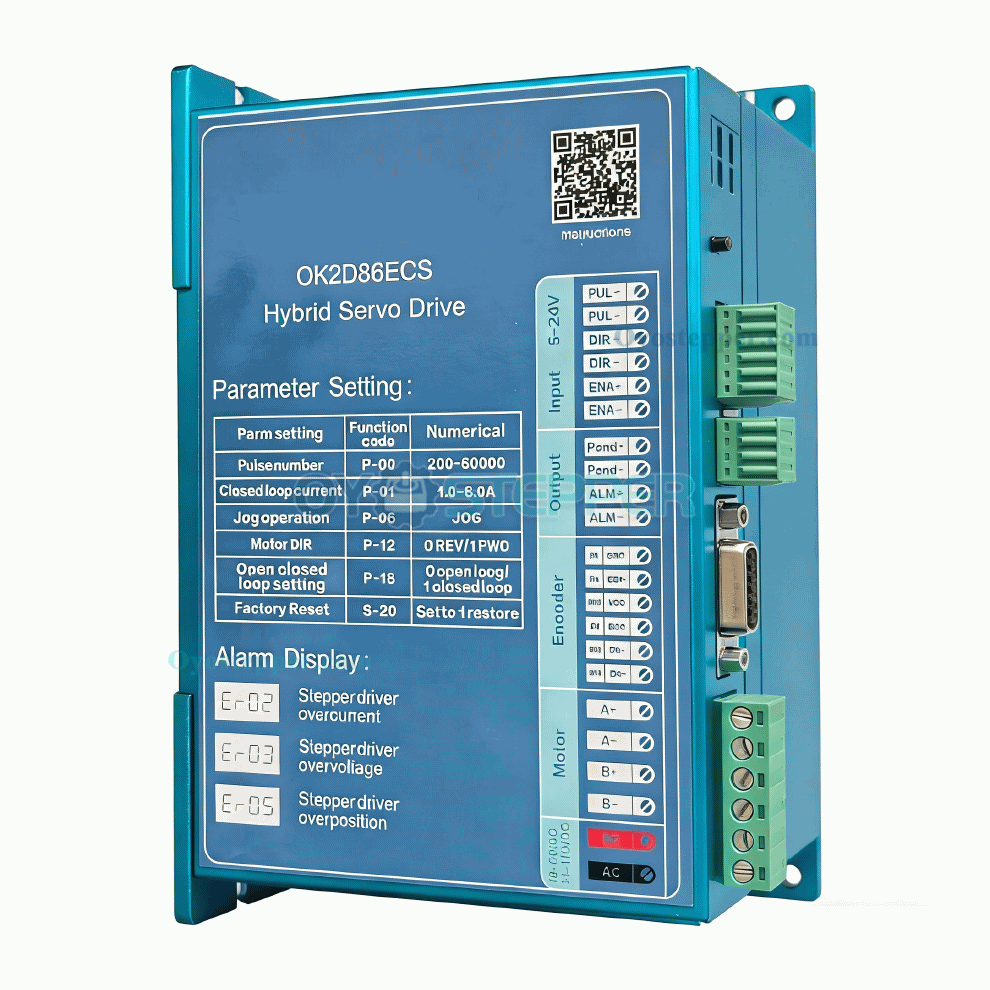

OUKEDA OK2D86ECS Closed Loop Stepper Motor Driver 0~8A 18~80VDC for Nema 34 Stepper Motor

OUKEDA OK2D86ECS Closed Loop Stepper Motor Driver 0~8A 18~80VDC for Nema 34 Stepper Motor

The OK2D86ECS is a 86-frame closed-loop stepper driver. It integrates an ARM-based processor and a vector control algorithm.

Features:
Closed-Loop Control: Utilizes encoder feedback for position monitoring.
Compatibility: Shares the installation footprint with standard 86-frame open-loop stepper drivers.
Integrated Control Functions: Includes a built-in microcontroller supporting point-to-point motion modes.
Operational Modes: Offers selectable open-loop or closed-loop operation.
Input Signal Handling: Features input filtering for pulse train signals.
Motor Protection: Provides an alarm output signal in response to sustained overload conditions.
Processor: Based on a 32-bit ARM motor control chip.
Encoder Compatibility: Designed for use with motors equipped with 1000-line (4000 PPR) encoders.
Subdivision: Microstep resolution is adjustable from 200 to 60,000 steps per revolution.
Protection Functions: Includes protection against overcurrent, overvoltage, and overtemperature, with an alarm output for sustained overloads.

Specifications:
Model:OK2D86ECS
Power: Max 200W
Output Peak Current: 1~8A
Input Voltage: +18~80VDC (Typical 48VDC)
Logic Signal Current: 7~20mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Microstep(Steps/rev.):200~60000 PPR
Encoder current:50mA
Isolation Resistance: 500MΩ
Weight:600g

Operating Environment and other Specifications:

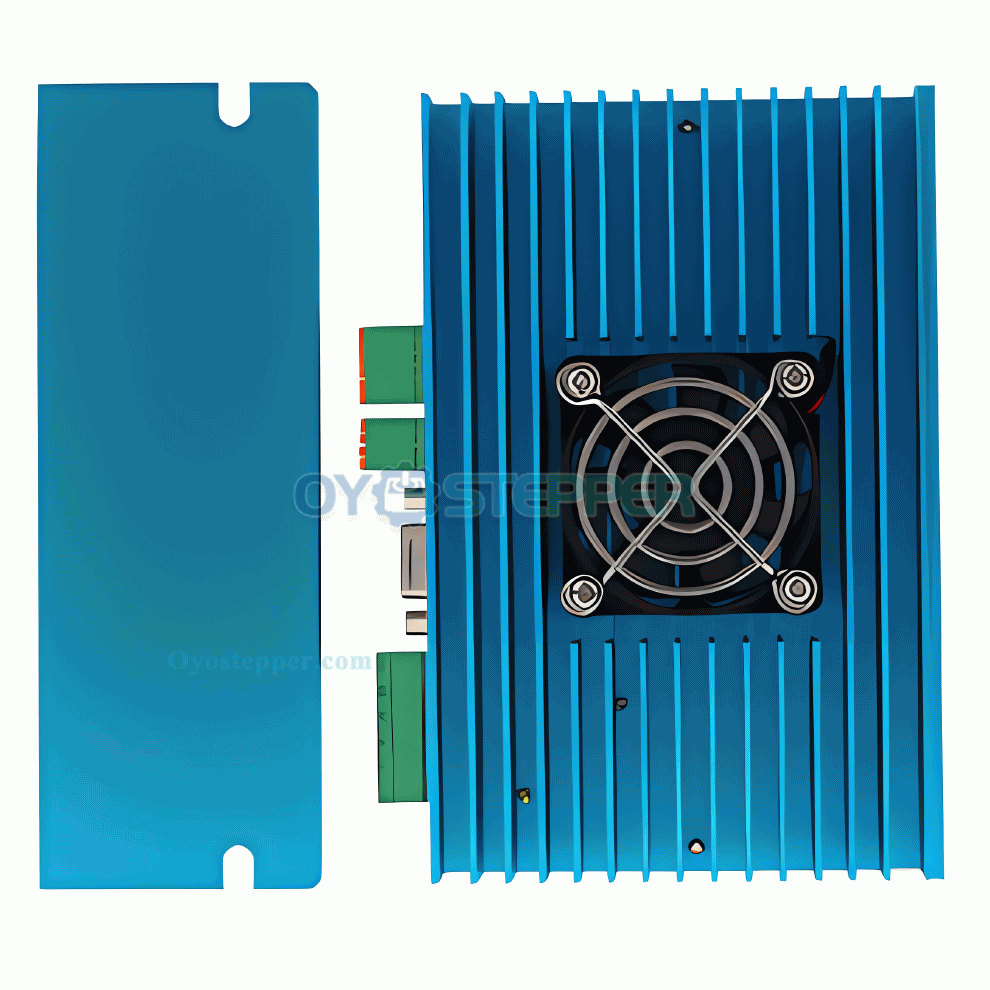

Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ － 50℃
Humidity: <80%RH (No-condensing, no frosting)
Operating Temperature: 70℃ MAX
Vibration: 5.9m/s2 Max
Storage Temperature: -20℃ －+80℃;
