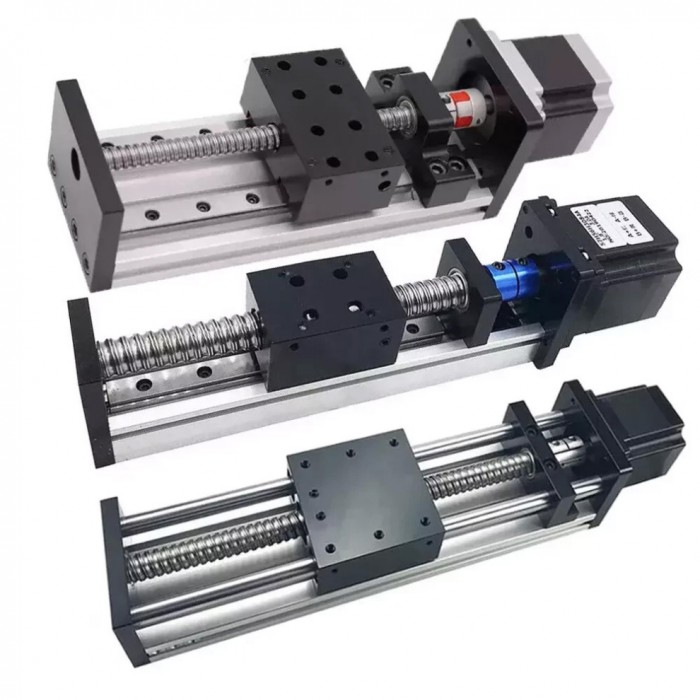

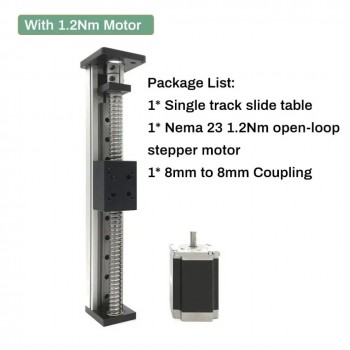

Electric CNC Linear Slide Table Motorized Ballscrew Guide Motion Stage with Stepper Motor Kit
Electric CNC Linear Slide Table Motorized Ballscrew Guide Motion Stage with Stepper Motor Kit

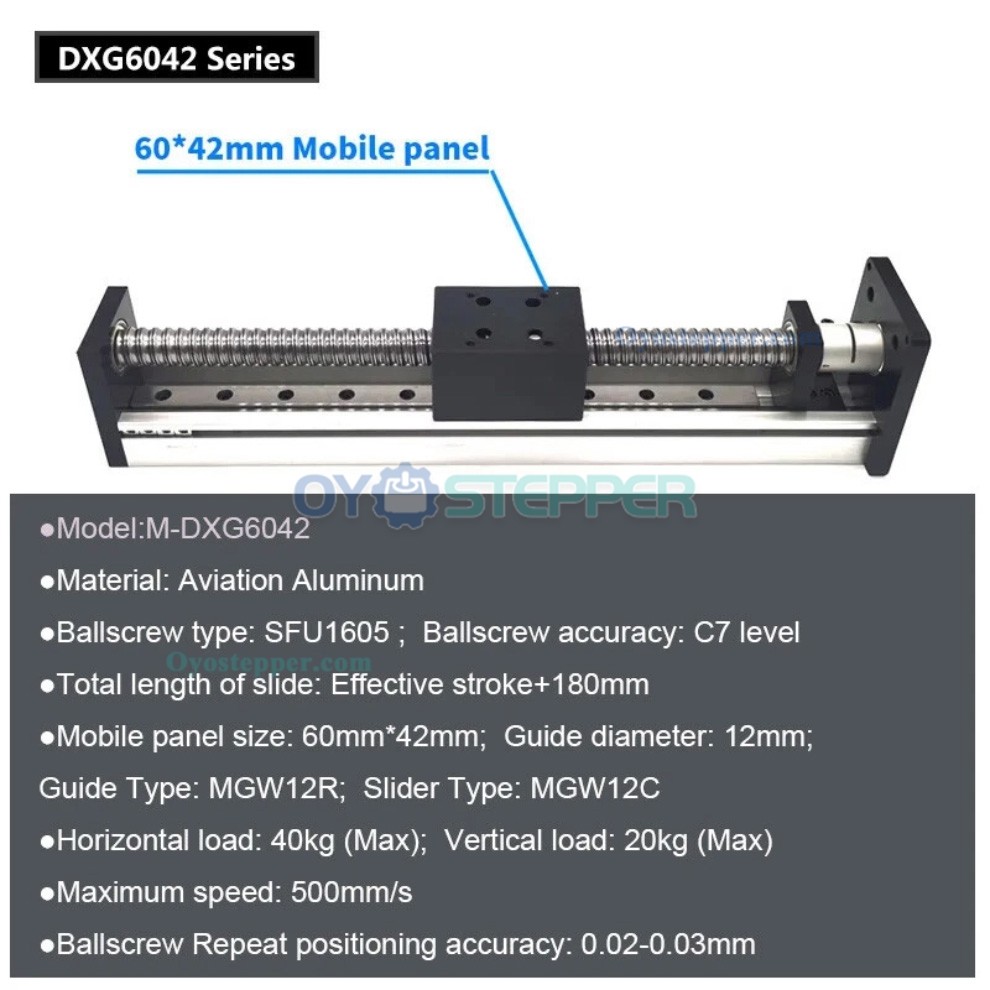

Model: DXG6042 - 42mm Width 40kg(88.18lb)
Width: 42mm
Weight: 40kg (88.18lb)
Ballscrew type: SFU1605 (Screw Diameter: 16mm, Pitch: 5mm)
Ballscrew accuracy: C7 level
Effective stroke: 100mm-600mm (Optional)
Total length: Effective stroke + 120mm (Electric slide)

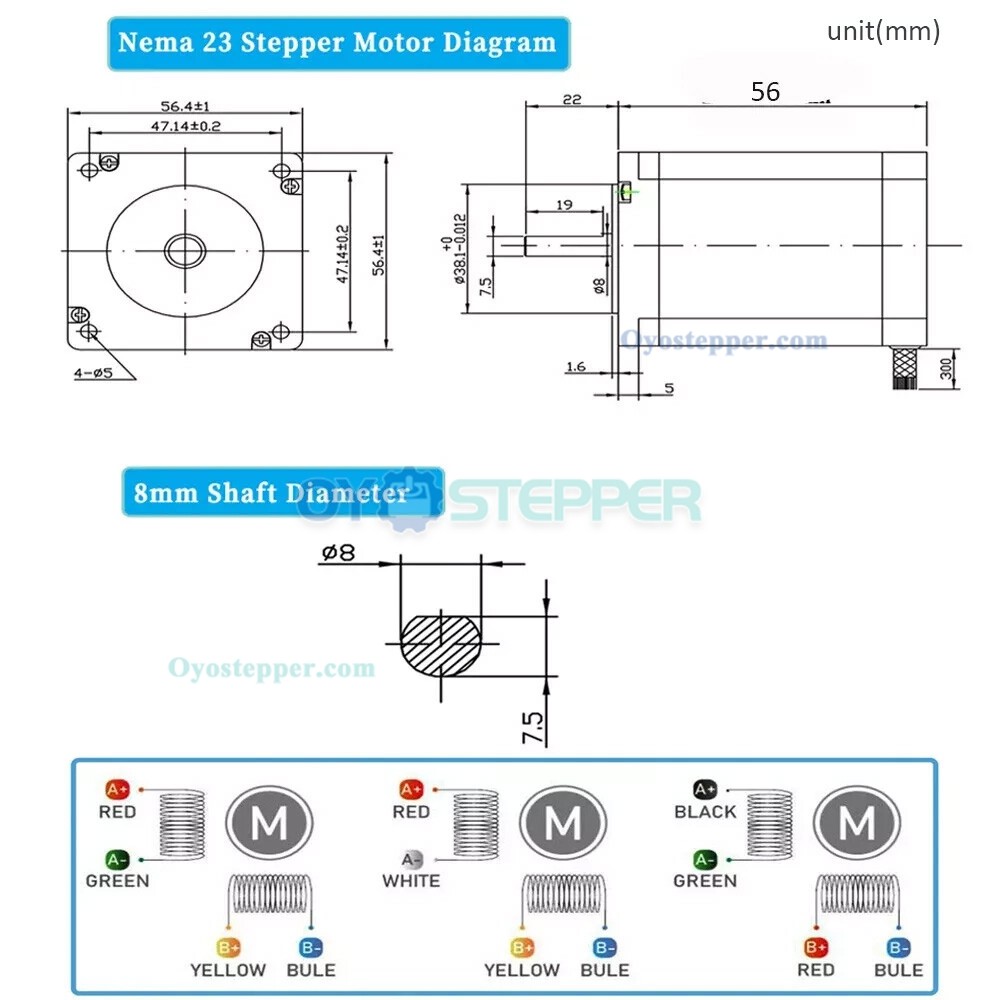

Motor bracket compatibility: NEMA 17/NEMA 23 stepper motor
Mobile panel size: 60*42mm
Guide diameter: 12mm
Guide type: MGW12R
Slider type: MGW12C
Horizontal load: 40kg (Max)
Vertical load: 20kg (Max)
Maximum speed: 500mm/s
Ballscrew repeat positioning accuracy: 0.02-0.03mm
Material: Industrial aluminum profile;

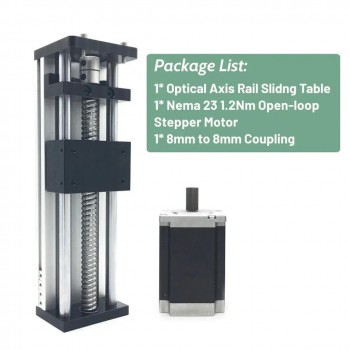

Model: GGP5080 - 80mm Width 40kg(88.18lb) ;
Width: 80mm
Weight: 40kg (88.18lb)
Ballscrew type: SFU1605 (Screw Diameter: 16mm, Pitch: 5mm)
Ballscrew accuracy: C7 level
Effective stroke: 50mm-300mm (Optional)
Total length: Effective stroke + 120mm
Guide diameter: 12mm
Guide type: 2PCS optical axis rod
Maximum speed: 100mm/s
Horizontal load: 40kg (Max)
Vertical load: 20kg (Max)
Ballscrew repeat positioning accuracy: 0.02-0.05mm
Material: Industrial aluminum profile
Motor bracket compatibility: NEMA 17/NEMA 23 stepper motor

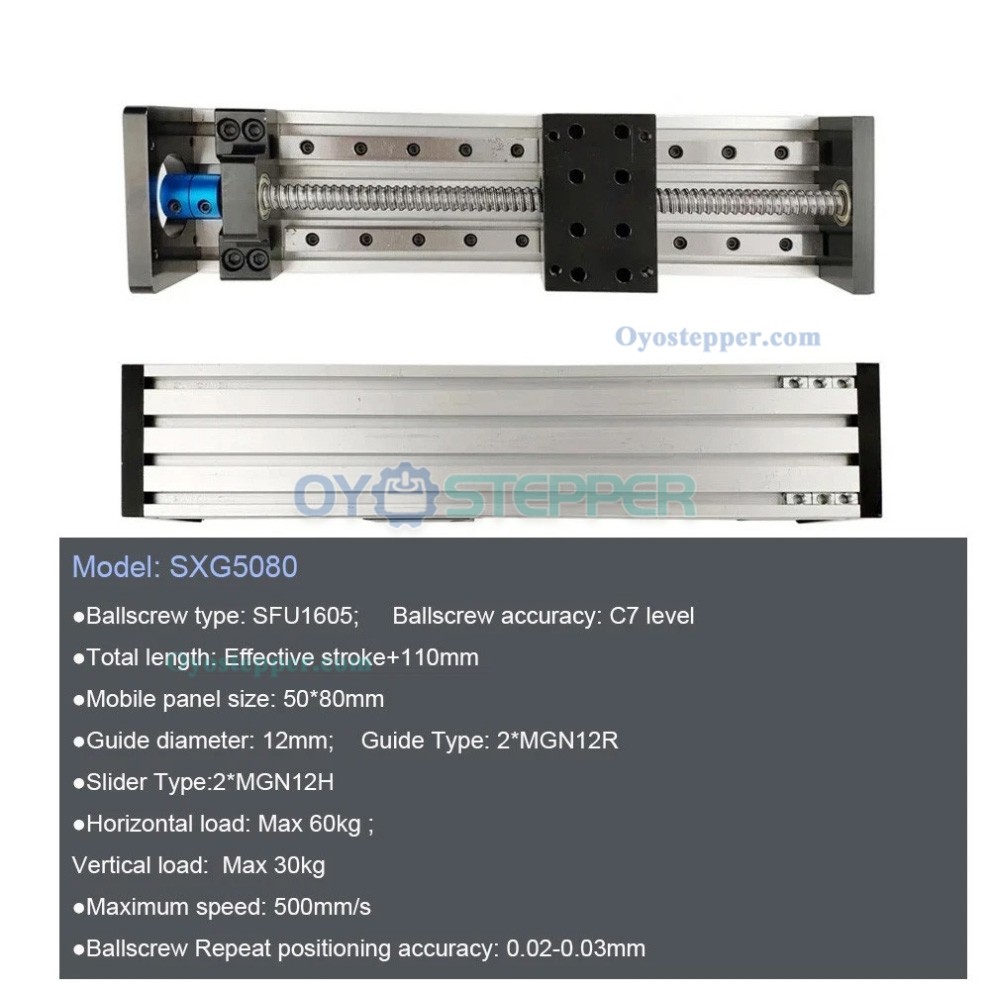

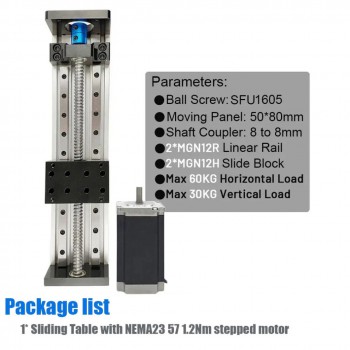

Model: SXG5080 - 80mm Width 60kg(132.28lb)
Width: 80mm
Weight: 60kg (132.28lb)
Ballscrew type: SFU1605 (Screw Diameter: 16mm, Pitch: 5mm)
Ballscrew accuracy: C7 level
Effective stroke: 300mm (Optional)
Total length: Effective stroke + 110mm (50*80 table)
Mobile panel size: 50*80mm
Guide diameter: 12mm
Guide type: 2*MGN12R
Slider type: 2MGN12C (for 5080mm table)
Horizontal load: 60kg (Max, for 50*80mm table)
Vertical load: 30kg (Max, for 50*80mm table)
Maximum speed: 500mm/s
Ballscrew repeat positioning accuracy: 0.02-0.03mm
Ballscrew and linear rail material: Carbon steel and bearing steel
Base plate material: Aluminum alloy
