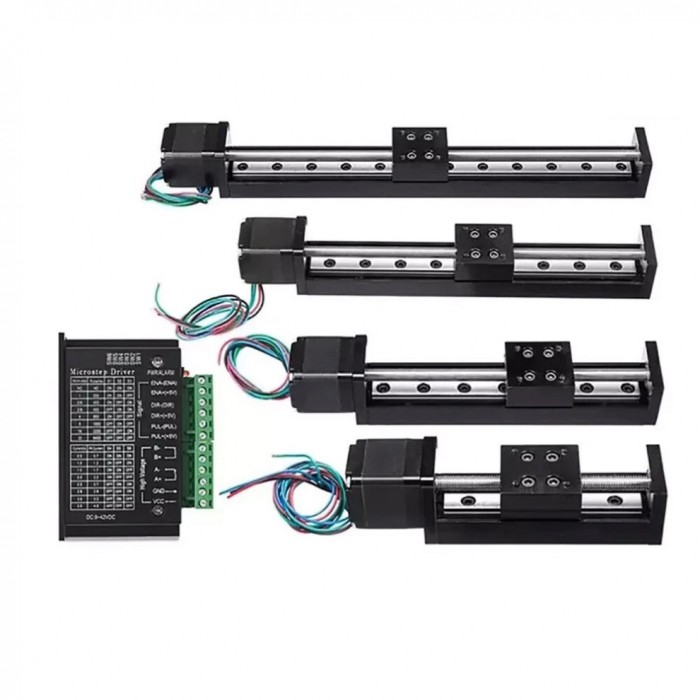

CNC Trapezoidal Screw Slide Table Motorized Linear Stage with Nema 11 Stepper Motor

CNC Trapezoidal Screw Slide Table Motorized Linear Stage with Nema 11 Stepper Motor

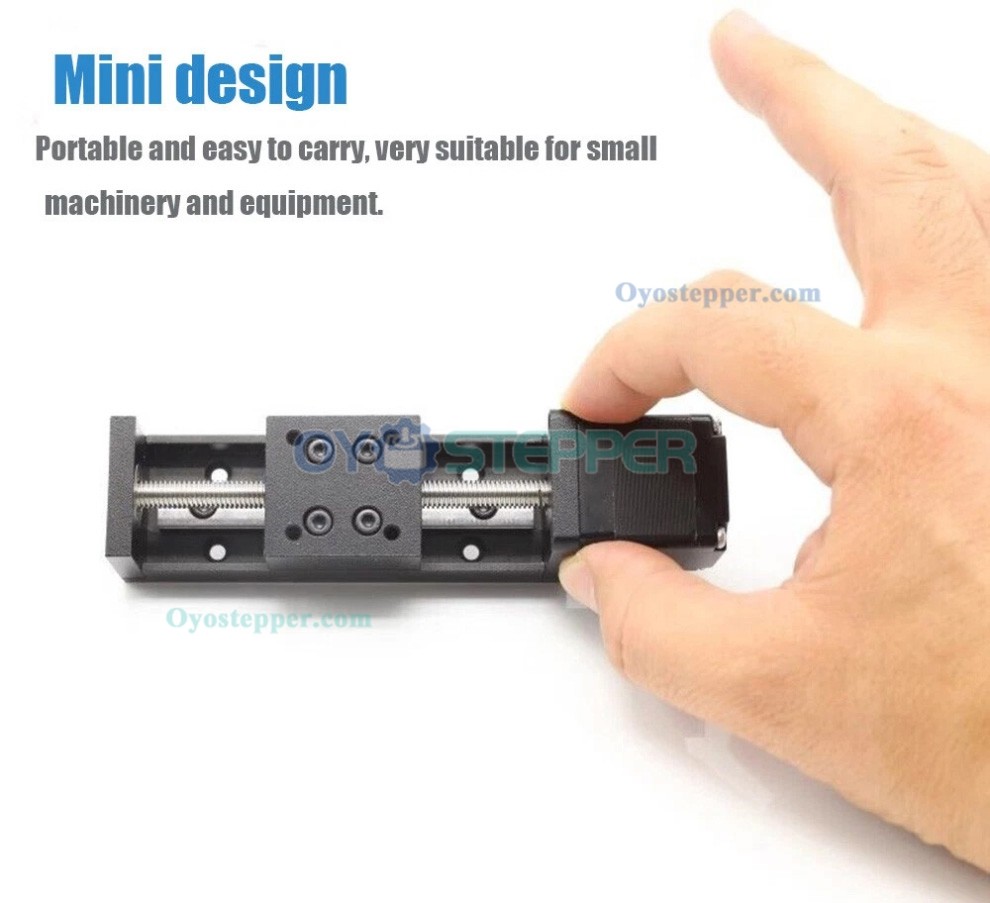

Slide Table Feaures:
Linear Guide Slide Module (30mm width).
Aluminum alloy base with bearing steel track. Horizontal load capacity 5kg, vertical load capacity 1kg. Effective stroke range 50–300mm (adjustable).
Equipped with a handwheel and travel scale for manual adjustment. Uses a 6mm trapezoidal lead screw with optional pitches of 1mm, 2mm, 4mm, 6mm, and 12mm.
Leads of 1mm and 2mm provide self-locking when powered off.
Built-in NEMA11 (28mm) stepper motor with 0.6A current and 0.07N·m torque.


Applications:

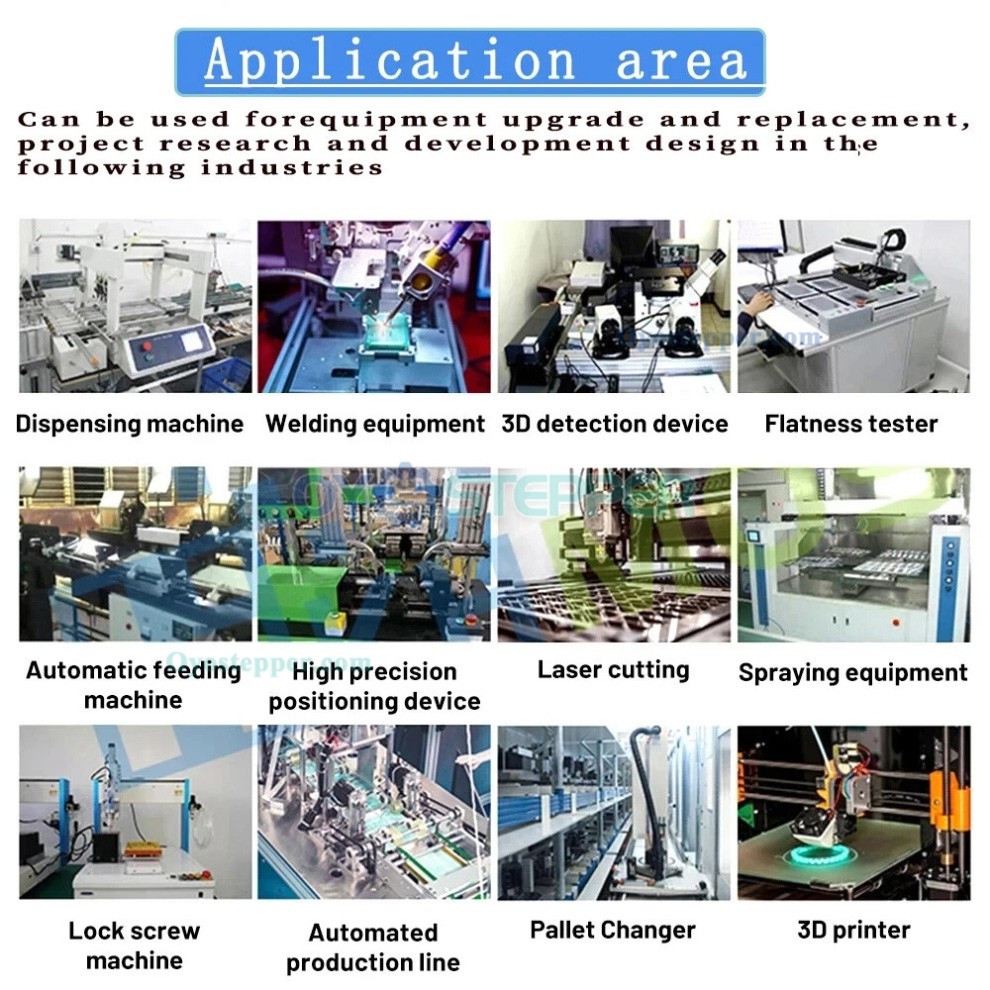

Applicable to automation systems such as 3D printers, CNC equipment, laser cutters, screwdrivers, soldering machines, and dispensing devices.


Parameters:

Model: T06

Slide Type: Trapezoidal screw slide table

Horizontal Load: 5kg (max)

Vertical Load: 1kg (max)

Effective Stroke: 50–300mm

Total Length: Effective Stroke + 75mm

Panel Size: 30×32mm

Repeat Positioning Accuracy: 0.02–0.03mm

Maximum Speed: 80mm/s

Rail Width: 6mm

Block Type: MGN8H

Screw Precision: C7

Pitch: 1/2/4/6/12mm (1 rotation moves the panel by the corresponding pitch value);



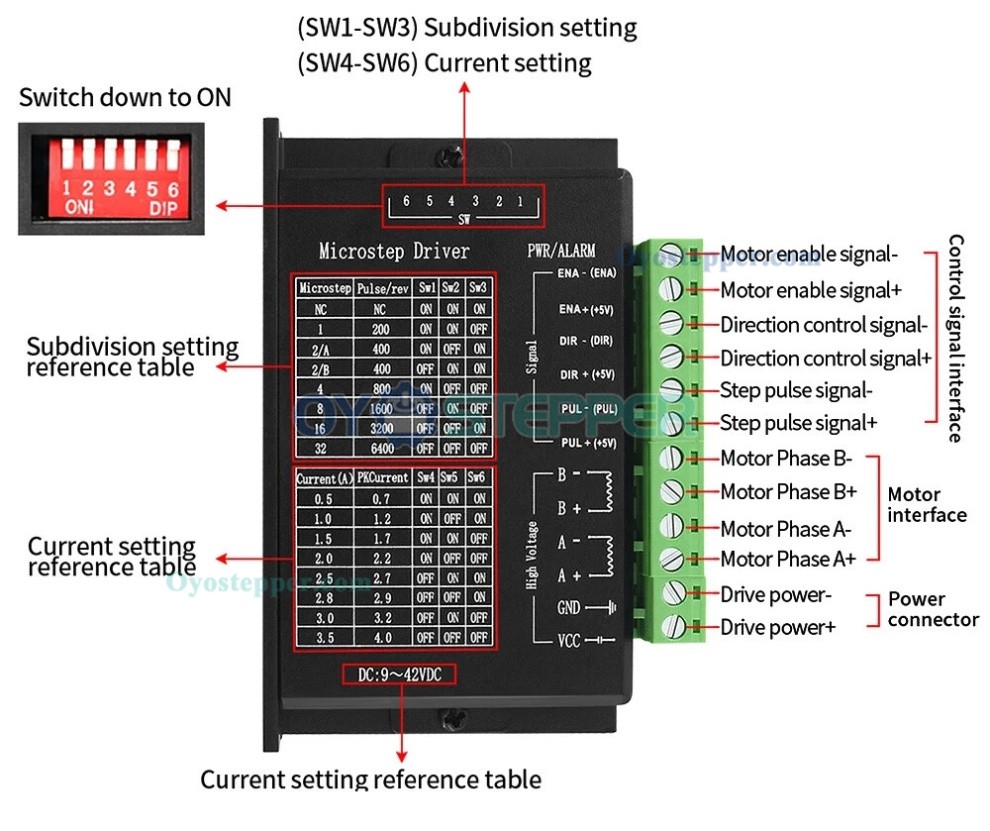

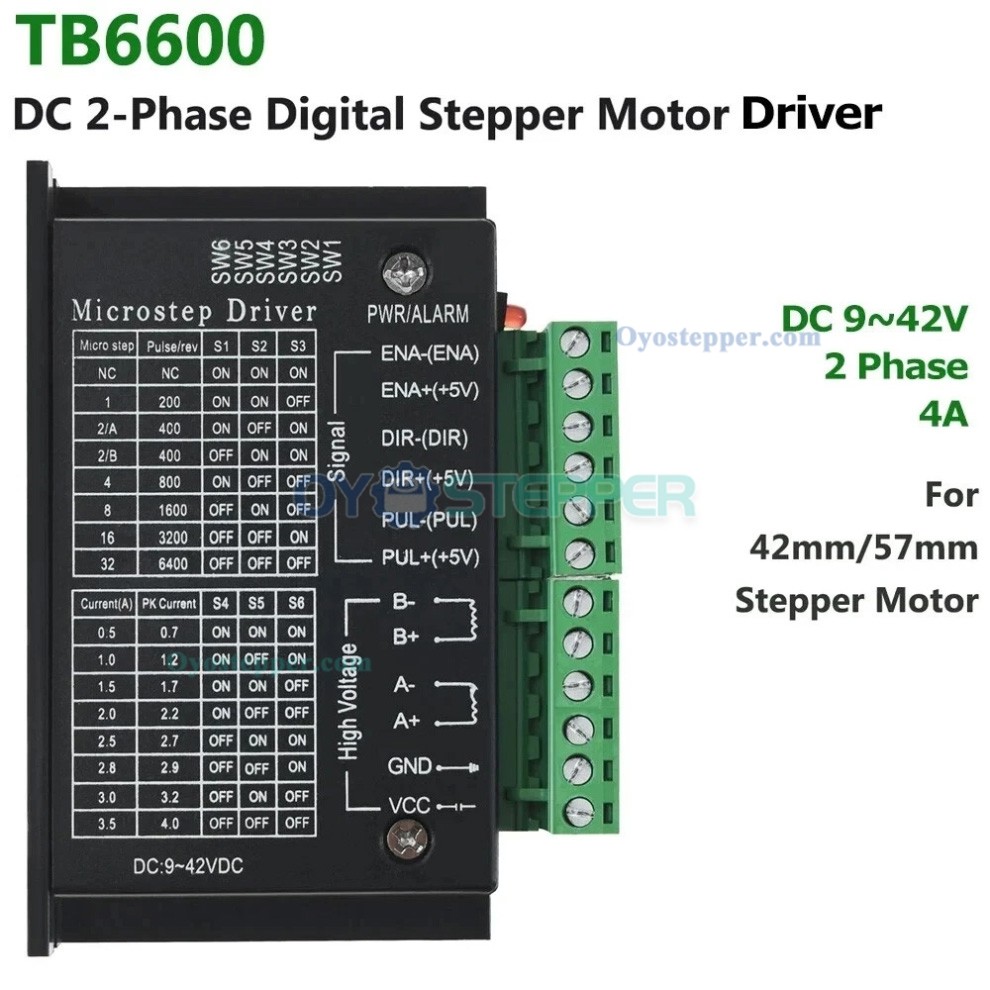

Stepper Motor Parameters

Model: 28HB30-401A (supports 28HB40-401A)

Flange Size: NEMA11 (28mm)

Holding Torque: 0.07N·m

Body Length: 30mm

Shaft Diameter: 5mm

Motor Type: 2-phase motor

Current: 0.6A

Step Angle: 1.8°;
