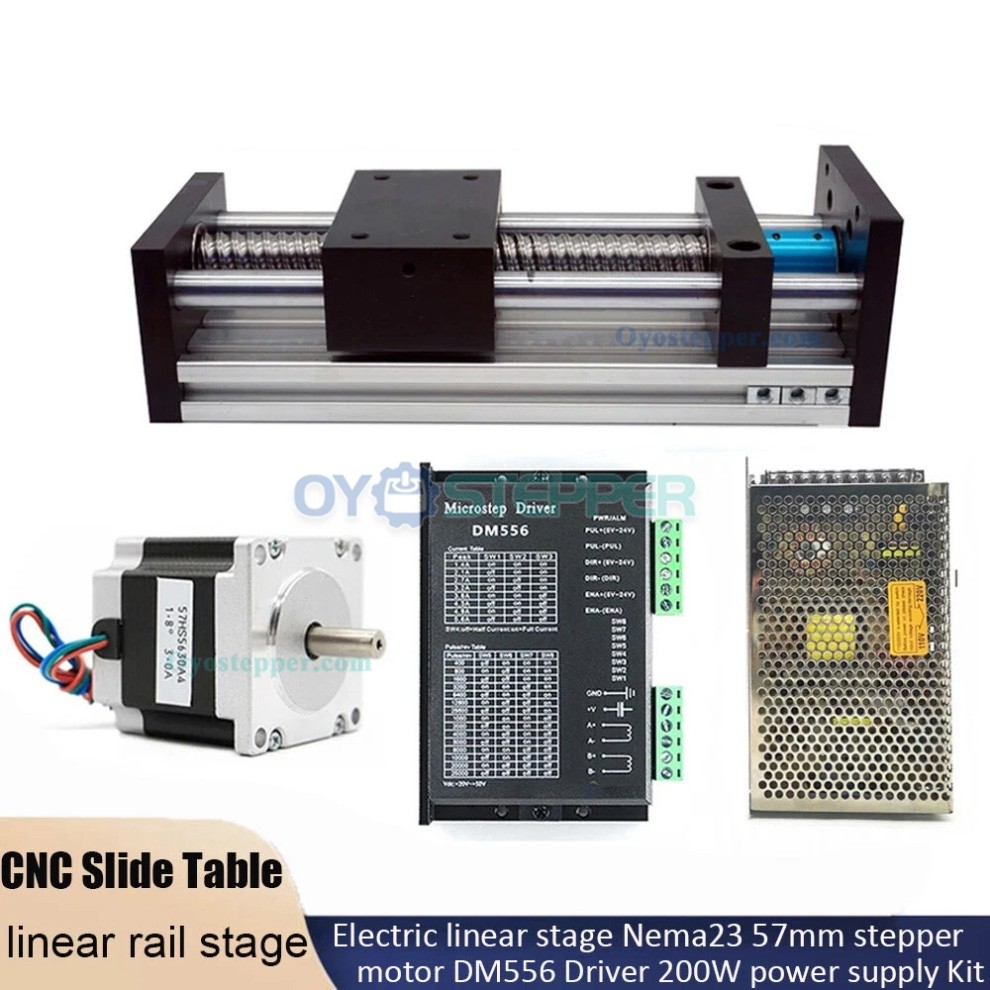

Motorized Linear Stage Ballscrew CNC Slide Table Kit with Nema 23 Motor, Driver & Power Supply

Motorized Linear Stage Ballscrew CNC Slide Table Kit with Nema 23 Motor, Driver & Power Supply

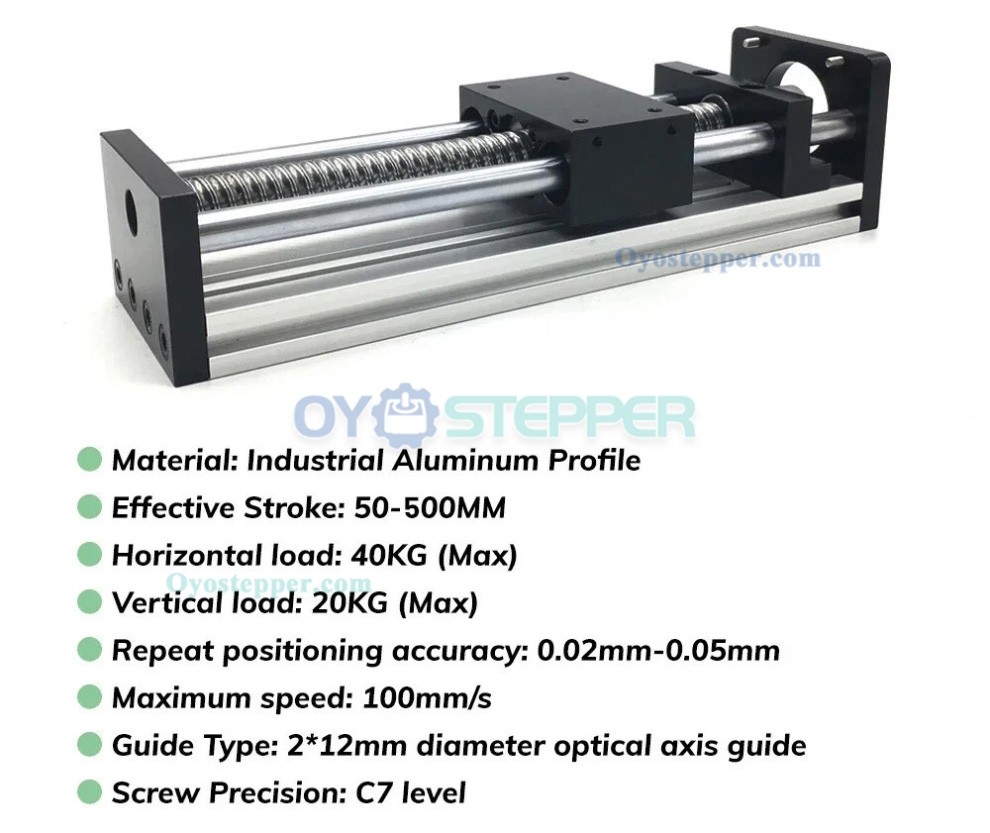

GGP5080 Slide Table Specifications:

Model: GGP5080 (50 × 80 mm moving panel)

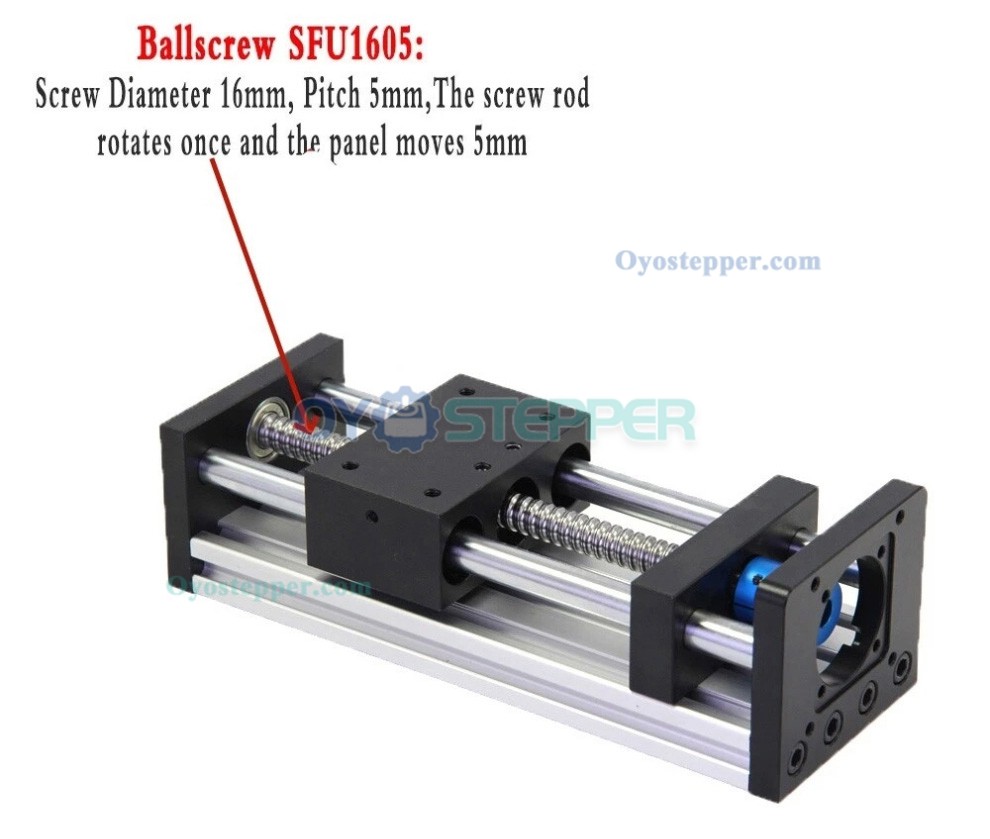

Ballscrew: SFU1605 (Ø16 mm, 5 mm pitch; 1 rev ≈ 5 mm travel)

Ballscrew accuracy: C7

Effective stroke (options): 50–300 mm

Total length: stroke + 120 mm

Guides: 2 × optical shaft rods, Ø12 mm

Rated speed: up to 100 mm/s

Rated load: 40 kg horizontal; 20 kg vertical

Repeatability (ballscrew): 0.02–0.05 mm

Material: industrial aluminum profile

Motor mount: compatible with NEMA 17 / NEMA 23 stepper motors;

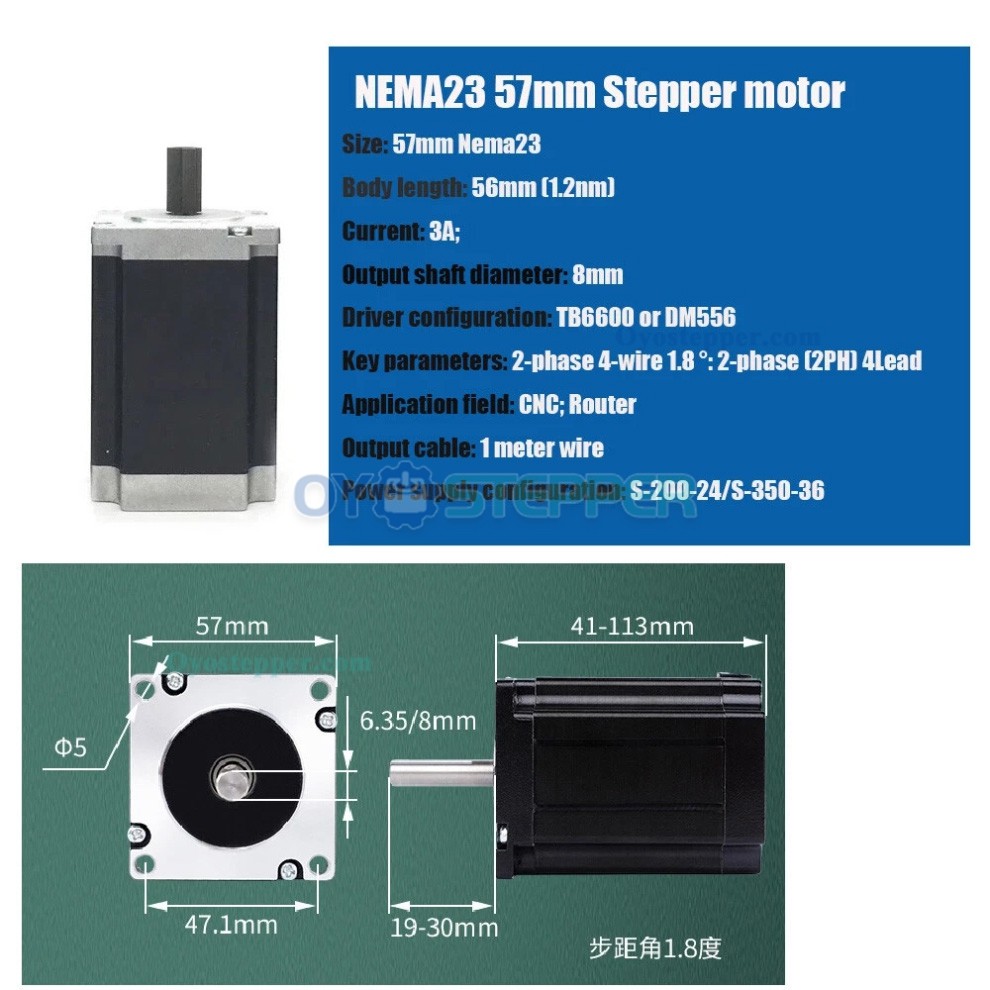

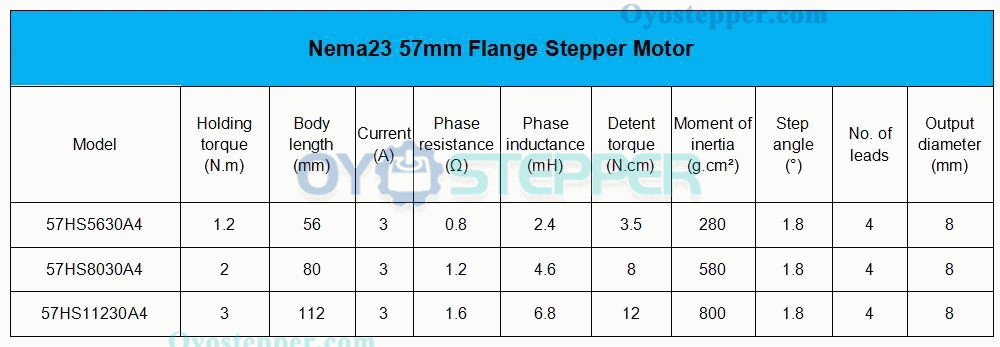

Nema 23 Stepper Motor Specification:

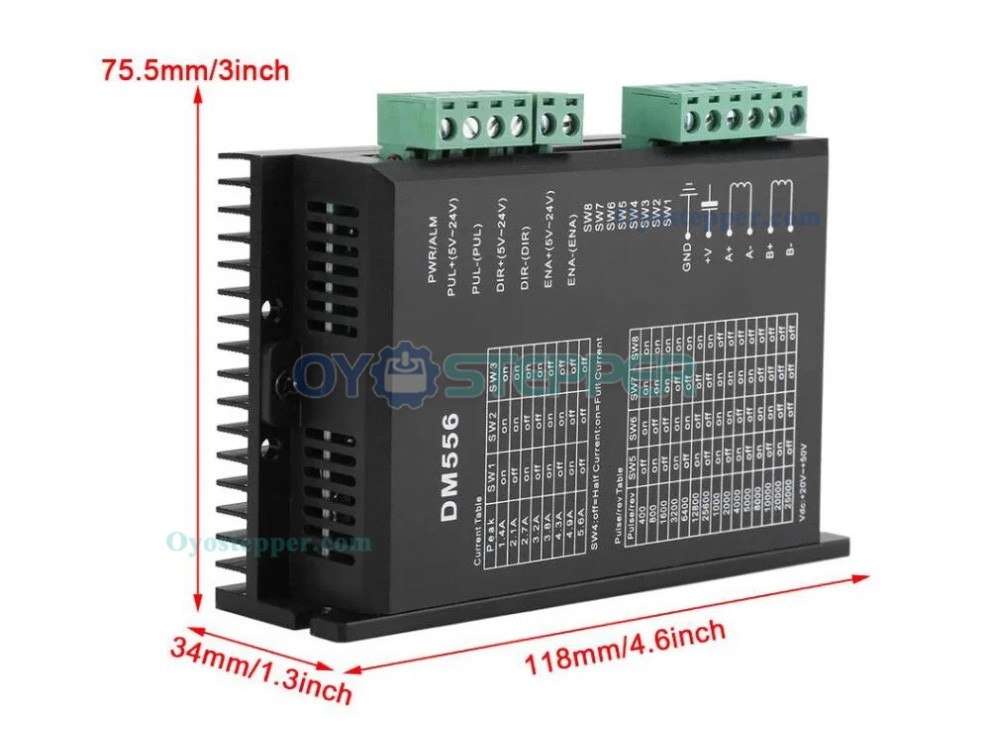

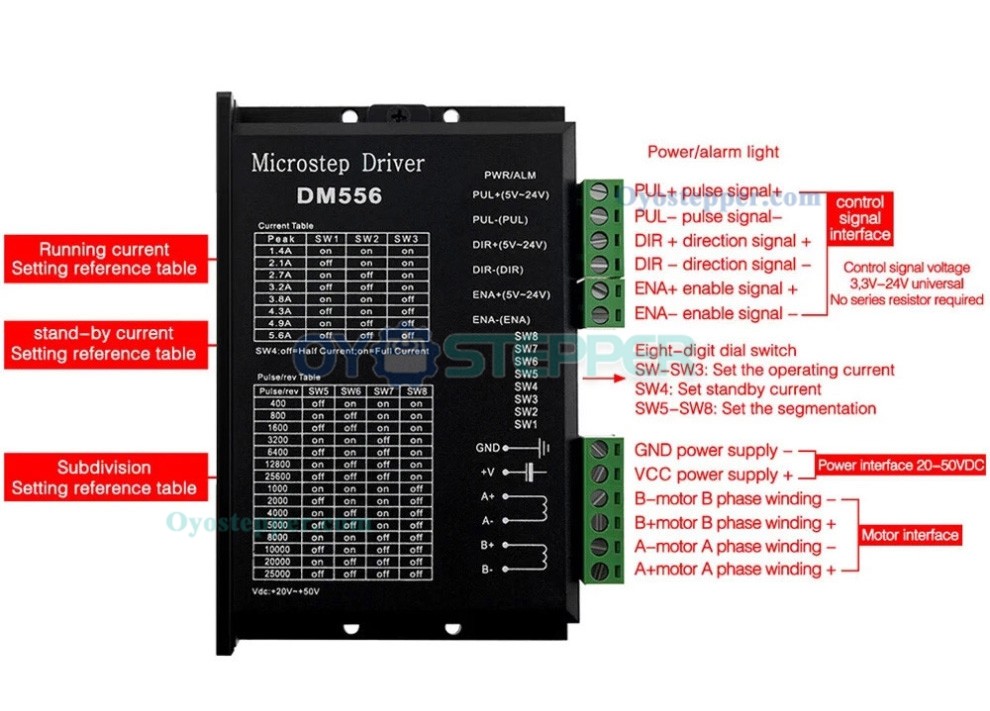

DM556 Driver Specifications:

Supported motors: 42 mm / 57 mm / 86 mm flange stepper motors

Input voltage: DC 20–50 V

Output current: 1.0–5.6 A; 8-step adjustable (0.5 A resolution)

Drive method: bipolar constant-current PWM

Pulse frequency response: up to 200 kHz

Insulation resistance: 500 MΩ

Dielectric strength: 500 V/min

Dimensions: 118 × 75.5 × 34 mm (≈4.6 × 3.0 × 1.3 in)

Weight: ≈270 g (≈9.5 oz)

Cooling: natural or forced air

Operating temperature: −5 °C to +50 °C

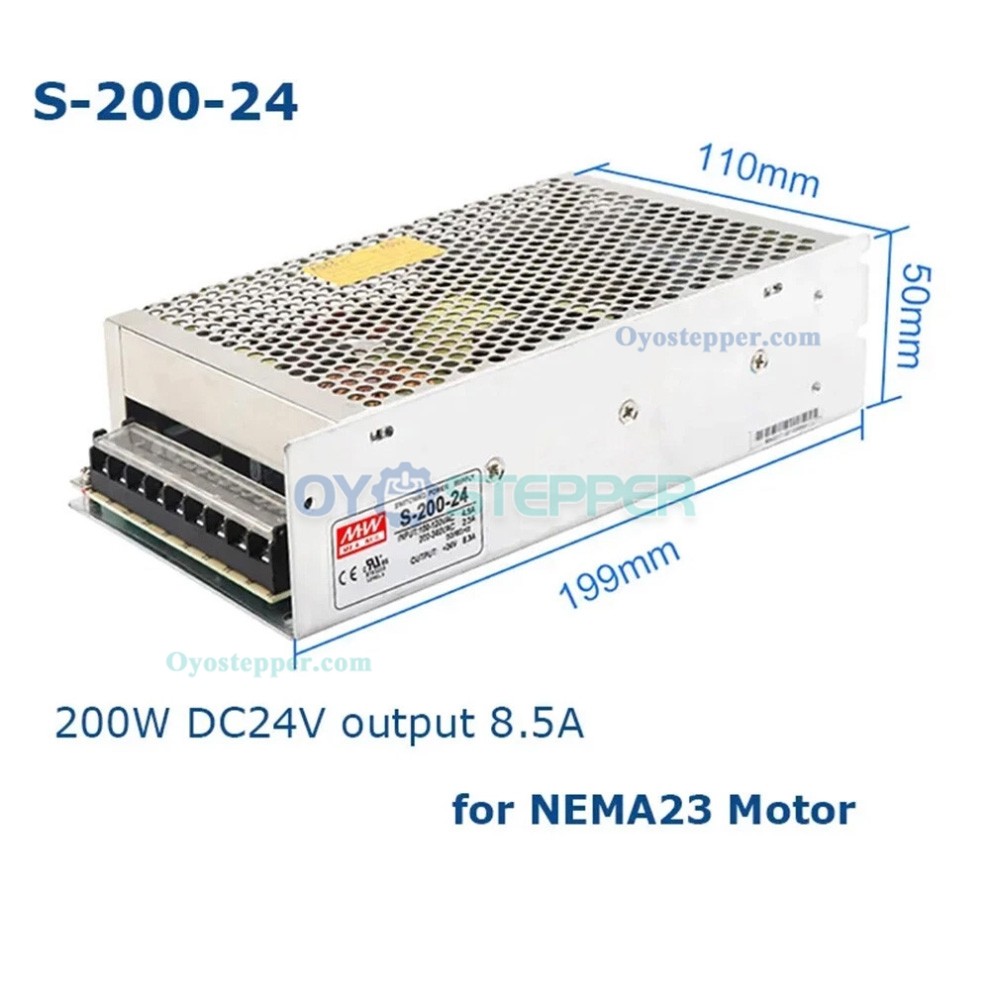

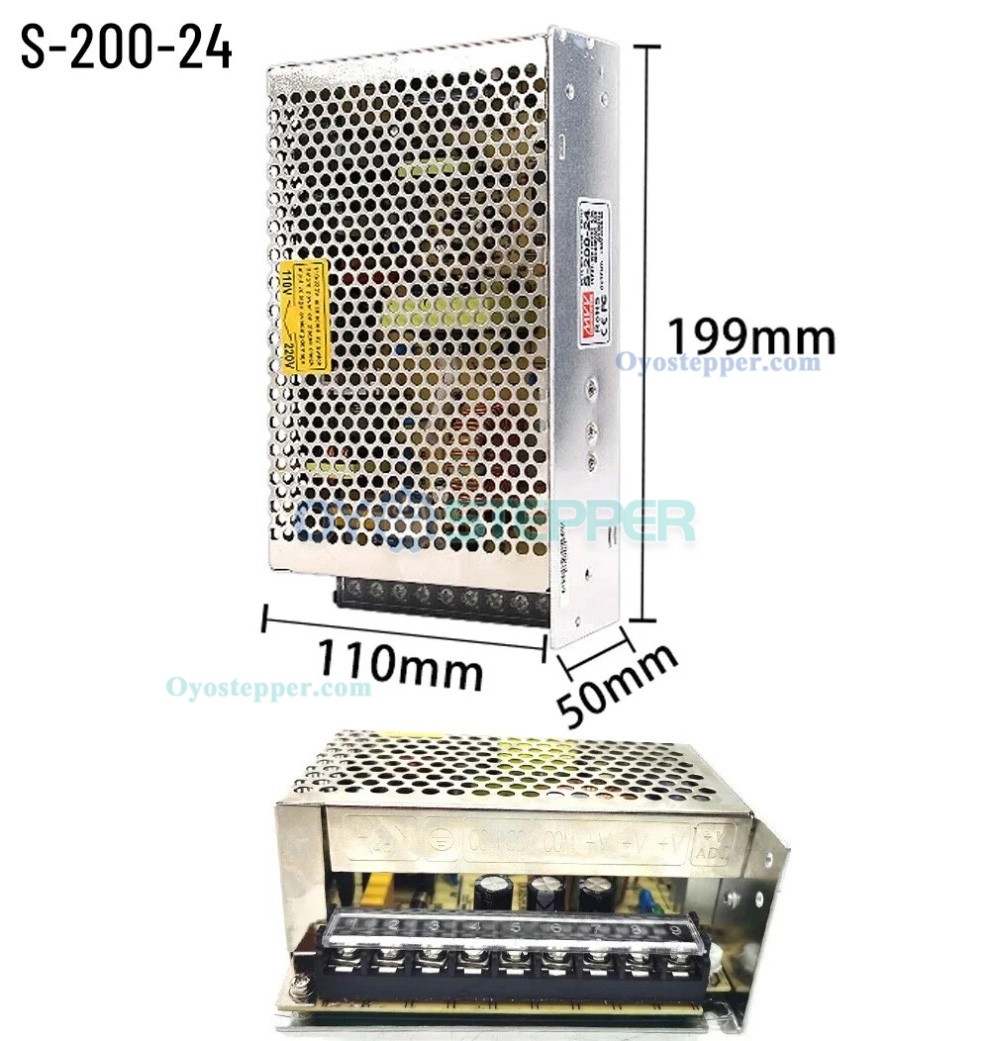

Power Supply (S-200-24) Specifications:

Rated load: 200 W

Input: 100–120 VAC / 200–245 VAC, 50/60 Hz

Output: DC 24 V (regulated), 8.5 A

Conversion efficiency: ≥80%

Operating temperature: −30 °C to +50 °C

IP code: IP20

Marking: CE, RoHS

Warranty: 1 year

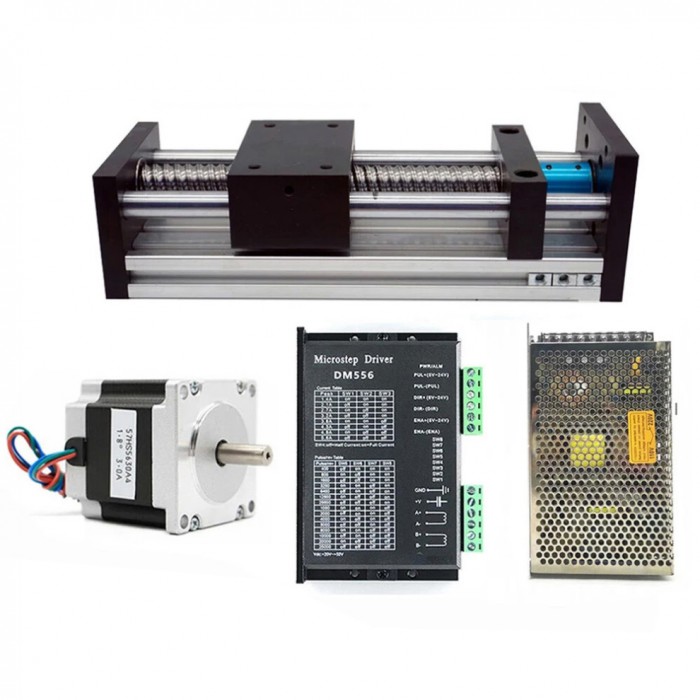

Package:

1 × GGP5080 motorized slide table

1 × 8 mm–to–8 mm coupling (included)

1 × NEMA 23 (57 mm) stepper motor

1 × DM556 stepper motor driver

1 × 200 W power supply
