HBT57 Series Nema 23 Closed-loop Integrated Servo Stepper Motor 1.2N.m,2N.m,3N.m with Drive 1000 Line Encoder

HBT57 Series Nema 23 Closed-loop Integrated Servo Stepper Motor 1.2N.m,2N.m,3N.m with Drive 1000 Line Encoder

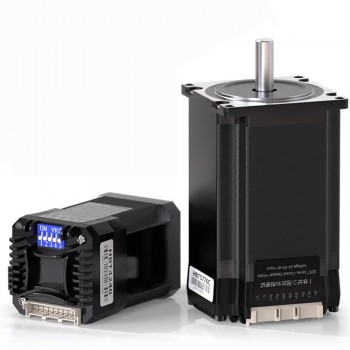

This product is an integrated motor and driver unit. It incorporates a position encoder and vector control technology, designed to address the issue of lost steps common in traditional stepper motors.

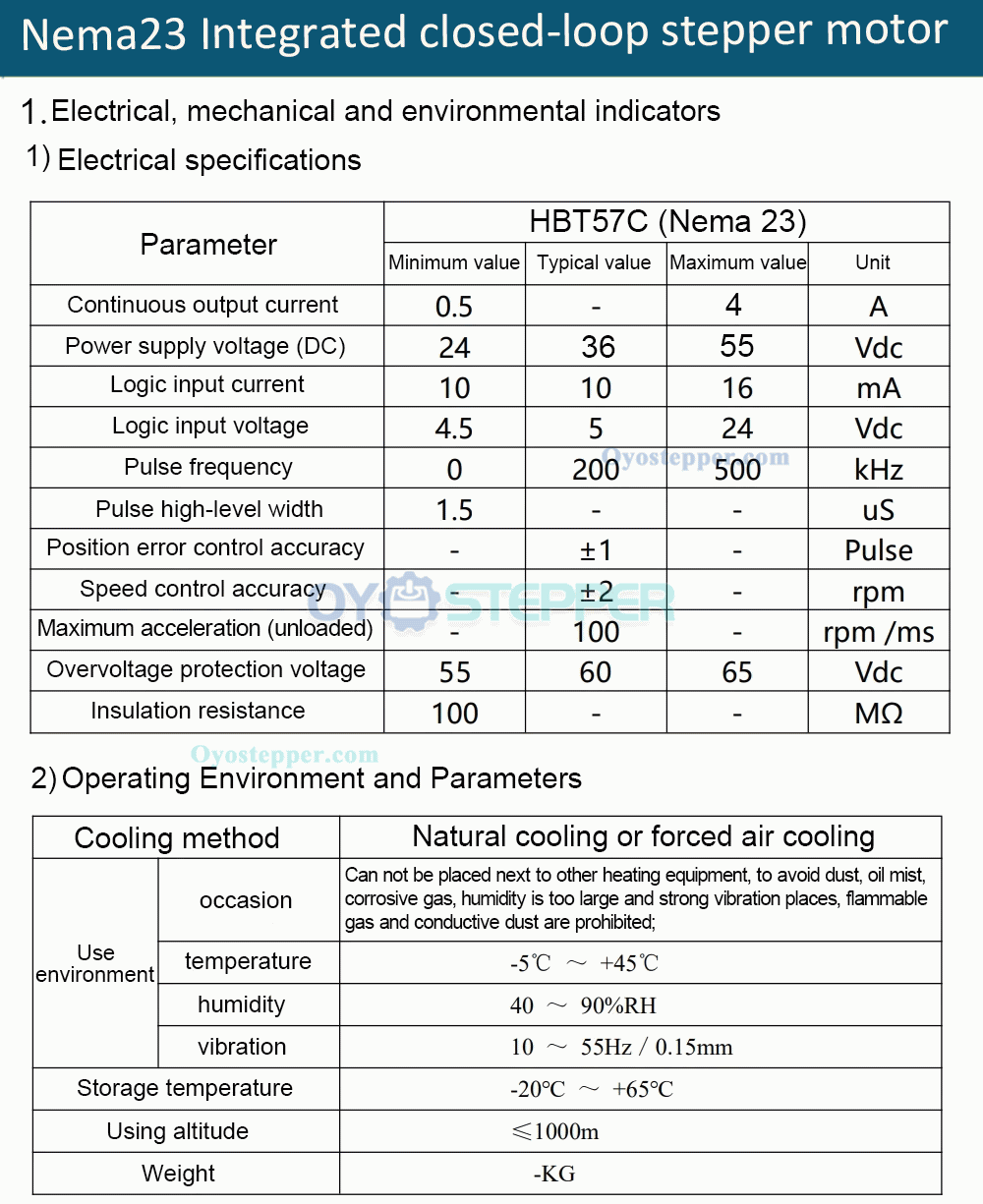

Specifications:

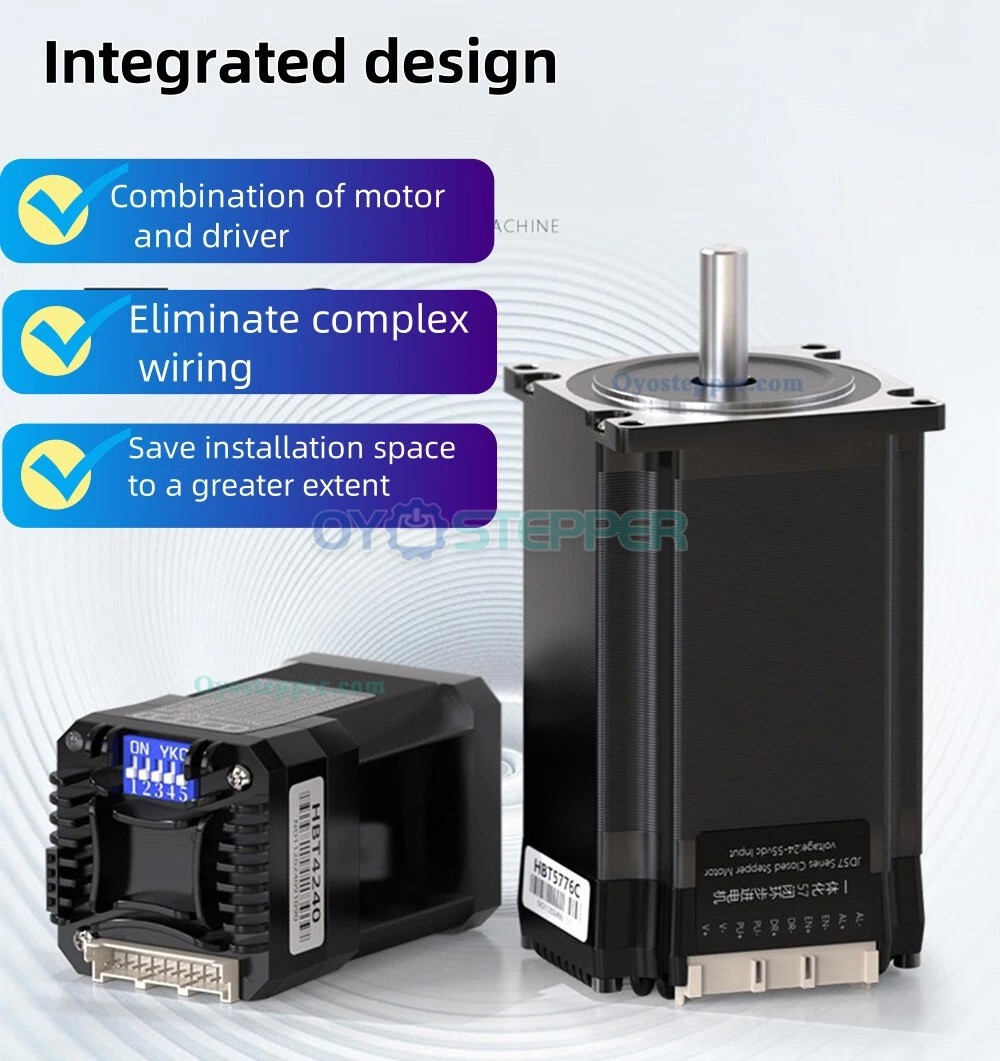

Motor & Driver: Integrated design
Control Technology: Features FOC and SPWM closed-loop control
Current: Peak current 5.0A, average current 3.8A
Input Voltage: 24VDC - 55VDC

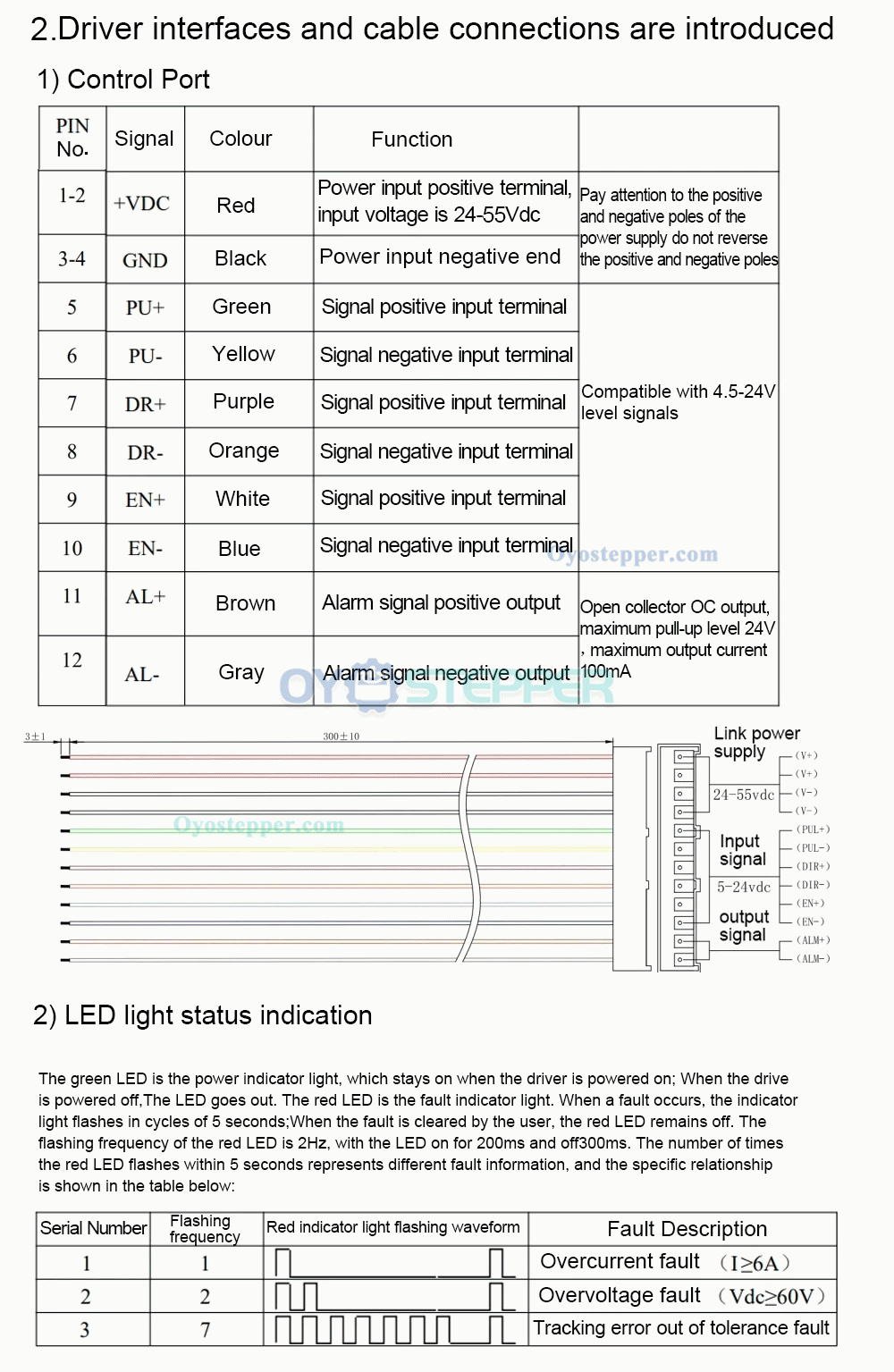

Command Input: Accepts differential and single-ended pulse/direction commands
Protection Functions: Includes over-voltage, under-voltage, over-current, and position deviation protection
Signal Compatibility: 3.3V - 28V input signal;


Specification:

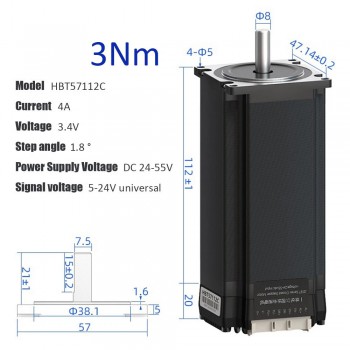

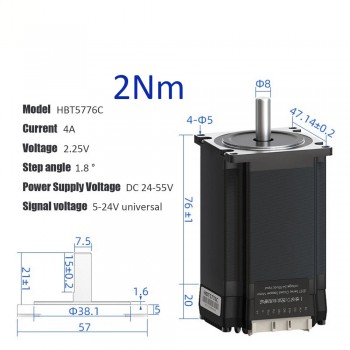

Model:HBT57
Rated torque: 1.2N.m,2N.m,3N.m

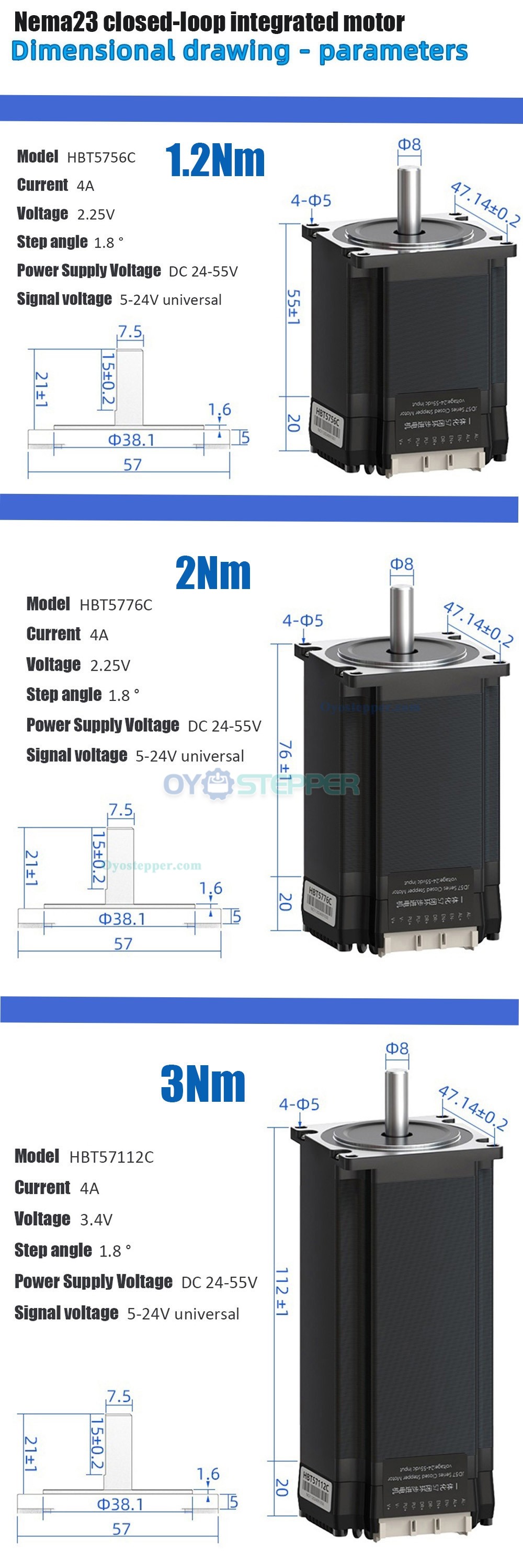

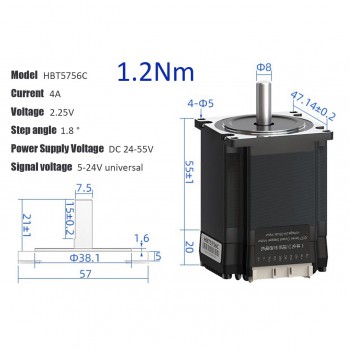

Motor shaft diameter: 8mm

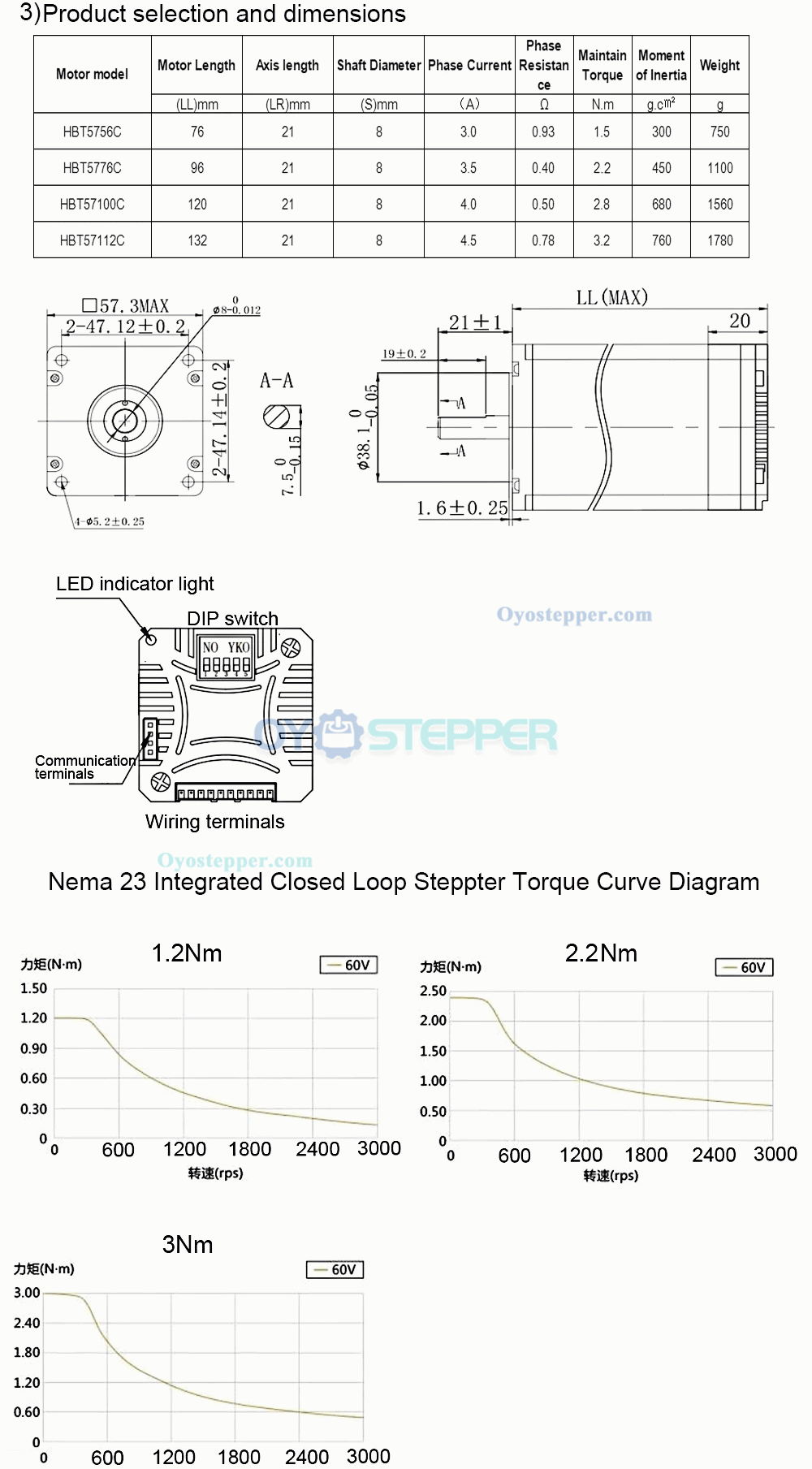

Body length:55mm/76mm/112mm
Input voltage: 20VDC~48VDC
Output current: 3.0~4.2A
Stepper motor signal frequency: 200kHz
Control signal input current: 7~16mA
Overvoltage Protection: 55VDC
Input signal voltage: 5VDC
Insulation resistance: 100MΩ
Encoder type: 1000 line magnetic encoder;
