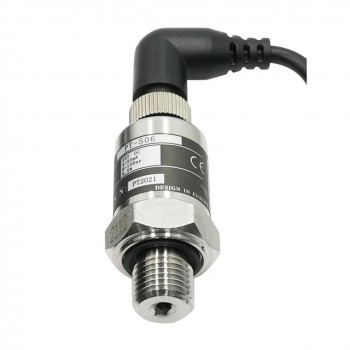

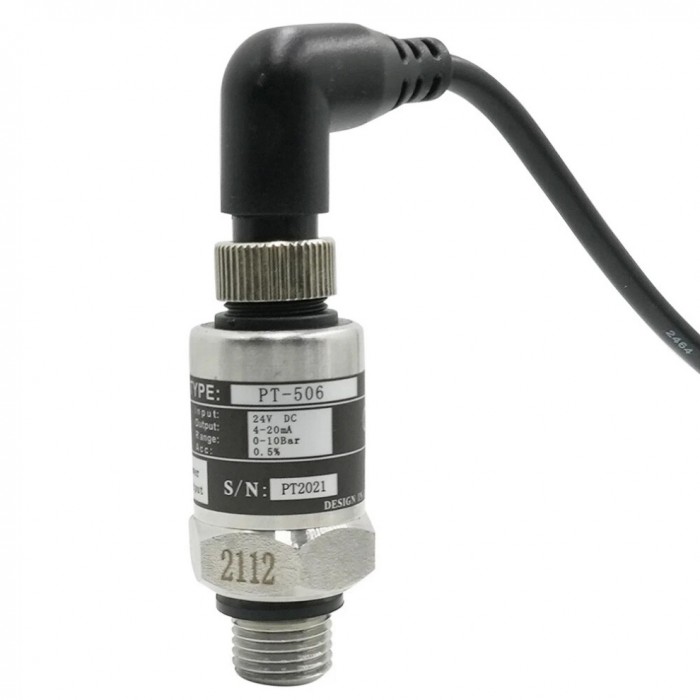

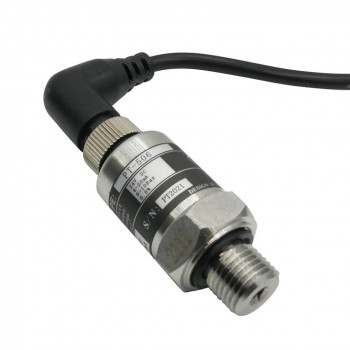

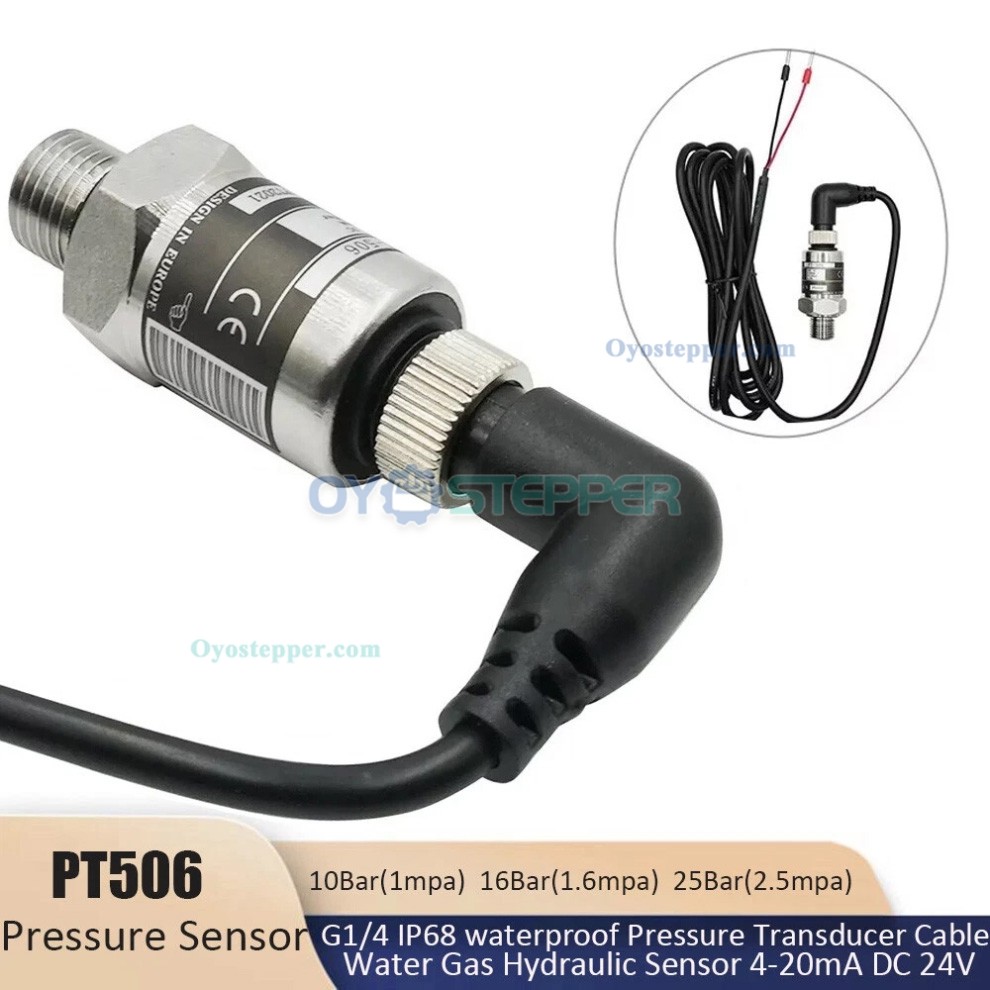

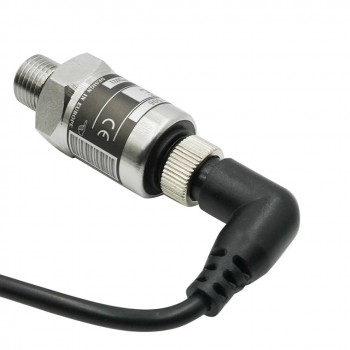

PT506 G1/4 IP68 24V Pressure Transducer Cable Pressure Transmitter Connector for Water Gas Hydraulic

PT506 G1/4 IP68 24V Pressure Transducer Cable Pressure Transmitter Connector for Water Gas Hydraulic

Specification:

Supply voltage: 24V DC nominal (10–33V DC range)

Output signal: 4-20 mA.

Pressure connection: G1/4.

Operating temperature range: -40°C to 110°C.

Material: The transducer is constructed from 304 stainless steel and rated IP68.

Measuring Medium: The sensor is designed to convert the pressure of gas, liquid, and other physical media into electrical signals. The transducer supports overload capacity of 2-4 times.

Sensitivity:Built-with a sensitivity of 0.5% F.S.

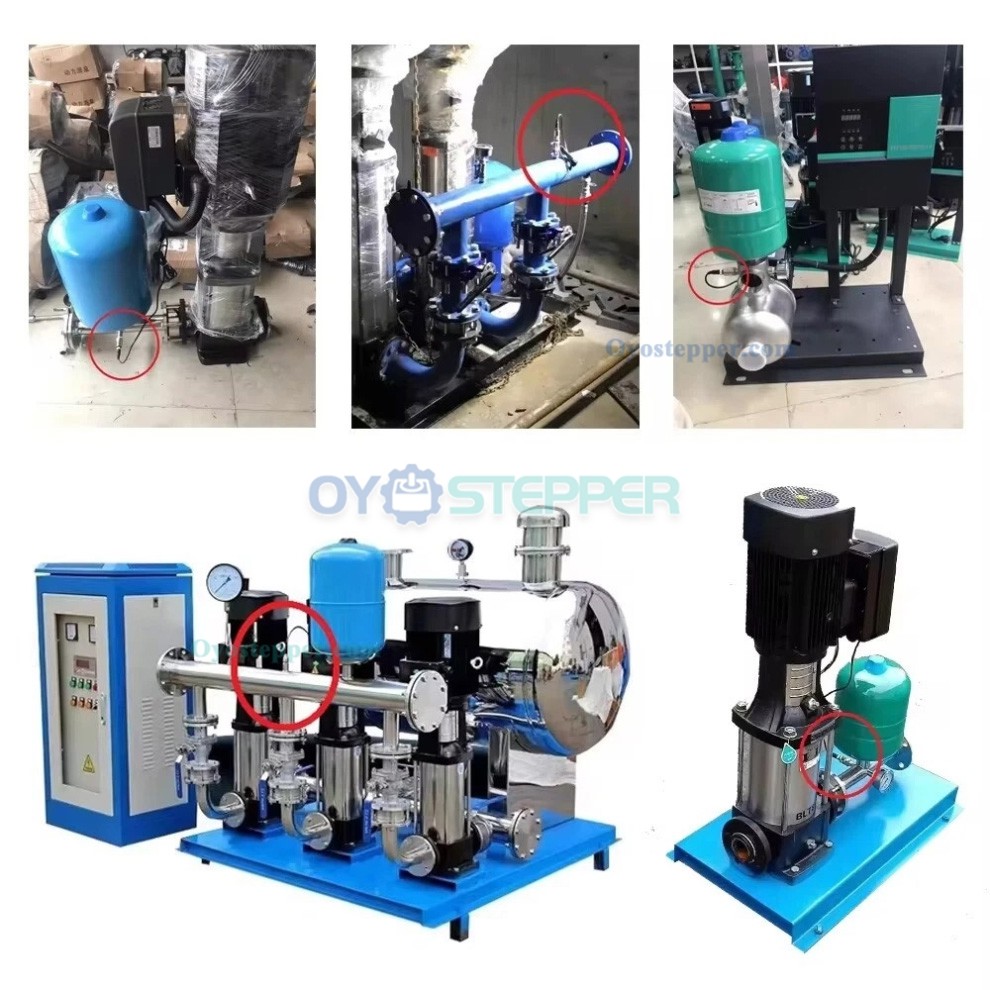

Applications:

Air compressors and pumps

Liquid pressure and air pressure systems

Energy resources and water treatment systems

Refrigeration equipment

Automated detection systems

Locomotive braking systems

Environmental protection applications

Agricultural and mechanical automation systems



Specifications:

Capacity range: 0-10 Bar (150 psi), 0-16 Bar (235 psi), 0-25 Bar (365 psi)

Precision: 0.5% F.S

Working voltage: 24V DC (voltage range: 10-33V DC)

Output signal: 4-20 mA

Protection grade: IP68

Pressure connection: G1/4

Overload capacity: 2-4 times

Operating temperature range: -40°C to 110°C

Housing material: 304 stainless steel

Pressure connection: DIN type

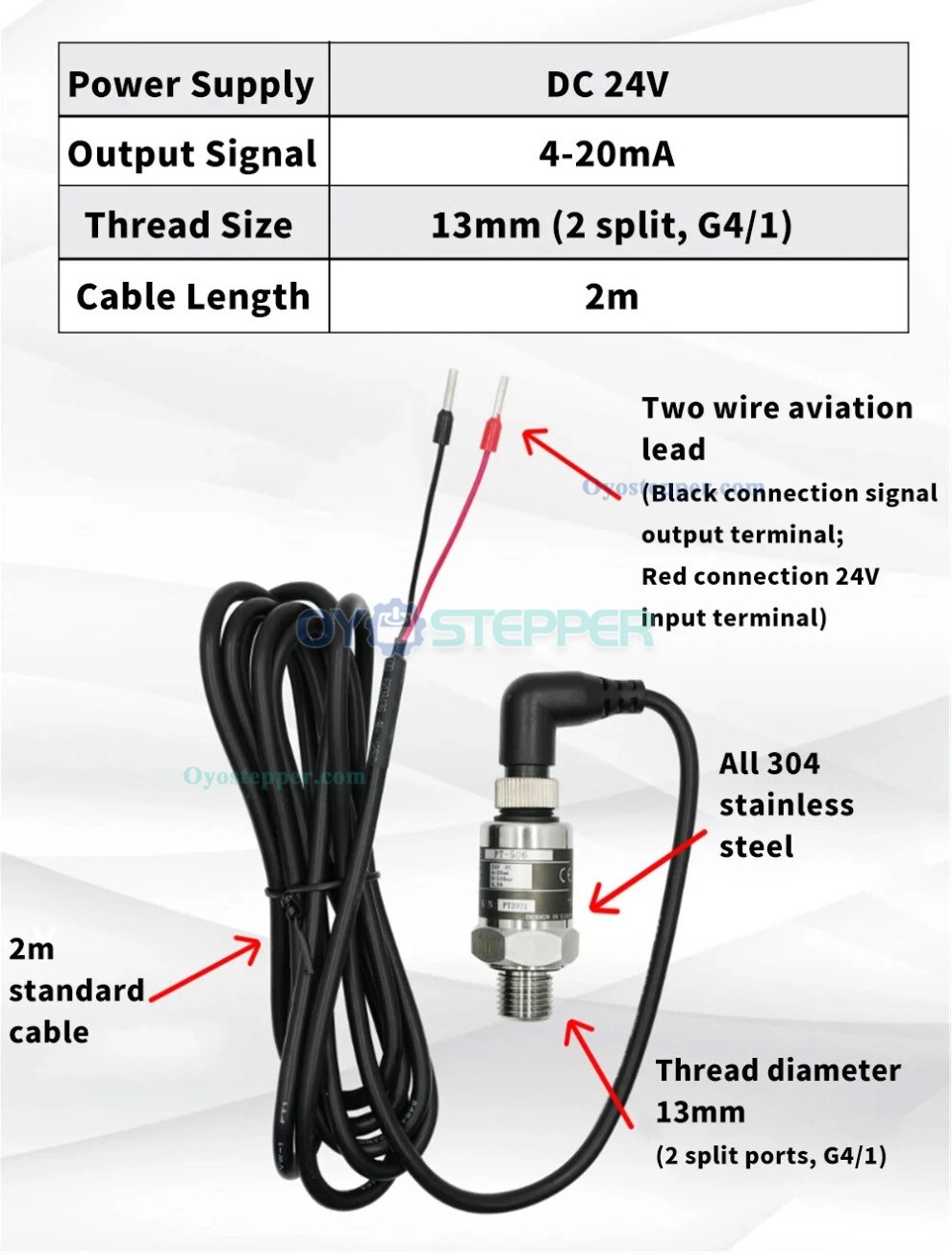

Cable connection: Red (IN+), Black (IN-)

Cable length: 2 meters



Package Includes:

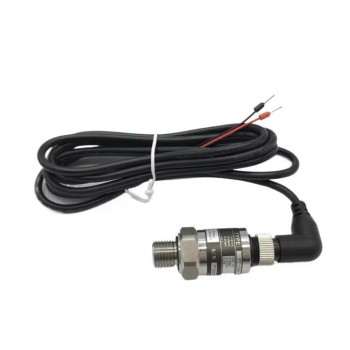

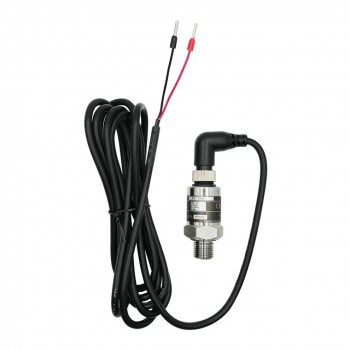

1 x Pressure Transducer with 2M cable

Application:
