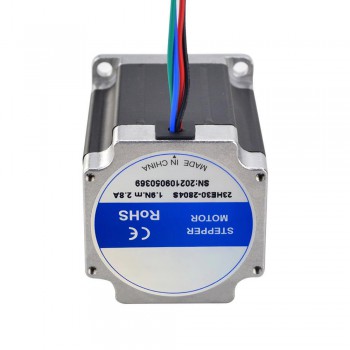

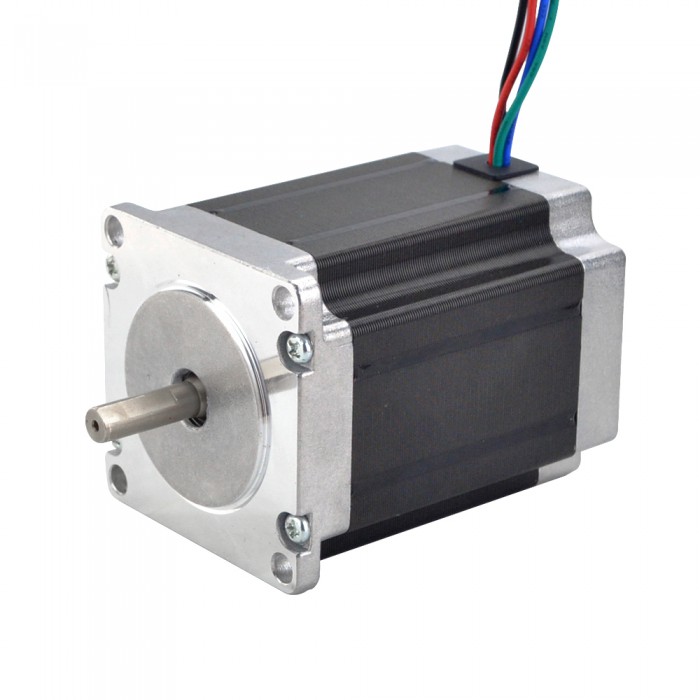

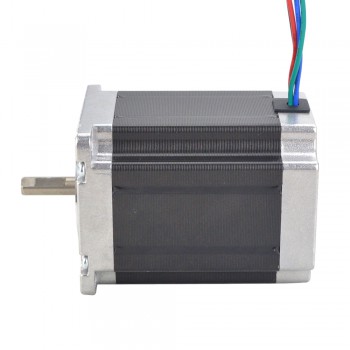

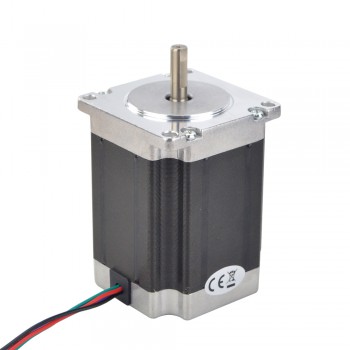

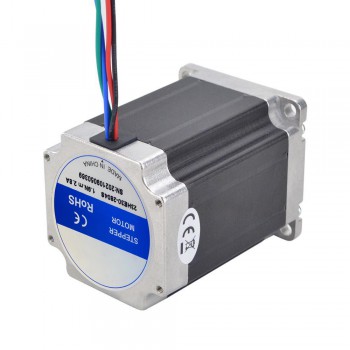

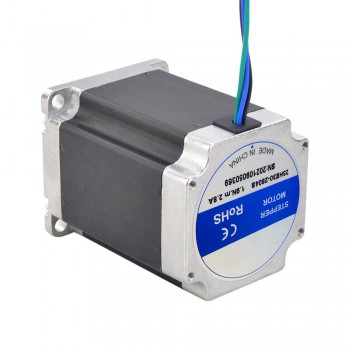

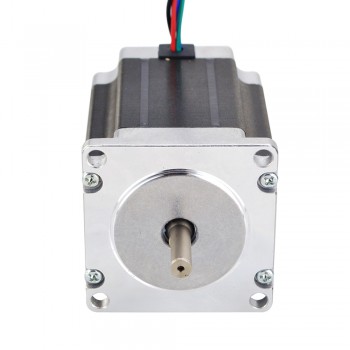

E Series Nema 23 Stepper Motor D-Cut Shaft Bipolar 1.8 Degree 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires

E Series Nema 23 Stepper Motor D-Cut Shaft Bipolar 1.8 Degree 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires
NO.:23HE30-2804S
Post a review
China National Day Special Offer:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till October 7th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$18.91
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $17.96 5%
30 $17.59 7%
50 $17.02 10%
100 $16.45 13%
Add To Cart

E Series Nema 23 Bipolar 1.8deg 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires



Electrical Specification

Manufacturer Part Number: 23HE30-2804S

Number Of Phase: 2

Step Angle: 1.8 deg

Holding Torque: 1.9 Nm(269oz.in)

Rated Current/phase: 2.8 A

Phase Resistance: 1.13 ohms± 10%

Inductance: 5.4 mH ± 20%(1KHz)



Physical Specification

Frame Size: 57 x 57 mm

Body Length: 76 mm

Shaft Diameter: Φ6.35 mm

Shaft Length: 21 mm

D-CUT Shaft Length: 15 mm

Number of Leads: 4

Lead Length: 500 mm

Weight: 1.2 kg



Connection



A+ A- B+ B-
BLK GRN RED BLU



Resources

Full Datasheet:23HE30-2804S.pdf

Torque Curve:23HE30-2804S_Torque_Curve.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor Bipolar 1.8 Deg 2.8A 1.85Nm/256.9oz.in for NMRV30 Worm Gearbox Keyway Shaft
Next: TQMG Series Planetary Gearbox Gear 20:1 Backlash 30 Arc-min for Nema 17 Stepper Motor BLDC Motor & Servo Motor
Electrical Specification
Holding Torque (Ncm) 190
Holding Torque (oz.in) 269
Inductance(mH) 5.4
Phase Resistance(ohm) 1.13
Rated Current (A) 2.8
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 76
Frame Size(mm) Nema 23 (57 x 57)
Lead Length(mm) 500
No. of Lead 4
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
Single Shaft/Dual Shaft Single Shaft
Weight(g) 1200
Output Shaft Type D-Cut
