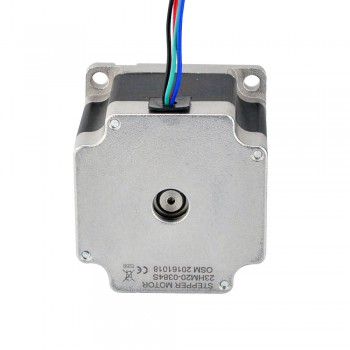

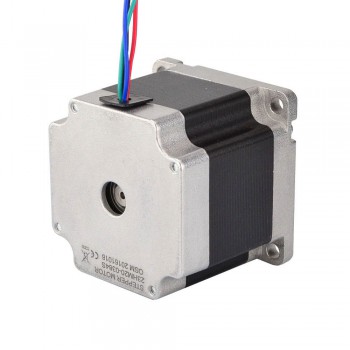

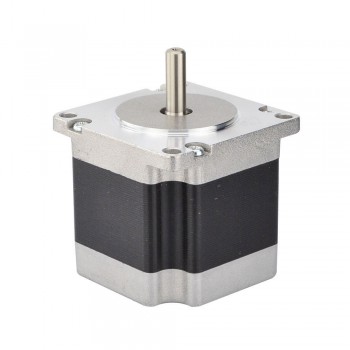

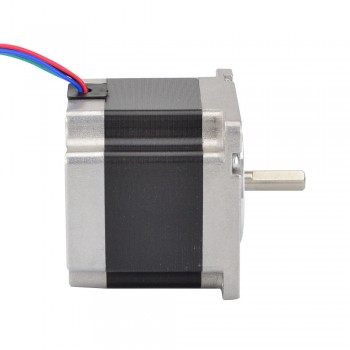

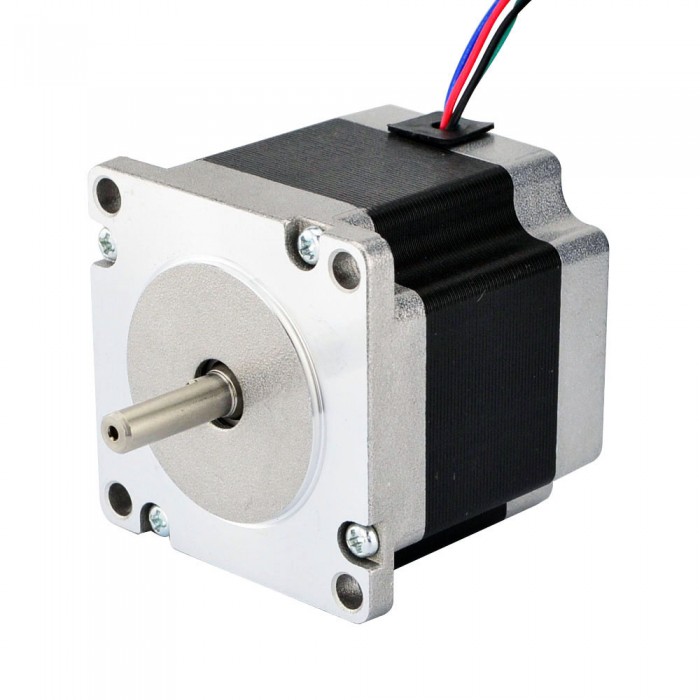

Nema 23 Stepper Motor Bipolar 0.9 Deg 0.9Nm (127.5oz.in) 0.38A 12.1V 57x57x51mm 4 Wires

NO.:23HM20-0384S
Post a review

Special Offer in September 2023:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till September 28th, 2023
Note:No coupon code needed, please place order directly!

Our Price:$22.73

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$21.59	5%
10	$21.14	7%
50	$20.46	10%
100	$19.78	13%

Description Specification Custom Options Review

This bipolar Nema 23 stepper motor with step angle 0.9deg and size 57x57x51mm. It has 4 wires, each phase draws 0.38A at 12.1V, with holding torque 0.9Nm (127.5oz.in).

Electrical Specification

Manufacturer Part Number: 23HM20-0384S
Motor Type: Bipolar Stepper
Step Angle: 0.9 deg
Holding Torque: 0.9Nm(127.5oz.in)
Rated Current/phase: 0.38A
Voltage: 12.1V
Phase Resistance: 32ohms
Inductance: 40mH ± 20%(1KHz)

Physical Specification

Frame Size: 57 x 57mm
Body Length: 51mm
Shaft Diameter: Φ6.35mm
Shaft Length: 21mm
D-cut Length: 16mm
Number of Leads: 4
Lead Length: 500mm
Weight: 620g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Resources

Full Datasheet: 23HM20-0384S.pdf
Torque Curver: 23HM20-0384S Torque Curve.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Round Nema 23 Bipolar 0.9 Deg 70Ncm (99.13oz.in) 2.8A 1.8V 57x52mm 4 Wires
Next: Nema 23 Stepper Motor Bipolar 0.9 Deg 1.26Nm (178.4oz.in) 2.8A 2.5V 57x57x56mm 4 Wires

Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque (Ncm)	90
Holding Torque (oz.in)	127.5
Inductance(mH)	110
Phase Resistance(ohm)	32
Rated Current (A)	0.38
Step Angle(°)	0.9
Physical Specification
Body Length(mm)	51
Frame Size(mm)	57x57
Single Shaft/Dual Shaft	Single Shaft
Shaft Type	D-Cut
Shaft Diameter(mm)	6.35
Shaft Length(mm)	21
No. of Lead	4
Lead Length(mm)	500
Weight(g)	600

Connectors: Molex, Harwin, Tyco/AMP, JST etc.
Lead wires & cables: Special lengths, Protective hose
Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
Winding: Resistance, Inductance, Rated Current, etc.
