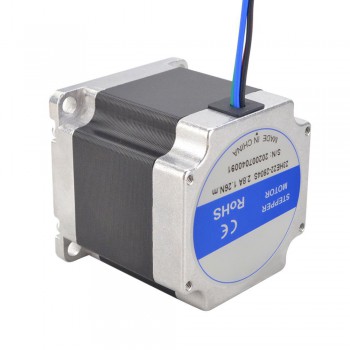

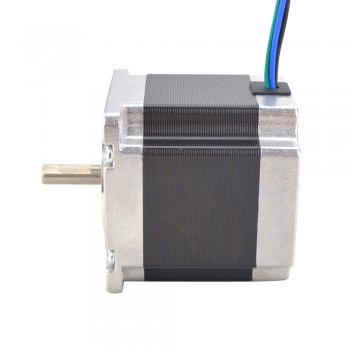

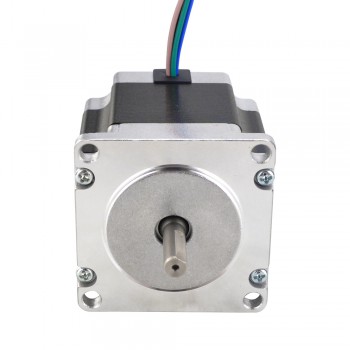

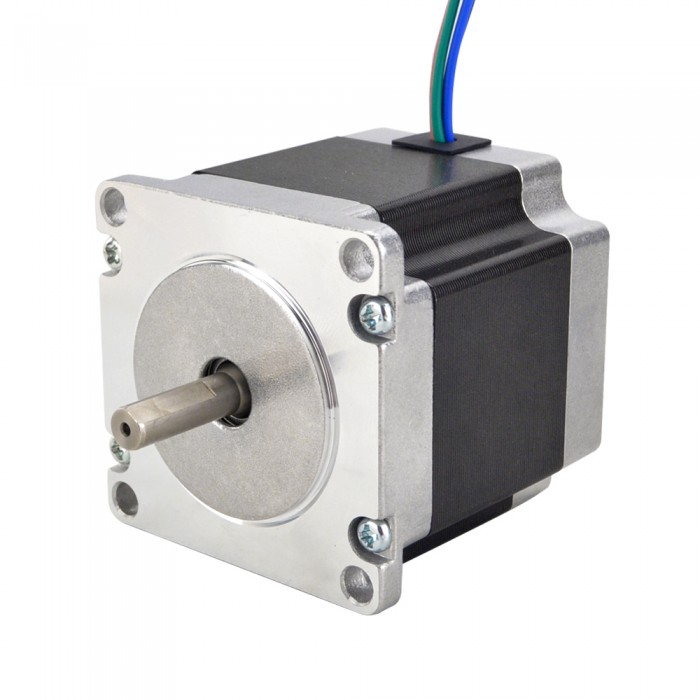

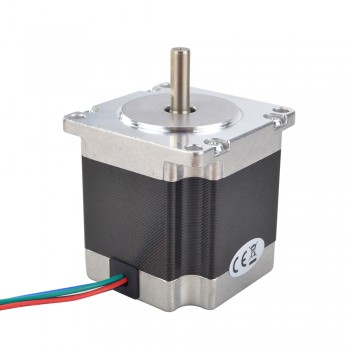

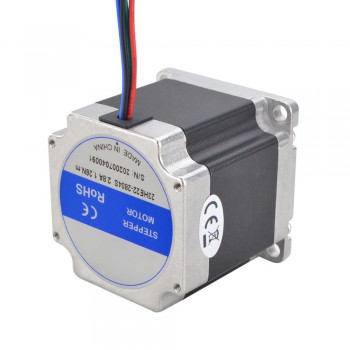

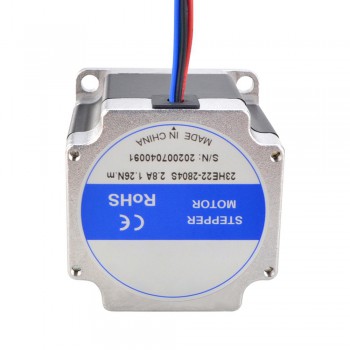

E Series Nema 23 Stepper Motor Bipolar 2 Phase 1.8 Degree 4 Wires 1.26 Nm(178.04oz.in) 2.8A

E Series Nema 23 Stepper Motor Bipolar 2 Phase 1.8 Degree 4 Wires 1.26 Nm(178.04oz.in) 2.8A
NO.:23HE22-2804S
Post a review
Special Offer in June 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$14.51
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $13.78 5%
30 $13.49 7%
50 $13.06 10%
100 $12.62 13%
Add To Cart

E Series Nema 23 Stepper Motor Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A 57x57x56mm 4 Wires



Electrical Specification

Manufacturer Part Number: 23HE22-2804S

Number of phase: 2

Step Angle: 1.8 deg

Holding Torque: 1.26 Nm(178.04oz.in)

Rated Current/phase: 2.8 A

Phase Resistance: 0.9 ohms± 10%

Inductance: 2.5 mH ± 20%(1KHz)



Physical Specification

Frame Size: 57 x 57 mm

Body Length: 56 mm

Shaft Diameter: Φ6.35 mm

Shaft Length: 21 mm

D-cut Length: 15 mm

Number of Leads: 4

Lead Length: 300 mm

Weight: 0.7 kg



Connection



A+ A- B+ B-
BLK GRN RED BLU



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: S Series Nema 34 Stepper Motor 1.8 Degree 4.8Nm(679.87oz.in) 2 Phase 6.0A Key-way Shaft
Next: S Series Nema 34 Stepper Motor 1.8 Deg 13.0Nm(1841.31oz.in) 2 Phase 6.0A Key-way Shaft
Electrical Specification
Holding Torque (Ncm) 126
Holding Torque (oz.in) 178.4
Inductance(mH) 2.5
Phase Resistance(ohm) 0.9
Rated Current (A) 2.8
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 56
Frame Size(mm) Nema 23 (57 x 57)
Lead Length(mm) 300
No. of Lead 4
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
Single Shaft/Dual Shaft Single Shaft
Weight(g) 700
Output Shaft Type D-Cut
