PT-719 IP65 Industry Hydraulic Pressure Sensor Transducer Sender 0-10V 4-20mA Pressure Transmitter

PT-719 IP65 Industry Hydraulic Pressure Sensor Transducer Sender 0-10V 4-20mA Pressure Transmitter

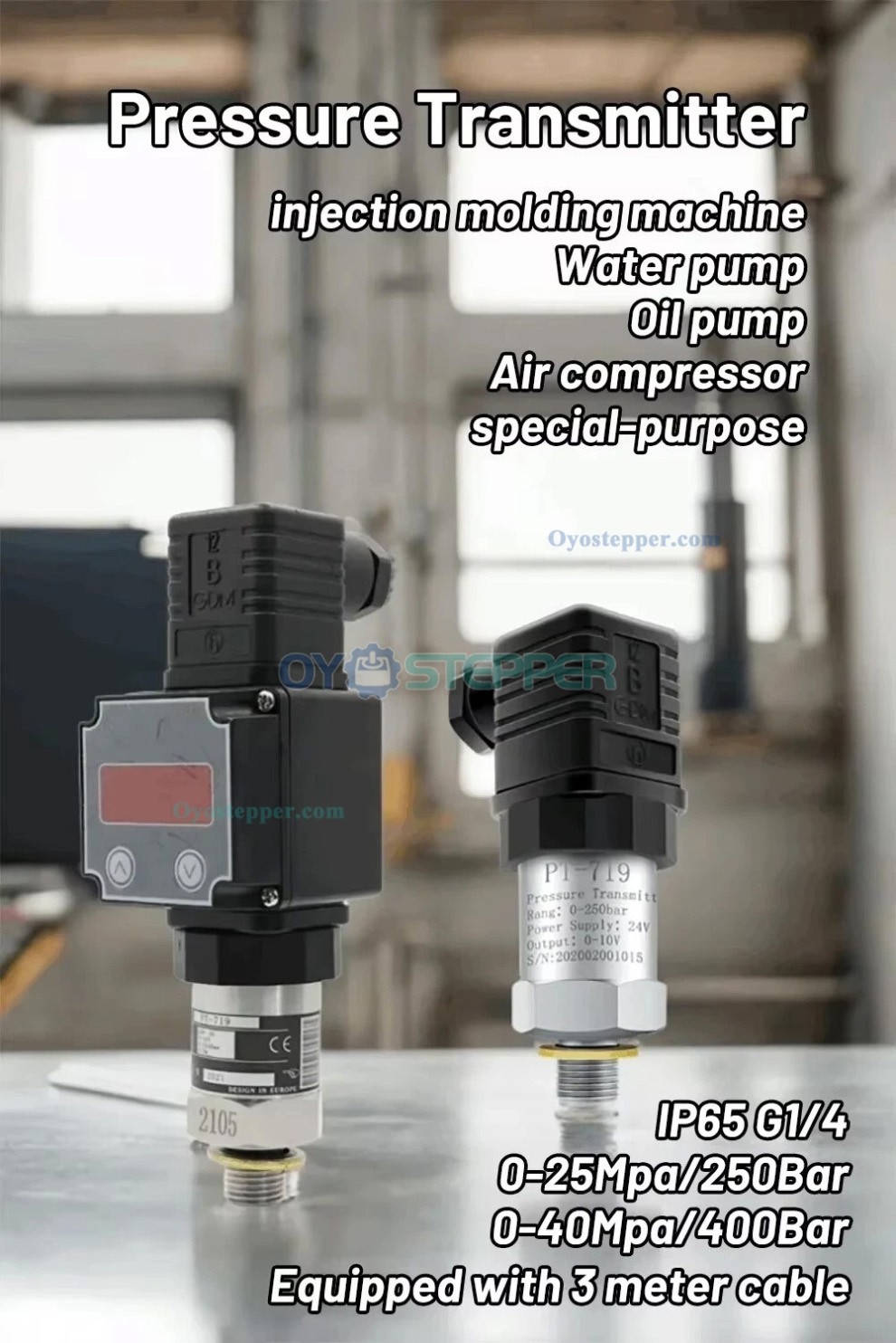

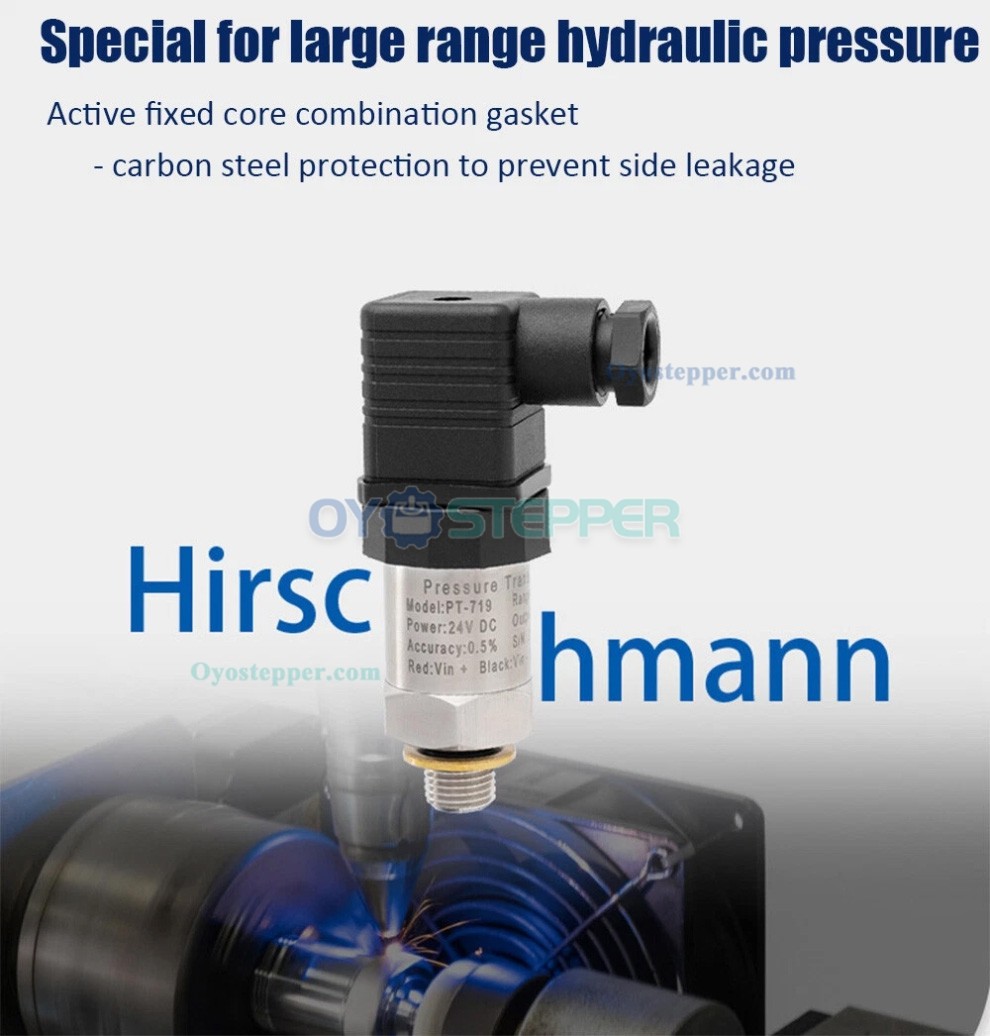

The PT-719 pressure transmitter uses a 96% alumina sensor core and converts pressure to 4-20mA or 0-10VDC output through amplification, digital temperature compensation, and non-linear correction, and is used for high-pressure applications such as injection molding machines.


Applications:
1.Air compressor and pump;
2.Liquid pressure and air pressure system;
3.Energy resources and water treatment system;
4.Refrigerating equipment;
5.Automatic detection system;
6.Locomotive brake;
7.Environmental protection field;
8.Agriculture application and mechanical automation.


Parameters:
Capacity Range: 0-250 Bar / 0-400 Bar
Comprehensive Precision: 0.5%
Output signal: : 4-20mA / 0-10V
Overload pressure: 3 times
Defend Grade: IP65

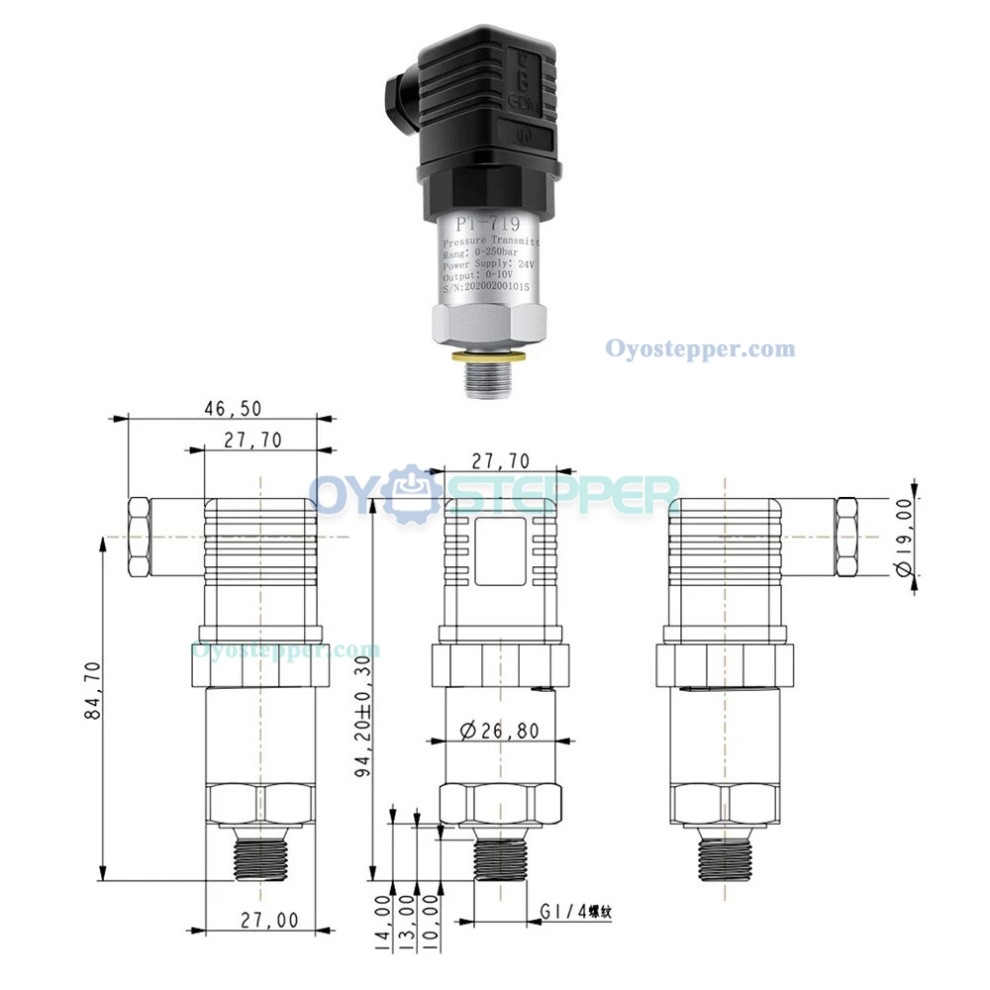

Pressure Connection: G1/4(Customizable 1/4NPT, R1/4)
Using Temperature Range: 0 to125°
Temperature drift: ±0.02%℃
Housing Material: 304/316 Stainless Steel

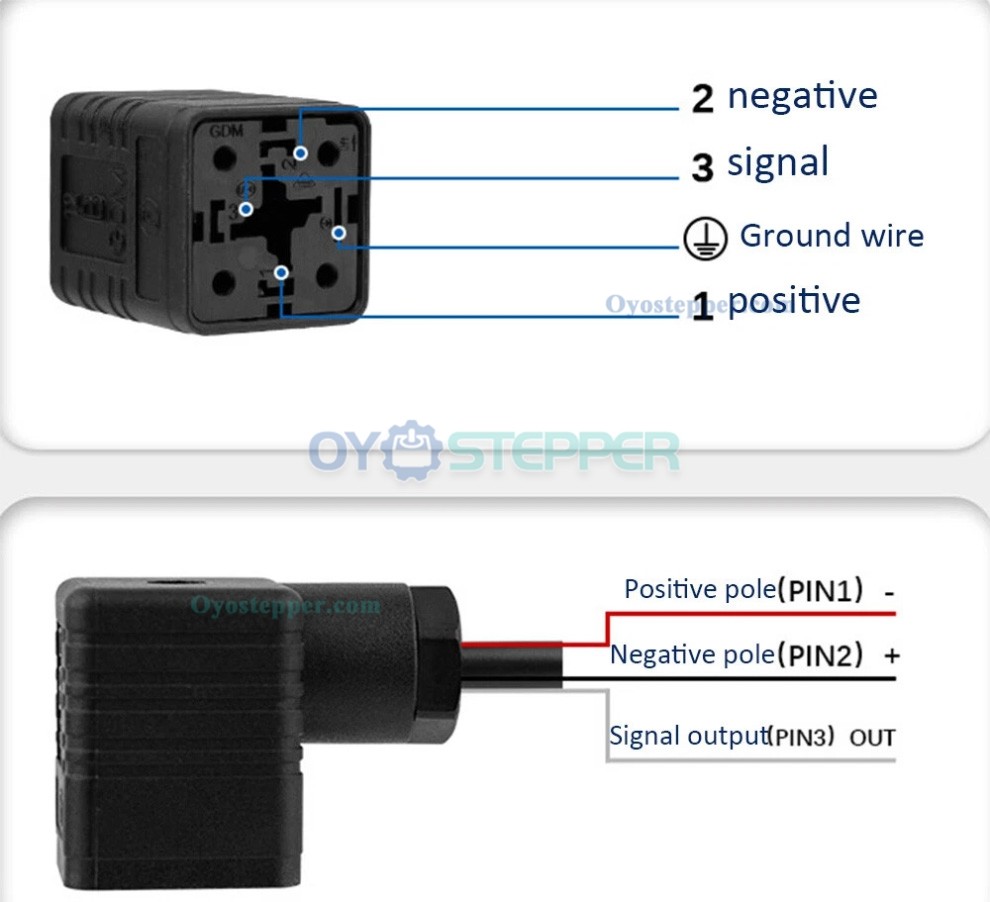

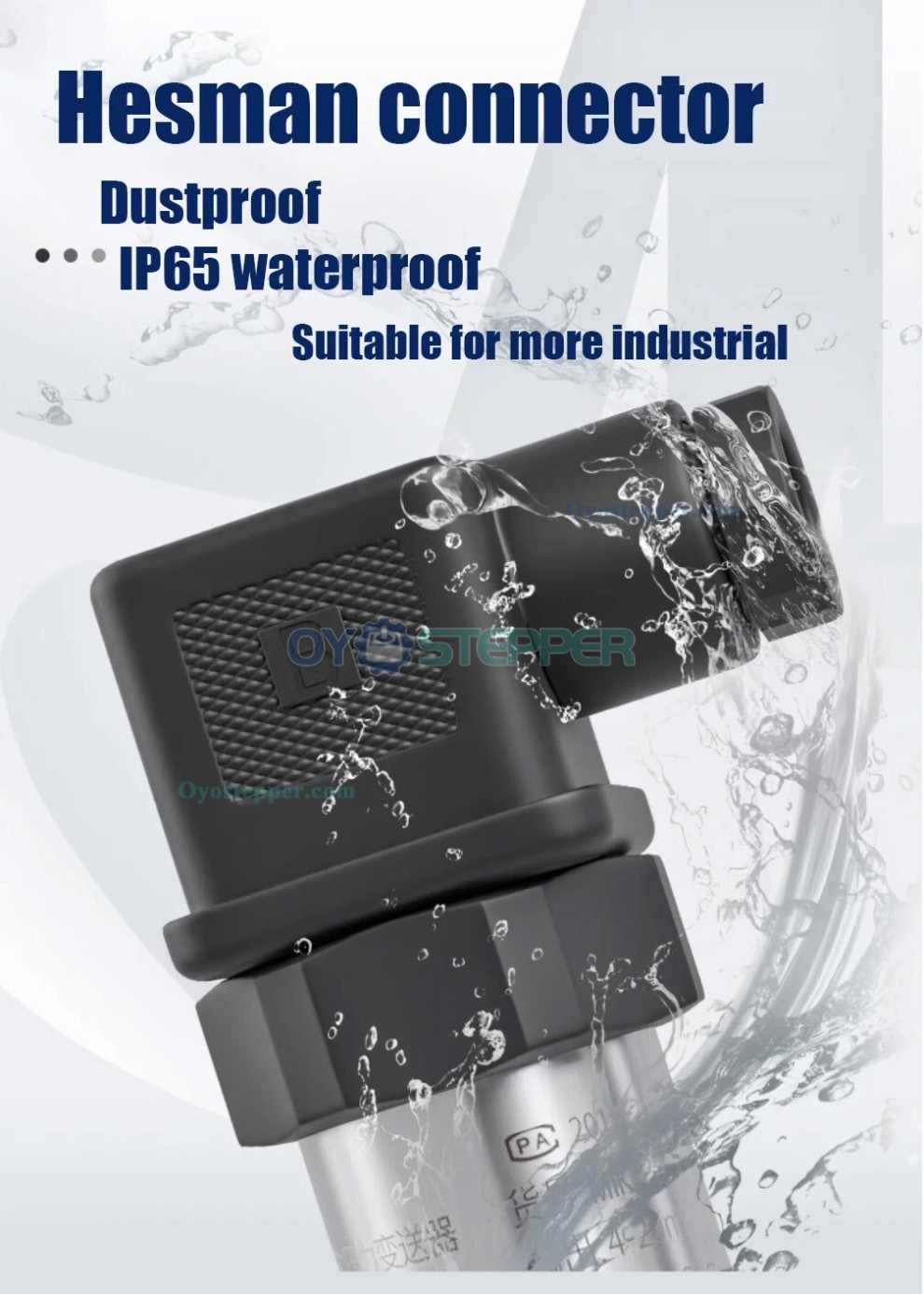

Pressure Connection: Original German Husman connector
Power supply voltage: DC24V (compatible with 9-33VDC)

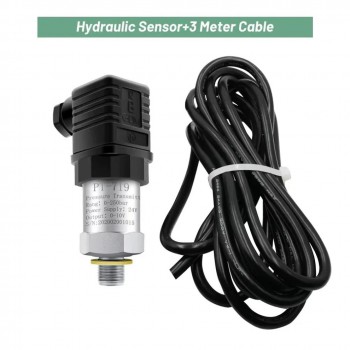

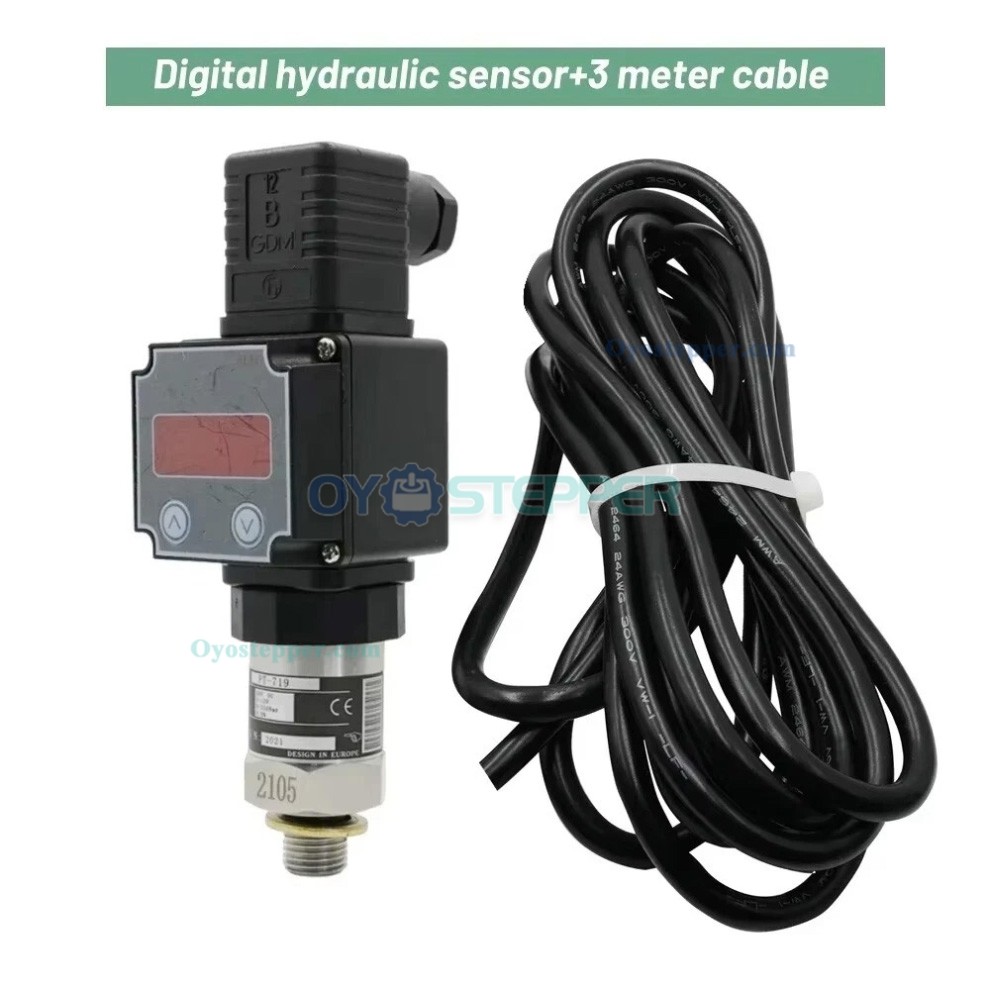

Cable Length: 3M


Package list:
1PC Pressure Transmitter

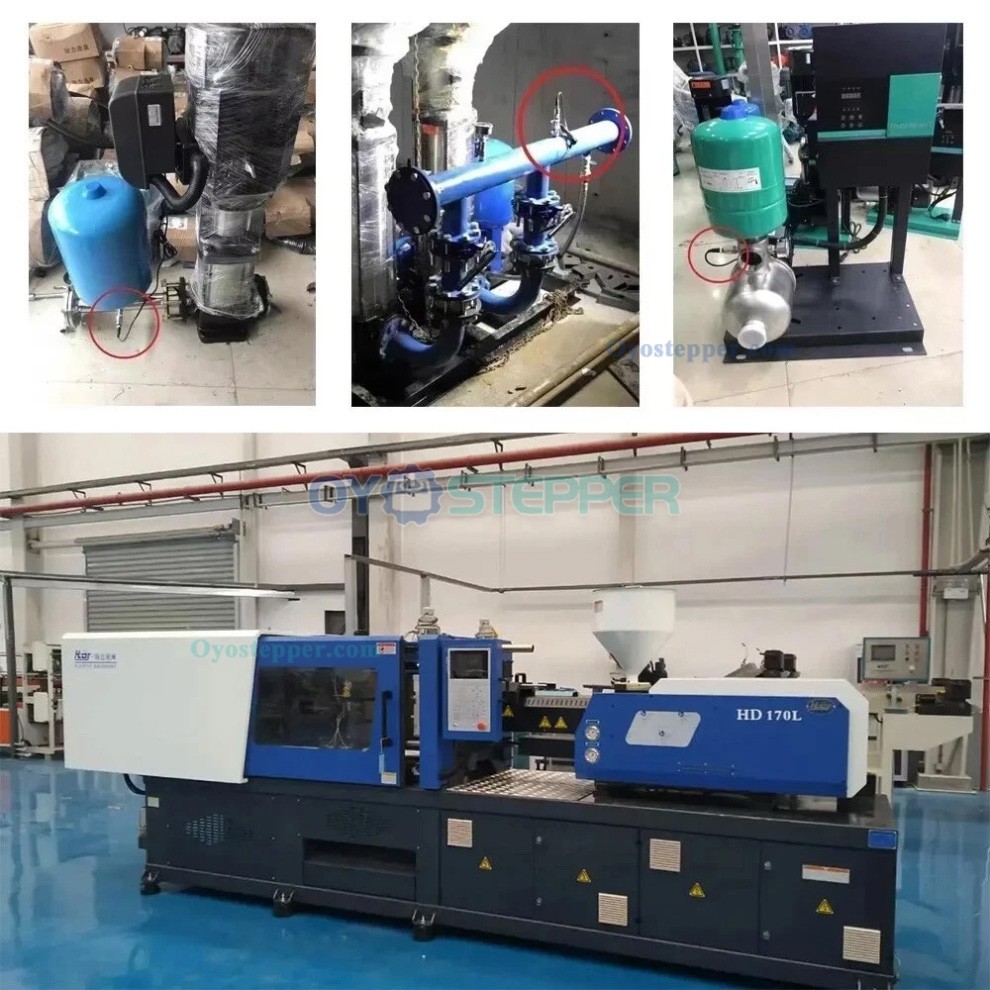

Application:
